Hipro Power 9007 3000K Golden Yellow Halogen Headlight Bulbs User Manual

1. Product Overview

The Hipro Power 9007 headlight bulbs are designed to provide a golden yellow light output at 3000K color temperature. These bulbs are a direct replacement for standard 9007 halogen bulbs, offering improved visibility and a distinct aesthetic. They feature a double filament design for both low and high beam functionality within a single bulb.

• Type: 9007 Double Filament-Detector bulb for Low & High Beam
• Color Temperature: 3000K Golden Yellow
• Power: 65/55 Watt, 12V
• Technology: Xenon Gas Filled Halogen
• Purpose: Direct upgrade or replacement for original stock halogen bulbs

2. Safety Information

WARNING:

• Always wear protective gloves and eyewear during installation to prevent injury.
• Ensure the vehicle's ignition is off and the headlights are cool before handling bulbs.
• Avoid touching the glass part of the bulb directly with bare hands, as oils can reduce bulb life. Use a clean cloth or glove.
• These bulbs are designed for vehicles originally equipped with halogen systems. Vehicles equipped with factory-installed or upgraded HID (High-Intensity Discharge) options WILL NOT work with these bulbs. Attempting to install these bulbs in an incompatible HID system may cause damage to the vehicle's electrical system or the bulbs.
• Dispose of old bulbs responsibly according to local regulations.

3. Installation Guide

This section provides general instructions for replacing 9007 headlight bulbs. Specific steps may vary depending on your vehicle's make and model. Refer to your vehicle's owner's manual for detailed instructions on accessing and replacing headlight bulbs.

3.1 Pre-Installation Check

• Verify that the replacement bulbs are the correct 9007 type for your vehicle.
• Ensure the vehicle is parked on a level surface with the engine off and parking brake engaged.
• Allow existing headlight bulbs to cool down completely before handling.

3.2 Installation Steps

1. Locate Headlight Assembly: Open the hood of your vehicle and locate the back of the headlight assembly.
2. Disconnect Power: Carefully disconnect the electrical connector from the back of the existing bulb.
3. Remove Old Bulb: Depending on your vehicle, the bulb may be held in place by a retaining clip, a twist-lock mechanism, or a dust cover. Remove the old 9007 bulb.
4. Insert New Bulb: Take the new Hipro Power 9007 bulb. Do not touch the glass portion of the bulb. Align the tabs on the bulb base with the slots in the headlight housing and insert the bulb. Secure it in place using the retaining clip or twist-lock mechanism.
5. Reconnect Power: Reconnect the electrical connector to the new bulb.
6. Test Functionality: Turn on your vehicle's headlights to test both low and high beam functions. Ensure both bulbs are working correctly.

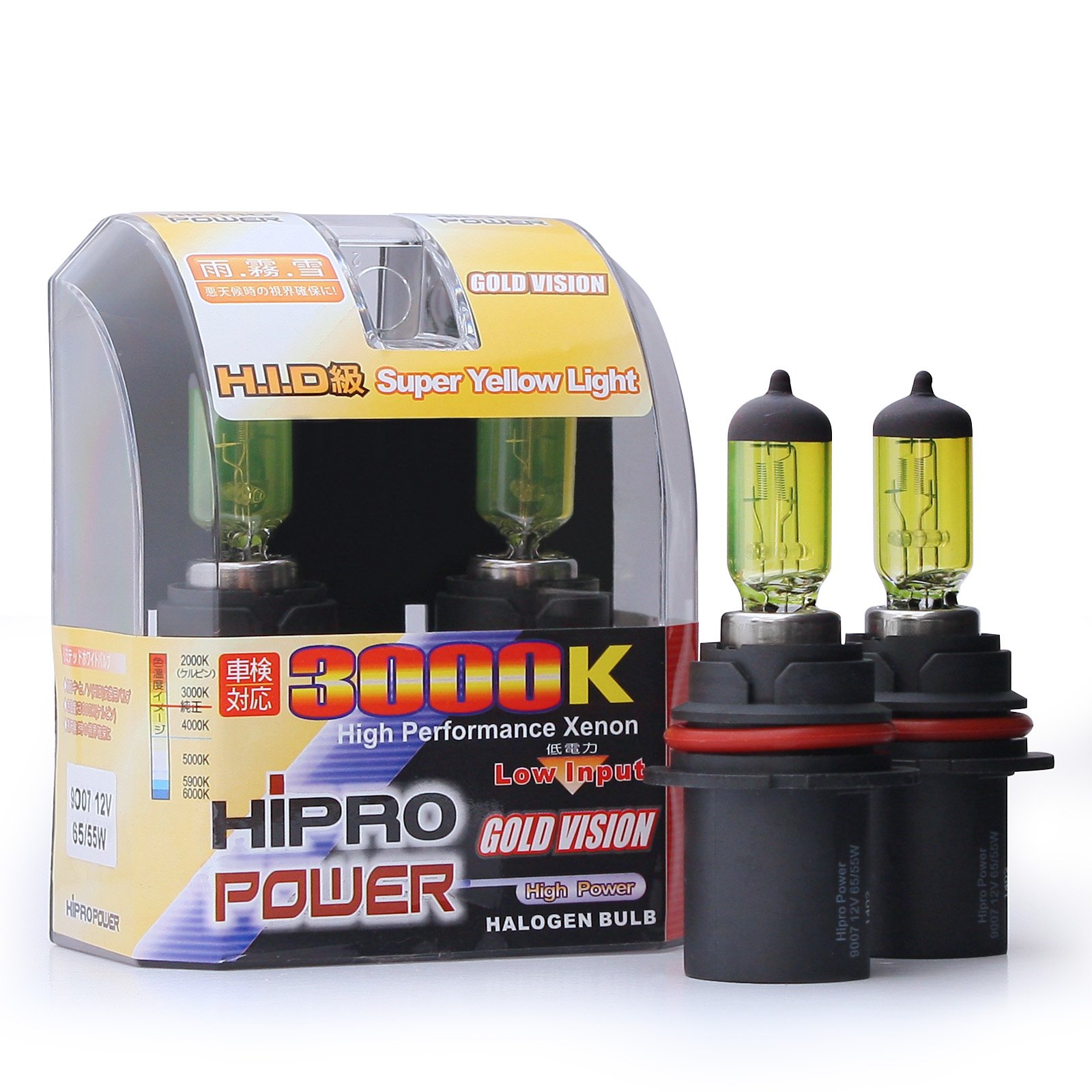

Image: Two Hipro Power 9007 golden yellow halogen headlight bulbs, showing the base and the yellow-tinted glass.

No modification is needed for installation; simply remove stock bulbs and replace with these new ones.

4. Operation

Once installed, the Hipro Power 9007 bulbs operate like standard halogen headlight bulbs. They provide both low beam and high beam functionality from a single bulb, controlled by your vehicle's existing headlight switch.

• Low Beam: Provides standard illumination for general driving conditions.
• High Beam: Offers increased light output for enhanced visibility when needed, typically in rural areas or at night with no oncoming traffic.

The 3000K golden yellow light is designed to offer better visibility in certain conditions, such as fog or rain, by reducing glare and improving contrast.

5. Maintenance

Hipro Power 9007 bulbs are designed for durability and do not require specific routine maintenance beyond proper installation.

• Cleaning: If the glass portion of the bulb becomes dirty during handling, gently wipe it with a clean, lint-free cloth moistened with rubbing alcohol. Ensure the bulb is completely dry before installation.
• Replacement: Bulbs have a finite lifespan. If a bulb fails, replace it with another Hipro Power 9007 bulb to maintain consistent light output and color. It is often recommended to replace bulbs in pairs to ensure balanced illumination.

6. Troubleshooting

If you encounter issues after installing your Hipro Power 9007 bulbs, consider the following troubleshooting steps:

• Bulb Not Lighting Up:
  • Check the electrical connection to ensure it is securely attached.
  • Verify that the bulb is correctly seated in the headlight housing.
  • Inspect the vehicle's fuse box for a blown headlight fuse.
  • Ensure your vehicle is not equipped with a factory HID system, as these bulbs are incompatible.
• Dim or Flickering Light:
  • Ensure the electrical connection is clean and free of corrosion.
  • Check for any loose wiring.
  • Confirm the vehicle's charging system is functioning correctly.
• Incorrect Beam Pattern:
  • Re-check that the bulb is properly seated and aligned in the headlight housing.
  • If issues persist, professional headlight alignment may be required.

If troubleshooting steps do not resolve the issue, consult a qualified automotive technician.

7. Specifications

8. Warranty and Support

For information regarding product warranty, returns, or technical support, please refer to the retailer or manufacturer's official website where the product was purchased. Keep your proof of purchase for any warranty claims.

For further assistance, you may contact Hipro Power customer service through their official channels, if available.
