Makita Cultivator MKR0360H Blue Furrower A-49002 Instruction Manual

1. Introduction

This manual provides essential information for the safe and effective use of your Makita A-49002 Blue Furrower. Please read these instructions carefully before operating the product and retain them for future reference. Proper understanding and adherence to these guidelines will ensure optimal performance and extend the lifespan of your equipment.

2. Product Overview

The Makita A-49002 Blue Furrower is an attachment designed to create flat-bottomed, angular trapezoidal ridges in soil. It is engineered for precision and efficiency in preparing garden beds or fields for planting.

Key Features:

• Efficient Ridge Creation: Specifically designed for forming uniform, flat-bottomed, angular trapezoidal ridges.
• Durable Construction: Built to withstand the rigors of agricultural and gardening tasks.
• Optimized Weight: The product weighs 4 kg, contributing to stable operation when attached to the compatible cultivator.

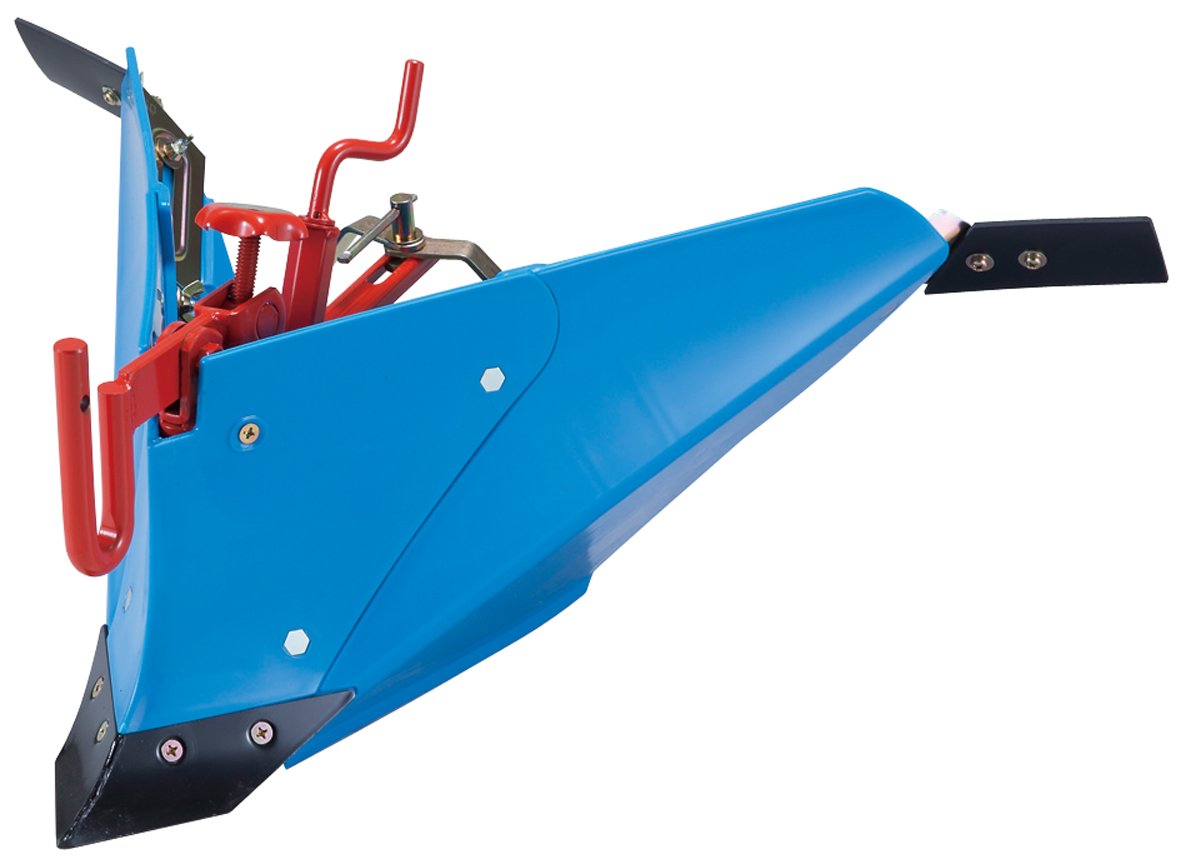

Image 1: The Makita A-49002 Blue Furrower attachment. This image displays the robust construction and design of the furrower, ready for attachment to a compatible cultivator.

3. Compatibility

This Blue Furrower (Model A-49002) is specifically designed for use with the Makita MKR0360H Cultivator. It is also compatible with the MKRO351H (MKR300) model. Ensure your cultivator model matches the specified compatibility to guarantee proper fit and safe operation.

4. Installation

The Makita A-49002 Blue Furrower is an attachment that requires proper installation onto a compatible Makita cultivator. While specific step-by-step instructions for this particular furrower are not provided in the product data, general installation for such attachments typically involves the following:

1. Prepare the Cultivator: Ensure the cultivator is turned off, unplugged (if electric), or the engine is cool and spark plug wire is disconnected (if gas-powered) to prevent accidental startup.
2. Remove Existing Attachments: If another attachment is currently installed, follow your cultivator's manual to safely remove it.
3. Attach the Furrower: Align the mounting points of the A-49002 furrower with the corresponding attachment points on the cultivator. Secure it using the provided pins, bolts, or locking mechanisms. Ensure all connections are tight and secure before use.
4. Verify Security: Gently tug on the furrower to confirm it is firmly attached and does not wobble.

Always refer to your specific Makita cultivator's instruction manual for detailed and model-specific attachment procedures.

5. Operation

Once the A-49002 Blue Furrower is securely attached to your compatible Makita cultivator, follow these general operating guidelines:

1. Pre-Operation Check: Before starting, inspect the furrower for any loose parts, damage, or obstructions. Ensure the ground is clear of large rocks or debris that could damage the equipment.
2. Starting the Cultivator: Follow your cultivator's manual for starting procedures.
3. Creating Ridges: Guide the cultivator with the attached furrower along the desired path. The design of the furrower will automatically create the specified flat-bottomed, angular trapezoidal ridges as you move. Maintain a steady pace for uniform results.
4. Depth Control: Adjust the depth of the furrower according to your specific planting needs. This is typically controlled via settings on the cultivator itself, or by the angle at which the furrower is held.
5. Safety: Always wear appropriate personal protective equipment (PPE), including sturdy footwear, gloves, and eye protection. Keep bystanders, especially children and pets, away from the operating area.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your Makita A-49002 Blue Furrower. Always perform maintenance tasks with the cultivator turned off and disconnected from its power source.

• Cleaning: After each use, clean soil, debris, and plant matter from the furrower blades and housing. A stiff brush or scraper can be used.
• Inspection: Regularly inspect the blades for wear, damage, or bending. Check all bolts, nuts, and pins for tightness. Replace any worn or damaged parts immediately.
• Lubrication: If your cultivator or furrower attachment has grease points or moving parts that require lubrication, follow the manufacturer's recommendations for type and frequency.
• Storage: Store the furrower in a clean, dry place, protected from weather and extreme temperatures.

7. Specifications

8. Troubleshooting

This section addresses common issues you might encounter with the Makita A-49002 Blue Furrower. For issues related to the cultivator itself, please refer to your cultivator's instruction manual.

• Poor Ridge Formation:
  • Ensure the furrower is correctly attached and all fasteners are tight.
  • Check the soil condition; extremely wet or dry soil may affect performance.
  • Verify the operating speed and depth settings on your cultivator.
• Excessive Vibration:
  • Inspect the furrower for any bent or damaged blades.
  • Ensure the attachment is securely fastened to the cultivator.
• Difficulty Moving:
  • Check for debris or tangled plant matter around the blades.
  • Ensure the soil is not excessively compacted or contains large obstacles.

9. Warranty & Support

For warranty information, service, or technical support regarding your Makita A-49002 Blue Furrower, please refer to the documentation provided with your original Makita cultivator or contact Makita customer service directly. Keep your proof of purchase for any warranty claims.

10. Product Videos

No official product videos specifically demonstrating the Makita A-49002 Blue Furrower were available in the provided data. The available videos are for different cultivator models and brands and are not directly relevant to this specific attachment.
