1. Introduction
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Briggs & Stratton 950 Series engine, model 130G32-0022-F1. This 208cc single-cylinder engine is designed to deliver reliable power for various equipment applications. It features a 9.50 gross torque rating, a premium Dual Clean air filtration system, and a maintenance-free Magnetron electronic ignition for dependable starts. The engine also incorporates a Dura-Bore cast iron cylinder sleeve for extended durability, an installed muffler, and an integrated fuel tank.
Please read this manual thoroughly before operating the engine to ensure proper use and to prevent injury or damage.
2. Safety Information
WARNING: Read and follow all safety instructions before operating this engine. Failure to do so could result in serious injury or death.
- Fuel Safety: Gasoline is flammable. Allow engine to cool at least 2 minutes before refueling. Refuel outdoors in a well-ventilated area. Do not smoke or allow open flames near the engine.
- Exhaust Fumes: Engine exhaust contains carbon monoxide, a colorless, odorless, poisonous gas. Do not run the engine in an enclosed area. Ensure adequate ventilation.
- Hot Surfaces: Engine components, especially the muffler, can become extremely hot during operation and remain hot for a period after shutdown. Do not touch hot parts. Temperatures can exceed 150°F (65°C).
- Moving Parts: Keep hands, feet, and clothing away from moving parts such as the crankshaft and fan.
- Oil Level: This engine is equipped with a low oil sensor. If the engine will not start, check the oil level.
- Proposition 65 Warning: This product can expose you to chemicals including carbon monoxide, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
3. Setup
3.1 Unpacking and Inspection
Carefully remove the engine from its packaging. Inspect for any signs of shipping damage. Report any damage to your dealer immediately. Ensure all components listed in the packing list (if provided) are present.
3.2 Mounting the Engine
Mount the engine securely to a stable, level surface using appropriate hardware. Ensure the mounting bolts are tightened to the manufacturer's specifications for your equipment. The engine features a 3/4-inch diameter crankshaft for connection to your application's drive system.
3.3 Adding Engine Oil
The engine is shipped without oil. You MUST add engine oil before starting. Refer to the specifications section for recommended oil types and capacities.
- Place the engine on a level surface.
- Locate the oil fill cap/dipstick.
- Remove the cap/dipstick and slowly add the recommended oil (e.g., 10W-30) until the oil level reaches the FULL mark on the dipstick. Do not overfill.
- Securely replace the oil fill cap/dipstick.

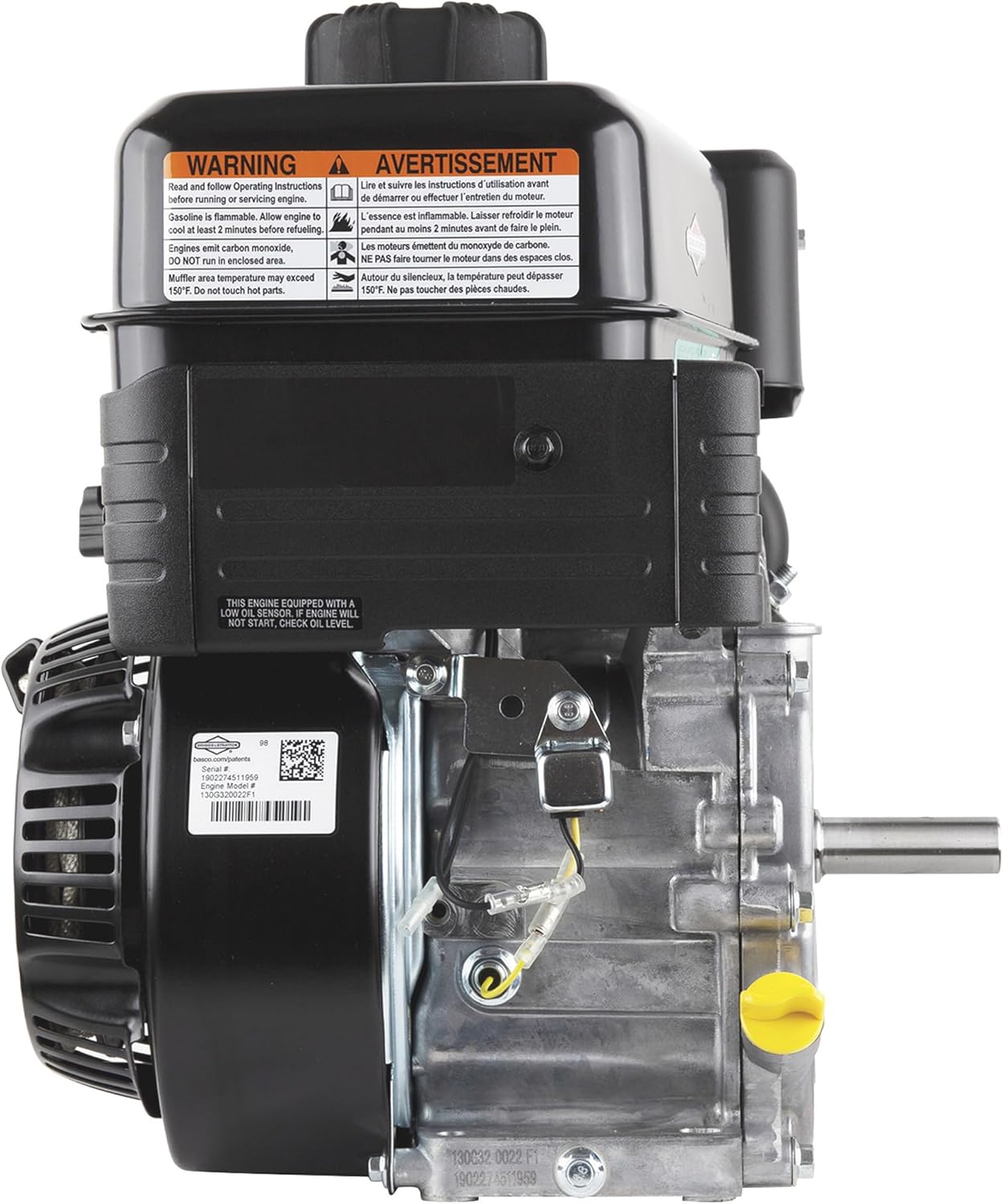

Image: Top view of the Briggs & Stratton 950 Series engine, highlighting the oil fill cap and fuel tank. Ensure the oil fill cap is securely fastened after adding oil.
3.4 Adding Fuel
Use clean, fresh, unleaded gasoline with an octane rating of 87 or higher. Do not use E85 gasoline or gasoline containing more than 10% ethanol (E10). Always refuel in a well-ventilated area with the engine off and cool.
- Ensure the engine is off and cool.
- Remove the fuel cap.
- Fill the fuel tank slowly, leaving some space for expansion. Do not overfill.
- Securely replace the fuel cap.
4. Operating the Engine
4.1 Starting Procedure
- Ensure the engine is on a level surface.
- Move the throttle control to the FAST position.
- Move the choke control to the FULL CHOKE position (for cold starts). For warm starts, the choke may not be necessary.
- Turn the engine ON/OFF switch to the ON position.
- Pull the starter rope slowly until resistance is felt, then pull quickly and firmly. Repeat if necessary until the engine starts.
- Once the engine starts, gradually move the choke control to the OFF position as the engine warms up.
Image: Front view of the Briggs & Stratton 950 Series engine, illustrating the location of the choke lever, throttle control, and the red ON/OFF switch for starting and stopping the engine.
4.2 Stopping Procedure
- Move the throttle control to the SLOW or IDLE position.
- Turn the engine ON/OFF switch to the OFF position.
- If equipped with a fuel shut-off valve, turn it to the OFF position.
5. Maintenance
Regular maintenance is crucial for the longevity and optimal performance of your Briggs & Stratton engine. Always perform maintenance with the engine off and cool, and disconnect the spark plug wire to prevent accidental starting.
5.1 Engine Oil
Initial Oil Change: Change the engine oil after the first 5-10 hours of operation to remove any break-in contaminants.
Regular Oil Change: Change the oil every 50 hours of operation or annually, whichever comes first. Use Briggs & Stratton SAE 30W oil for temperatures above 40°F (4°C) or SAE 10W-30 for varying temperatures. Note that 30W oil may cause hard starting below 40°F.
5.2 Air Filter
This engine features a premium Dual Clean air filtration system. Inspect the air filter regularly (every 25 hours or seasonally) and clean or replace as needed. A dirty air filter can reduce engine performance and life.
Image: Side view of the Briggs & Stratton 950 Series engine, showing the air filter housing on the left. Regular inspection and cleaning of the air filter are essential for engine health.
5.3 Spark Plug
Inspect the spark plug annually or every 100 hours. Clean or replace if necessary. Ensure the gap is set to the recommended specification (refer to engine specifications or a Briggs & Stratton service manual).
5.4 Fuel System
To prevent fuel system issues, especially during storage, use a fuel stabilizer or drain the fuel tank and carburetor. Always use fresh gasoline.
6. Troubleshooting
This section provides solutions to common engine problems. For issues not listed here, consult an authorized Briggs & Stratton service dealer.
| Problem | Possible Cause | Solution |
|---|---|---|
| Engine will not start | No fuel or stale fuel | Add fresh fuel; drain and refill if stale. |
| Low oil level | Add oil to the correct level. | |
| Spark plug faulty or dirty | Clean, gap, or replace spark plug. | |
| Choke not set correctly | Adjust choke for cold or warm start. | |
| Engine runs poorly | Dirty air filter | Clean or replace air filter. |
| Stale fuel | Drain and refill with fresh fuel. | |
| Spark plug issues | Inspect and service spark plug. | |
| Engine smokes | Overfilled oil | Drain excess oil to correct level. |
7. Specifications
| Feature | Specification |
|---|---|
| Model Number | 130G32-0022-F1 |
| Engine Type | Single Cylinder, 4-Stroke, OHV |
| Displacement | 208cc |
| Gross Torque | 9.50 |
| Crankshaft Diameter | 3/4 inches |
| Cylinder Sleeve | Dura-Bore Cast Iron |
| Ignition System | Magnetron Electronic |
| Air Filtration | Dual Clean |
| Dimensions (L x W x H) | 14 x 12.5 x 14.5 inches |
| Weight | 20 pounds |
| Recommended Oil | SAE 10W-30 (all temperatures), SAE 30W (above 40°F) |
8. Warranty and Support
Your Briggs & Stratton 950 Series engine, model 130G32-0022-F1, comes with a manufacturer limited warranty of 2 years for consumer use and 90 days for commercial use. This warranty covers defects in material and workmanship under normal use and service.
To ensure full warranty coverage and to maximize engine life, always use genuine Briggs & Stratton replacement parts. Using non-genuine parts may void your warranty and could lead to engine damage.
For technical support, warranty claims, or to locate an authorized service dealer, please visit the official Briggs & Stratton website or contact their customer service. You can also find more information and genuine parts at the Briggs & Stratton Store on Amazon.
