Introduction
This manual provides essential information for the installation, operation, and maintenance of your Flowmaster 2010013 Catalytic Converter. This universal catalytic converter is designed to meet Federal EPA emissions requirements for a wide range of vehicle applications. It features durable stainless steel construction for longevity.
Please read this manual thoroughly before proceeding with installation or any related procedures to ensure proper function and safety.
Safety Information
Always prioritize safety when working on vehicles. Failure to follow safety precautions can result in serious injury or damage to the vehicle.
- Ensure the vehicle is securely supported on jack stands or a lift before working underneath.
- Allow the exhaust system to cool completely before handling to prevent burns.
- Wear appropriate personal protective equipment (PPE), including safety glasses, gloves, and hearing protection.
- Work in a well-ventilated area to avoid exposure to exhaust fumes.
- Disconnect the vehicle's battery before beginning electrical work, if applicable.
- Consult a professional mechanic if you are unsure about any step of the installation process.
Setup and Installation
Installation of a catalytic converter requires specialized tools and knowledge. Professional installation is highly recommended. This section provides general guidelines; specific steps may vary depending on your vehicle's make and model.
Required Tools and Materials:
- Wrenches/Sockets
- Exhaust pipe cutter or saw
- Welding equipment (if required for specific applications)
- Gaskets and mounting hardware (may be sold separately)
- Oxygen sensor wrench
- Penetrating oil
General Installation Steps:
- Prepare the Vehicle: Lift and secure the vehicle. Allow the exhaust system to cool.
- Locate and Remove Old Converter: Identify the existing catalytic converter. Apply penetrating oil to bolts and nuts. Disconnect oxygen sensors. Carefully remove the old converter, cutting the exhaust pipe if necessary.
- Prepare for New Converter: Clean mating surfaces. Ensure proper alignment of the new Flowmaster 2010013 converter.
- Install New Converter: Position the new converter. Attach the inlet flange and outlet clamp-on connections. Ensure all connections are secure and leak-free. Reinstall oxygen sensors.
- Final Checks: Lower the vehicle. Start the engine and check for exhaust leaks. Monitor for any warning lights.

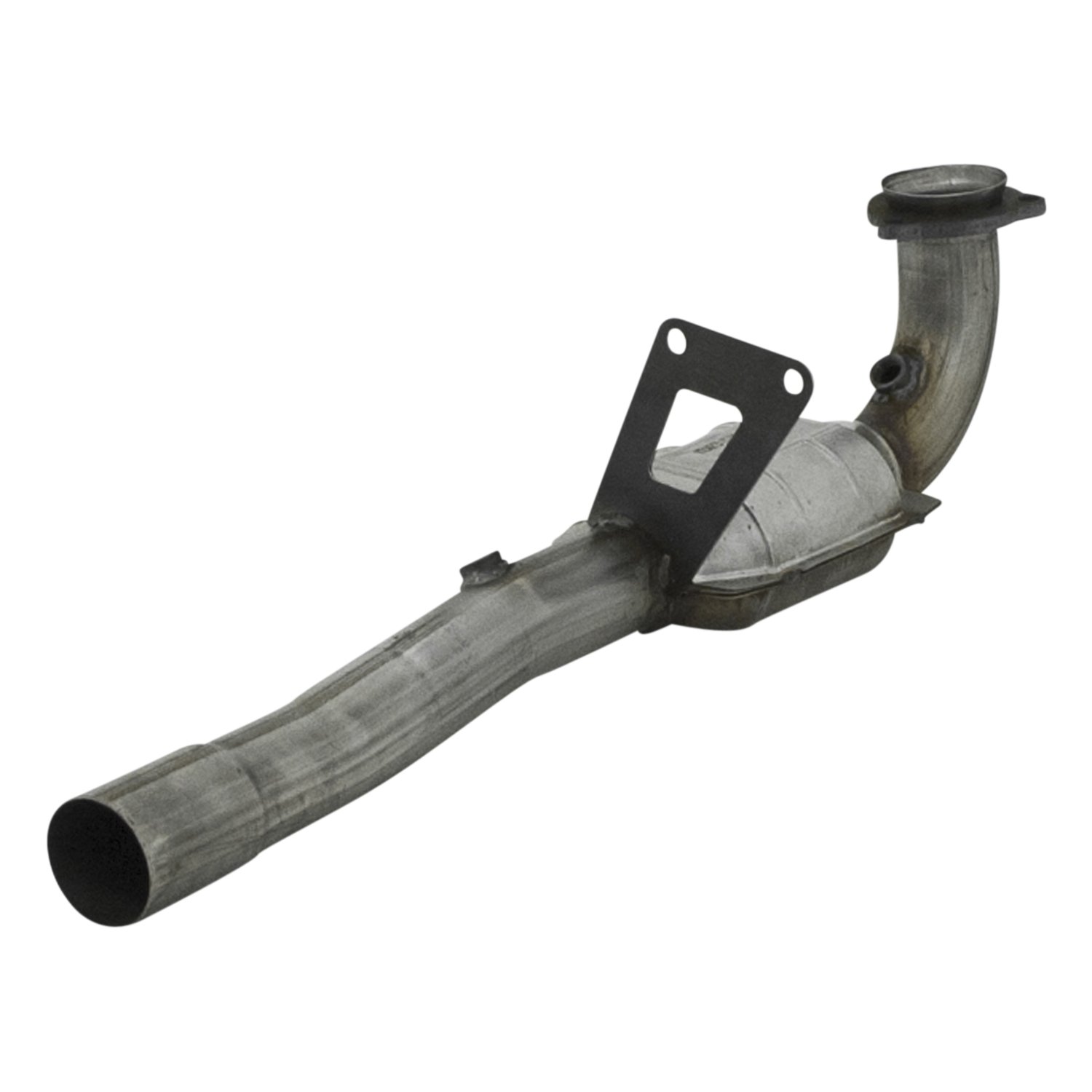

Image 1: Side view of the Flowmaster 2010013 Catalytic Converter, showing the inlet flange and outlet pipe.
Image 2: Top view of the Flowmaster 2010013 Catalytic Converter, highlighting the main body and mounting bracket.
Operating Principles
The Flowmaster 2010013 Catalytic Converter functions as a passive component within your vehicle's exhaust system. Its primary role is to convert harmful pollutants in the engine's exhaust gases into less toxic substances before they are released into the atmosphere.
Inside the converter, a ceramic substrate coated with precious metals (such as platinum, palladium, and rhodium) facilitates chemical reactions. These reactions transform carbon monoxide (CO) into carbon dioxide (CO2), unburnt hydrocarbons (HC) into carbon dioxide and water (H2O), and nitrogen oxides (NOx) into nitrogen (N2) and oxygen (O2).
No direct user operation is required for the catalytic converter itself; its function is automatic once installed and the engine is running.
Maintenance
Catalytic converters are designed for long-term durability and typically require minimal direct maintenance. However, proper vehicle maintenance is crucial for the converter's lifespan and efficiency.
- Regular Engine Maintenance: Ensure your engine is running efficiently. Misfires, excessive oil consumption, or rich fuel mixtures can damage the catalytic converter over time.
- Exhaust System Inspection: Periodically inspect the entire exhaust system for leaks, cracks, or damage. Address any issues promptly to prevent stress on the converter.
- Avoid Contaminants: Prevent the use of leaded fuels or certain fuel additives, as these can contaminate and degrade the catalyst materials.
Troubleshooting
If you experience issues that may be related to your catalytic converter, consider the following common problems and potential solutions:
| Symptom | Possible Cause | Solution |
|---|---|---|
| Check Engine Light (P0420/P0430) | Catalytic converter efficiency below threshold, oxygen sensor malfunction, exhaust leak. | Diagnose with an OBD-II scanner. Inspect oxygen sensors and exhaust system. If converter is faulty, replacement may be necessary. |
| Reduced Engine Performance | Clogged or restricted catalytic converter. | Inspect for backpressure. A severely clogged converter will restrict exhaust flow. |
| Sulfur or Rotten Egg Smell | Excess sulfur in fuel, rich fuel mixture, or converter operating inefficiently. | Check engine for proper fuel-air mixture. Consider fuel quality. |
| Rattling Noise from Exhaust | Broken internal substrate within the converter. | Converter replacement is typically required. |
For persistent issues, it is recommended to consult a certified automotive technician.
Specifications
| Feature | Detail |
|---|---|
| Model Number | 2010013 |
| Brand | Flowmaster |
| Case Material | Stainless Steel |
| Substrate Material | Ceramic |
| Inlet Size | 2.5 inches (2-1/2 in.) |
| Inlet Attachment | Flange |
| Outlet Size | 2.75 inches (2-3/4 in.) |
| Outlet Attachment | Clamp-On |
| Shape | Oval |
| Body Length | 8 inches |
| Overall Length | 30.5 inches (30-1/2 in.) |
| Item Weight | 5.67 kg |
| Country of Origin | USA |
Warranty Information
Flowmaster catalytic converters are manufactured to high-quality standards. For specific warranty terms and conditions, please refer to the official Flowmaster warranty documentation included with your purchase or visit the official Flowmaster website. Warranty coverage typically addresses manufacturing defects.
Customer Support
If you have questions regarding the Flowmaster 2010013 Catalytic Converter, require technical assistance, or need to inquire about warranty claims, please contact Flowmaster customer service directly.
Flowmaster Official Website: www.flowmastermufflers.com
Refer to the website for current contact information, including phone numbers and email support.
