Mean Well APC-12-350 Constant Current LED Driver Instruction Manual

1. Introduction

This manual provides essential information for the safe and effective installation and operation of the Mean Well APC-12-350 Constant Current LED Driver. The APC-12-350 is a compact, fully isolated AC-DC LED driver designed to provide a constant current output of 350mA for LED lighting applications. It operates from a wide input voltage range of 90-264Vac and delivers 12.6W of power. This unit is a Class 2 power unit, suitable for various lighting designs.

Key features include:

• 12 Watt Hardwired LED Driver
• Input Voltage: 90 ~ 264Vac
• Output Voltage Range: 9 ~ 36Vdc
• Output Current: 350mA (0.35A)
• Fully Isolated, low profile plastic case
• IP42 rated for protection against solid objects and splashing water
• UL rated wire connections (18-20AWG)

2. Important Safety Instructions

Please read these instructions carefully before installation and operation. Failure to follow these instructions may result in electric shock, fire, or other hazards.

• Qualified Personnel: Installation and servicing must be performed by qualified personnel only.
• Power Disconnection: Always disconnect power at the circuit breaker before installing or servicing the unit.
• Ventilation: Ensure adequate ventilation around the driver. Do not cover the unit.
• Environment: This unit is rated IP42, suitable for dry and damp locations. Do not expose to direct water spray or immersion.
• Wiring: Ensure all wiring connections are secure and comply with local electrical codes. Use appropriate wire gauges.
• Overload Protection: Do not exceed the specified output current or wattage.
• Grounding: Ensure proper grounding where applicable.

3. Package Contents

Verify that all items are present and undamaged:

• Mean Well APC-12-350 Constant Current LED Driver (1 unit)

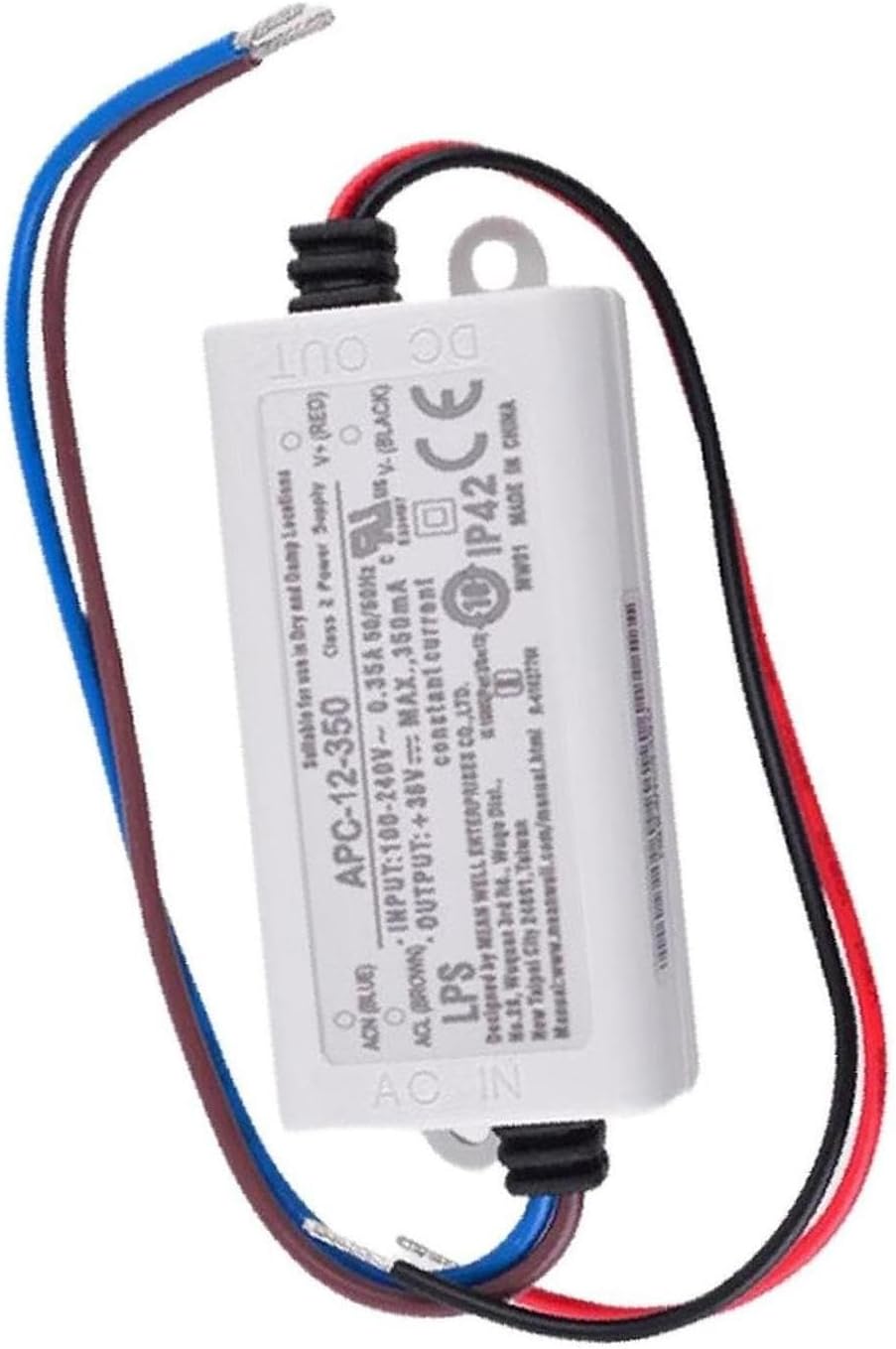

Image 1: Top view of the Mean Well APC-12-350 LED Driver, showing the compact white plastic casing and the pre-attached input (blue/brown) and output (red/black) wires. Product specifications are visible on the label.

4. Installation and Wiring

Follow these steps for proper installation:

1. Prepare the Installation Area: Ensure the mounting surface is stable and provides adequate ventilation. The driver should be installed in a location that is protected from direct water exposure, consistent with its IP42 rating.
2. Disconnect Power: Before making any electrical connections, ensure that the main power supply to the circuit is turned off at the breaker.
3. AC Input Wiring:
   • Connect the blue wire (ACN) to the Neutral line of your AC power supply.
   • Connect the brown wire (ACL) to the Live line of your AC power supply.
   • Ensure connections are secure using appropriate wire connectors or terminal blocks.
4. DC Output Wiring:
   • Connect the red wire (V+) to the positive (+) input of your LED fixture.
   • Connect the black wire (V-) to the negative (-) input of your LED fixture.
   • Verify that your LED fixture requires a constant current of 350mA and operates within the 9-36Vdc range.
5. Secure the Driver: The driver features mounting tabs. Secure the unit using appropriate screws (not included) to prevent movement.
6. Final Check: Double-check all wiring connections for correctness and security before restoring power.

Image 2: Close-up view of the Mean Well APC-12-350 LED Driver, highlighting the input (ACN, ACL) and output (V+, V-) wiring labels for clear identification during installation.

5. Operation

Once the Mean Well APC-12-350 LED Driver is correctly installed and wired:

1. Restore Power: Turn on the main power supply at the circuit breaker.
2. Verify Functionality: The connected LED fixture should illuminate. If not, refer to the Troubleshooting section.
3. The driver will automatically provide the specified constant current to the LEDs. No user adjustments are required for normal operation.

6. Maintenance

The Mean Well APC-12-350 LED Driver is designed for reliable, long-term operation with minimal maintenance. However, periodic checks can help ensure optimal performance and longevity:

• Cleaning: Ensure the driver's casing is free from dust and debris. Use a soft, dry cloth for cleaning. Do not use liquid cleaners.
• Inspection: Periodically inspect the wiring for any signs of damage, fraying, or loose connections.
• Ventilation: Confirm that the installation area remains clear and allows for proper airflow around the unit.
• Environmental Conditions: Ensure the operating environment remains within the specified temperature and humidity ranges, and that the unit is not exposed to conditions beyond its IP42 rating.

Image 3: Side view of the Mean Well APC-12-350 LED Driver, showing the compact profile and a barcode label. This view emphasizes the unit's discreet design for integration into lighting systems.

7. Troubleshooting

If you encounter issues with your Mean Well APC-12-350 LED Driver, refer to the following common problems and solutions:

8. Technical Specifications

Image 4: Angled view of the Mean Well APC-12-350 LED Driver, showcasing its overall form factor and the attached wiring. This perspective helps visualize the unit's compact size.

9. Warranty and Support

For warranty information and technical support, please refer to the documentation provided with your purchase or contact the retailer from whom you purchased this product. You may also visit the official Mean Well website for general product information and support resources.

Note: This product is manufactured by Mean Well. For specific warranty terms, please consult the manufacturer's official policy or your point of purchase.
