Philips Daily Collection HR7627/00 Mini Food Processor User Manual

1. Introduction

Thank you for choosing the Philips Daily Collection HR7627/00 Mini Food Processor. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your appliance. Please read these instructions carefully before first use and retain them for future reference.

2. Important Safety Information

Always observe the following basic safety precautions when using your food processor:

• Read all instructions before operating the appliance.
• Ensure the appliance is assembled correctly before switching it on. The built-in safety lock mechanism prevents operation if components are not securely in place.
• Do not immerse the motor unit in water or any other liquid. Clean with a damp cloth only.
• Keep hands and utensils away from moving blades during operation to prevent injury.
• Always unplug the appliance from the power outlet before cleaning, assembling, disassembling, or when not in use.
• This appliance is for household use only. Do not use outdoors.
• Do not allow children to use the appliance. Close supervision is necessary when any appliance is used near children.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• The blades are very sharp. Handle with extreme care during assembly, disassembly, and cleaning.

Image: This diagram illustrates key operational aspects: ensuring the jar locks into the appliance before use, referring to the user manual for assembly details, and noting the operating noise level of 80-90 dB, similar to a lawn mower.

3. Product Overview and Components

Your Philips Daily Collection HR7627/00 Mini Food Processor comes with several components designed for various food preparation tasks. Familiarize yourself with each part before use.

Image: A complete view of the Philips Daily Collection HR7627/00 Mini Food Processor, showing the motor unit, processing bowl, lid, and feeder tube.

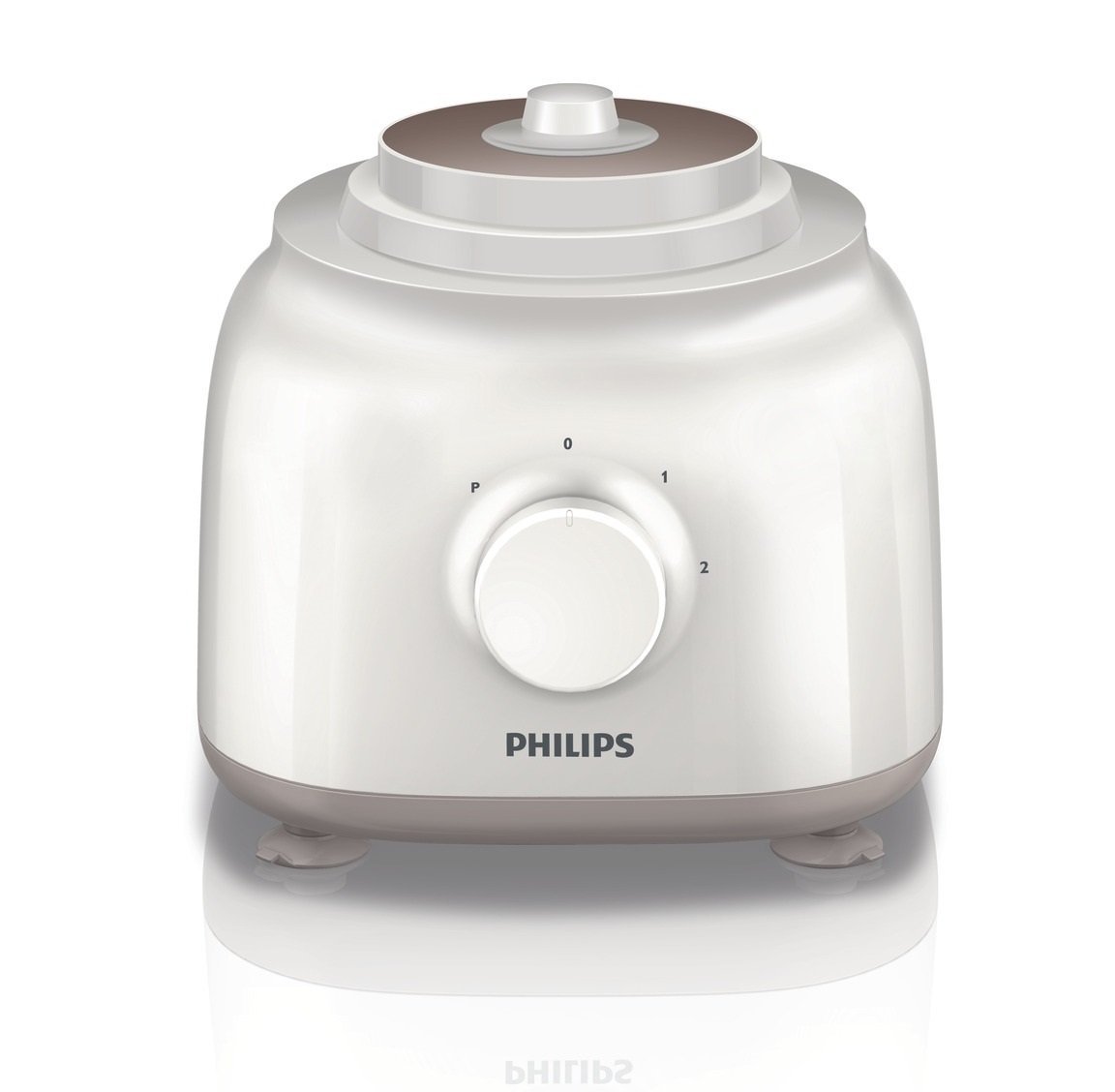

Image: The motor unit of the Philips Daily Collection HR7627/00 Mini Food Processor, featuring the control knob with 'P' (Pulse), '0' (Off), '1' (Speed 1), and '2' (Speed 2) settings.

Included Components:

• Motor Unit
• Processing Bowl (2.1 Litre capacity)
• Lid with Feeder Tube
• Pusher
• Stainless Steel S-blade (chopping knife for beating, chopping, crumbling, cutting, folding in, mashing, mincing)
• Kneading Tool
• Emulsifying Disk (for cream and egg whites)
• Disc Inserts:
  • Granulating Disc
  • Shredding Disc (coarse)
  • Slicing Disc (fine)

4. Setup and Assembly

Before using your food processor, ensure all parts are correctly assembled. The appliance features a safety interlock system that prevents operation if components are not securely locked into place.

1. Place the Motor Unit: Position the motor unit on a stable, flat, and dry surface. Ensure the suction feet are firmly attached to the countertop.
2. Attach the Processing Bowl: Place the processing bowl onto the motor unit. Rotate the bowl clockwise until it clicks securely into position. You will feel a slight resistance and hear a click as the safety lock engages.
3. Insert the Accessory: Depending on your task, insert the desired accessory (e.g., S-blade, kneading tool, emulsifying disk, or disc insert) onto the central shaft inside the bowl.
4. Attach the Lid: Place the lid onto the processing bowl. Align the lid's tab with the slot on the bowl handle and rotate the lid clockwise until it locks into place. The safety lock button on the motor unit must be fully depressed by the bowl and lid for the appliance to operate.
5. Insert the Pusher: Place the pusher into the feeder tube of the lid.

Important: The appliance will not switch on if the bowl and lid are not correctly assembled and locked. This is a safety feature to prevent accidents.

5. Operating Instructions

Your food processor offers two speed settings and a pulse function for versatile food preparation.

General Operation:

1. Ensure the appliance is correctly assembled and plugged into a power outlet.
2. Add ingredients to the processing bowl. For solid ingredients, use the feeder tube and pusher.
3. Select the desired speed:
   • Speed 1: For lighter tasks, such as whisking eggs or mixing soft ingredients.
   • Speed 2: For heavier tasks, such as chopping hard vegetables, kneading dough, or blending thicker mixtures.
   • Pulse (P): For short bursts of power, ideal for controlling consistency, chopping ingredients coarsely, or for quick mixing. Turn the knob to 'P' and release.
4. After processing, turn the control knob to '0' (Off) and unplug the appliance.
5. Rotate the lid counter-clockwise to unlock and remove it, then carefully remove the processing bowl and accessory.

Specific Functions:

• Chopping (Stainless Steel S-blade): Ideal for vegetables, fruits, nuts, and mincing meat. Use pulse for coarse chopping or speed 2 for finer results.
• Kneading (Kneading Tool): Suitable for mixing dough for bread or pastries. The 1.5L bowl capacity allows for processing up to 500g of dough. Use speed 2.
• Emulsifying (Emulsifying Disk): Perfect for whipping cream, egg whites, or making mayonnaise. Use speed 1 or 2.
• Slicing/Shredding/Granulating (Disc Inserts): Insert the desired disc onto the shaft. Use the feeder tube and pusher to guide ingredients. For best results, apply even pressure with the pusher. Use speed 2.

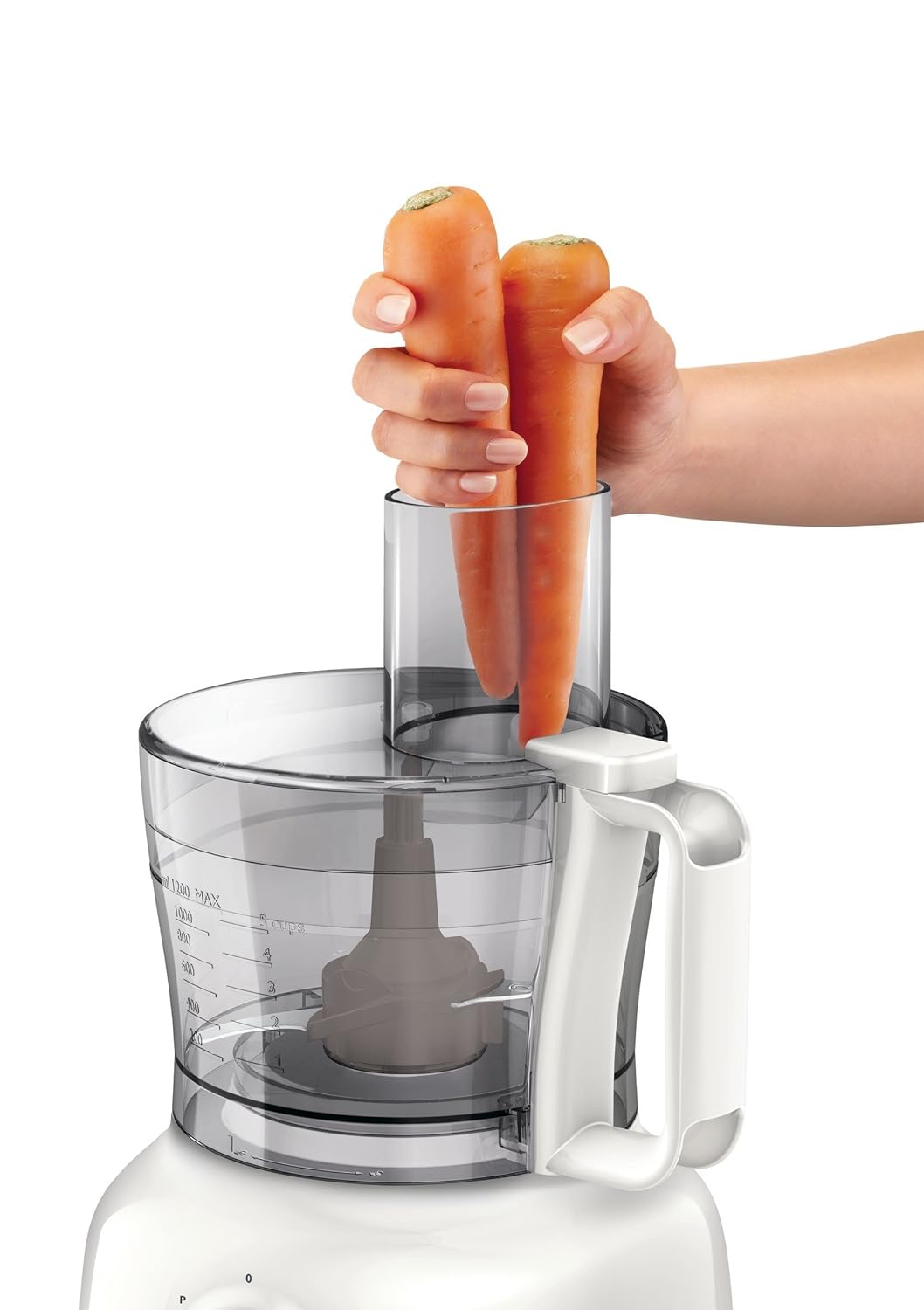

Image: This image demonstrates the process of inserting ingredients, specifically two carrots, into the feeder tube of the food processor for slicing or shredding.

Image: This image shows the processed contents, a red liquid, being poured from the food processor's bowl into multiple small white serving bowls, highlighting the bowl's pouring capability.

6. Maintenance and Cleaning

Proper cleaning and maintenance will ensure the longevity and optimal performance of your food processor.

1. Unplug: Always unplug the appliance before cleaning.
2. Motor Unit: Wipe the motor unit with a damp cloth. Do not immerse it in water or rinse it under the tap.
3. Removable Parts: The processing bowl, lid, pusher, and all accessories (blades, tools, discs) are dishwasher safe. Alternatively, they can be washed by hand in warm, soapy water.
4. Handle Blades Carefully: The blades are very sharp. Exercise extreme caution when handling and cleaning them to avoid injury.
5. Drying: Ensure all parts are thoroughly dry before reassembling or storing the appliance.

7. Troubleshooting

If you encounter issues with your food processor, refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact Philips customer support.

8. Specifications

9. Warranty and Support

Warranty: This Philips food processor comes with a 2-year warranty provided by Philips India. For warranty claims or service, please contact your nearest Authorised Philips Service Centre.

Customer Support: For any product-related queries, assistance, or to locate a service center, please visit the official Philips website or contact Philips customer care.

This product does not require installation by a technician. Please refer to this manual for assembly and operation.
