Diablo Type 27 Metal Grinding Disc

1. Product Overview

The Diablo Type 27 Metal Grinding Disc, model DBD050250701F, is engineered for superior performance in metal grinding applications. This 5-inch diameter disc features a 7/8-inch arbor and a Type 27 depressed center, making it suitable for various grinding tasks on steel, stainless steel, cast iron, and sheet metal.

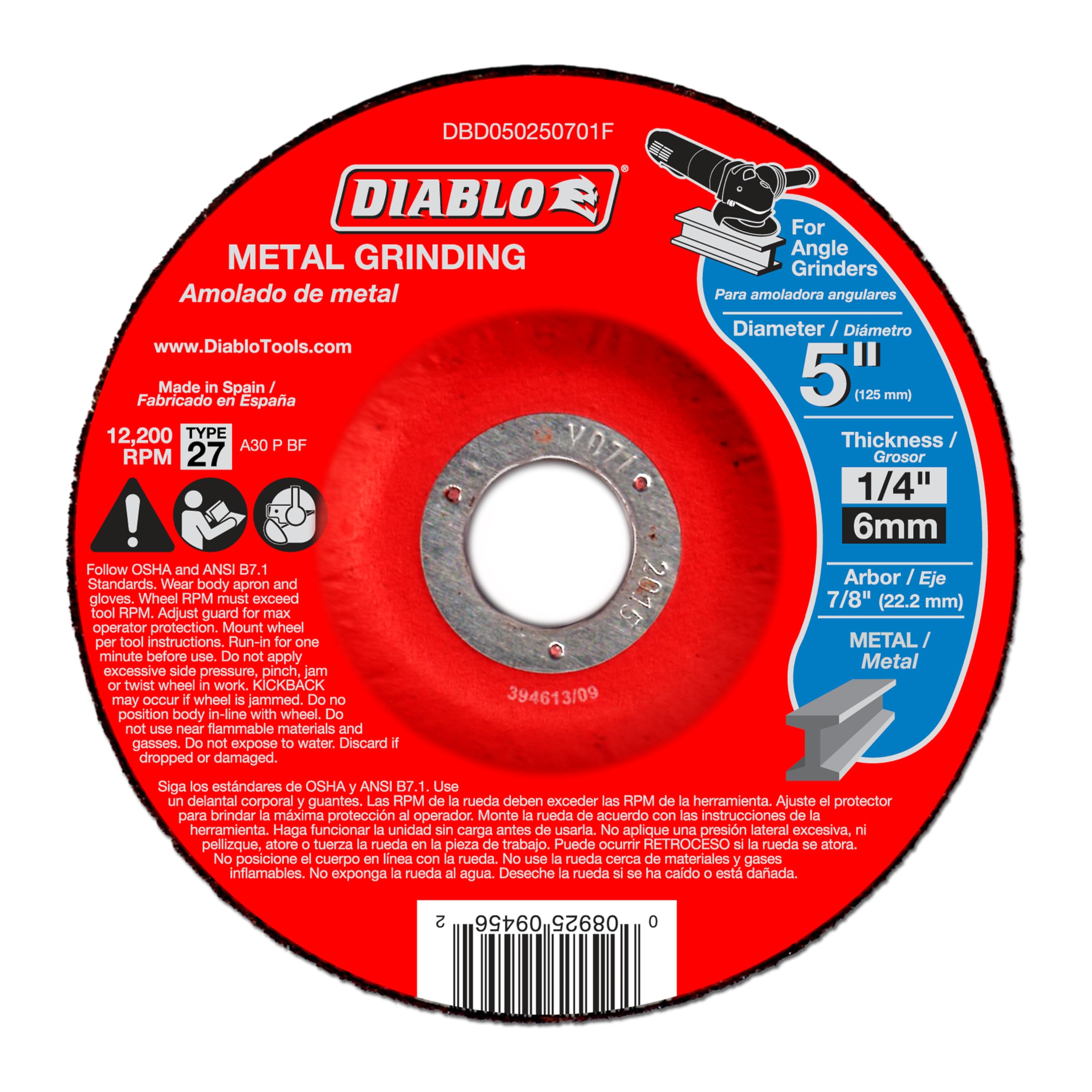

Figure 1: Diablo Type 27 Metal Grinding Disc. This image shows the disc's design and labeling, highlighting its abrasive surface.

Key Features:

• Premium Aluminum Oxide Blend: High-quality formulation ensures fast material removal and extended cutting life, ideal for demanding applications.
• Versatile Applications: Ideal for grinding steel, stainless steel, cast iron, and sheet metal.
• Type 27 Depressed Center: Designed for precision grinding in hard-to-reach areas, providing greater control and accuracy. Allows for easier access to tight corners and confined spaces, making it ideal for intricate tasks.
• Fully Reinforced: Ensures safety and durability for hand-held grinding applications.
• Topnotch Performance: Delivers excellent performance for various metal grinding projects.

2. Safety Information

Always prioritize safety when operating power tools and abrasive discs. Failure to follow safety precautions can result in serious injury.

General Safety Guidelines:

• Eye Protection: Always wear ANSI-approved safety glasses or goggles to protect against flying debris and sparks.
• Hand Protection: Wear heavy-duty work gloves to protect hands from heat, sparks, and sharp edges.
• Respiratory Protection: Use a dust mask or respirator, especially when grinding materials that produce fine dust.
• Hearing Protection: Wear ear protection to prevent hearing damage from prolonged exposure to loud noise.
• Work Area: Ensure your work area is clean, well-lit, and free from flammable materials. Keep bystanders away.
• Tool Condition: Inspect your angle grinder and disc for damage before each use. Do not use damaged equipment.
• Disc Compatibility: Ensure the grinding disc's maximum RPM rating exceeds the maximum RPM of your angle grinder. The maximum rotational speed for this disc is 12200 RPM.
• Proper Guard: Always use the angle grinder's safety guard.
• Proposition 65 Warning: This product may expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling.

3. Setup

Proper installation of the grinding disc is crucial for safe and effective operation.

1. Disconnect Power: Ensure your angle grinder is unplugged or its battery is removed before attempting to change or install any accessories.
2. Inspect Disc: Visually inspect the Diablo grinding disc for any cracks, chips, or damage. Do not use a damaged disc.
3. Clean Flanges: Ensure the inner and outer flanges of your angle grinder are clean and free from debris.
4. Position Disc: Place the inner flange onto the grinder's spindle. Then, position the Diablo grinding disc onto the spindle, ensuring it sits flush against the inner flange. The depressed center of the Type 27 disc should face away from the grinder body.
5. Secure Outer Flange: Place the outer flange onto the spindle, over the disc.
6. Tighten Nut: Engage the spindle lock button on your grinder and use the spanner wrench to securely tighten the locking nut. Do not overtighten.
7. Check Guard: Adjust the safety guard to ensure it provides maximum protection while allowing access to the workpiece.
8. Test Run: Before grinding, plug in the grinder and allow it to run at full speed for approximately 30 seconds in a safe, open area. This checks for proper disc balance and integrity.

4. Operating Instructions

Follow these guidelines for effective and safe grinding with your Diablo disc.

1. Secure Workpiece: Always clamp or secure the material you are grinding to prevent movement during operation.
2. Proper Grip: Hold the angle grinder firmly with both hands.
3. Starting the Grind: Allow the disc to reach full operating speed before making contact with the workpiece.
4. Grinding Angle: Maintain a shallow angle (typically 5-15 degrees) between the disc and the workpiece for optimal material removal and disc life. Avoid grinding flat on the disc face, as this can cause premature wear and potential disc failure.
5. Consistent Pressure: Apply steady, moderate pressure. Excessive pressure can overheat the disc and grinder, reducing efficiency and lifespan.
6. Direction of Sparks: Position yourself so that sparks are directed away from your body and any flammable materials.
7. Avoid Forcing: Do not force the disc into the material. Let the abrasive do the work.
8. Cool Down: For prolonged grinding, allow the disc and workpiece to cool periodically to prevent overheating.
9. Finishing: For a smoother finish, reduce pressure and use a lighter touch as you complete the grind.

Note: No official product videos from the seller demonstrating the grinding disc's operation were available that met the specified embedding criteria.

5. Maintenance

Proper maintenance extends the life of your grinding disc and ensures continued safe operation.

• Regular Inspection: Before and after each use, inspect the disc for signs of wear, cracks, chips, or discoloration. Discard any damaged discs immediately.
• Storage: Store grinding discs in a dry, cool place, away from direct sunlight and moisture. Keep them flat to prevent warping.
• Cleanliness: Keep the disc and grinder free from dust and debris. Use compressed air to clean the grinder's vents.
• Avoid Contamination: Do not expose discs to oil, grease, or other contaminants that can affect their performance and safety.

6. Troubleshooting

Here are some common issues and potential solutions:

• Rapid Disc Wear:
  • Cause: Excessive pressure, incorrect grinding angle, or grinding unsuitable materials.
  • Solution: Reduce pressure, maintain a 5-15 degree angle, and ensure the disc is used only on recommended materials.
• Poor Material Removal:
  • Cause: Worn-out disc, insufficient pressure, or incorrect disc type for the material.
  • Solution: Replace the disc if worn, apply moderate pressure, and verify the disc is appropriate for the task.
• Excessive Vibration:
  • Cause: Improperly mounted disc, damaged disc, or worn grinder components.
  • Solution: Re-mount the disc, inspect for damage and replace if necessary, or have the grinder serviced.
• Overheating of Workpiece:
  • Cause: Prolonged grinding in one spot, excessive pressure, or dull disc.
  • Solution: Move the grinder continuously, reduce pressure, and replace the disc if dull.

7. Specifications

8. Warranty and Support

For specific warranty information, product support, or to inquire about replacement parts, please refer to the official Diablo website or contact their customer service directly.

You can visit the Diablo Store for more information: Diablo Official Store
