Peruzzo PE 706 Parma 2-Bike Tow Bar Rack User Manual

Introduction

Welcome to the user manual for your Peruzzo PE 706 Parma 2-Bike Tow Bar Rack. This manual provides essential information for the safe assembly, installation, operation, and maintenance of your bicycle carrier. Please read these instructions carefully before use to ensure proper function and safety.

Safety Information

Always prioritize safety when using the Peruzzo PE 706. Failure to follow these guidelines may result in property damage or personal injury.

• Ensure the bike rack is securely attached to the tow bar before loading bicycles.
• Verify that all bicycles are properly secured to the rack using the provided straps and arms.
• Do not exceed the maximum load capacity of 45 kg.
• Regularly check all fasteners and straps for tightness, especially during long journeys.
• Be aware of the increased length and width of your vehicle when the rack and bikes are installed.
• Drive cautiously, especially when cornering, braking, and driving over uneven terrain.
• Ensure rear lights and license plate are visible. If obstructed, use an auxiliary light board (not included).
• Keep children away from the bike rack during assembly, installation, and removal.

Package Contents

Before beginning assembly, verify that all components are present:

• Peruzzo PE 706 Main Frame
• Wheel Supports
• Bicycle Frame Arms (for 2 bicycles)
• Safety Straps
• Mounting Hardware
• Instruction Manual (this document)

Assembly Instructions

The Peruzzo PE 706 requires some initial assembly. Follow these steps carefully:

1. Unpack all components and lay them out on a clean, flat surface.
2. Attach the main frame components as indicated in the diagrams (refer to the included paper manual for detailed diagrams).
3. Secure the wheel supports to the base of the rack. Ensure they are spaced appropriately for bicycle tires.
4. Install the bicycle frame arms onto the vertical support structure. These arms are designed to hold the bicycle frames.
5. Ensure all bolts and fasteners are tightened securely.

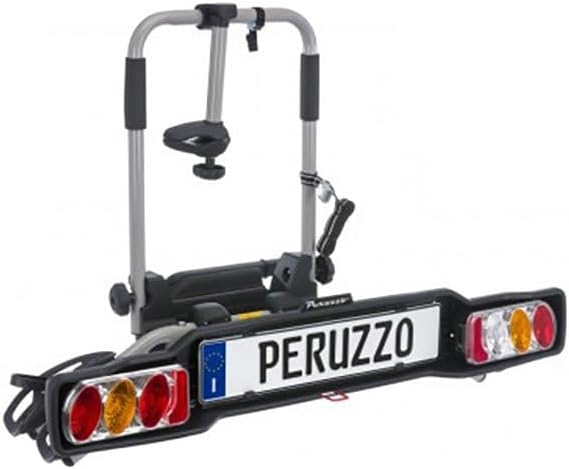

Figure 1: Assembled Peruzzo PE 706 Parma 2-Bike Tow Bar Rack. This image shows the complete rack with its main frame, wheel supports, and integrated light board and license plate holder.

Installation on Vehicle

This bike rack is designed for mounting on a vehicle's tow bar.

1. Ensure your vehicle's tow bar is clean and free from grease or dirt.
2. Position the Peruzzo PE 706 onto the tow bar ball.
3. Engage the quick attachment and release system. This system is designed for compact and functional securing. Follow the specific mechanism instructions provided in the physical manual to ensure a firm lock.
4. Once attached, test the stability of the rack by attempting to move it. It should be firmly fixed without any significant play.
5. Connect the electrical plug from the rack's light board to your vehicle's trailer socket. Verify that all lights (brake, turn signals, tail lights) are functioning correctly.

Loading Bicycles

Follow these steps to safely load your bicycles onto the rack.

1. Place the first bicycle onto the rack, ensuring its wheels rest securely in the wide wheel supports.
2. Use the provided bicycle frame arms to secure the bicycle's frame to the main vertical support of the rack. Tighten the clamps firmly but without overtightening to avoid damage to the bike frame.
3. Utilize the safety straps to secure the wheels to the wheel supports. These straps are sewn directly onto the bike rack for convenience and security.
4. Repeat the process for the second bicycle.
5. After loading, double-check that both bicycles are stable and do not interfere with each other or the vehicle.

Operating the Rack

The Peruzzo PE 706 features a tiltable function for convenient access to your vehicle's rear cargo area.

To tilt the rack:

1. Ensure the vehicle is stationary and safe to access the rear.
2. Locate the tilting mechanism (refer to your physical manual for exact location and operation).
3. Activate the mechanism to tilt the rack downwards, allowing access to the boot or tailgate.
4. After accessing the rear, return the rack to its upright position and ensure it locks securely back into place before driving.

Maintenance

Regular maintenance will prolong the life of your Peruzzo PE 706.

• Clean the rack periodically with mild soap and water, especially after exposure to road salt or dirt.
• Inspect all moving parts, bolts, and straps for wear or damage before each use. Replace any worn components immediately.
• Lubricate moving parts (e.g., tilting mechanism, quick release) with a suitable lubricant as needed.
• Store the rack in a dry place when not in use.

Troubleshooting

• Rack feels unstable on tow bar: Ensure the quick attachment system is fully engaged and tightened. Check for any obstructions on the tow bar ball.
• Bicycles are not secure: Re-check all frame arms and wheel straps. Ensure they are tightened correctly and that the bikes are positioned properly in the wheel supports.
• Lights not working: Verify the electrical connection to the vehicle's trailer socket. Check vehicle fuses and rack wiring for damage.
• Rack does not tilt: Ensure the tilting mechanism is free from obstructions and lubricated.

Specifications

Warranty and Support

For warranty information and technical support, please refer to the documentation included with your purchase or contact Peruzzo customer service directly. Keep your proof of purchase for warranty claims.
