Introduction
The Fisher-Price Baby Gear BFH05 Space-Saving Nature's Cubs Swing offers all the benefits of a full-sized swing in a compact design, utilizing 40% less space. This swing provides comfort and entertainment for your baby with various features designed for ease of use and safety.
Safety Information
WARNING: Never leave your child unattended in the swing.
- Always use the restraint system.
- Ensure the swing is placed on a flat, stable surface.
- Do not use this product if your child can sit up unaided or weighs more than 9 kg (20 lbs).
- Do not move the swing with the child in it.
- Adult assembly required.
Components List
- Swing Frame
- Seat Pad
- Control Unit
- Toy Bar with Animal Toys (Lion and Elephant)
- Harness System
Setup & Assembly
Follow these steps to assemble your Fisher-Price Space-Saving Nature's Cubs Swing:
- Unfold the Frame: Carefully unfold the swing frame until it locks into place. Ensure all legs are securely extended.
- Attach the Seat: Align the seat frame with the designated slots on the main frame and click it into place.
- Install the Seat Pad: Drape the seat pad over the seat frame, ensuring all straps and openings align correctly. Secure the pad using any attached fasteners.
- Insert Batteries: Locate the battery compartment on the control unit. Insert 4 D-type batteries (not included), ensuring correct polarity. Close the compartment securely.
- Attach Toy Bar: Insert the toy bar into the designated openings on the side of the swing. Ensure it is firmly attached. The toy bar features two friendly animal toys (lion and elephant) to engage your baby.
- Adjust Recline: The seat offers adjustable recline positions. Press the recline adjustment buttons on the sides of the seat and move the seat to the desired position.
Figure 1: Fully assembled Fisher-Price Space-Saving Nature's Cubs Swing.
Figure 2: Adjusting the recline position of the swing seat.
Operating Instructions
The control unit allows you to customize the swing's motion, speed, and sounds.
- Power On/Off: Press the power button on the control unit to turn the swing on or off.
- Swing Motion: The swing offers two motion directions: front-to-back (Altalena) and side-to-side (Culla). Select your preferred motion using the dedicated button.
- Swing Speed: Choose from 6 different swing speeds using the speed adjustment buttons. The Smart Swing technology ensures consistent speed as your baby grows.
- Melodies & Sounds: Activate relaxing melodies and nature sounds using the music button. Adjust the volume with the volume control buttons.
- Harness System: Always secure your baby with the 5-point harness system. Adjust the straps for a snug, comfortable fit.
Figure 3: Control panel for swing speed, motion, and sound settings.
Figure 4: The swing features a convenient carry handle for transport.
Maintenance
Regular cleaning and maintenance will ensure the longevity and hygiene of your swing.
- Seat Pad: The seat pad is machine washable. Remove the pad from the frame and wash it in cold water on a gentle cycle. Do not bleach. Tumble dry on low heat.
- Frame: Wipe the frame, toy bar, and plastic parts with a damp cloth and mild soap. Do not immerse the control unit in water.
- Storage: When not in use, the swing can be folded for compact storage.

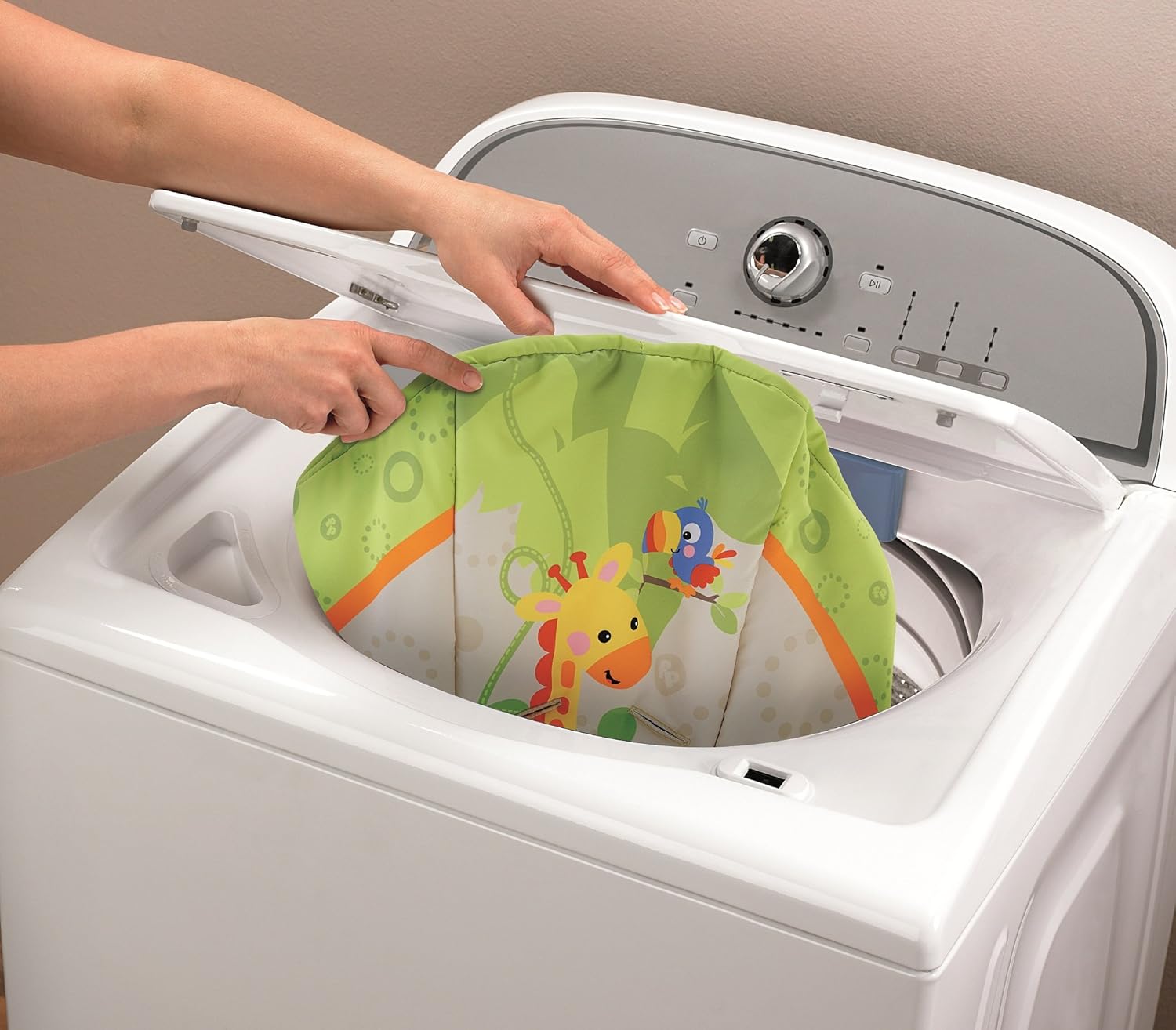

Figure 5: The seat pad is machine washable for easy cleaning.
Specifications
| Feature | Detail |
|---|---|
| Model Number | BFH05 |
| Product Dimensions | 80.01 x 42.39 x 21.01 cm |
| Item Weight | 6.36 Kilograms |
| Maximum Recommended Weight | 9 Kilograms |
| Batteries Required | Yes (4 D-type batteries) |
| Material Type | Rubber, Polyester |
| Frame Material | Metal |
| Portable | No (Refers to not being easily carried like a car seat, but does fold for storage) |
| Swing Speeds | 6 |
| Swing Directions | Front-to-back, Side-to-side |
Troubleshooting
If you encounter issues with your swing, try the following:
- Swing not operating: Check if the batteries are correctly installed and not depleted. Replace batteries if necessary. Ensure the power button is pressed.
- Weak or inconsistent swing motion: Replace batteries. Ensure the swing is on a level surface and not obstructed.
- No sound: Check battery levels and ensure the volume is turned up.
- Unusual noises: Ensure all parts are securely assembled and tightened. Check for any obstructions.
Warranty & Support
For warranty information or further assistance, please refer to the warranty card included with your product or contact Fisher-Price customer service directly. Keep your purchase receipt for proof of purchase.
