Ajax Scientific EL032 4x AAA Battery Holder with Lead Wire User Manual

Introduction

This manual provides instructions for the safe and effective use of the Ajax Scientific EL032 4x AAA Battery Holder with Lead Wire. This device is designed to hold four AAA batteries in series, providing a power source for various electronic projects and educational applications. Please read this manual thoroughly before use.

Product Overview

The Ajax Scientific EL032 battery holder is a compact unit designed to securely house four AAA batteries. It features pre-attached red and black lead wires for easy connection to circuits. The holder is constructed from durable plastic with metal spring contacts to ensure reliable electrical connections.

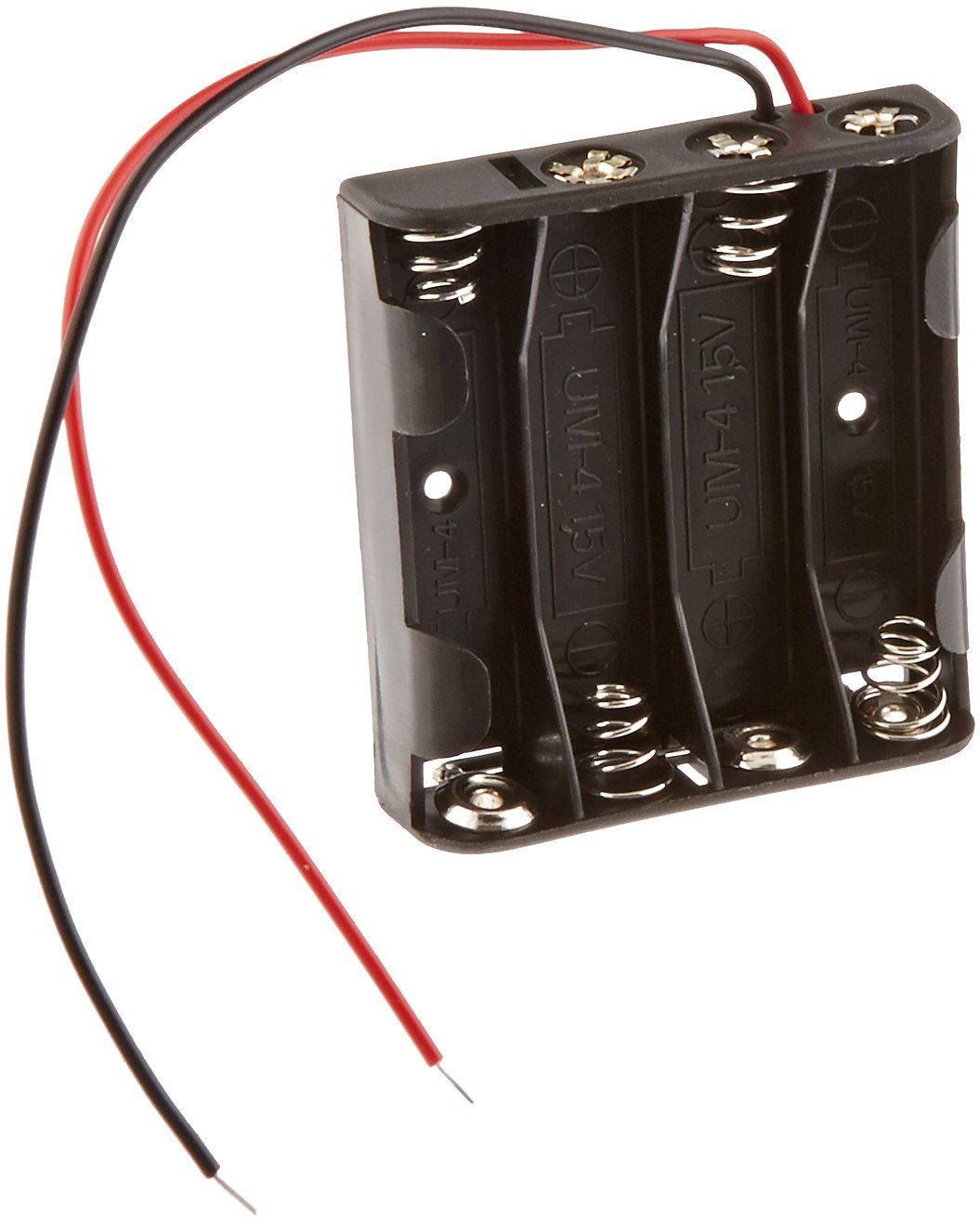

An image showing the black plastic battery holder designed for four AAA batteries, featuring metal spring contacts and red and black lead wires extending from one end. The red wire typically indicates positive, and the black wire indicates negative.

Setup

1. Battery Insertion: Carefully insert four AAA batteries into the holder. Ensure that the positive (+) and negative (-) terminals of each battery align correctly with the markings inside the holder. The flat end of the battery is typically negative, and the raised button end is positive. Incorrect insertion can prevent the device from functioning or cause damage.
2. Wire Connection: The battery holder comes with two lead wires: a red wire (positive output) and a black wire (negative output). Connect these wires to your circuit or device according to its power input requirements. Ensure secure connections to prevent intermittent power supply.

Operating

Once batteries are correctly inserted and the lead wires are connected to your circuit, the battery holder will supply power. The four AAA batteries connected in series will provide a nominal output voltage of approximately 6V (4 x 1.5V). Always verify the voltage requirements of your connected device to avoid damage.

Maintenance

• Cleaning: Keep the battery holder clean and free from dust and debris. Use a dry, soft cloth to wipe the exterior. Avoid using liquids or abrasive cleaners.
• Battery Replacement: Replace all four batteries simultaneously when power output diminishes. Do not mix old and new batteries, or different types of batteries, as this can lead to leakage or improper function.
• Storage: When not in use for extended periods, remove the batteries from the holder to prevent potential leakage and corrosion. Store the holder in a cool, dry place away from direct sunlight and extreme temperatures.

Troubleshooting

• No Power Output:
  • Check if batteries are inserted with correct polarity (+/-).
  • Ensure batteries are fully charged or new.
  • Verify that the lead wires are securely connected to your circuit.
  • Inspect the battery contacts for corrosion; clean if necessary.
• Intermittent Power:
  • Ensure all battery contacts are firm and clean.
  • Check for loose connections in the lead wires or your circuit.

Specifications

Warranty and Support

For warranty information or technical support, please contact Ajax Scientific directly through their official website or customer service channels. Keep your purchase receipt for any warranty claims.
