Introduction
This manual provides essential information for the proper installation, operation, and maintenance of the Winston PS2151 Door Top Gasket, also known as HA4522. This is a genuine OEM replacement part designed to ensure safety, reliability, and optimal performance for compatible Winston foodservice equipment. Adhering to the guidelines in this manual will help maintain the integrity and efficiency of your appliance.
Product Overview
The Winston PS2151 Door Top Gasket is a critical component for maintaining the thermal efficiency and proper sealing of your foodservice equipment. As a Genuine OEM (Original Equipment Manufacturer) part, it is manufactured to the exact specifications and quality standards of the original component.
- Guaranteed Compatibility: OEM parts fit and function exactly like the original components, ensuring a perfect match and seamless integration.
- Higher Quality and Reliability: OEM parts are built to the same rigorous quality standards as the original components, reducing the risk of premature failure and ensuring long-term performance.
- Safety Assurance: Using genuine parts provides peace of mind that your equipment remains safe to operate, as they meet all necessary safety specifications.
- Maintain Your Warranty: Utilizing genuine OEM parts is less likely to void your equipment's warranty, protecting your investment.

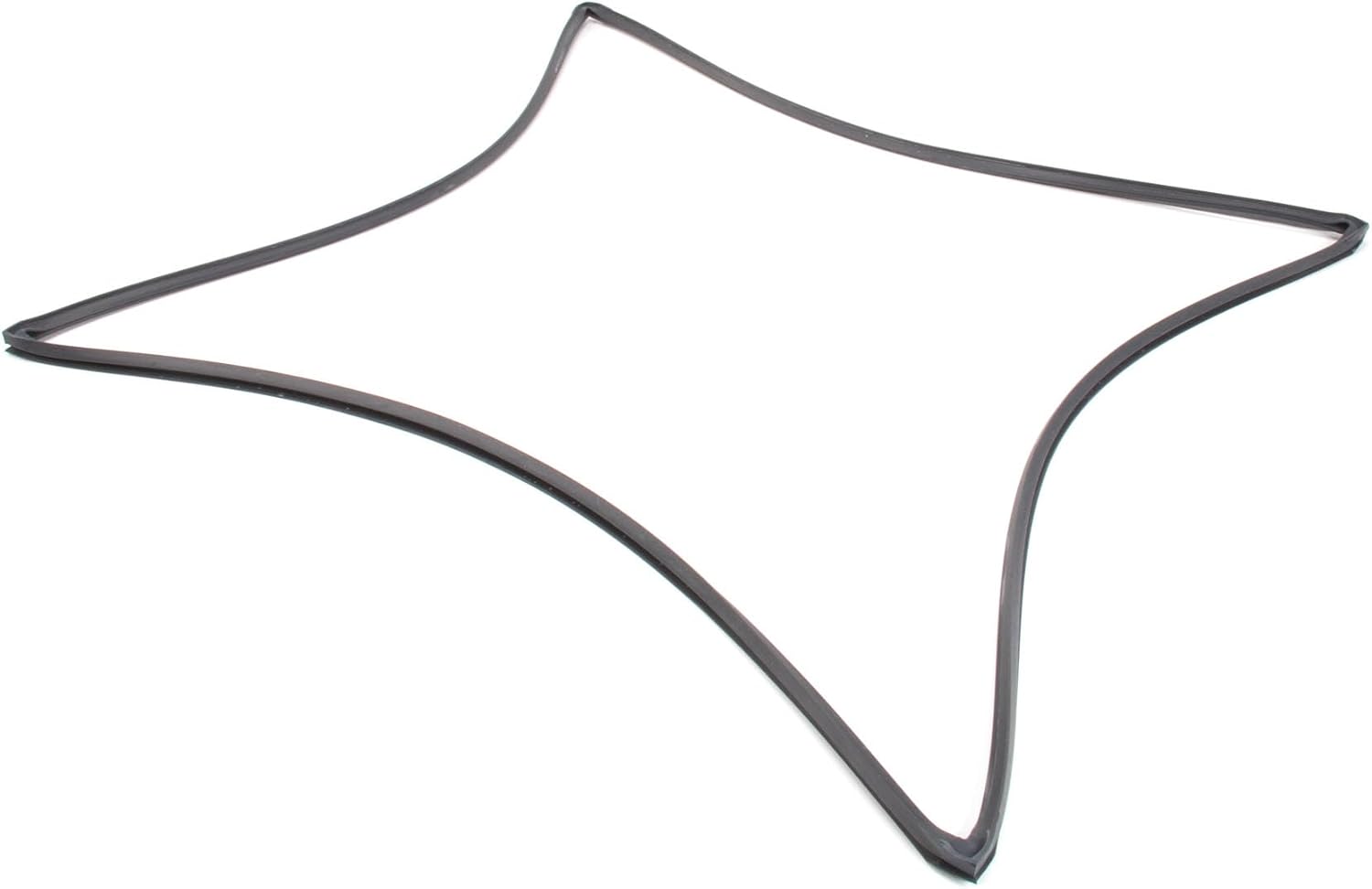

Figure 1: The Winston PS2151 Door Top Gasket. This image displays the gasket's unique four-sided shape, designed for specific appliance door sealing.
Installation Instructions
Safety Precautions
- Always disconnect the appliance from its power source before attempting any installation or maintenance.
- Wear appropriate personal protective equipment (PPE), such as gloves, to prevent injury.
- Ensure the appliance has cooled down completely if it operates at high temperatures.
- If unsure about any step, consult a qualified service technician.
Required Tools
- Screwdriver (Phillips or flathead, depending on appliance fasteners)
- Pliers (optional, for stubborn clips)
- Cleaning cloth and mild detergent
Installation Steps
- Prepare the Appliance: Ensure the appliance is turned off and unplugged. Open the door to access the existing gasket.
- Remove Old Gasket: Carefully locate the fasteners or clips holding the old gasket in place. These may be screws, push-in clips, or a channel system. Remove them and gently pull the old gasket away from the door frame. Note its orientation for reference.
- Clean the Gasket Channel: Thoroughly clean the area where the gasket sits on the door frame. Remove any food debris, grease, or adhesive residue using a mild detergent and a clean cloth. A clean surface ensures a proper seal for the new gasket.
- Inspect the Door Frame: Check the door frame for any damage, bends, or irregularities that might prevent a good seal. Repair or address any issues before proceeding.
- Install New Gasket: Align the new Winston PS2151 gasket with the door frame, ensuring it is oriented correctly (the specific shape of this gasket, 24x27.5-4 sided, means precise alignment is crucial). Begin by pressing the gasket firmly into the channel or reattaching it with the fasteners, working your way around the entire perimeter. Ensure the corners are seated properly.
- Secure the Gasket: Reinstall any screws or clips that were removed. Ensure the gasket is securely fastened and lies flat against the door frame without any twists or gaps.
- Test the Seal: Close the appliance door. Perform a "paper test" by placing a piece of paper between the door and the frame and closing the door. If the paper can be easily pulled out, the seal is not tight enough in that area. Adjust the gasket or fasteners as needed until the paper is held firmly.
- Restore Power: Once the gasket is securely installed and the seal is confirmed, plug the appliance back into its power source.
Figure 2: Detail of the gasket material and construction. Proper handling during installation is important to avoid damage.
Operation and Maintenance
Operation
Once installed, the gasket operates passively by creating an airtight seal when the appliance door is closed. This seal is crucial for maintaining the internal temperature of the appliance, preventing heat loss (in ovens/warmers) or cold air escape (in refrigerators/freezers), and ensuring energy efficiency. A properly sealed door also prevents contaminants from entering the appliance.
Maintenance
Regular maintenance of the door gasket is essential for its longevity and the appliance's performance.
- Daily Cleaning: Wipe down the gasket and the surrounding door frame daily with a damp cloth and mild, non-abrasive detergent. This removes food particles, grease, and spills that can degrade the gasket material or compromise the seal.
- Regular Inspection: Periodically inspect the entire length of the gasket for signs of wear, cracks, tears, hardening, or softening. Pay close attention to corners and areas that receive frequent contact.
- Check for Proper Sealing: Routinely perform the "paper test" (as described in the installation section) to ensure the gasket maintains a tight seal around the entire door perimeter.
- Avoid Harsh Chemicals: Do not use abrasive cleaners, solvents, or harsh chemicals on the gasket, as these can damage the material and reduce its effectiveness.
Troubleshooting
If you experience issues with your appliance's door seal after gasket installation, consider the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Door not sealing properly (air leaks) |
|
|
| Gasket appears stiff or brittle |
|
|
| Visible cracks or tears in gasket |
|
|
If troubleshooting steps do not resolve the issue, it may indicate a problem with other appliance components or the need for professional service.
Specifications
| Attribute | Detail |
|---|---|
| Brand Name | Winston |
| Model Info / Part Number | PS2151 |
| Item Weight | 4.8 ounces |
| Product Dimensions | 5 x 9 x 9 inches |
| ASIN | B00EMQR3J4 |
| Is Discontinued By Manufacturer | No |
| Batteries Included? | No |
| Batteries Required? | No |
| Date First Available | August 15, 2013 |
Warranty and Support
As an OEM replacement part, the Winston PS2151 gasket is typically covered under the warranty terms provided by Winston for their genuine parts. Specific warranty details may vary and are usually provided with the original purchase or can be obtained directly from Winston or your authorized dealer.
For technical support, warranty claims, or to purchase additional genuine Winston parts, please contact Winston customer service or visit their official website. Always refer to your appliance's original manual for specific part compatibility and installation requirements.
You can find more information about Winston products and support at the Winston Store on Amazon.
