1. Introduction
This manual provides essential information for the safe and effective use of your Bosch T321AF3 3-Piece 5-1/4 Inch 21 TPI Speed for Metal T-Shank Jig Saw Blades. Please read these instructions carefully before installation and operation to ensure optimal performance and user safety. These blades are designed for cutting various metal materials with precision and speed.
2. Safety Information
WARNING: Always wear appropriate personal protective equipment (PPE) including safety glasses, gloves, and hearing protection when operating power tools and handling saw blades.
- Read Power Tool Manual: Always refer to your jig saw's instruction manual for specific safety warnings and operating procedures.
- Blade Compatibility: Ensure the T321AF3 blades are compatible with your jig saw's T-shank clamping system.
- Secure Workpiece: Always clamp the workpiece firmly to prevent movement during cutting.
- Proper Ventilation: Work in a well-ventilated area, especially when cutting metal, to avoid inhaling metal dust.
- Inspect Blades: Before each use, inspect blades for damage, cracks, or dullness. Replace damaged blades immediately.
- Disconnect Power: Always disconnect the power tool from the power source before changing blades or performing maintenance.
- Avoid Overheating: Use appropriate cutting speed and apply cutting fluid if necessary to prevent blade overheating, which can reduce blade life and cause material discoloration.
3. Product Features
The Bosch T321AF3 jig saw blades are engineered for efficient metal cutting with enhanced durability.
- Bi-Metal Construction: Provides increased durability and extended blade life, especially in demanding metal cutting applications.
- 21 TPI (Teeth Per Inch): Designed for smooth and very fast cuts in various metal thicknesses.
- T-Shank Design: Ensures maximum grip and stability, compatible with 90% of current jig saw makes and models.
- Optimized Length: Extra-long 5-1/4-inch overall length with a 4-1/4-inch working length for deeper cuts.
- Versatile Application: Suitable for pipes, profiles, and sheet metal (10-16 gauge), thin metals (1/16-inch - 1/8-inch thick), and pipes less than 2 1/2-inch diameter.
Image: The Bosch T321AF3 3-piece jig saw blade set, showcasing the design and branding.
Image: Illustration highlighting the high-carbon steel construction for enhanced break resistance.
4. Setup and Installation
Proper installation of the jig saw blade is crucial for safety and cutting performance.
- Power Disconnection: Ensure your jig saw is unplugged or its battery is removed before attempting to change the blade.
- Blade Release Mechanism: Locate the blade release or clamping mechanism on your jig saw. This is typically a lever or screw.
- Insert Blade: Insert the T-shank end of the Bosch T321AF3 blade into the jig saw's blade clamp. Ensure the teeth are facing forward, towards the front of the saw.
- Secure Blade: Push the blade fully into the clamp until it clicks or is firmly secured. Verify that the blade is seated correctly and cannot be pulled out easily.
- Check Blade Guide: Adjust the blade guide roller (if present on your jig saw) so it lightly touches the back of the blade, providing support during cutting.
- Test Fit: Briefly plug in the saw (or reinsert battery) and turn it on for a moment to ensure the blade moves freely and is properly aligned. Immediately unplug/remove battery again.

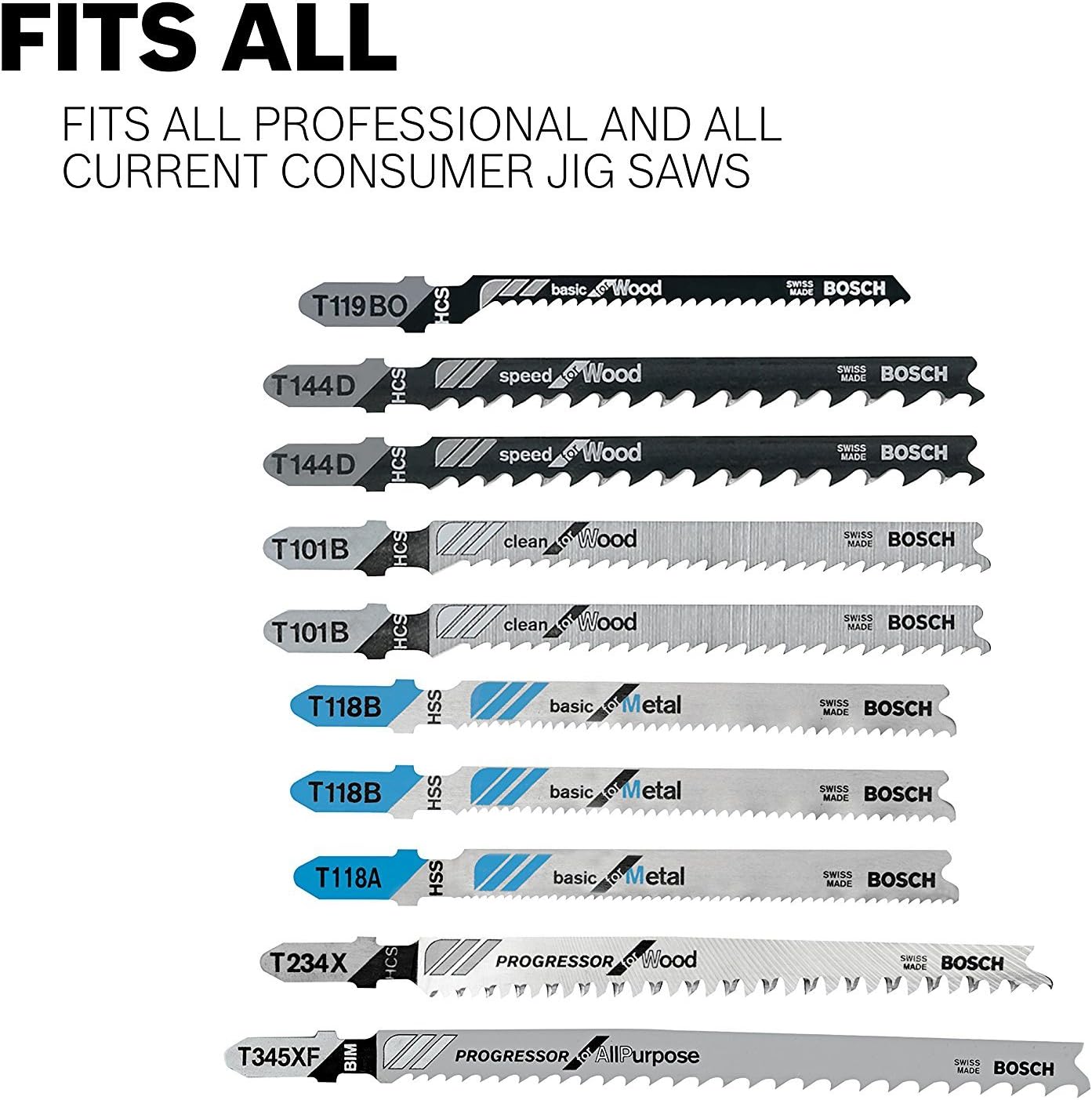

Image: Illustration demonstrating the universal compatibility of T-shank blades with various jig saw models.
Image: Close-up of the T-shank design, emphasizing its secure fit and power transfer.
5. Operating Instructions
Follow these guidelines for effective and safe cutting with your Bosch T321AF3 blades.
- Material Selection: These blades are specifically designed for metal. Use them for pipes, profiles, sheet metal (10-16 gauge), thin metals (1/16-inch - 1/8-inch thick), and pipes less than 2 1/2-inch diameter.
- Workpiece Preparation: Mark your cut line clearly. Secure the workpiece to a stable surface using clamps to prevent movement and vibration.
- Start the Cut: Place the front edge of the jig saw's base plate flat on the workpiece. Start the saw before the blade contacts the material.
- Cutting Technique: Guide the saw along the marked line with steady, even pressure. Allow the blade to do the work; do not force it. Forcing the blade can cause it to bend, break, or result in a poor cut.
- Cooling (Optional but Recommended): For prolonged cuts in metal, especially thicker materials, consider applying a cutting fluid or oil to the blade and workpiece to reduce friction, heat buildup, and extend blade life.
- Finishing the Cut: Support the waste piece to prevent it from breaking off prematurely and binding the blade. Once the cut is complete, turn off the saw and wait for the blade to stop completely before lifting it from the workpiece.
Image: A jig saw in use, illustrating the general cutting motion. Apply similar technique for metal.
6. Maintenance
Proper maintenance ensures the longevity and performance of your blades.
- Cleaning: After each use, remove the blade from the jig saw and clean off any accumulated metal shavings or debris using a brush or compressed air.
- Inspection: Regularly inspect blades for signs of wear, such as dull teeth, bent sections, or cracks. A dull blade will cut slowly and generate excessive heat.
- Storage: Store blades in their original packaging or a dedicated blade case to protect the teeth from damage and prevent accidental injury. Keep them in a dry place to prevent rust.
- Disposal: Dispose of worn or damaged blades responsibly, following local regulations for metal waste.
7. Troubleshooting
Common issues and their solutions when using jig saw blades.
| Problem | Possible Cause | Solution |
|---|---|---|
| Blade breaks frequently | Forcing the cut, incorrect blade for material, excessive vibration, dull blade. | Reduce feed pressure, ensure blade is suitable for metal, secure workpiece, replace dull blade. |
| Slow cutting speed | Dull blade, incorrect speed setting on jig saw, material too thick. | Replace blade, adjust jig saw speed, ensure blade is rated for material thickness. |
| Rough or uneven cuts | Dull blade, blade bending, improper blade guide adjustment, loose workpiece. | Replace blade, ensure blade guide is set correctly, clamp workpiece securely. |
| Blade overheating/discoloration | Excessive friction, too high cutting speed, lack of coolant. | Reduce cutting speed, apply cutting fluid, ensure blade is sharp. |
8. Specifications
Key technical details for the Bosch T321AF3 Jig Saw Blades.
- Model Number: T321AF3
- Material: Bi-Metal
- Overall Length: 5-1/4 inches
- Working Length: 4-1/4 inches
- Teeth Per Inch (TPI): 21
- Shank Type: T-Shank
- Application: Speed for Metal (Pipes, profiles, sheet metal 10-16 gauge, thin metals 1/16-inch - 1/8-inch thick, pipes < 2 1/2-inch diameter)
- Item Weight: Approximately 0.05 Pounds (0.8 ounces) per blade
- UPC: 000346430202
- Included Components: (3) 5-1/4 inch 21 TPI Speed for Metal T-Shank Jig Saw Blades
Image: Detailed view of the 21 TPI (Teeth Per Inch) blade design, optimized for metal cutting.
9. Warranty and Support
Bosch products are manufactured to high-quality standards. For specific warranty information, please refer to the documentation included with your purchase or visit the official Bosch website. As consumable accessories, jig saw blades typically have a limited warranty against manufacturing defects.
For technical support, product inquiries, or warranty claims, please contact Bosch customer service through their official website or the contact information provided with your power tool.
Bosch Official Website: www.boschtools.com
