Warm Audio TB12 Tonebeast Microphone Preamp User Manual

1. Introduction

The Warm Audio TB12 Tonebeast is a versatile microphone preamp designed to provide a wide range of tonal options for audio recording. This unit is based on the classic API 312 preamp design and incorporates premium Cinemag transformers, allowing users to select different transformers, op-amps, and capacitors to achieve various sonic characteristics. It is suitable for enhancing the sound of microphones, line-level signals, and instruments, offering both clean amplification and harmonic saturation.

Key features include:

• Versatile tone shaping from vintage to modern.
• Selectable capacitors for different sonic textures.
• Phantom power supply for condenser microphones.
• Transformer bypass option for varied signal paths.

2. Setup and Connections

This section details the physical setup and audio connections for the TB12 Tonebeast preamp.

2.1 Power Connection

Connect the provided IEC power cable to the power inlet on the rear panel of the TB12 and then to a standard AC power outlet. Ensure the unit is powered off before making any connections.

2.2 Audio Input Connections

The TB12 offers multiple input options on its rear panel:

• Mic Input (XLR): For connecting microphones. Use a balanced XLR cable.
• Line Input (1/4" TRS): For connecting line-level sources such as synthesizers or outputs from other preamps. Use a balanced 1/4" TRS cable.
• Instrument Input (1/4" TS): For connecting instruments like guitars or basses directly. This input is typically unbalanced.

Select the appropriate input type using the switches on the front panel.

2.3 Audio Output Connections

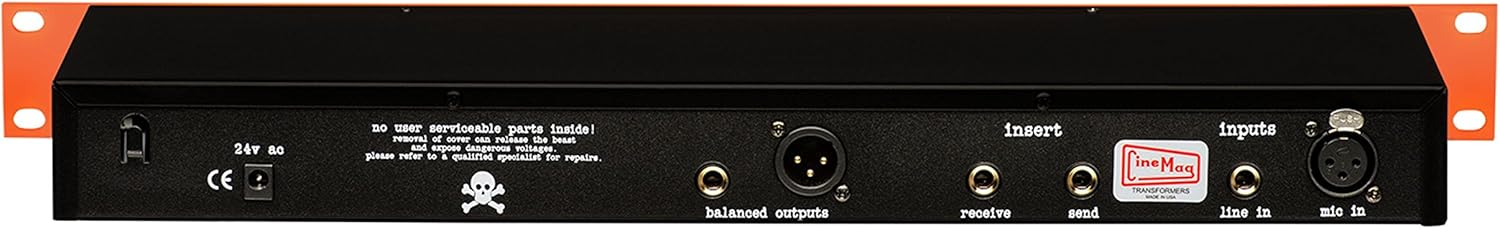

The TB12 features balanced outputs on the rear panel:

• Balanced Outputs (XLR and 1/4" TRS): Connect these to your audio interface, mixer, or other recording equipment using balanced XLR or 1/4" TRS cables.

2.4 Insert Points

The TB12 includes an insert point (1/4" TRS Send and Receive) on the rear panel. This allows for external processing equipment, such as compressors or EQs, to be patched into the signal path after the preamp stage but before the output stage. Use a TRS insert cable or separate TS cables for send and receive.

3. Operating Instructions

This section explains the functions of the front panel controls and how to use them to shape your sound.

3.1 Input Control Section

• Mic/Inst/Line Selector: These buttons select the active input source. Ensure only one input is selected at a time.
• +48V (Phantom Power): Engages 48V phantom power for condenser microphones. Activate this only when a condenser microphone is connected via the XLR input.
• Pad (-20dB): Attenuates the input signal by 20dB. Use this when the input signal is too hot, preventing clipping.
• Input Gain Knob: Adjusts the input level of the signal. This control is crucial for setting the initial signal strength and driving the preamp for desired coloration.

3.2 Tone Control Section

This section allows for significant tonal variation:

• Discrete Amplifier (x731 / x18): Selects between two different discrete op-amp circuits. The x731 offers a smoother, more vintage tone, while the x18 provides a cleaner, more modern sound.
• Capacitor Select (Vintage / Clean): Switches between two different capacitor types in the signal path. The "Vintage" setting introduces a warmer, more colored sound, while "Clean" provides a more transparent response.
• Transformer Bypass (Steel / CineMag / Bypass): This switch allows you to choose between two different output transformers (Steel or CineMag) or bypass them entirely. Each transformer imparts a unique sonic character, with the bypass offering the most uncolored output. Experiment to find the best fit for your source.

3.3 Gain & Saturation Section

• Output Knob: Controls the overall output level of the preamp. Use this to fine-tune the signal sent to your recording device or mixer, ensuring optimal gain staging without clipping.

By adjusting the Input Gain and Output knobs in conjunction with the Tone Control options, you can achieve a wide spectrum of sounds, from pristine and transparent to rich and harmonically saturated.

4. Maintenance

Proper maintenance ensures the longevity and optimal performance of your TB12 Tonebeast.

4.1 Cleaning

Wipe the exterior of the unit with a soft, dry cloth. Avoid using liquid cleaners, solvents, or abrasive materials, as these can damage the finish and internal components.

4.2 Environmental Considerations

Operate the TB12 in a clean, dry environment away from direct sunlight, excessive heat, moisture, and strong electromagnetic fields. Ensure adequate ventilation around the unit, especially if rack-mounted.

4.3 Internal Components

WARNING: There are no user-serviceable parts inside the TB12. Opening the unit's cover can expose you to dangerous voltages and will void the warranty. Refer all servicing to qualified personnel.

5. Troubleshooting

If you encounter issues with your TB12 Tonebeast, consult the following common troubleshooting steps:

5.1 No Sound Output

• Check Power: Ensure the unit is powered on and the power cable is securely connected.
• Verify Connections: Confirm all audio cables (input and output) are correctly and securely connected.
• Input Selection: Ensure the correct input (Mic, Inst, or Line) is selected on the front panel.
• Gain Settings: Check that the Input Gain and Output knobs are not set to minimum. Gradually increase them to an audible level.
• Phantom Power: If using a condenser microphone, ensure +48V phantom power is engaged.
• External Gear: If using the insert points, ensure any external processing gear is powered on and functioning correctly. Try bypassing the insert to isolate the issue.

5.2 Distorted or Unwanted Noise

• Gain Staging: Reduce the Input Gain if the signal is clipping. The TB12 can introduce harmonic distortion when driven hard, but excessive clipping indicates improper gain staging.
• Pad Engagement: If the input signal is very hot, engage the -20dB Pad.
• Cable Quality: Ensure you are using high-quality, shielded audio cables. Faulty cables can introduce noise.
• Ground Loop: If experiencing hum or buzz, try connecting the unit to a different power outlet or using a ground lift adapter (use with caution and only if necessary).
• Environmental Interference: Move the unit away from other electronic devices that might be causing interference.

5.3 Inconsistent Tone

• Tone Control Settings: Double-check the settings for the Discrete Amplifier, Capacitor Select, and Transformer Bypass switches. These significantly alter the tone.
• Input Source: Ensure the input source (microphone, instrument) is consistent and functioning as expected.

If problems persist after following these steps, contact Warm Audio customer support for further assistance.

6. Specifications

7. Warranty and Support

Warm Audio products are designed for reliability and performance. For specific warranty information, please refer to the warranty card included with your product or visit the official Warm Audio website. For technical support, service, or any questions regarding your TB12 Tonebeast, please contact Warm Audio customer service directly through their official channels.

Warm Audio Contact Information: Please visit www.warmaudio.com/support for the most up-to-date contact details and support resources.
