Thermos JBG-2000 Lunch Set User Manual

1. Introduction

The Thermos JBG-2000 Lunch Set is designed to keep your home-cooked meals at their desired temperature, whether hot or cold, for extended periods. This comprehensive set includes a durable thermal container, three individual food tubs for various dishes, and a pair of chopsticks, making it an ideal solution for transporting and enjoying meals on the go.

2. Product Components

Your Thermos JBG-2000 Lunch Set includes the following components:

• Thermal Outer Container: The main insulated unit designed to maintain food temperature.
• Rice Container (0.6L): For main dishes like rice or pasta.
• Side Dish Container (0.4L): For accompanying dishes.
• Soup Container (0.3L): For liquids such as soup or curry.
• Chopsticks and Chopstick Case: Convenient eating utensils.
• Carrying Strap: For easy portability.

Figure 2.1: All components of the Thermos JBG-2000 Lunch Set, including the thermal container, three food tubs, chopsticks, and carrying strap.

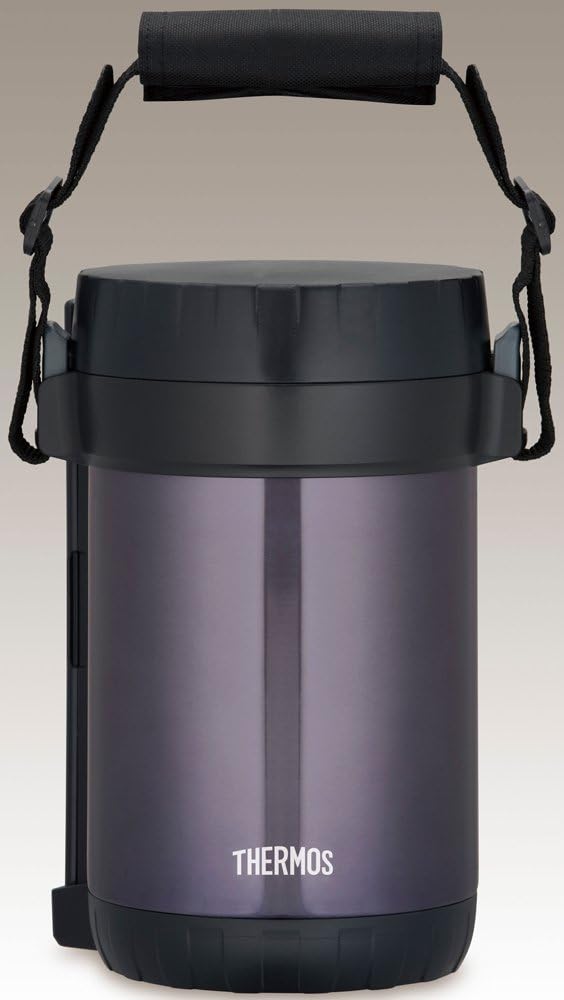

Figure 2.2: Side view of the main thermal container, highlighting its sleek design and integrated handle attachment points.

3. Setup and First Use

1. Unpack: Carefully remove all components from the packaging.
2. Wash: Before first use, wash all food tubs, lids, chopsticks, and the thermal container interior with warm soapy water. Rinse thoroughly and dry completely.
3. Pre-heat (for hot food): For optimal heat retention, pre-heat the thermal outer container by filling it with hot water for 5-10 minutes. Empty the water before adding food.
4. Pre-cool (for cold food): For optimal cold retention, pre-cool the thermal outer container by filling it with cold water or ice for 5-10 minutes. Empty the water/ice before adding food.

4. Operating Instructions

4.1 Filling the Containers

• Fill the Rice Container (0.6L) with your main dish.
• Fill the Side Dish Container (0.4L) with your preferred side items.
• Fill the Soup Container (0.3L) with soup, curry, or other liquid dishes. Ensure lids are securely fastened to prevent leaks.

4.2 Assembling the Lunch Set

1. Place the filled food tubs into the thermal outer container in the designated order (typically soup at the bottom, then side, then rice).
2. Ensure each tub's lid is tightly sealed.
3. Secure the main lid of the thermal outer container firmly.
4. Insert the chopsticks into their case and place them in the designated slot or carry them separately.

Figure 4.1: The Thermos JBG-2000 Lunch Set with the rice and side dish containers filled and ready for assembly into the thermal unit.

Figure 4.2: An alternative view of the Thermos JBG-2000 Lunch Set, demonstrating the use of containers for noodles and soup.

5. Cleaning and Maintenance

5.1 Cleaning Instructions

• Food Tubs and Chopsticks: These components are dishwasher-safe. Place them on the top rack of your dishwasher for cleaning.
• Thermal Outer Container: The thermal container should be hand washed only. Use a soft sponge or cloth with mild dish soap and warm water. Do not immerse the entire thermal container in water. Rinse thoroughly and dry immediately to prevent water spots or corrosion.
• Lids and Gaskets: Wash lids and silicone gaskets thoroughly. Ensure gaskets are properly seated after cleaning to maintain a leak-proof seal.

5.2 Storage

Store all components clean and dry. Ensure lids are not sealed airtight during long-term storage to allow for air circulation and prevent odors.

6. Troubleshooting

• Food not staying hot/cold:
  • Ensure the thermal outer container was properly pre-heated or pre-cooled before adding food.
  • Verify that all lids, especially the main thermal container lid, are securely fastened to create an airtight seal.
  • Check if the silicone gaskets are correctly positioned and free from damage.
• Leaking from containers:
  • Confirm that the lids of the individual food tubs are tightly closed.
  • Inspect the silicone gaskets on the lids for any tears or misalignment.
• Difficulty opening/closing lids:
  • Ensure no food particles are caught in the lid threads or sealing areas.
  • If a vacuum forms, try twisting the lid gently while applying slight upward pressure.

7. Specifications

8. Warranty and Support

For warranty information and customer support, please refer to the documentation provided with your purchase or visit the official Thermos website. Keep your proof of purchase for any warranty claims.
