Product Overview
The Conant VRG6LFB Vermont Grande View Rain Gauge is designed for both measuring rainfall and monitoring water usage in your garden. Its unique design features a glass vial that magnifies measurement numerals for easy reading. The gauge is constructed with durable brass and glass components for outdoor use.
Key Features:
- Dual purpose: measures both rainfall and watering amounts.
- Displays measurements in both inches (1/10 inch increments) and millimeters (1mm increments).
- Glass vial curvature magnifies numerals by 50% for enhanced readability.
- Integrated metal screen in the collection funnel prevents debris accumulation.
Package Contents
- Conant VRG6LFB Vermont Grande View Rain Gauge
- Ground stake
- Post mounting bracket
Setup and Installation
The Conant VRG6LFB rain gauge offers versatile installation options to suit your outdoor space.
Ground Installation
To install the rain gauge in the ground, attach the twisting ground stake to the base of the gauge. Select a clear, open area away from trees, buildings, or other obstructions that might block rainfall. Firmly push the stake into the soil until the gauge is stable and level. Ensure the gauge is vertical for accurate readings.
Image: Rain gauge installed in a garden with a sprinkler, showing water collection.
Wall, Fence, or Post Installation
For mounting on a wall, fence, or post, use the included post mounting bracket. Secure the bracket to your desired surface using appropriate screws (not included) for the material. Once the bracket is firmly attached, slide the rain gauge into the bracket. Verify that the gauge is level and securely fastened to ensure accurate measurement.
Image: Rain gauge mounted on a white wall or post, demonstrating alternative installation.
Important: Position the rain gauge in an area where it will receive unobstructed rainfall and is easily accessible for reading and maintenance.
Operating Instructions
The Conant VRG6LFB rain gauge is designed for straightforward operation.
Measuring Rainfall
As rain falls, it collects in the glass vial. The water level rises, and the magnified numerals on the vial indicate the amount of precipitation. Read the measurement at the lowest point of the meniscus (the curved surface of the water).
Measuring Watering Amounts
To measure the amount of water applied during irrigation, place the rain gauge in the area you are watering. Run your sprinkler or watering system for a set period. The gauge will collect the water, allowing you to read the amount applied in inches or millimeters. This helps in conserving water by preventing over-watering.
Image: Close-up of the glass vial's measurement scale, showing magnified numerals and water level.
Reading the Scale
The glass vial features two scales: one side measures in 1/10 inch increments, and the reverse side measures in 1mm increments. The unique curvature of the glass magnifies the numerals by 50%, making it easier to read the precise water level from a distance.
Maintenance
Regular maintenance ensures the longevity and accuracy of your rain gauge.
- Cleaning: Wipe the glass vial and brass components clean with a soft, damp cloth as needed. Avoid abrasive cleaners that could scratch the surface or damage the finish.
- Debris Removal: The collection funnel includes a metal screen designed to keep out unwanted leaves and bugs. Periodically check and clear any accumulated debris from this screen to ensure proper water flow into the measuring vial.

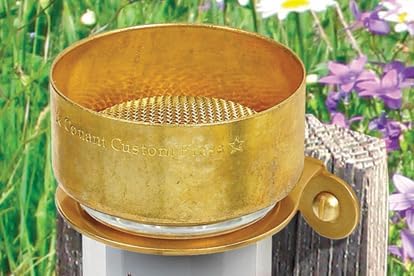

Image: Close-up view of the rain gauge's brass collection funnel with a metal screen to filter debris.
- Winter Care: In regions with freezing temperatures, it is recommended to bring the glass vial indoors during winter months to prevent potential damage from ice expansion.
Troubleshooting
If you encounter issues with your rain gauge, consider the following:
- Inaccurate Readings: Ensure the gauge is installed level and vertically. Check for any obstructions (trees, overhangs) that might prevent rain from entering the funnel. Clear any debris from the collection screen.
- Water Not Draining: Verify that the collection screen is clear of debris. The gauge is designed to hold water for measurement, not to drain immediately.
- Vial Damage: If the glass vial is cracked or broken, especially after cold weather, it may need replacement. Contact customer support for assistance.
Specifications
| Brand | Conant |
| Model Name | VRG6LFB |
| Special Feature | Waterproof |
| Color | Gold |
| Included Components | Post mounting bracket, Ground stake |
| Outer Material | Brass |
| Inner Material | Glass |
| Display Type | Visual Scale (Inch/Millimeter) |
| Product Care Instructions | Wipe Clean |
| Indoor/Outdoor Usage | Outdoor |
| Item Length | 5.25 Inches |
| Item Weight | 14.4 ounces |
| UPC | 721002007162 |
Warranty Information
This Conant VRG6LFB Vermont Grande View Rain Gauge is backed by a Limited LIFETIME Warranty. For details regarding warranty coverage and claims, please refer to the official Conant product documentation or contact Conant customer support.
Support
For further assistance, technical support, or inquiries regarding your Conant VRG6LFB Vermont Grande View Rain Gauge, please visit the official Conant website or contact their customer service department. Contact information can typically be found on the manufacturer's website or product packaging.
