La Crosse Technology WT140 Weather Station User Manual

1. Introduction

This manual provides instructions for the setup, operation, and maintenance of your La Crosse Technology WT140 Weather Station. This device is designed to monitor indoor and outdoor temperatures, as well as indoor humidity, to help you stay informed about your environment.

Key Features

• Indoor and Outdoor Temperature Display
• Indoor Humidity Display
• Min/Max Temperature and Humidity Recording
• 1.5m Wired Outdoor Temperature Probe
• Comfort Level Indicator (Happy/Sad Face)
• Low Battery Indicator
• Versatile Placement: Tabletop or Wall-Mountable

2. Package Contents

Please check that all items are present and in good condition:

• 1 x La Crosse Technology WT140 Weather Station Unit
• 1 x Wired Outdoor Temperature Probe (1.5m cable)
• Batteries (included)
• User Manual (this document)

3. Setup

3.1 Battery Installation

1. Locate the battery compartment on the back of the weather station unit.
2. Open the battery compartment cover.
3. Insert the included batteries, observing the correct polarity (+ and - markings).
4. Close the battery compartment cover securely.

Note: The device uses a small battery type, which may require replacement annually. Refer to the specifications for battery type.

3.2 Sensor Placement

1. Main Unit: Place the main weather station unit indoors on a flat surface or mount it on a wall using the integrated hanging hole. Ensure it is not in direct sunlight or near heat sources, which could affect indoor temperature readings. Avoid placing it directly against a wall if possible, as this can affect internal temperature readings.
2. Outdoor Probe: Extend the 1.5-meter wired probe outdoors. Position the probe in a shaded area, protected from direct rain and sunlight, for accurate outdoor temperature measurements. Ensure the cable is not pinched or damaged.

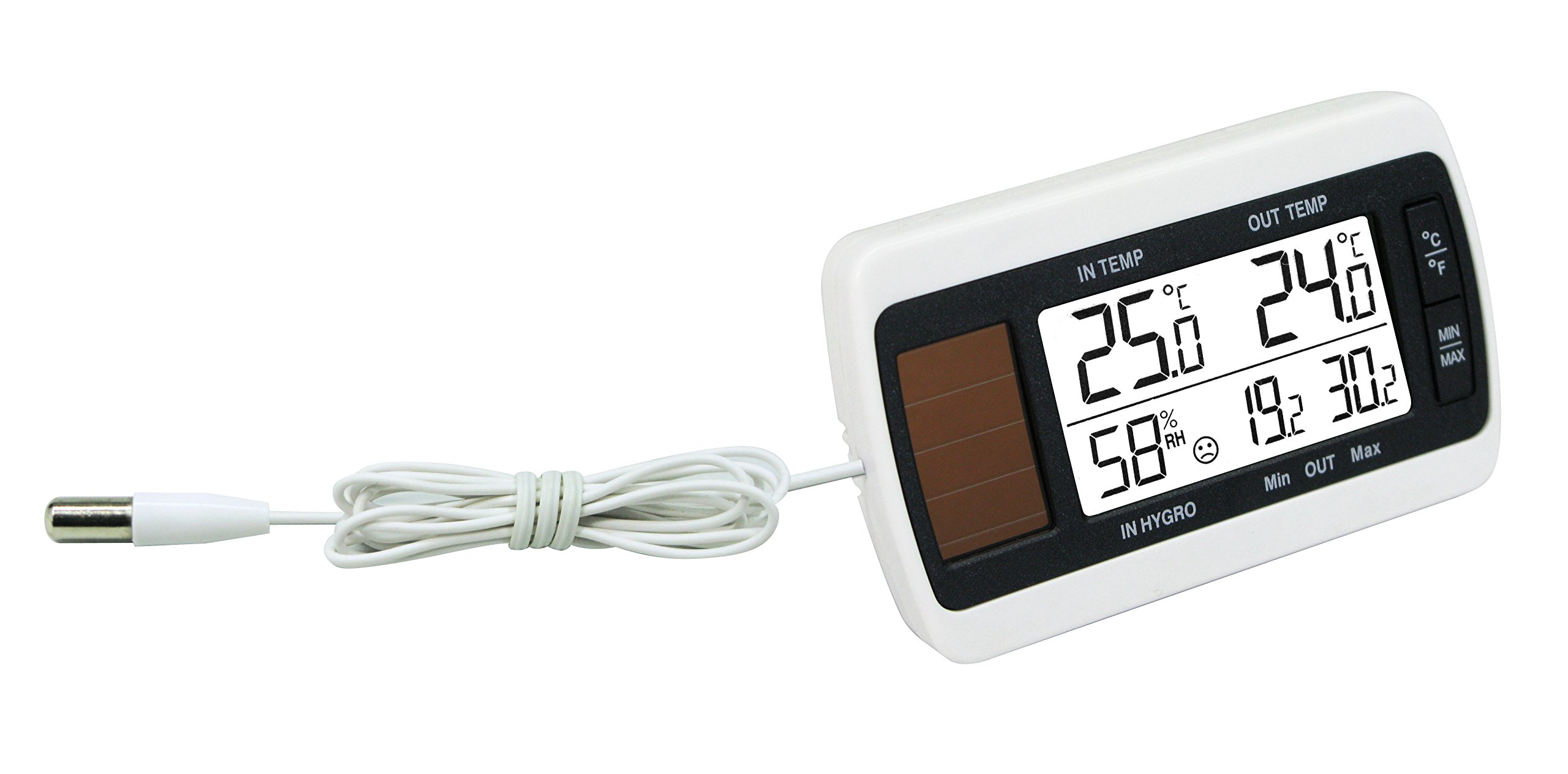

Image: La Crosse Technology WT140 Weather Station showing the main unit and the wired outdoor temperature probe.

4. Operating Instructions

4.1 Display Overview

The display shows the following information:

• Indoor Temperature (°C)
• Outdoor Temperature (°C)
• Indoor Humidity (% RH)
• Min/Max recorded values for temperature and humidity
• Comfort Indicator (Happy/Sad Face)
• Low Battery Indicator

4.2 Viewing Min/Max Values

The weather station automatically records the minimum and maximum indoor/outdoor temperatures and indoor humidity. To view these values:

1. Press the "MIN/MAX" button (if available on your model).
2. Subsequent presses will cycle through minimum, maximum, and current readings.
3. To reset the Min/Max values, press and hold the "MIN/MAX" button for a few seconds.

4.3 Comfort Indicator

The comfort indicator displays a happy or sad face to visually represent the indoor comfort level based on temperature and humidity.

• Happy Face: Indicates comfortable indoor conditions.
• Sad Face: Indicates uncomfortable indoor conditions (e.g., too dry, too humid, too hot, or too cold).

5. Maintenance

5.1 Cleaning

Clean the weather station and probe with a soft, damp cloth. Do not use abrasive cleaners or solvents, as these may damage the unit.

5.2 Battery Replacement

When the low battery indicator appears on the display, replace the batteries promptly. Refer to the "Battery Installation" section for instructions. Dispose of old batteries responsibly according to local regulations.

5.3 Probe Care

Periodically check the outdoor probe and its cable for any signs of damage or wear. Ensure the probe remains in a protected location to prolong its lifespan and accuracy.

6. Troubleshooting

No Display / Blank Screen

• Check battery polarity.
• Replace batteries with new ones.

Inaccurate Indoor Temperature

• Ensure the main unit is not in direct sunlight, near heat sources, or directly against a wall.
• Allow the unit to stabilize for 15-30 minutes after placement.

Inaccurate Outdoor Temperature

• Verify the outdoor probe is correctly positioned in a shaded, protected area.
• Check the probe cable for damage or kinks.

Display Freezes or Malfunctions

• Remove batteries, wait 1 minute, then reinsert them to perform a soft reset.
• If a reset button is available (often a small hole requiring a paperclip), press it briefly.

7. Specifications

8. Warranty and Support

For warranty information or technical support, please refer to the documentation included with your purchase or visit the official La Crosse Technology website. Keep your purchase receipt as proof of purchase.
