Product Overview
The Fetco GR-2.2 Dual Hopper Coffee Grinder is designed for commercial use, offering precise, portion-controlled grinding. It features two separate hoppers, allowing for versatility in coffee bean selection. The powerful 0.74 HP motor and precision slice grinding discs ensure a uniform grind profile for consistent brewing results. This unit is engineered for efficiency, enabling direct grinding into a brew basket.

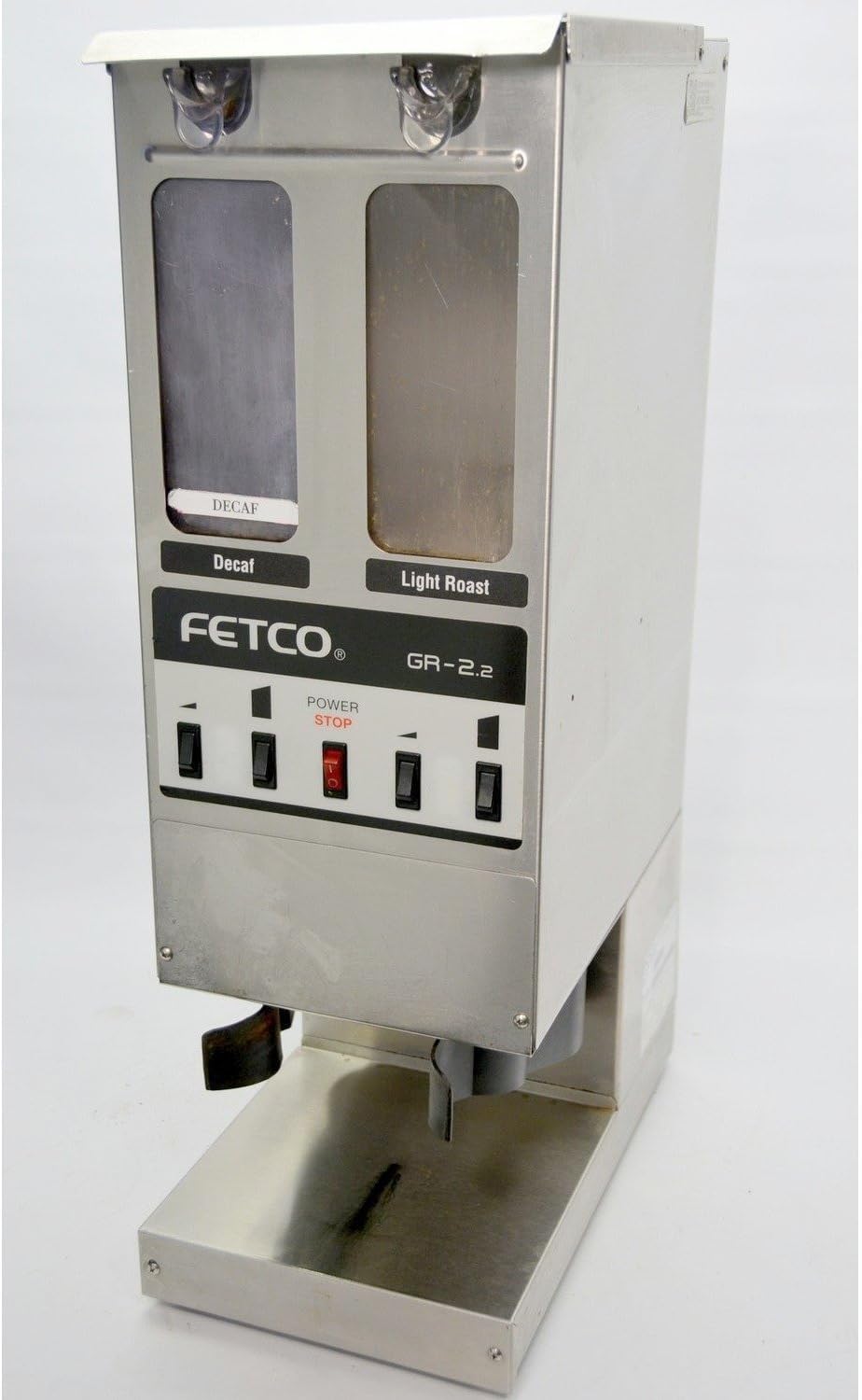

Image: Front view of the Fetco GR-2.2 Dual Hopper Coffee Grinder, showcasing the two hoppers, control panel with power switch, and dispensing chute.
Setup Instructions
1. Unpacking
- Carefully remove the grinder from its packaging.
- Inspect the unit for any signs of damage during transit. Report any damage to the carrier immediately.
- Ensure all components are present: the grinder unit, dual hoppers, and power cord.
2. Placement
- Place the grinder on a stable, level surface capable of supporting its weight (approximately 65 pounds).
- Ensure adequate clearance around the unit for ventilation and ease of operation.
- Avoid placing the grinder in direct sunlight or near heat sources.
3. Electrical Connection
- Verify that the electrical supply matches the grinder's requirements: 120 Volts, 6.2 Amps, single phase.
- Connect the power cord to a grounded electrical outlet. Use only copper wire for power supply connection.
- The unit is designed for 2 wires + ground configuration.

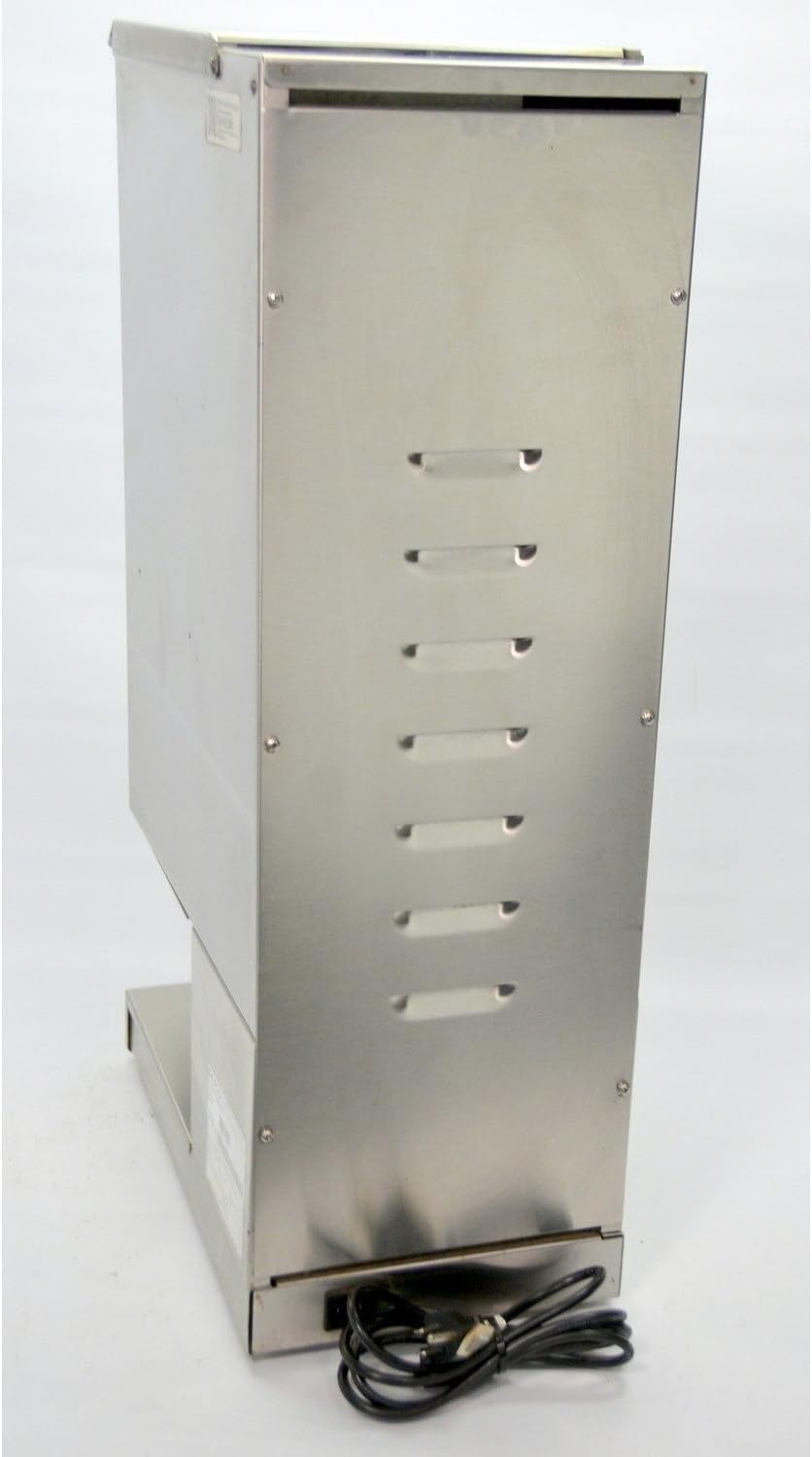

Image: Rear view of the Fetco GR-2.2 Coffee Grinder, illustrating the power cord connection point at the base.
Operating Instructions
1. Filling Hoppers
- Lift the lid on top of the grinder to access the dual hoppers.
- Pour whole coffee beans into the desired hopper. The hoppers are designed for easy removal and refilling.
- Ensure the lid is securely closed after filling to maintain bean freshness.
Image: Top view of the Fetco GR-2.2 Coffee Grinder with the lid open, showing the two separate hoppers ready for coffee beans.
2. Selecting Grind Size
- The grinder is equipped with precision slice grinding discs for uniform grind profiles.
- Refer to the specific controls on the front panel to select the desired grind setting for your brewing method.
3. Grinding Coffee
- Place your brew basket directly under the grinding chute.
- Select the desired batch size using the control buttons on the front panel.
- Press the corresponding button to initiate grinding. The grinder will dispense the selected amount of coffee.
- The red "POWER STOP" button is for emergency shut-off.

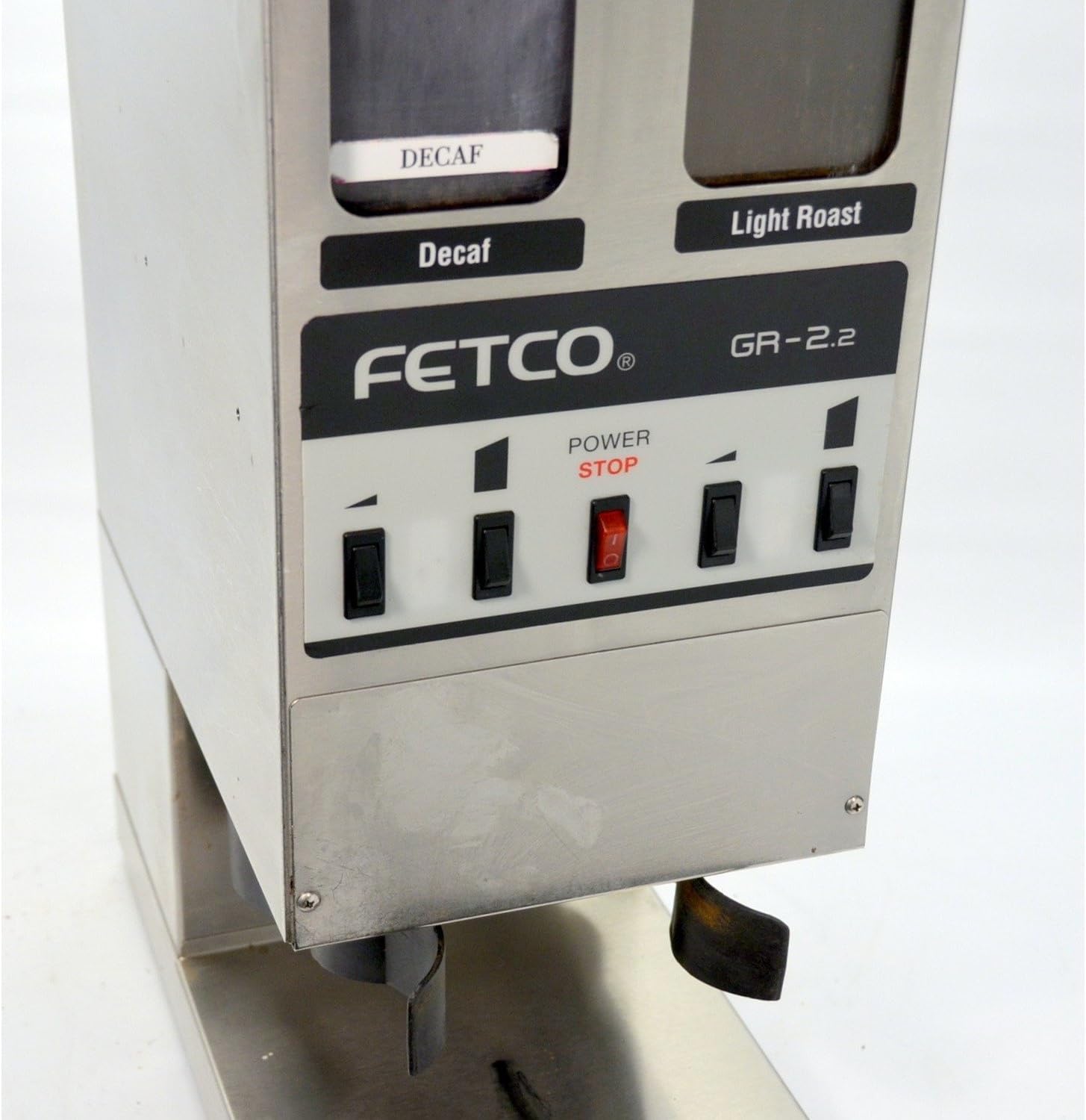

Image: Close-up of the Fetco GR-2.2 Coffee Grinder's control panel, showing the "POWER STOP" button and individual controls for each hopper.
Maintenance
1. Cleaning
- Regularly clean the exterior of the grinder with a damp cloth. Avoid abrasive cleaners.
- Periodically remove residual coffee grounds from the grinding chamber and chute using a brush or vacuum.
- The hoppers can be removed for thorough cleaning. Wash with mild soap and water, then dry completely before reattaching.
2. Burr Care
- The precision slice grinding discs are durable, but regular cleaning helps maintain their performance.
- Follow manufacturer guidelines for accessing and cleaning the burrs.
- Avoid grinding anything other than whole roasted coffee beans to prevent damage to the burrs.
Troubleshooting
This section addresses common issues you might encounter with your Fetco GR-2.2 Coffee Grinder.
| Problem | Possible Cause | Solution |
|---|---|---|
| Grinder does not turn on. | No power supply; power switch off; circuit breaker tripped. | Check power cord connection; ensure unit is plugged into a live outlet; check main power switch; reset circuit breaker if necessary. |
| Coffee not grinding or grinding slowly. | Hoppers empty; beans jammed; burrs clogged. | Refill hoppers; clear any visible bean jams; clean burrs and grinding chamber. |
| Inconsistent grind size. | Burrs worn or dirty; incorrect grind setting. | Clean burrs thoroughly; adjust grind setting; consider burr replacement if wear is evident. |
| Excessive noise during operation. | Foreign object in grinding chamber; loose components. | Immediately power off and inspect grinding chamber for foreign objects; ensure all parts are securely fastened. |
Technical Specifications
| Feature | Detail |
|---|---|
| Brand | Fetco |
| Model Number | GR-2.2 |
| Item Weight | 65 Pounds (29.5 kg) |
| Package Dimensions | 31 x 19 x 18 inches (78.7 x 48.3 x 45.7 cm) |
| Voltage | 120 Volts |
| Amperage | 6.2 Amps |
| Power (KW) | 0.5 KW |
| Motor Horsepower | 0.74 Hp |
| Grinding Discs | Precision Slice |
| Manufacturer | Fetco |
| Date First Available | October 9, 2010 |

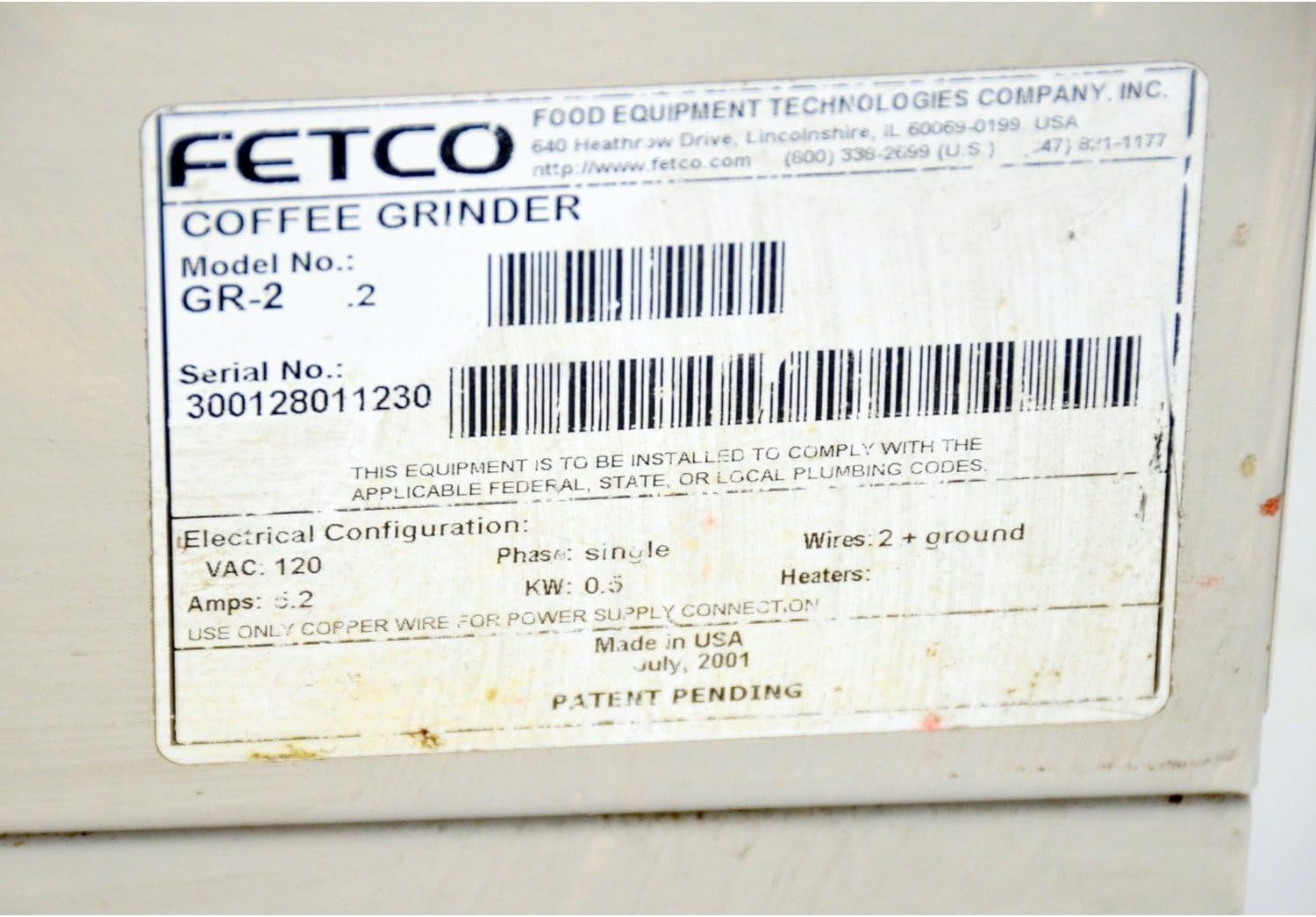

Image: Close-up of the product specification label, detailing electrical configuration and model information.
Warranty Information
Specific warranty details are typically provided with the purchase documentation or can be obtained directly from the manufacturer. Please refer to your purchase receipt or contact Fetco customer support for comprehensive warranty terms and conditions.
Customer Support
For technical assistance, parts, or service inquiries regarding your Fetco GR-2.2 Coffee Grinder, please contact Fetco customer support. You can find their contact information on the official Fetco website or through your product documentation.
Manufacturer: Fetco
Website: www.fetco.com
