1. Product Overview
The Ajusa Intake Manifold Gasket 13145000 is a critical component designed to create a seal between the intake manifold and the cylinder head of an engine. This gasket prevents air leaks, which can lead to improper air-fuel mixture, reduced engine performance, and increased emissions. It is engineered as a direct replacement part, ensuring compatibility and optimal sealing performance for specified vehicle applications.
Maintaining a proper seal is essential for the efficient operation of the engine's intake system. This gasket is manufactured to Original Equipment (OE) quality standards in terms of fit, form, and material type, providing a reliable solution for vehicles experiencing intake manifold leaks.

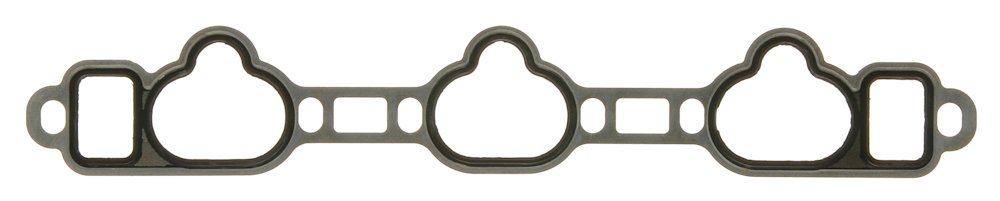

Figure 1: Ajusa Intake Manifold Gasket 13145000. This image displays the gasket's shape and design, highlighting the sealing surfaces and bolt holes.
2. Features
- Vehicle Specific Design: Engineered to be a precise fit for specific vehicle models, ensuring proper function.
- Direct Replacement: Designed to directly replace the original equipment gasket, simplifying installation.
- Leak Prevention: Provides an effective seal to prevent air leaks between the intake manifold and cylinder head.
- OE Quality: Manufactured to Original Equipment quality standards in terms of fit, form, and material type for durability and performance.
- Broad Coverage: Ajusa offers extensive coverage for European and Asian vehicles.
3. Specifications
| Attribute | Value |
|---|---|
| Brand | Ajusa |
| Model Number | 13145000 |
| Length | 365 mm |
| Width | 57 mm |
| Weight | 53.361 g |
| Product Dimensions | 36.5 x 6 x 0.1 cm |
| Equivalent Part Numbers | NISSAN 14035-97E00 |
4. Installation Guidelines
Proper installation of the intake manifold gasket is crucial for its performance and the overall health of the engine. It is highly recommended that installation be performed by a qualified automotive technician. Incorrect installation can lead to leaks, engine damage, and voided warranties.
General Installation Steps:
- Safety First: Ensure the engine is cool and the vehicle is safely supported. Disconnect the battery.
- Disassembly: Carefully remove all components obstructing access to the intake manifold. This may include air intake systems, fuel lines, electrical connectors, and vacuum hoses.
- Remove Old Gasket: Unbolt and remove the intake manifold. Carefully remove the old gasket material from both the manifold and the cylinder head surfaces.
- Surface Preparation: Thoroughly clean both mating surfaces (intake manifold and cylinder head) to remove any old gasket material, carbon deposits, oil, or debris. Use a suitable gasket scraper and cleaner. Ensure surfaces are completely dry and free of contaminants.
- Gasket Placement: Position the new Ajusa Intake Manifold Gasket 13145000 onto the cylinder head or intake manifold, ensuring all bolt holes and ports align correctly. Do not use sealants unless specifically recommended by the vehicle manufacturer.
- Reassembly: Carefully reinstall the intake manifold, ensuring it seats properly on the new gasket. Install the manifold bolts and tighten them to the vehicle manufacturer's specified torque settings and sequence. Refer to your vehicle's service manual for precise torque values and patterns.
- Reconnect Components: Reattach all removed components, including fuel lines, electrical connectors, vacuum hoses, and the air intake system.
- Final Checks: Reconnect the battery. Start the engine and check for any leaks or unusual noises. Monitor engine performance.
Note: Always consult your specific vehicle's service manual for detailed, model-specific instructions, torque specifications, and any special tools required for intake manifold gasket replacement.
5. Maintenance
Intake manifold gaskets are designed to be maintenance-free components once properly installed. They do not require routine servicing. However, it is advisable to periodically inspect the area around the intake manifold for any signs of leaks (e.g., oil residue, coolant stains, or unusual smells) during routine engine inspections or other maintenance procedures. If a leak is detected, the gasket should be replaced promptly.
6. Troubleshooting
If engine performance issues arise after gasket installation, or if symptoms of a faulty intake manifold gasket persist, consider the following:
- Vacuum Leaks: Symptoms include rough idle, misfires, reduced engine power, and illuminated "Check Engine" light. This often indicates an improper seal.
- Coolant/Oil Leaks: If the gasket seals coolant or oil passages, external leaks may be visible, or internal leaks could lead to coolant in oil or vice-versa.
- Incorrect Installation: The most common cause of gasket failure after replacement is improper installation, including insufficient surface cleaning, incorrect torque, or damaged gasket during assembly.
- Component Damage: Inspect the intake manifold and cylinder head surfaces for warpage, cracks, or damage that could prevent a proper seal.
If any of these issues are suspected, it is recommended to have the vehicle inspected by a professional technician to diagnose and rectify the problem.
7. Warranty and Support
For information regarding the warranty period, terms, and conditions for the Ajusa Intake Manifold Gasket 13145000, please refer to the documentation provided at the time of purchase or contact your authorized Ajusa dealer or the retailer from whom the product was acquired. Support for technical inquiries can typically be obtained through the same channels or by visiting the official Ajusa website.
