Introduction
This manual provides essential information for the safe and efficient setup, operation, and maintenance of your John Timberland Stafford 48-inch 3-Tier Outdoor Fountain. Please read all instructions carefully before assembly and use.
Product Overview
The Stafford 3-Tier Fountain is a traditional Italian-inspired water feature designed for both indoor and outdoor use. Constructed from lightweight fiberglass with a natural tan finish, it offers a classic aesthetic and soothing water sounds.
Image: The John Timberland Stafford 48-inch 3-Tier Outdoor Fountain in its entirety, showcasing its classic design and three cascading tiers.
Key Features:
- Dimensions: 48 inches high x 23 inches wide.
- Water Capacity: Holds 7 gallons of water.
- Weight: Approximately 30 lbs (empty).
- Material: Lightweight fiberglass construction.
- Finish: Natural Tan faux stone.
- Pump: Includes a plug-in water pump with a 6-foot long cord.
- Design: Three-tier traditional fountain style.
Specifications
| Attribute | Detail |
|---|---|
| Color | Natural Tan |
| Material | Fiberglass |
| Brand | John Timberland |
| Special Feature | Lightweight |
| Product Dimensions (L x W x H) | 23"L x 23"W x 48"H |
| Item Weight | 30 Pounds |
| Power Source | Corded Electric |
| Model Number | Y6908 (Manufacturer Part Number: 83140-48) |
| UPC | 736101597704 |

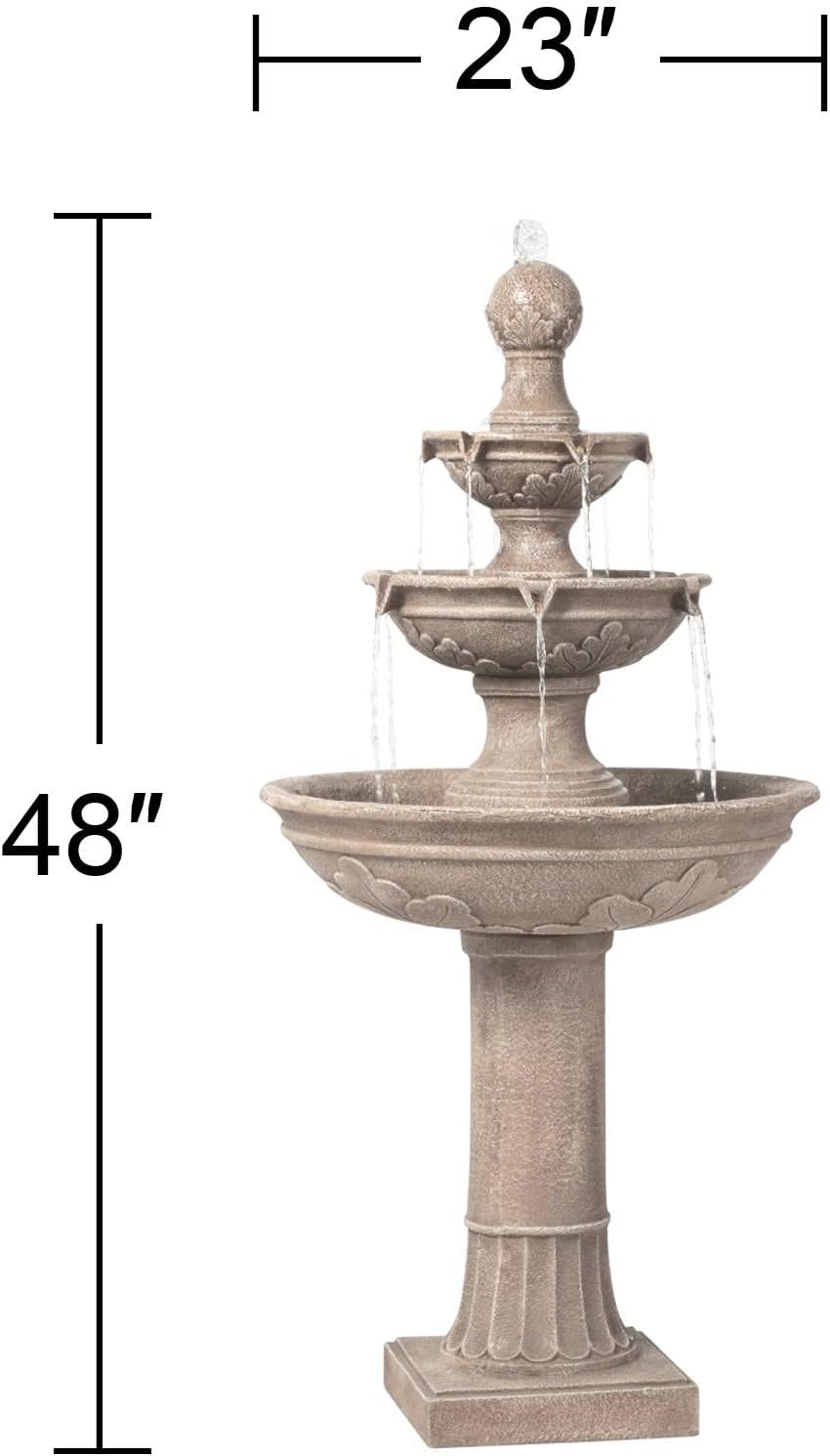

Image: Diagram showing the dimensions of the Stafford 3-Tier Fountain, measuring 48 inches in height and 23 inches in width.
Assembly and Setup
The fountain ships in multiple pieces and requires light assembly. Follow these general steps:
- Unpack Components: Carefully remove all parts from the packaging and inspect for any damage.
- Choose Location: Select a level surface for placement, ensuring it is near a power outlet and can support the fountain's weight when filled with water.
- Assemble Tiers: Connect the fountain tiers according to the manufacturer's instructions, ensuring all connections are secure.
- Install Pump: Place the submersible pump in the lowest basin. Connect the pump's tubing to the water distribution system within the fountain.
- Fill with Water: Fill the lowest basin with clean water, ensuring the pump is fully submerged. The fountain holds approximately 7 gallons.
- Connect Power: Plug the pump's power cord into a grounded outdoor-rated electrical outlet.
Image: The Stafford 3-Tier Fountain positioned on a paved patio, demonstrating a typical outdoor setup.
Operation
Once assembled and filled, operating your fountain is straightforward:
- Power On: Plug the fountain into a suitable electrical outlet to start the water flow.
- Water Level: Regularly check the water level in the lowest basin. Due to evaporation and splashing, water levels will decrease over time. Refill as needed to ensure the pump remains submerged and operates correctly.
- Water Flow Adjustment: The pump may have an adjustable flow rate. Refer to the pump's specific instructions for details on how to modify the water flow intensity.
- Power Off: Unplug the fountain from the electrical outlet to stop operation.
Image: A detailed view of water cascading from the middle tier of the fountain, illustrating the continuous flow during operation.
Maintenance
Regular maintenance will prolong the life and appearance of your fountain:
- Clean Water: Use distilled water to minimize mineral buildup.
- Regular Cleaning: Periodically drain the fountain and clean all surfaces with a soft brush and mild soap to remove algae, dirt, and mineral deposits. Rinse thoroughly.
- Pump Maintenance: Clean the pump regularly by disconnecting it and removing any debris from the impeller and intake screen.
- Winterization: In freezing climates, drain all water from the fountain and pump. Store the pump indoors in a frost-free location. Cover the fountain or store it indoors to prevent damage from ice expansion.
Troubleshooting
If you encounter issues with your fountain, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| No water flow | Pump not plugged in; insufficient water level; clogged pump/tubing; faulty pump. | Ensure power connection; add water until pump is submerged; clean pump and tubing; replace pump if necessary. |
| Low water flow | Low water level; clogged pump/tubing; pump flow rate set too low. | Add water; clean pump and tubing; adjust pump flow rate. |
| Excessive splashing | Pump flow rate too high; uneven surface. | Adjust pump flow rate to a lower setting; ensure fountain is on a level surface. |
| Water leakage | Loose connections; cracks in basin. | Check and tighten all connections; inspect basins for damage and seal if minor, or contact support for significant damage. |
Safety Information
Observe the following safety precautions:
- Always disconnect the power supply before performing any maintenance or cleaning.
- Ensure the pump is fully submerged in water during operation to prevent overheating.
- Use a grounded electrical outlet and ensure the power cord is protected from damage.
- Keep children and pets away from the fountain during operation to prevent accidents.
- This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm (Proposition 65 warning).
Warranty and Support
Your John Timberland Stafford 48-inch 3-Tier Outdoor Fountain comes with a Limited 1-year warranty from the manufacturer.
For product support, warranty claims, or replacement parts, please contact the seller, LAMPS PLUS, directly. Their customer support can assist with any issues you may encounter.
Seller: LAMPS PLUS
For additional information or to explore other products, visit the John Timberland Store.
