Introduction
This manual provides instructions for the safe and efficient use of the Goodlite G-20124 13-watt Compact Fluorescent Plug-In 2-Pin Light Bulb with GX23 Base. This CFL bulb is designed to provide daylight-colored illumination while offering energy efficiency and a long operational life.
Important Safety Information
- WARNING: Always turn off power to the fixture and allow the bulb to cool before installing, removing, or handling.
- Do not use this bulb with dimmers unless specifically rated for dimmable CFLs. This bulb is not designed for dimming.
- Ensure the fixture is compatible with a GX23 2-pin base and the bulb's wattage (13W).
- Do not use in enclosed fixtures that restrict airflow, as this can shorten bulb life.
- Handle the bulb by its plastic base, not the glass tube, to avoid breakage.
- In case of bulb breakage, follow local guidelines for mercury cleanup.
- Dispose of used CFL bulbs according to local regulations, as they contain small amounts of mercury.
Setup and Installation
Follow these steps to properly install your Goodlite G-20124 CFL bulb:
- Turn off Power: Before attempting any installation, ensure the power supply to the light fixture is completely turned off at the circuit breaker or wall switch.
- Identify Base Type: Confirm your fixture requires a GX23 2-pin base.
- Insert Bulb: Align the two pins on the bulb's base with the corresponding slots in the fixture's socket. Gently push the bulb into the socket until it is firmly seated. Do not force the bulb.
- Secure Connection: Ensure the bulb is fully inserted and the pins make proper contact.
- Restore Power: Once the bulb is securely installed, restore power to the fixture.

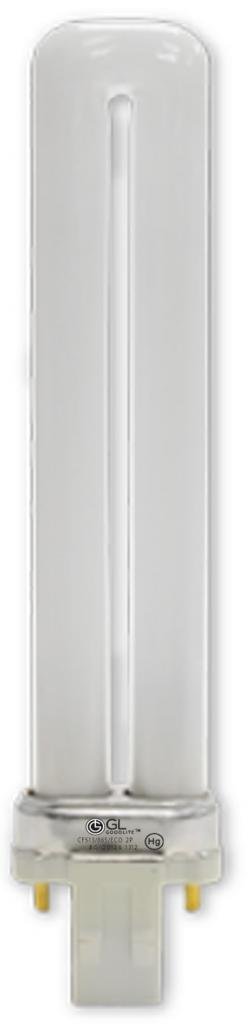

Image: Goodlite G-20124 13-watt Compact Fluorescent Plug-In 2-Pin Light Bulb. This image illustrates the general appearance of the bulb, featuring its compact fluorescent design and 2-pin base.
Operating Instructions
The Goodlite G-20124 CFL bulb operates like a standard light bulb once installed:
- Power On/Off: Use the fixture's switch to turn the light on or off.
- Warm-up Time: CFL bulbs may take a short period (typically a few seconds to a minute) to reach full brightness, especially in colder environments.
- Light Output: This bulb provides 800 lumens of daylight-colored light (6500K color temperature).
Maintenance
- Cleaning: Ensure the power is off and the bulb is cool before cleaning. Wipe the bulb gently with a dry, soft cloth. Do not use liquid cleaners.
- Replacement: The average lamp life is 12,000 hours. When the bulb reaches the end of its life, turn off the power, allow it to cool, and remove it by gently pulling it straight out from the socket. Replace with a new Goodlite G-20124 or a compatible GX23 2-pin CFL bulb of the same wattage.
- Disposal: Dispose of old CFL bulbs responsibly. Many communities have recycling programs for fluorescent lamps due to their mercury content. Contact your local waste management facility for proper disposal instructions.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Bulb does not light up. |
|
|
| Bulb flickers or takes a long time to start. |
|
|
Specifications
| Feature | Detail |
|---|---|
| Model Number | G-20124 |
| Brand | Goodlite |
| Light Type | Compact Fluorescent Light (CFL) |
| Wattage | 13 Watts |
| Incandescent Equivalent | 60 Watts |
| Brightness | 800 Lumens |
| Color Temperature | 6500 Kelvin (Daylight) |
| Color Rendering Index (CRI) | 80-85 |
| Base Type | GX23 (2-Pin) |
| Voltage | 120 Volts |
| Average Life | 12,000 Hours |
| Product Dimensions | Approximately 5 x 1 x 1 inches |
| Material | Copper (base components) |
| Special Feature | Energy Efficient |
Warranty and Support
Specific warranty details for the Goodlite G-20124 bulb are not provided in this manual. For warranty inquiries or technical support, please refer to the product packaging or contact Goodlite customer service directly through their official website or the retailer where the product was purchased.
For more information, you may visit the Goodlite Store on Amazon.
