Fender Modern Player Jazz Bass Guitar Instruction Manual

Introduction

This manual provides essential information for the setup, operation, maintenance, and troubleshooting of your Fender Modern Player Jazz Bass Guitar. Please read it thoroughly to ensure proper use and care of your instrument.

Setup

Upon unboxing your Fender Modern Player Jazz Bass Guitar, perform a visual inspection for any shipping damage. Ensure all components are present and secure.

1. Stringing and Tuning

Your bass guitar comes pre-strung. For optimal performance, new strings may require stretching and frequent tuning during the initial playing period. Use a reliable electronic tuner to achieve standard bass guitar tuning (E-A-D-G, low to high).

2. Connecting to an Amplifier

Connect a standard 1/4-inch instrument cable from the output jack on your bass guitar to the input jack of your bass amplifier. Ensure your amplifier's volume is set to a low level before powering it on.

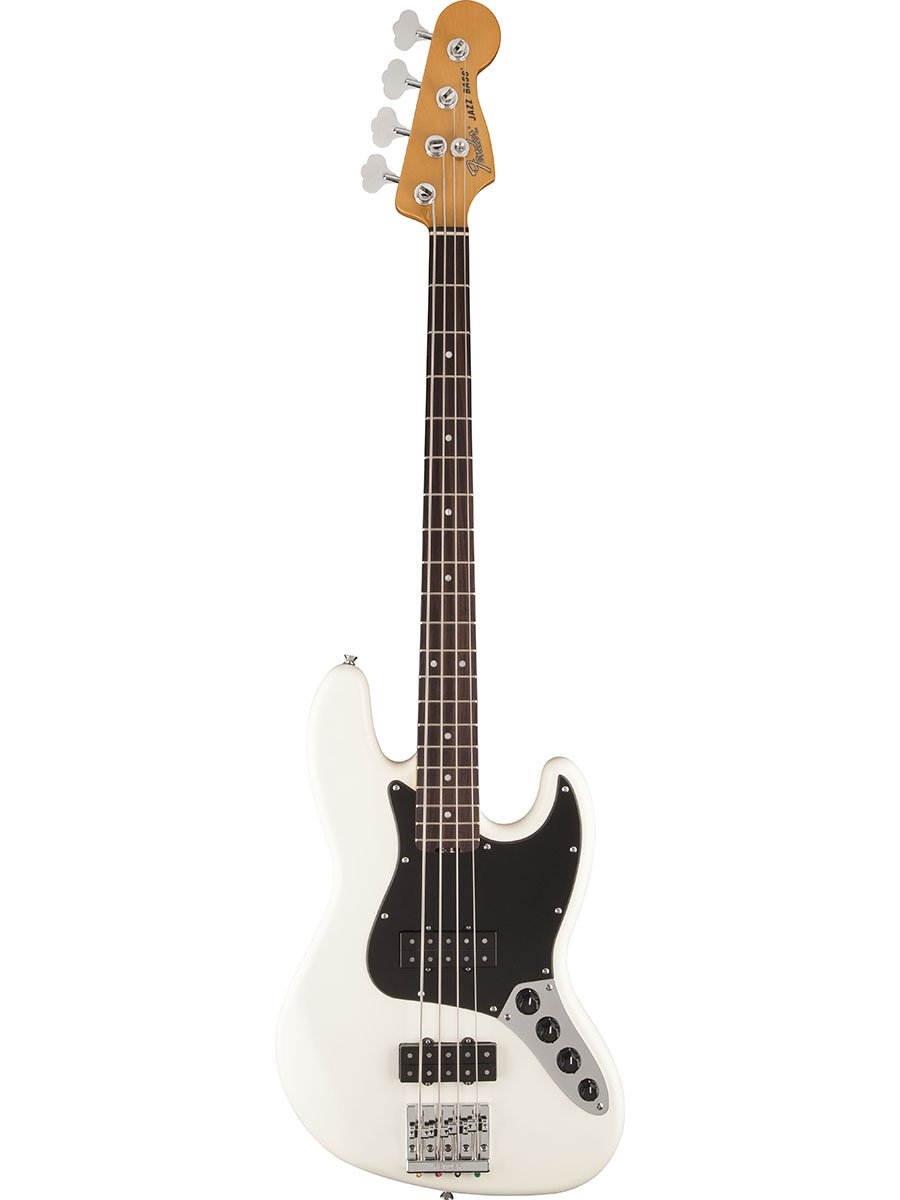

This image shows the Fender Modern Player Jazz Bass Guitar in Olympic White, highlighting its body, neck, and headstock. The instrument features a rosewood fingerboard and a satin finish.

Operating

The Fender Modern Player Jazz Bass Guitar features a versatile control layout designed for a wide range of tones.

1. Controls Overview

• Volume Knobs: Two individual volume knobs control the output level of the middle and bridge humbucking pickups.
• Master Tone Knob: This knob adjusts the overall treble response of the instrument. Turning it clockwise increases treble, while counter-clockwise reduces it.
• Four-Position Rotary Pickup Selector Switch: This switch allows you to select various pickup combinations for distinct tonal characteristics.

2. Pickup Selector Combinations

The rotary switch provides the following pickup configurations:

1. Position 1: Full middle and bridge pickups (standard humbucking tone).
2. Position 2: Full middle pickup and bridge pickup outer coil (brighter, more articulate tone).
3. Position 3: Full bridge pickup and middle pickup outer coil (focused, punchy tone).
4. Position 4: Outer coil of both pickups (single-coil like tone, brighter and thinner).

Maintenance

Regular maintenance will preserve the playability and appearance of your bass guitar.

1. Cleaning

• Body and Neck: Wipe down the body and back of the neck with a soft, lint-free cloth after each use to remove sweat and grime. For deeper cleaning, use a guitar-specific polish.
• Fingerboard: The rosewood fingerboard should be cleaned periodically with a specialized fingerboard cleaner and conditioner to prevent drying and cracking.
• Hardware: Use a dry cloth to clean the bridge, tuners, and other metal parts. Avoid abrasive cleaners.

2. String Care and Replacement

Wipe strings after playing to extend their life. Replace strings regularly, typically every 1-3 months depending on usage, to maintain optimal tone and intonation. When replacing, change one string at a time to maintain neck tension.

3. Truss Rod Adjustment

The Modern Player Jazz Bass features an easy-access truss rod adjustment wheel. This allows for minor adjustments to the neck relief. If you are unfamiliar with truss rod adjustments, it is recommended to consult a qualified guitar technician.

4. Bridge Adjustment

The four-saddle Fender Hi-Mass bridge allows for individual string height and intonation adjustments. These adjustments should be performed by an experienced individual or a professional technician.

Troubleshooting

Here are some common issues and basic troubleshooting steps.

• No Sound:
  • Check instrument cable connections at both the bass and amplifier.
  • Ensure amplifier is powered on and volume is up.
  • Verify bass guitar's volume knobs are turned up.
  • Test with a different cable or amplifier if possible.
• Buzzing or Fret Noise:
  • Check for proper finger placement and pressure when fretting notes.
  • Inspect strings for wear or damage.
  • Neck relief or string action may need adjustment (refer to Maintenance section or consult a technician).
• Poor Tuning Stability:
  • Ensure strings are properly stretched, especially new ones.
  • Check tuning machine screws for tightness.
  • Verify strings are correctly wound around the tuning posts.

Specifications

Warranty Information

This Fender Modern Player Jazz Bass Guitar is covered by a Limited Lifetime Warranty. For detailed terms and conditions, please refer to the official Fender warranty documentation included with your purchase or visit the Fender website.

Customer Support

For further assistance, technical support, or warranty claims, please contact Fender Customer Service. You can find contact information on the official Fender website: www.fender.com/support.
