1. Introduction
This manual provides essential instructions for the safe installation, operation, and maintenance of your Monte Carlo BF2-BZ Traditional 52-inch Ceiling Fan. Please read all instructions carefully before beginning installation and retain this manual for future reference.
The Monte Carlo BF2-BZ is a 52-inch traditional ceiling fan from the HomeBuilder II Collection, featuring a bronze/dark finish. It is designed for indoor use and includes a premium power 153 x 13 mm torque-induction motor for quiet operation, a triple capacitor 3-speed reversible motor, and precision-balanced motor and blades for wobble-free performance. The 11-degree blade pitch is optimized for effective air movement.

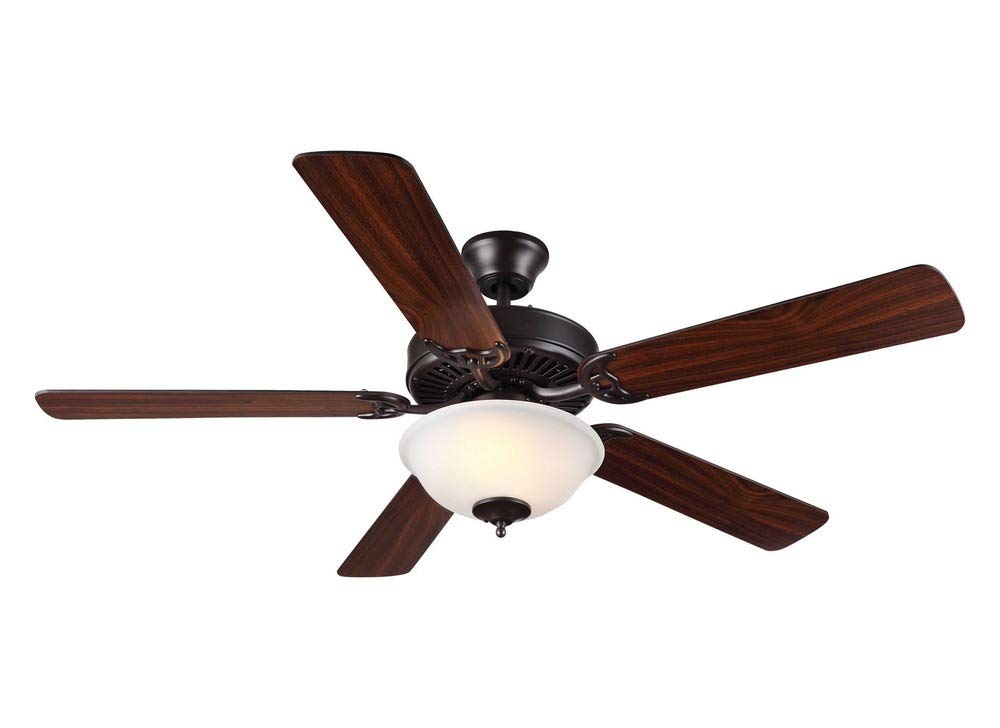

Image 1.1: The Monte Carlo BF2-BZ Traditional 52-inch Ceiling Fan, showcasing its bronze/dark finish and five blades.
2. Safety Information
WARNING: To reduce the risk of fire, electric shock, or personal injury, always follow these basic safety precautions:
- Read all instructions and safety information before installing your fan and save these instructions.
- All wiring must be in accordance with national and local electrical codes. Consult a qualified electrician if you are unfamiliar with wiring.
- Before installation, disconnect power by turning off the circuit breakers to the fan's electrical box.
- The outlet box and support structure must be securely mounted and capable of supporting at least 35 lbs (15.9 kg). Use only UL Listed outlet boxes marked "FOR FAN SUPPORT."
- Do not operate the fan with damaged blades or if the fan housing is damaged.
- Avoid placing objects in the path of the fan blades.
- Ensure the fan is installed at a height where blades are at least 7 feet (2.1 meters) from the floor.
3. Package Contents
Verify that all components listed below are included in your package. If any parts are missing or damaged, contact customer support before proceeding with installation.
- Motor Housing Assembly
- Fan Blades (5)
- Blade Brackets
- Downrod Assembly
- Canopy and Mounting Bracket
- Remote Control and Receiver
- Hardware Pack (screws, washers, wire nuts)
- Instruction Manual
4. Setup and Installation
Professional installation is recommended. Ensure power is disconnected at the circuit breaker before beginning installation.
- Mounting the Bracket: Secure the mounting bracket to the ceiling outlet box using the screws provided. Ensure the outlet box is UL Listed for fan support.
- Assembling the Downrod: Insert the downrod through the canopy and feed the motor wires through the downrod. Secure the downrod to the motor housing with the provided pin and screws.
- Hanging the Fan: Carefully lift the fan assembly and hang it on the mounting bracket hook. This will free your hands for wiring.
- Wiring Connections: Connect the fan's electrical wires to the household wiring according to the wiring diagram in the full installation guide. Ensure all connections are secure with wire nuts. Install the remote receiver in the canopy.
- Securing the Canopy: Raise the canopy to the mounting bracket and secure it with the provided screws.
- Attaching the Blades: Attach the blade brackets to the fan blades, then secure the blade assemblies to the motor housing. Ensure all screws are tightened.
5. Operating Instructions
Your Monte Carlo BF2-BZ ceiling fan can be operated using the included remote control or the pull chain switch.
5.1 Remote Control Operation
- Fan ON/OFF: Press the fan button to turn the fan on or off.
- Speed Control: Use the speed buttons (Low, Medium, High) to adjust the fan speed. The fan has 3 speeds.
- Reverse Function: Locate the reverse switch on the fan motor housing (or on the remote if applicable to your model). Flip the switch to change the blade direction for summer (downward airflow) or winter (upward airflow). Ensure the fan is off before changing direction.
5.2 Pull Chain Operation
- Fan Speed: Pull the chain repeatedly to cycle through fan speeds (High, Medium, Low, Off).
- Reverse Function: The reverse function is typically a switch located on the motor housing. Turn off the fan, wait for the blades to stop, then slide the switch to change the direction of airflow.
Quiet Operation
Optimal Airflow
Traditional Design
6. Maintenance
Regular maintenance ensures optimal performance and extends the life of your ceiling fan.
- Cleaning: Periodically clean the fan with a soft, damp cloth. Do not use abrasive cleaners or solvents, as these may damage the finish.
- Blade Care: Check fan blades for dust accumulation. Dust can cause imbalance and wobble. Clean blades gently.
- Tighten Fasteners: Annually, check all screws and fasteners on the fan and mounting hardware to ensure they are secure.
- Lubrication: The fan motor is permanently lubricated and does not require additional oiling.
7. Troubleshooting
If you experience issues with your fan, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not start | No power to the fan; Loose wire connections; Remote control battery low. | Check circuit breaker; Verify all wire connections are secure; Replace remote control battery. |
| Fan wobbles | Loose blade screws; Unbalanced blades; Loose mounting bracket. | Tighten all blade screws; Use a blade balancing kit (sold separately); Ensure mounting bracket is securely fastened. |
| Noisy operation | Loose screws; Motor housing rubbing; Incorrect installation. | Check and tighten all screws; Ensure no parts are rubbing; Re-check installation steps. |
| Remote control not working | Battery low or dead; Incorrect pairing; Obstruction. | Replace battery; Refer to remote pairing instructions; Ensure clear line of sight to receiver. |
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | BF2-BZ |
| Brand | Monte Carlo |
| Electric Fan Design | Ceiling Fan |
| Style | Traditional |
| Finish Type | Bronze/Dark Cherry |
| Number of Blades | 5 |
| Blade Material | Plastic |
| Number of Speeds | 3 |
| Power Source | Corded Electric |
| Voltage | 120 Volts |
| Wattage | 58.00 W |
| Control Method | Remote, Pull Chain |
| Special Features | Reversible Motor, Blades Included |
| Mounting Type | Ceiling Mount |
| Indoor/Outdoor Usage | Indoor |
| Item Weight | 17 Pounds |
| Certification | UL Listed |
9. Warranty Information
The warranty description for this product is N/A. Please refer to your purchase documentation or contact Monte Carlo customer support for specific warranty details applicable to your region and purchase date.
10. Customer Support
For technical assistance, replacement parts, or any questions regarding your Monte Carlo BF2-BZ ceiling fan, please contact Monte Carlo customer support. Contact information can typically be found on the manufacturer's official website or on your product packaging.
Online Resources: Visit the official Monte Carlo website for FAQs, additional product information, and support contact details.
