1. Introduction
This manual provides essential instructions for the safe and efficient operation, assembly, and maintenance of your Spitzer EL100 Lithium Ion Electric Golf Cart. Please read this manual thoroughly before using the product to ensure proper function and longevity.

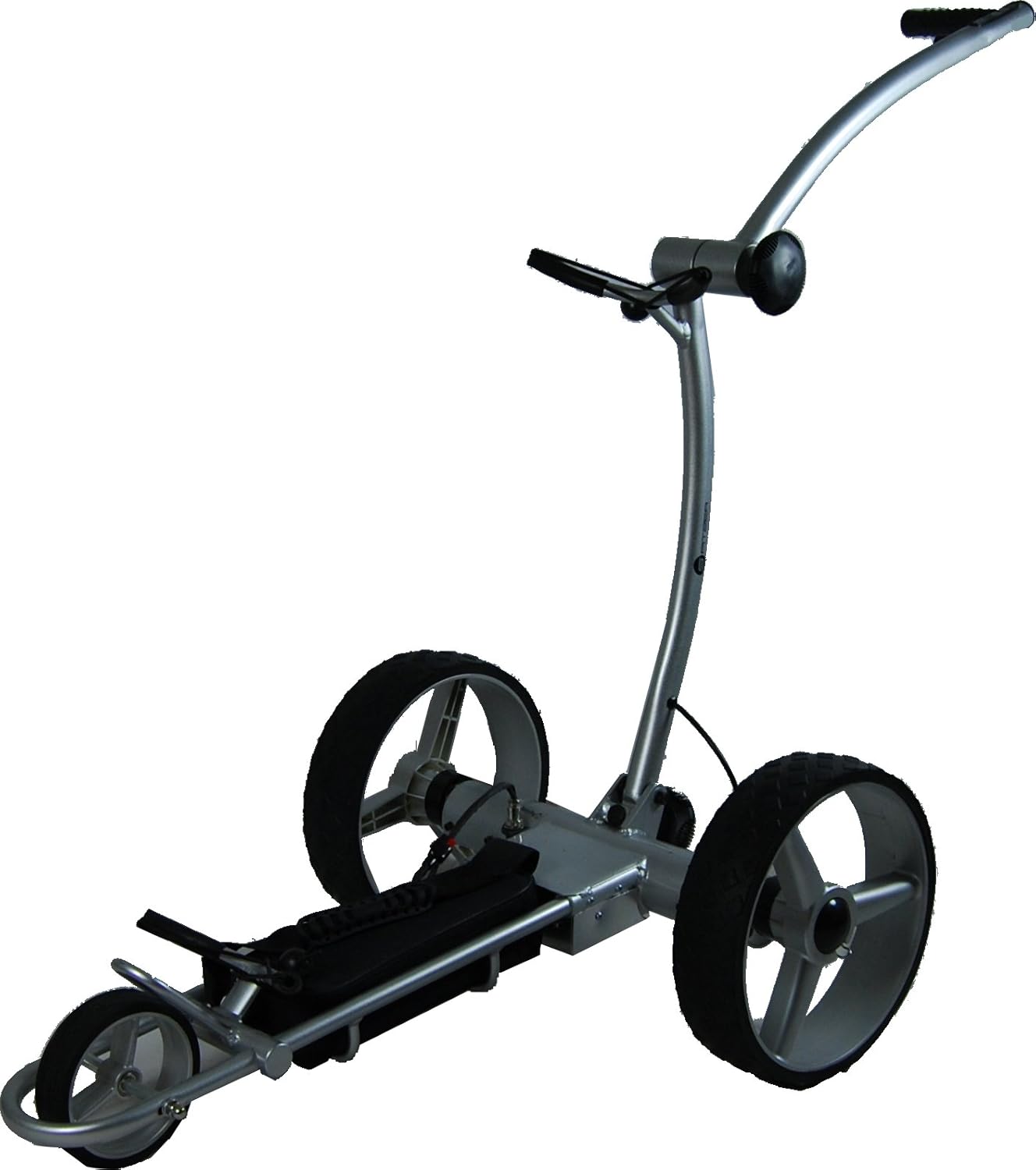

Figure 1.1: The Spitzer EL100 Lithium Ion Electric Golf Cart. This image shows the overall design of the electric golf cart from a front-side perspective, highlighting its three-wheel configuration and handle.
2. Safety Information
Always observe the following safety precautions to prevent injury or damage to the product:
- Do not operate the golf cart in adverse weather conditions, such as heavy rain or lightning.
- Ensure all components are securely fastened before operation.
- Keep hands and feet clear of moving parts, especially wheels and motors.
- Do not overload the cart beyond its specified weight capacity.
- Store the cart and battery in a dry, temperate environment.
- Use only the provided charger for the lithium-ion battery.
- Avoid submerging the cart or its electrical components in water.
3. Package Contents
Verify that all items listed below are present in your package:
- Spitzer EL100 Golf Cart Frame
- Two (2) Main Wheels
- One (1) Front Wheel Assembly
- Lithium-Ion Battery Pack
- Battery Charger
- Battery Carry Bag
- User Manual (this document)
Figure 3.1: Exploded view of the Spitzer EL100 components. This image displays the main cart frame, two large wheels, the battery pack in its bag, and the battery charger, illustrating all items included in the package.
4. Setup and Assembly
Follow these steps to assemble your Spitzer EL100 Electric Golf Cart:
- Unfold the Frame: Gently unfold the main cart frame until it locks into its open position. Ensure all locking mechanisms are engaged.
- Attach the Wheels: Slide the two main wheels onto their respective axles. Secure them using the provided quick-release pins or locking mechanisms. Ensure the wheels are firmly attached and spin freely.
- Install the Battery: Place the lithium-ion battery pack into its designated carry bag. Secure the battery bag to the cart frame using the attached straps. Connect the battery cable to the cart's power input.
- Adjust the Handle: Adjust the handle height to a comfortable position and secure it.
Figure 4.1: Side view of the cart during assembly. This image illustrates the cart frame with one main wheel attached and the front wheel assembly, providing a visual guide for wheel attachment and frame unfolding.
Figure 4.2: Detail of the battery bag secured to the cart frame. This close-up shows how the battery bag is strapped to the lower part of the cart, indicating the correct placement and connection point for the lithium-ion battery.
5. Operating Instructions
Familiarize yourself with the controls before operating the cart:

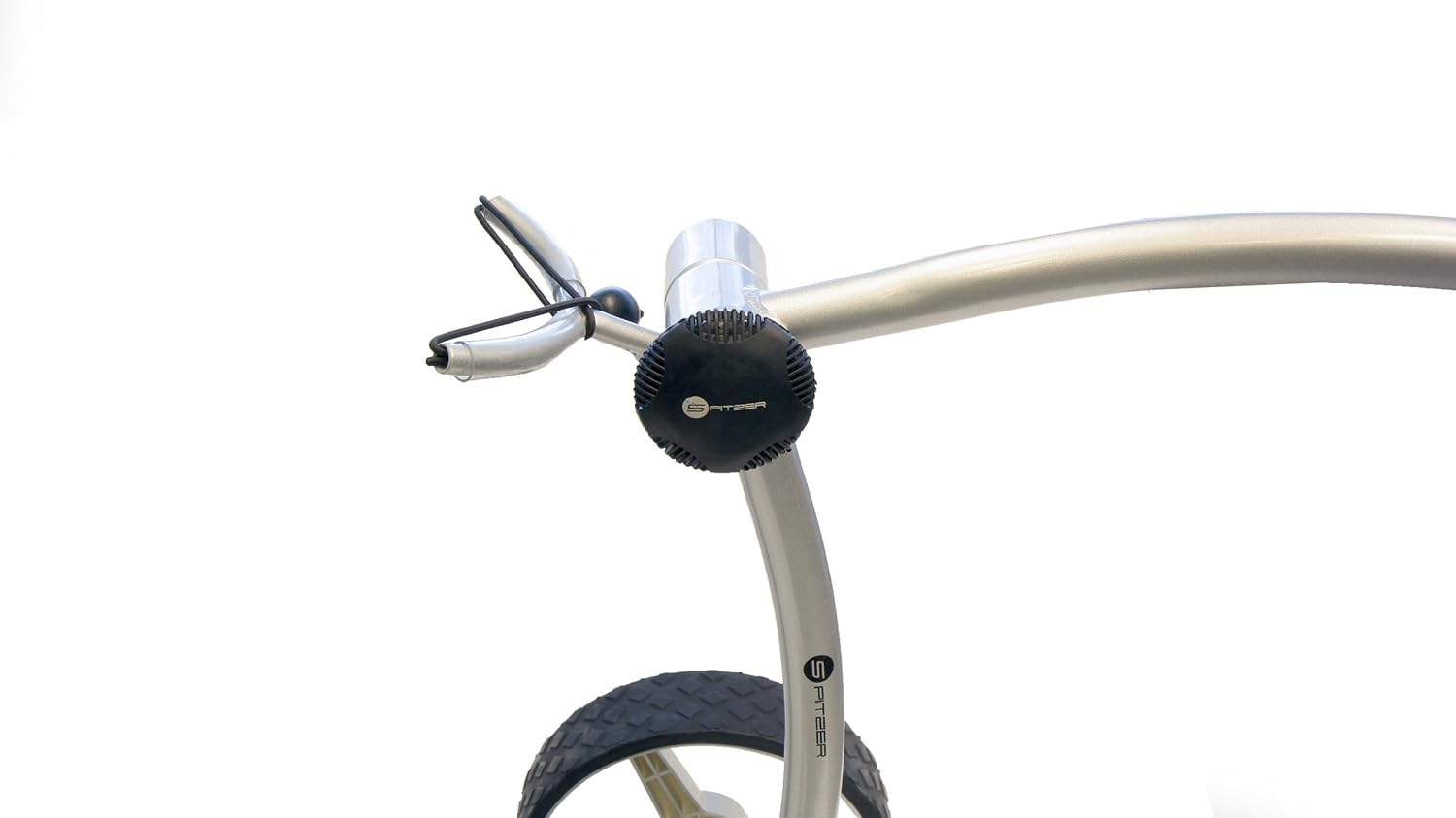

Figure 5.1: Close-up of the control panel on the handle. This image highlights the on/off buttons and the speed control knob, which are essential for operating the cart.
- Power On/Off: Locate the power button on the handle. Press it to turn the cart on. The indicator light will illuminate. Press again to turn off.
- Speed Control: Use the variable speed control knob on the handle to adjust the cart's speed. Rotate clockwise to increase speed and counter-clockwise to decrease.
- Maneuvering: Guide the cart by holding the handle. The dual tubular motors provide propulsion and assist in maneuvering over varied terrain.
- Folding for Transport/Storage: The cart features a quick 5-second folding mechanism. Release the locking mechanisms (refer to Figure 4.1 for general folding points) and collapse the frame.
6. Battery Charging and Care
The Spitzer EL100 is equipped with a high-performance Lithium-Ion battery. Proper charging and care are crucial for battery longevity.
6.1 Charging Procedure
- Ensure the golf cart is turned off.
- Disconnect the battery from the cart. It is recommended to remove the battery from the cart for charging.
- Connect the charger to the battery pack.
- Plug the charger into a standard electrical outlet.
- Allow the battery to charge fully. The charger's indicator light will typically change color (e.g., red to green) when charging is complete.
- Once charged, disconnect the charger from the outlet, then from the battery.
6.2 Battery Care Tips
- Avoid completely draining the battery before recharging.
- Store the battery in a cool, dry place when not in use.
- Do not expose the battery to extreme temperatures.
- Charge the battery at least once every three months, even during periods of non-use, to maintain its health.
7. Maintenance
Regular maintenance ensures optimal performance and extends the life of your golf cart.
- Cleaning: Wipe down the cart frame and wheels with a damp cloth after each use. Avoid using harsh chemicals or abrasive cleaners.
- Wheel Inspection: Periodically check the wheels for wear and tear. Ensure they are securely attached and rotate freely.
- Electrical Connections: Inspect all electrical connections for corrosion or damage. Ensure they are clean and secure.
- Storage: When storing for extended periods, ensure the battery is charged and disconnected. Store the cart in a dry, covered area. The quick-folding feature (Figure 7.1) allows for compact storage.

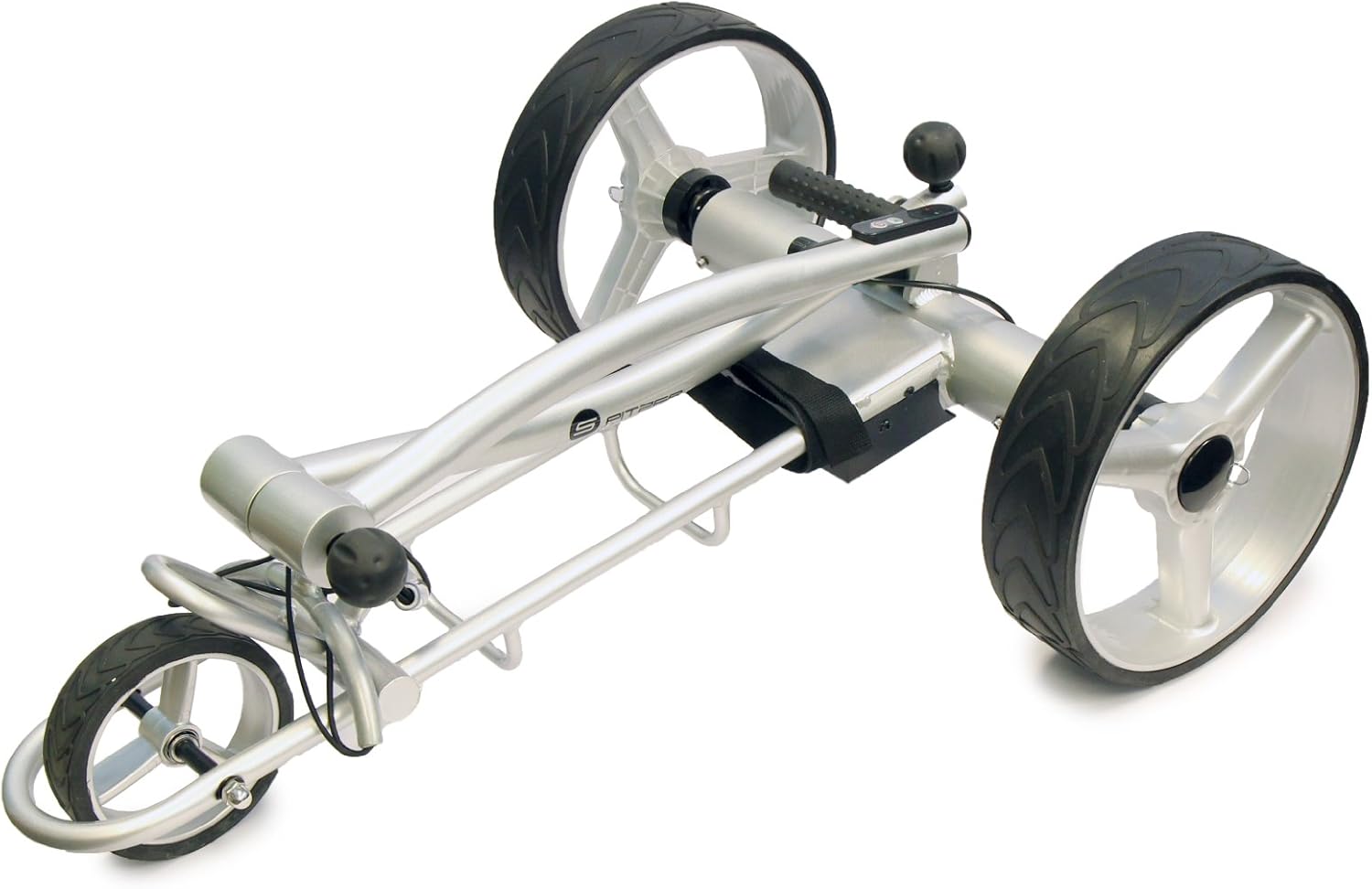

Figure 7.1: The Spitzer EL100 Golf Cart in its folded configuration. This image demonstrates the compact form factor of the cart when folded, ideal for storage or transport.
8. Troubleshooting
Refer to the following table for common issues and their solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Cart does not power on. | Battery not connected, battery discharged, power button malfunction. | Ensure battery is securely connected. Charge the battery fully. Contact support if power button is unresponsive. |
| Cart moves slowly or inconsistently. | Low battery charge, motor obstruction, speed control setting. | Recharge the battery. Check wheels and motors for obstructions. Adjust the speed control knob. |
| Battery not charging. | Charger not plugged in, faulty charger, battery connection issue. | Verify charger is plugged into outlet and battery. Check charger indicator light. Ensure battery connections are clean. |
| Unusual noises during operation. | Loose components, debris in wheels/motors. | Inspect all fasteners. Clear any debris from wheels and motor areas. |
If you encounter issues not listed here or if the suggested solutions do not resolve the problem, please contact customer support.
9. Specifications
Technical specifications for the Spitzer EL100 Lithium Ion Electric Golf Cart:
- Model: EL100
- Part Number: EGT003
- Brand: Spitzer
- Battery Type: Lithium-Ion
- Motors: Dual Tubular Motors
- Folding Mechanism: Quick 5-second fold
- Item Package Dimensions (L x W x H): 32.99 x 24.02 x 10.98 inches
- Package Weight: 15.24 Kilograms
- First Available: November 18, 2012
10. Warranty and Support
For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. Warranty terms and conditions may vary.
For technical support or service inquiries, please contact Spitzer customer service through their official website or the contact information provided with your product.
