Liftmaster STAR1000 Commercial Access Control Receiver Instruction Manual

1. Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of the Liftmaster STAR1000 Commercial Access Control Receiver. The STAR1000 is designed to manage access for commercial gate and door systems, offering robust control and user management capabilities.

Please read this manual thoroughly before attempting any installation or operation to ensure proper function and safety.

2. Safety Information

WARNING: Risk of Electric Shock or Injury.

• Installation and wiring must be performed by qualified personnel in accordance with all local electrical codes.
• Disconnect power to the access control system before performing any wiring or maintenance.
• Do not operate the receiver with damaged components.
• Keep hands and clothing clear of moving gate or door mechanisms during operation.

3. Package Contents

Verify that all items are present in the package:

• Liftmaster STAR1000 Commercial Access Control Receiver Unit
• Mounting Hardware (screws, anchors)
• Instruction Manual (this document)
• Antenna (if applicable, check specific model variant)

4. Setup and Installation

4.1 Mounting the Receiver

Select a suitable location for mounting the STAR1000 receiver. The location should be protected from direct weather exposure and allow for optimal antenna reception. Ensure adequate space for wiring connections.

1. Mark the mounting holes on the desired surface using the receiver as a template.
2. Drill pilot holes if necessary.
3. Secure the receiver to the surface using the provided mounting hardware.

4.2 Wiring Connections

The STAR1000 receiver requires power and connection to the gate/door operator control board. Refer to the wiring diagram provided with your specific gate/door operator for correct connections.

• Power Connection: Connect the receiver to a stable power source as specified in the product's electrical requirements. Ensure correct polarity.
• Output Connections: Connect the receiver's output terminals to the appropriate input terminals on your gate/door operator control board (e.g., common, open, close, stop).
• Antenna Connection: Securely attach the antenna to the designated port on the receiver.

Consult a professional electrician if you are unsure about any wiring procedures.

4.3 Initial Power-Up

Once all connections are secure, apply power to the receiver. The display should illuminate, indicating the unit is operational. The initial setup menu may appear.

5. Operating Instructions

The Liftmaster STAR1000 features an LCD display and a keypad for configuration and user management.

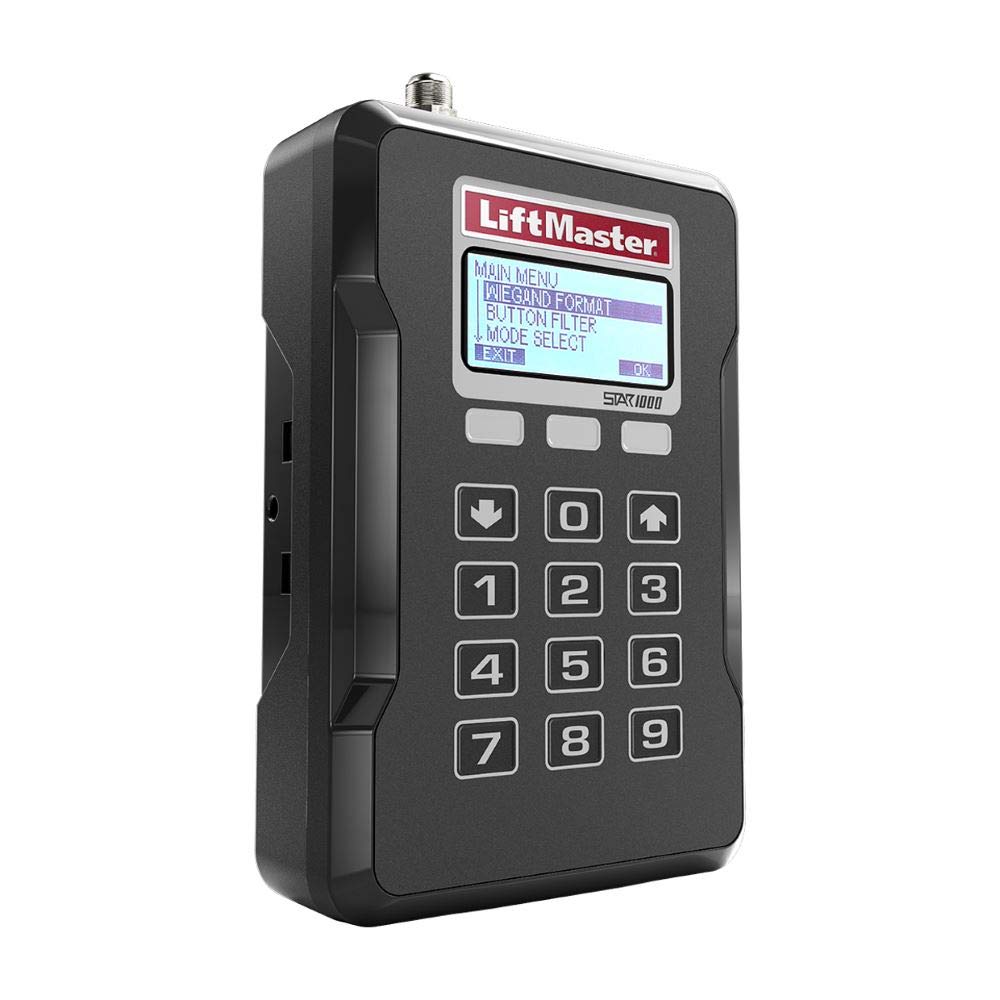

Figure 1: Front view of the Liftmaster STAR1000 receiver, showing the LCD display and numeric keypad.

The display shows "MAIN MENU" with options like "WIEGAND FORMAT", "BUTTON FILTER", "MODE SELECT", and "EXIT". A numeric keypad (0-9) and navigation buttons (up, down) are visible below the display.

5.1 Navigating the Menu

Use the Up (▲) and Down (▼) arrow buttons on the keypad to scroll through menu options. Press the OK button (located below the display, to the right) to select an option.

The main menu typically includes:

• MAIN MENU: The primary entry point for all settings.
• WIEGAND FORMAT: Configures the Wiegand protocol for external card readers or keypads.
• BUTTON FILTER: Adjusts settings related to button presses or remote signals.
• MODE SELECT: Allows selection of different operating modes for the receiver.
• EXIT: Returns to the previous menu or exits the menu system.

5.2 Programming Remotes/Users

The STAR1000 supports programming multiple users and remote controls. Specific steps may vary based on the selected operating mode. Generally, the process involves:

1. Access the programming menu (e.g., via "MAIN MENU" then a "User Management" or "Add Remote" option).
2. Follow the on-screen prompts to enter user codes or activate the remote learning mode.
3. Press the button on the remote control to be programmed.
4. Confirm the programming on the receiver's display.

Refer to the detailed programming guide for specific remote control models if available.

5.3 Deleting Users/Remotes

To remove access for a specific user or remote, navigate to the user management section in the menu and select the option to delete or suspend an entry. This feature is useful for managing access permissions efficiently.

6. Maintenance

The Liftmaster STAR1000 receiver is designed for minimal maintenance. Regular checks can help ensure long-term reliability.

• Cleaning: Periodically wipe the exterior of the unit with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• Inspections: Annually inspect all wiring connections for signs of wear, corrosion, or loose terminals. Ensure the antenna is securely attached.
• Firmware Updates: Check the manufacturer's website for any available firmware updates that may improve performance or add features.

7. Troubleshooting

This section addresses common issues you might encounter with the STAR1000 receiver.

If troubleshooting steps do not resolve the issue, contact Liftmaster technical support.

8. Specifications

Note: Specifications are subject to change without notice.

9. Warranty and Support

For warranty information, please refer to the warranty card included with your product or visit the official Liftmaster website. Technical support is available through Liftmaster's customer service channels.

For further assistance, please visit: Liftmaster Support
