Introduction
Thank you for purchasing the KENNETH COLE New York KC9305 Men's Chronograph Watch. This manual provides detailed instructions for setting up, operating, and maintaining your watch to ensure optimal performance and longevity. Please read this manual thoroughly before using your watch.
Product Overview
The KC9305 is a sophisticated chronograph watch featuring a Japanese analog quartz movement, a durable stainless steel case and bracelet, and a mineral crystal dial window. It is designed for both style and functionality.

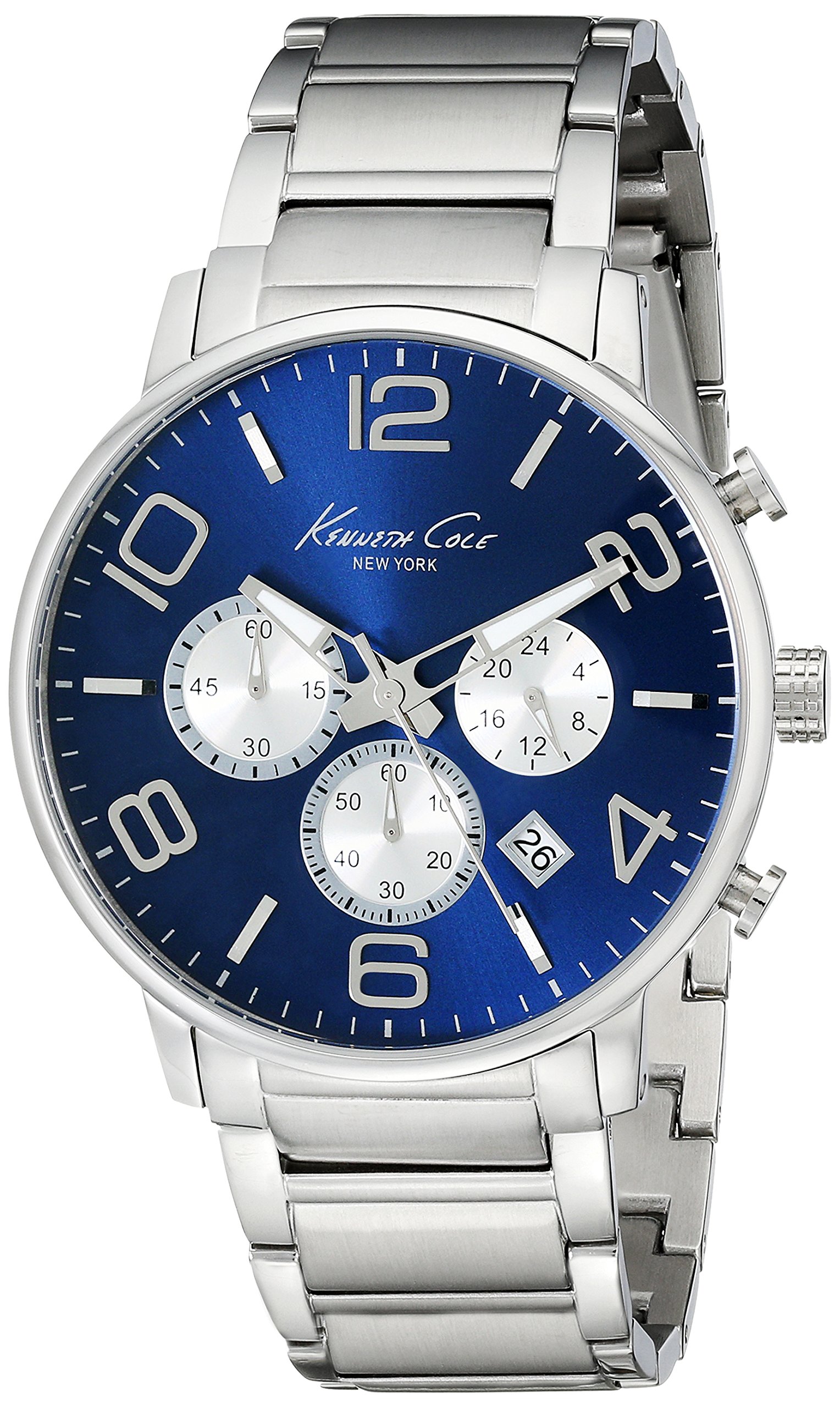

Image: Front view of the Kenneth Cole New York KC9305 chronograph watch, showcasing the blue dial, silver-tone hands, and sub-dials.
Key Features:
- Japanese analog quartz chronograph movement with sweep second hand and date display.
- Solid stainless steel case, solid stainless steel case back, and solid stainless steel crown.
- High-quality solid stainless steel link bracelet with a deployant buckle clasp and safety.
- Durable mineral crystal protects the watch from scratches.
- Water resistant up to 50 meters (165 feet).
Setup
1. Setting the Time and Date:
- Pull out the crown: Gently pull the crown (the knob on the side of the watch) to the second click position. The second hand will stop.
- Set the time: Rotate the crown to set the hour and minute hands. Ensure the AM/PM is correctly set, especially when setting the date.
- Set the date: Push the crown in one click to the first click position. Rotate the crown to set the date. Avoid setting the date between 9 PM and 3 AM, as this may damage the movement.
- Push in the crown: Once the time and date are set, push the crown back into its normal position.
2. Adjusting the Bracelet:
The stainless steel link bracelet can be adjusted by adding or removing links. This procedure typically requires specialized tools and is best performed by a qualified jeweler or watch technician to avoid damage to the bracelet or watch.
Image: The Kenneth Cole New York KC9305 watch worn on a wrist, demonstrating its fit and appearance.
Operating the Chronograph
Your KC9305 watch features a chronograph function for measuring elapsed time.
- Start: Press the upper pusher (button) to start the chronograph. The chronograph second hand will begin to move.
- Stop: Press the upper pusher again to stop the chronograph. The elapsed time will be indicated by the chronograph hands.
- Reset: Press the lower pusher to reset the chronograph hands to their zero positions.
Water Resistance:
This watch is water resistant up to 50 meters (165 feet). This means it is suitable for short periods of recreational swimming and showering. However, it is not suitable for diving or prolonged water activities. Ensure the crown is fully pushed in before any contact with water.
Maintenance
Cleaning:
To maintain the appearance of your watch, wipe the case and bracelet regularly with a soft, dry cloth. For stainless steel bracelets, a slightly damp cloth can be used, followed by a dry cloth. Avoid using harsh chemicals or abrasive materials.
Battery Replacement:
The watch is powered by a quartz movement and requires a battery. When the battery runs low, the watch may stop or the second hand may move erratically. Battery replacement should be performed by a qualified watch technician to ensure the water resistance seal is properly maintained.
Storage:
When not wearing your watch, store it in a cool, dry place away from direct sunlight and extreme temperatures. The original watch box can be used for storage.
Image: The black Kenneth Cole New York watch box, suitable for safe storage.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Watch has stopped | Depleted battery | Replace battery (professional service recommended). |
| Time is incorrect | Crown not fully pushed in; Time not set correctly | Ensure crown is pushed in; Re-set time as per "Setting the Time and Date" section. |
| Chronograph hands do not reset to zero | Requires calibration | Consult a watch technician for calibration. |
| Condensation inside crystal | Water ingress; Extreme temperature change | Seek immediate professional service to prevent damage. |
Specifications
| Feature | Detail |
|---|---|
| Model Number | KC9305 |
| Movement Type | Japanese Quartz Chronograph |
| Display Type | Analog |
| Case Material | Stainless Steel |
| Case Diameter | 42 Millimeters |
| Case Thickness | 12 Millimeters |
| Band Material | Stainless Steel |
| Band Width | 22 Millimeters |
| Dial Window Material | Mineral Glass |
| Water Resistance Depth | 50 Meters (165 Feet) |
| Clasp Type | Deployant Buckle with Safety |
| Battery | 1 A (included) |
| Item Weight | 131.54 Grams |
Image: A visual guide illustrating various watch case diameters for size comparison.
Warranty and Support
Warranty Information:
Your KENNETH COLE New York KC9305 watch comes with a limited 2-year warranty from the date of purchase. This warranty covers manufacturing defects under normal use. It does not cover damage resulting from accidents, improper use, unauthorized repairs, or normal wear and tear.
Customer Support:
For warranty claims, service, or technical assistance, please contact your authorized KENNETH COLE New York retailer or visit the official Kenneth Cole website for customer service contact information. Please retain your proof of purchase for warranty validation.
