1. Introduction
This manual provides detailed instructions for the safe installation, operation, and maintenance of your Westinghouse 6230700 Parksville One-Light Outdoor Wall Lantern. Please read all instructions carefully before beginning installation and retain this manual for future reference.

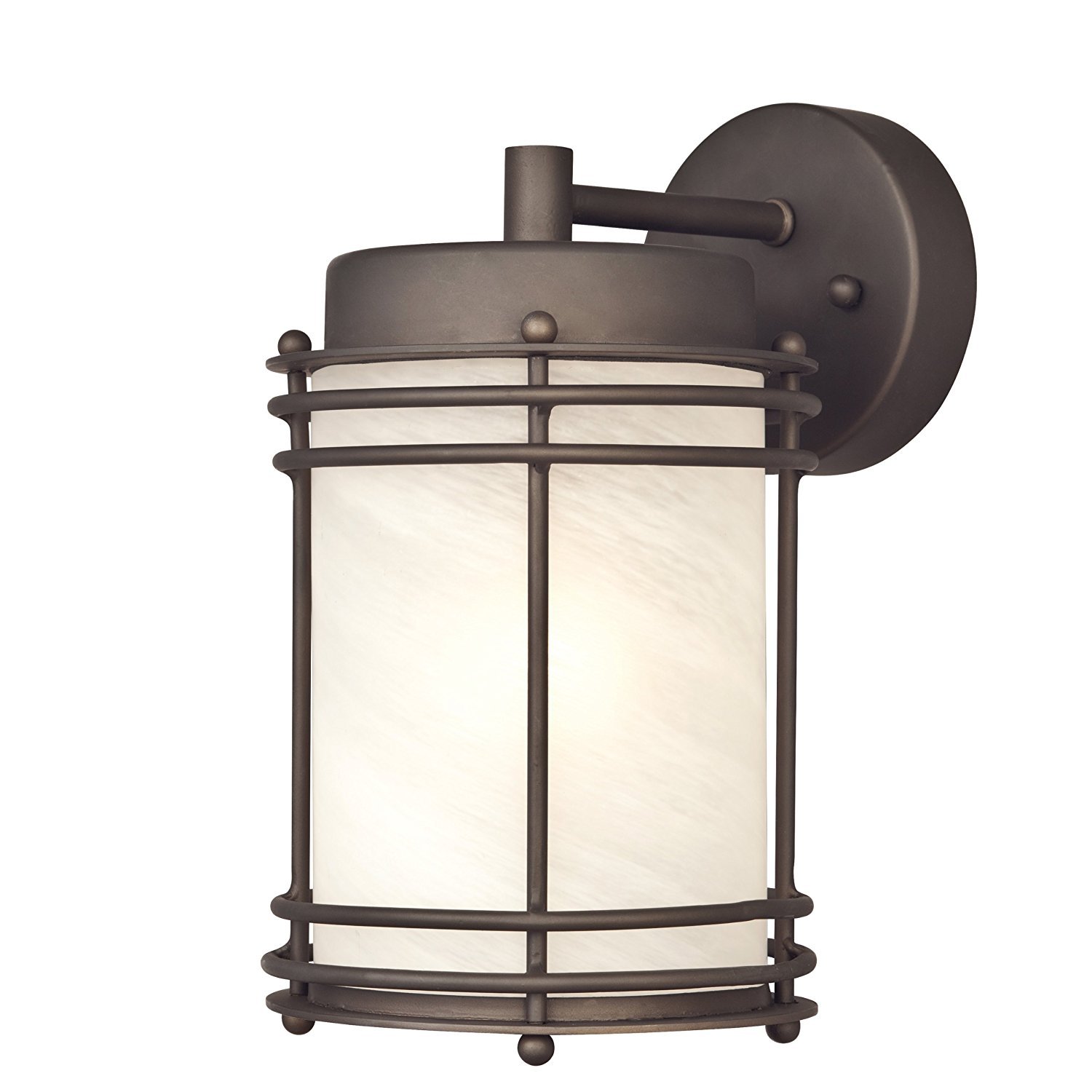

Image: The Westinghouse Parksville One-Light Outdoor Wall Lantern. This fixture features an oil rubbed bronze finish frame enclosing a white alabaster glass shade, designed for wall mounting.
2. Safety Information
WARNING: Risk of electric shock. Disconnect power at the main fuse or circuit breaker before installation or servicing. Improper wiring can result in electric shock or fire.
- Always consult a qualified electrician if you are unsure about wiring procedures.
- Ensure all electrical connections are made according to local electrical codes and ordinances.
- This fixture is designed for use with a 120V, 60Hz power supply.
- Do not exceed the maximum wattage specified for the light bulb.
- Handle glass components with care to prevent breakage.
3. Package Contents
Verify that all components are present before beginning installation:
- Light Fixture Assembly (1)
- Mounting Plate (1)
- Mounting Screws (2)
- Wire Nuts (3)
- Decorative Nuts (2)
- Glass Shade (1)
4. Setup and Installation
Follow these steps to install your wall lantern:
- Turn Off Power: Locate the circuit breaker or fuse box and turn off the power to the electrical box where the fixture will be installed.
- Prepare Mounting Plate: Attach the mounting plate to the electrical junction box using the provided mounting screws. Ensure it is securely fastened.
- Make Electrical Connections: Connect the fixture's wires to the house wires using the wire nuts.
- Connect the green or bare copper ground wire from the fixture to the house ground wire.
- Connect the white (neutral) wire from the fixture to the house white (neutral) wire.
- Connect the black (hot) wire from the fixture to the house black (hot) wire.
- Mount Fixture: Carefully align the fixture over the mounting plate and secure it in place using the decorative nuts. Ensure the fixture is flush against the wall and stable.
- Install Light Bulb: Insert one medium-base light bulb (not included) into the socket. Do not exceed 100 watts.
- Install Glass Shade: Carefully place the glass shade into the fixture.
- Restore Power: Turn the power back on at the circuit breaker or fuse box.
5. Operating Instructions
Once properly installed and power is restored, the Westinghouse 6230700 Parksville Wall Lantern operates via your standard wall switch. Simply toggle the switch to turn the light on or off.
6. Maintenance
Cleaning
To clean the fixture, ensure power is off and the fixture is cool. Wipe with a soft, dry cloth. Do not use abrasive cleaners, solvents, or polishes as they may damage the finish or glass.
Bulb Replacement
To replace the light bulb:
- Turn off power to the fixture at the circuit breaker.
- Allow the bulb to cool completely.
- Carefully unscrew the decorative nuts and remove the glass shade.
- Unscrew the old bulb and replace it with a new medium-base bulb (maximum 100 watts).
- Reinstall the glass shade and secure it with the decorative nuts.
- Restore power to the fixture.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not illuminate. | No power to the fixture. | Check circuit breaker or fuse. Ensure wall switch is ON. |
| Bulb is faulty or loose. | Replace bulb or tighten it in the socket. | |
| Incorrect wiring. | Turn off power and recheck all wiring connections. Consult a qualified electrician if needed. | |
| Fixture is loose on the wall. | Mounting screws or decorative nuts are not tight. | Turn off power. Carefully tighten mounting screws and decorative nuts. |
8. Specifications
- Brand: Westinghouse
- Model: 6230700
- Dimensions: 6.25 x 8.37 x 11 inches (Width x Extension x Height)
- Item Weight: 4.6 pounds
- Material: Metal, Glass
- Finish: Oil Rubbed Bronze
- Shade Material: White Alabaster Glass
- Light Source: 1 Medium-Base Bulb (E26)
- Maximum Wattage: 100 Watts
- Voltage: 120 Volts
- Indoor/Outdoor Usage: Indoor and Outdoor
- Assembly Required: No (fixture comes pre-assembled)
9. Warranty and Support
This Westinghouse product is covered by a 5-year limited warranty. For warranty claims, technical assistance, or customer support, please refer to the contact information provided with your purchase documentation or visit the official Westinghouse website.
