Schecter Nikki Sixx Signature Bass Model 210 User Manual

Introduction

This manual provides essential information for the setup, operation, maintenance, and troubleshooting of your Schecter Nikki Sixx Signature Bass, Model 210. This 4-string solidbody electric bass guitar features a unique reverse body shape, active EMG P/J pickups, a fast maple/walnut neck with a rosewood fingerboard, Grover Bass tuners, and a strings-thru-body/top-load bridge for enhanced sustain and playability.

Key Features

• 4-string Solidbody Electric Bass Guitar with Mahogany Body
• Active EMG P/J Pickups for versatile tone
• Satin Black finish
• Rosewood Fingerboard
• Maple/Walnut Neck for fast playability
• Grover Bass tuners for stable tuning
• Strings-thru-body/top-load bridge for superior sustain

Setup

Upon receiving your Schecter Nikki Sixx Signature Bass, carefully remove it from its packaging. Inspect the instrument for any signs of damage. Before playing, ensure the bass is properly tuned and connected to an appropriate amplifier.

Unboxing and Initial Inspection

Gently remove the bass from its protective packaging. Check the body, neck, headstock, and hardware for any visible imperfections or damage that may have occurred during shipping.

Figure 1: Full view of the Schecter Nikki Sixx Signature Bass, showcasing its unique body shape and satin black finish.

Connecting to an Amplifier

Use a standard 1/4-inch instrument cable to connect the output jack of the bass to the input of your bass amplifier. Ensure the amplifier's volume is set to a low level before powering it on.

Tuning

The bass is equipped with Grover tuners for precise tuning. Use an electronic tuner to tune the strings to standard bass tuning (E-A-D-G, from thickest to thinnest string). Turn the tuning pegs slowly to achieve the desired pitch.

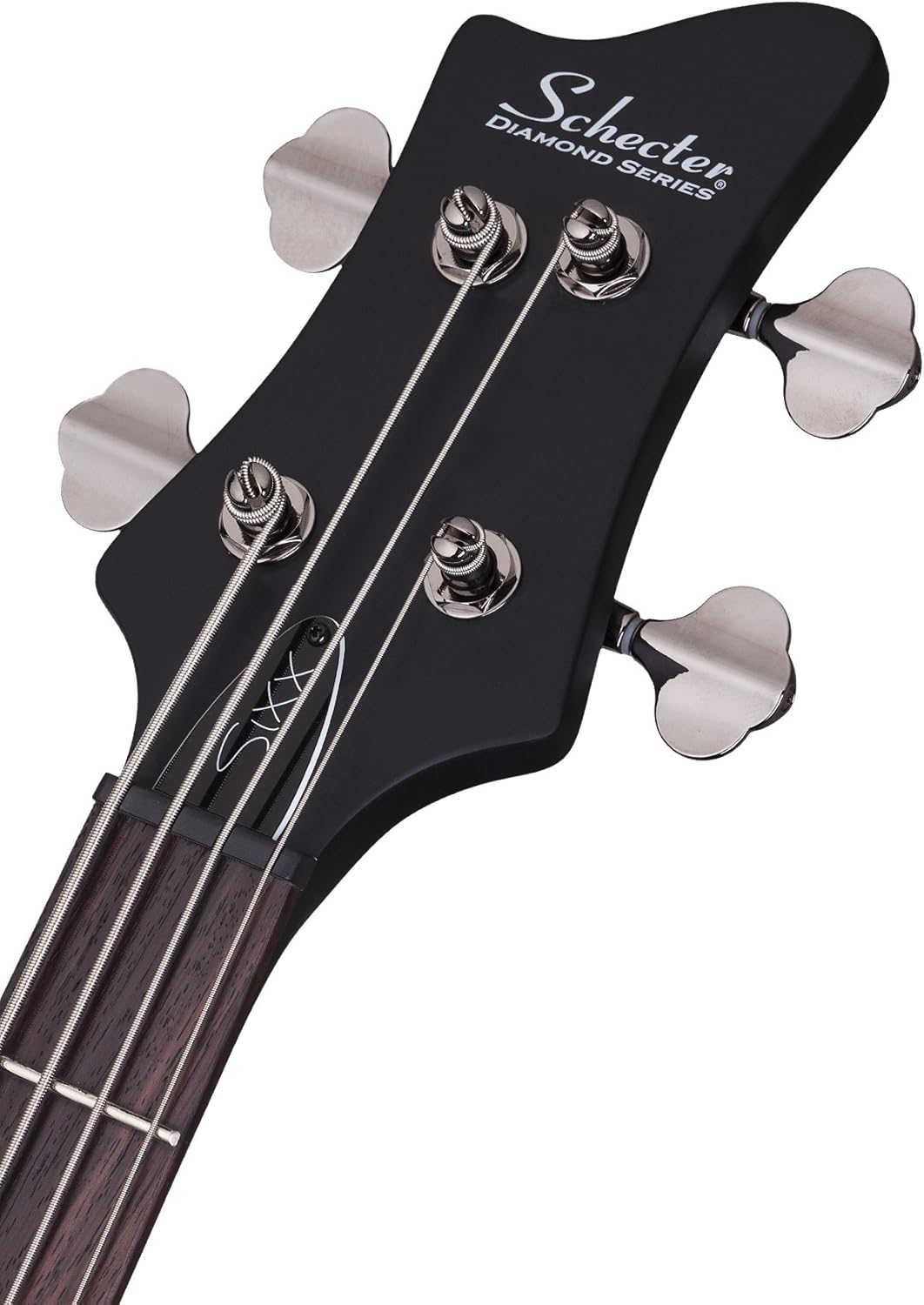

Figure 2: The headstock of the bass, featuring the Schecter logo and Nikki Sixx signature detail.

Operating Your Bass

The Schecter Nikki Sixx Signature Bass features active EMG P/J pickups and a straightforward control layout for tone shaping.

Controls Overview

The bass is equipped with three control knobs and a toggle switch:

• Volume Knob: Controls the overall output level of the bass. Turn clockwise to increase volume, counter-clockwise to decrease.
• Tone Knob 1: Adjusts the tone for the neck (P-style) pickup.
• Tone Knob 2: Adjusts the tone for the bridge (J-style) pickup.
• Pickup Selector Toggle Switch: Allows you to select between the neck pickup, bridge pickup, or both.

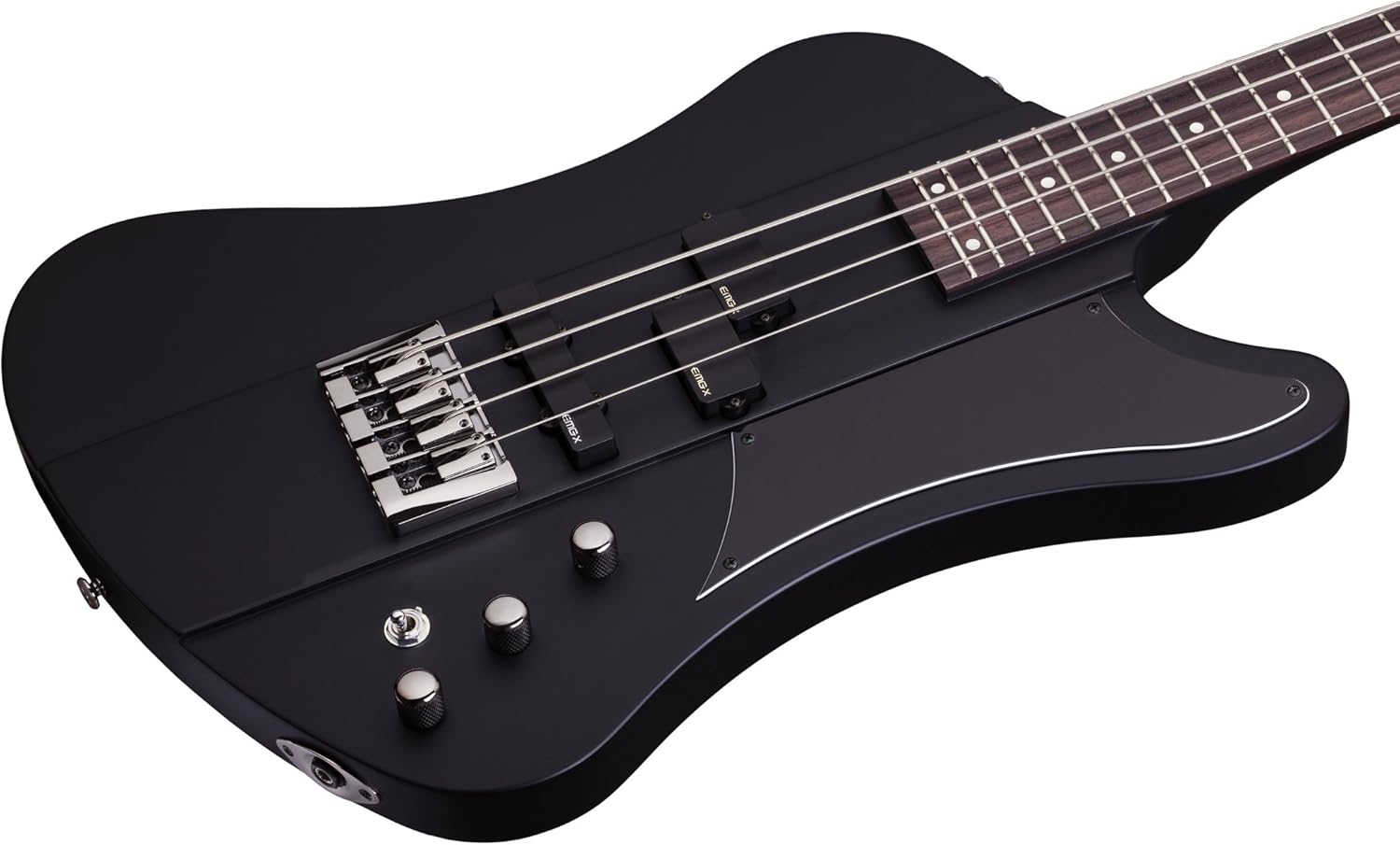

Figure 3: The control layout, including volume, tone knobs, and the pickup selector switch.

Playing Techniques

Experiment with different pickup selections and tone knob settings to achieve a wide range of sounds. The active EMG pickups provide a powerful and clear signal, suitable for various musical styles.

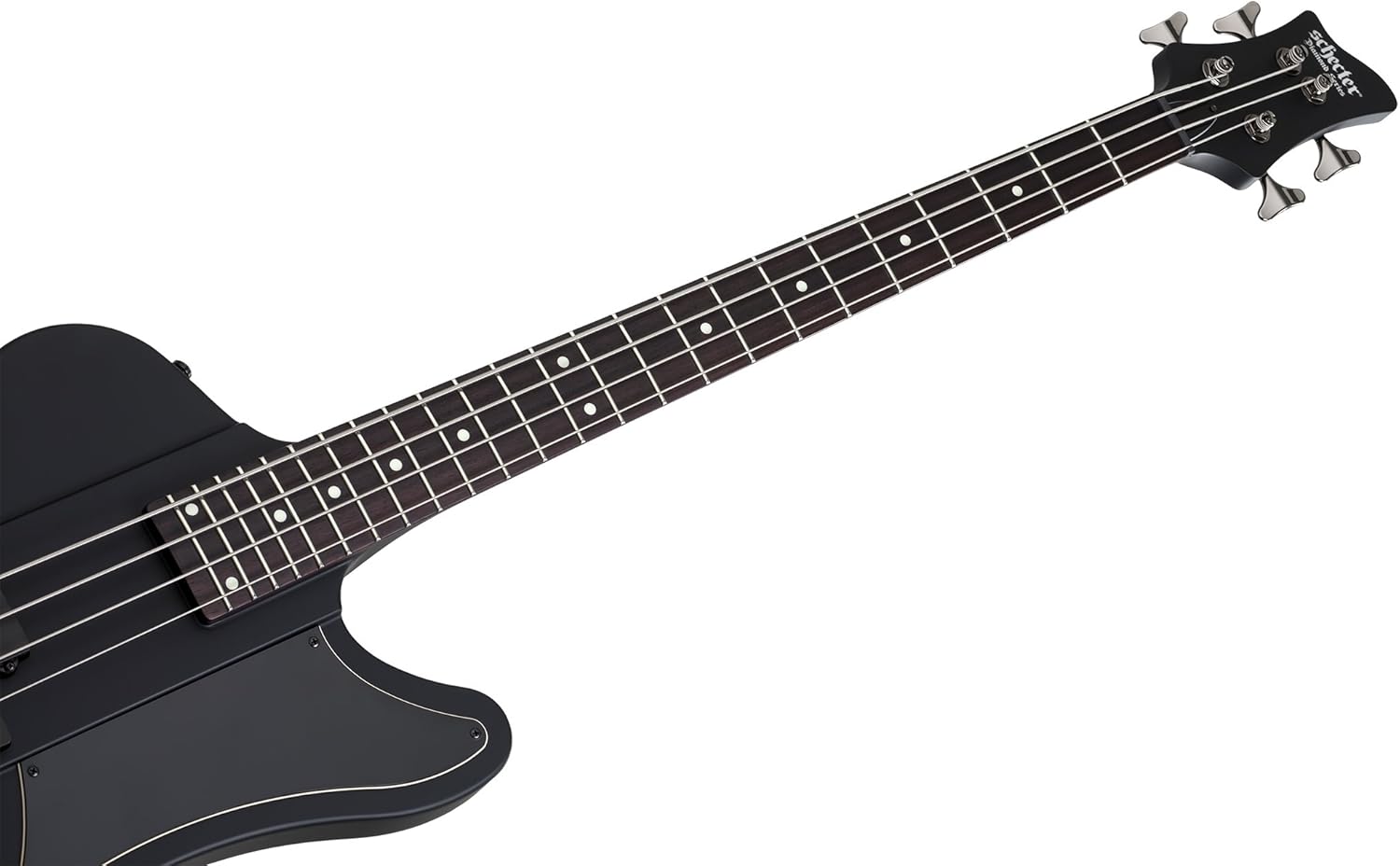

Figure 4: The rosewood fretboard and neck, designed for comfortable playability.

Maintenance

Proper maintenance will ensure the longevity and optimal performance of your bass.

Cleaning

Wipe down the bass with a soft, dry cloth after each use to remove sweat and fingerprints. For a deeper clean, use a guitar-specific cleaning solution on the body and a fretboard conditioner on the rosewood fretboard. Avoid harsh chemicals.

String Replacement

Strings should be replaced regularly, depending on usage, to maintain optimal tone and playability. When replacing strings, do so one at a time to maintain neck tension. Use high-quality bass strings.

Figure 5: Rear view of the headstock, illustrating the Grover Bass tuners.

Battery Replacement (for Active Pickups)

The active EMG pickups require a 9V battery for operation. If the sound becomes weak or distorted, it is likely time to replace the battery. The battery compartment is located on the back of the bass body. To replace, open the compartment, remove the old battery, and insert a new 9V alkaline battery, observing correct polarity.

Figure 6: The back of the bass body, showing the battery compartment for the active pickups.

Troubleshooting

Here are solutions to common issues you might encounter:

• No Sound:
  • Check if the instrument cable is securely connected to both the bass and the amplifier.
  • Ensure the amplifier is powered on and its volume is up.
  • Verify the bass's volume knob is turned up.
  • Replace the 9V battery for the active pickups.
• Weak or Distorted Sound:
  • Replace the 9V battery.
  • Check your amplifier settings.
  • Inspect the instrument cable for damage.
• Buzzing or Hum:
  • Ensure proper grounding of your amplifier and power outlets.
  • Check for loose connections in the instrument cable.
  • Move away from sources of electromagnetic interference (e.g., computer monitors, fluorescent lights).
• Tuning Instability:
  • Ensure strings are properly stretched after replacement.
  • Check for worn-out strings; replace if necessary.
  • Verify that the tuning pegs are tightened appropriately.

Specifications

Warranty Information

This Schecter Nikki Sixx Signature Bass comes with a limited lifetime warranty. For specific details regarding coverage, terms, and conditions, please refer to the warranty card included with your purchase or contact Schecter Guitar Research directly.

Support

For further assistance, technical support, or service inquiries, please contact Schecter Guitar Research customer service. You can typically find contact information on the manufacturer's official website or through your authorized dealer.
