Introduction
The Gates PowerGrip 240L075 is a high-performance timing belt designed for precise power transmission in various industrial and consumer applications. This synchronous belt features a trapezoidal tooth profile, ensuring accurate positioning and consistent speed without slippage. Constructed from durable neoprene, it offers resistance to dirt, grease, oil, and moisture. Fiberglass tensile cords provide exceptional strength, durability, and resistance to elongation, while a nylon tooth facing contributes to quieter operation and wear resistance.
This manual provides essential information for the proper installation, operation, and maintenance of your Gates 240L075 PowerGrip Timing Belt to ensure optimal performance and longevity.

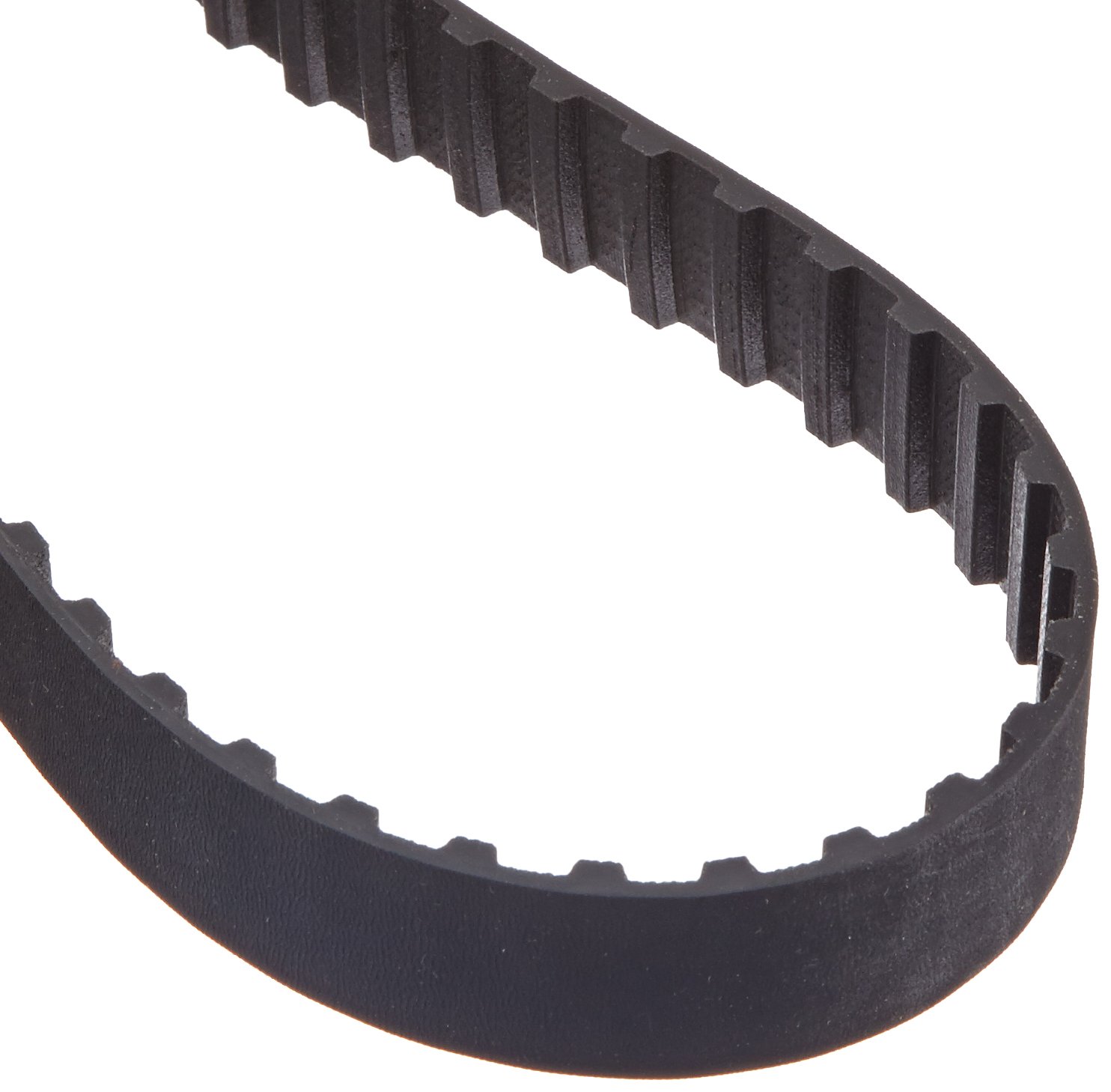

Figure 1: Gates 240L075 PowerGrip Timing Belt
Setup and Installation
Proper installation is crucial for the performance and lifespan of the timing belt. Always refer to the specific equipment manufacturer's instructions for detailed installation procedures. The following are general guidelines:
- Safety First: Ensure all power to the machinery is disconnected and locked out before beginning any installation or maintenance.
- Inspect Pulleys: Verify that the timing pulleys are clean, free of damage, and correctly aligned. Worn or damaged pulleys can significantly reduce belt life. This belt is recommended for use with matching Light (L) PowerGrip timing pulleys for increased load capacity and improved registration.
- Belt Placement: Carefully place the new timing belt onto the pulleys without forcing or prying. Avoid bending the belt sharply or twisting it, as this can damage the fiberglass tensile cords.
- Tensioning: Apply the correct tension as specified by the equipment manufacturer. Over-tensioning can lead to premature bearing failure and belt wear, while under-tensioning can cause slippage and tooth jumping. Timing belts require minimal re-tensioning.
- Alignment: Ensure proper pulley alignment. Misalignment can cause uneven wear, noise, and reduced belt life.
- Initial Run: After installation, run the machinery briefly and check for any unusual noises, vibrations, or signs of improper operation. Re-check tension and alignment after a short break-in period if recommended by the equipment manufacturer.
Operating Guidelines
Once properly installed, the Gates PowerGrip Timing Belt operates as a critical component in synchronous power transmission systems. Observe the following during operation:
- Smooth Operation: The belt should run smoothly and quietly. Excessive noise, such as squealing or grinding, may indicate tension or alignment issues.
- Temperature: Monitor the operating temperature. While neoprene offers good heat resistance, extreme temperatures can affect belt life.
- Load Capacity: Ensure the belt is not subjected to loads exceeding its design capacity. The 240L075 is designed for specific load requirements; consult equipment specifications.
- Environmental Factors: The neoprene construction provides resistance to dirt, grease, oil, and moisture, making it suitable for various environments. However, prolonged exposure to harsh chemicals or abrasive materials should be avoided.
Maintenance
Regular inspection and maintenance are essential for maximizing the life and reliability of your timing belt. Timing belts require no lubrication.
- Visual Inspection: Periodically inspect the belt for signs of wear, such as cracks, fraying, missing teeth, or unusual wear patterns on the teeth or back of the belt. Check for any foreign objects lodged in the teeth or pulleys.
- Tension Check: While timing belts require minimal re-tensioning, it is good practice to periodically check the tension according to the equipment manufacturer's recommendations, especially after the initial break-in period.
- Cleaning: Keep the belt and pulleys clean. Remove any accumulated dirt, debris, or contaminants that could interfere with proper operation or cause premature wear. Use a clean, dry cloth. Avoid harsh solvents.
- Replacement: Replace the belt if any signs of significant wear or damage are observed. Proactive replacement based on recommended service intervals for the specific machinery is often more cost-effective than waiting for a failure.
Troubleshooting
This section addresses common issues that may arise with timing belts and their potential causes.
| Symptom | Possible Cause | Solution |
|---|---|---|
| Excessive Noise (Squealing/Grinding) | Incorrect tension (too loose or too tight), pulley misalignment, worn pulleys, foreign objects. | Adjust tension, check and correct pulley alignment, inspect and replace worn pulleys, remove debris. |
| Belt Slippage or Jumping Teeth | Insufficient tension, excessive load, worn belt teeth, worn pulley grooves, contamination (oil/grease). | Adjust tension, reduce load if possible, replace worn belt or pulleys, clean belt and pulleys. |
| Premature Belt Wear (Cracks, Fraying) | Incorrect tension, pulley misalignment, worn pulleys, exposure to extreme temperatures or chemicals, improper installation (e.g., prying belt on). | Verify tension and alignment, replace worn components, ensure proper operating environment, follow correct installation procedures. |
| Belt Tracking Off-Center | Pulley misalignment, worn pulley flanges. | Check and correct pulley alignment, inspect and replace pulleys with damaged flanges. |
Specifications
Key specifications for the Gates 240L075 PowerGrip Timing Belt:
- Model: 240L075
- Material: Neoprene
- Reinforcement: Fiberglass tensile cords
- Tooth Facing: Nylon
- Pitch: 3/8 inch (L)
- Width: 3/4 inch
- Number of Teeth: 64
- Pitch Length: 24.00 inches
- Color: Black
- Product Dimensions (L x W): 24" x 0.75"
- ASIN: B00CMIZ2U6
- UPC: 072053564549
Warranty Information
Specific warranty terms for the Gates 240L075 PowerGrip Timing Belt are typically provided by the manufacturer, Gates, or the authorized seller at the time of purchase. Please retain your proof of purchase. For detailed warranty information, including coverage duration and conditions, refer to the documentation included with your product or visit the official Gates website.
Customer Support
For technical assistance, product inquiries, or support regarding your Gates 240L075 PowerGrip Timing Belt, please contact Gates customer service. You can find contact information, including phone numbers and online support resources, on the official Gates website: www.gates.com.
When contacting support, please have your product model number (240L075) and any relevant purchase details ready.
