1. Important Safety Information
Please read all instructions carefully before using the appliance to ensure safe and proper operation. Keep this manual for future reference.
- Do not allow children to play with or operate the washing machine.
- Ensure the power cord is securely plugged into a grounded outlet. Do not use extension cords.
- Do not wash items that are stained with flammable liquids (e.g., gasoline, kerosene).
- Always unplug the washing machine before cleaning or performing maintenance.
- Do not open the lid during the spin cycle.
- This appliance is designed for household use only.
2. Product Overview
The TOSHIBA AW-504(W) is a fully automatic top-loading washing machine designed for efficient and convenient laundry care.
Figure 2.1: Front view of the TOSHIBA AW-504(W) washing machine. This image shows the compact design and the top-loading lid.
Figure 2.2: Front and rear view of the washing machine. The top panel shows the control interface, while the bottom panel displays the rear casing and power cord connection.

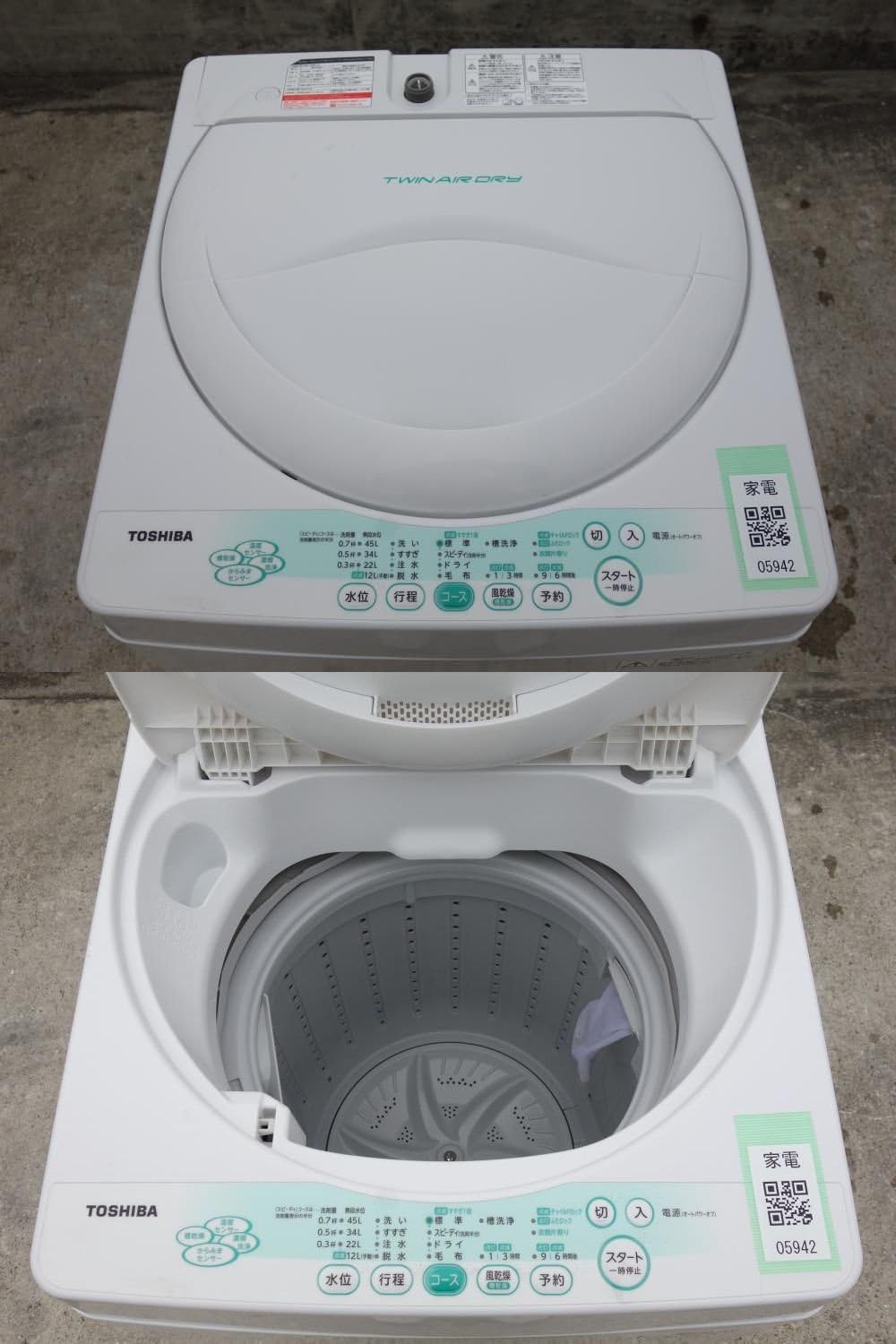

Figure 2.3: Top view of the washing machine with the lid open, revealing the washing tub. The control panel is visible at the front of the top surface.
3. Setup and Installation
3.1 Unpacking
Carefully remove all packaging materials. Ensure no parts are left inside the tub or attached to the exterior.
3.2 Location Requirements
- Place the washing machine on a firm, level surface to prevent vibration and noise during operation.
- Ensure adequate space around the machine for ventilation and access.
- Locate near a water supply faucet and a drain outlet.
- Avoid direct sunlight or extreme temperatures.
3.3 Connecting Water Inlet Hose
Connect the water inlet hose to the water faucet and the inlet valve on the back of the washing machine. Ensure connections are tight to prevent leaks.
3.4 Connecting Drain Hose
Attach the drain hose to the drain outlet on the machine and direct it into a suitable drain pipe or sink. Ensure the hose is not kinked or blocked.
Figure 3.1: Top image shows the interior of the washing machine tub with the agitator. The bottom image displays the water inlet and drain hoses, which are essential for installation.
3.5 Power Connection
Plug the power cord into a dedicated 100V, 50/60Hz grounded electrical outlet. Do not share the outlet with other high-power appliances.
4. Operating Instructions
4.1 Control Panel Overview
Familiarize yourself with the control panel buttons and indicators.
Figure 4.1: Close-up of the washing machine's control panel. Key functions include power (On/Off), Start/Pause, Water Level, Process (Cycle), Course selection, and Delay Start. Indicators for Warm Air Dry Sensor and Tangle Sensor are also visible.
- Power (入/切): Turns the machine on or off.
- Start/Pause (スタート一時停止): Starts or pauses the selected wash cycle.
- Water Level (水位): Adjusts the water level according to the laundry load.
- Course (コース): Selects the desired wash program.
- Process (行程): Allows selection of individual wash, rinse, or spin cycles.
- Delay Start (予約): Sets a delayed start time for the wash cycle.
- Child Lock (チャイルドロック): Locks the control panel to prevent accidental operation.
4.2 Loading Laundry
Open the lid and place laundry loosely into the tub. Do not overload the machine. Ensure items are evenly distributed.
4.3 Adding Detergent and Softener
Add the appropriate amount of detergent and fabric softener to their respective dispensers. Refer to detergent packaging for recommended amounts.
4.4 Selecting a Wash Course
Press the 'Course' button to cycle through available programs:
- Standard (標準): For daily laundry.
- Speedy (スピード): For lightly soiled items or quick washes.
- Blanket (毛布): For washing blankets or large, bulky items.
- Dry (ドライ): For delicate items requiring gentle care.
- Tub Clean (槽洗浄): For cleaning the washing machine tub.
- Air Dry (風乾燥): For air drying items, reducing drying time.
4.5 Starting the Wash Cycle
After selecting the course and adjusting the water level, press the 'Start/Pause' button to begin the wash cycle. The lid will lock during operation.
5. Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your washing machine.
5.1 Cleaning the Lint Filter
The lint filter collects lint and debris during washing. Clean it after every few washes or when visibly full. Remove the filter, rinse it under running water, and reinsert it.
5.2 Cleaning the Tub
Use the 'Tub Clean' course regularly (e.g., once a month) to prevent mold and odor buildup. You may use a washing machine cleaner specifically designed for this purpose.
5.3 Cleaning the Exterior
Wipe the exterior of the machine with a soft, damp cloth. Do not use abrasive cleaners or solvents.
5.4 Drain Hose Maintenance
Periodically check the drain hose for blockages or kinks. Ensure it is properly positioned to allow for efficient drainage.
6. Troubleshooting
If you encounter issues with your washing machine, refer to the following common problems and solutions before contacting service.
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not start. | Power cord unplugged; Lid not closed; Power outage. | Check power connection; Close lid securely; Check household power. |
| No water filling. | Water faucet closed; Water supply cut off; Inlet hose kinked. | Open water faucet; Check water supply; Straighten hose. |
| Water not draining. | Drain hose kinked or blocked; Drain pump malfunction. | Check and clear drain hose; Contact service if problem persists. |
| Excessive vibration/noise. | Machine not level; Uneven laundry load; Shipping bolts not removed. | Adjust leveling feet; Redistribute laundry; Ensure shipping bolts are removed (if applicable). |
7. Specifications
Detailed technical specifications for the TOSHIBA AW-504(W) washing machine.
Figure 7.1: Product specification label located on the rear of the washing machine, detailing model number, electrical ratings, capacities, and dimensions.
| Feature | Specification |
|---|---|
| Brand | TOSHIBA |
| Model Number | AW-504 |
| Type | Fully Automatic Electric Washing Machine |
| Rated Voltage | 100V |
| Rated Frequency | 50/60Hz |
| Motor Rated Power Consumption (Wash only) | 295W (50Hz) / 340W (60Hz) |
| Standard Washing Capacity | 4.2 kg |
| Standard Dehydration Capacity | 4.2 kg |
| Standard Water Usage | 98 L |
| External Dimensions (Width x Depth x Height) | 563 mm x 604 mm x 957 mm |
| Manufacturing Year | 2011 |
| Country of Manufacture | Made in Thailand |
| Usage Restriction | For use in Japan only |
8. Warranty and Support
For warranty information, please refer to the warranty card included with your purchase or contact TOSHIBA customer service. Keep your proof of purchase for warranty claims.
If you require technical assistance or have questions not covered in this manual, please contact TOSHIBA customer support through their official website or designated service channels.
