Britta Products BP-160 12-Bay AA/AAA NiMH/NiCad LCD Smart Charger

Product Overview

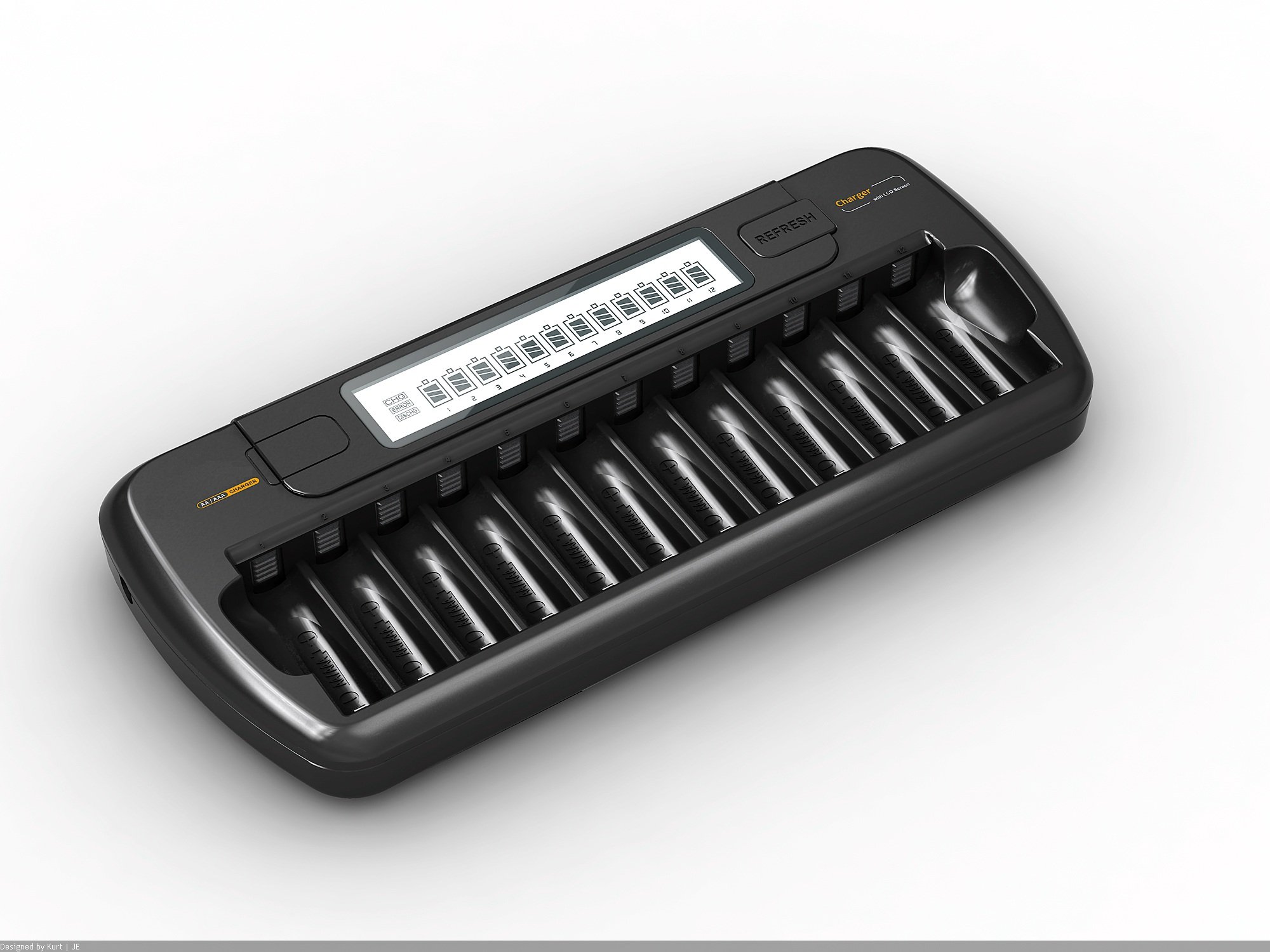

The Britta Products BP-160 is an intelligent 12-bay battery charger designed for AA and AAA NiMH/NiCad rechargeable batteries. It features individual charging channels, automatic detection, and an LCD display for monitoring charging status. The charger incorporates multiple safety features to ensure safe and efficient battery charging.

Setup Instructions

1. Connect the Power Adapter: Connect the provided 100-240V AC adapter to the charger. Plug the adapter into a standard household electrical outlet.
2. Insert Batteries: Insert up to 12 AA or AAA NiMH/NiCad rechargeable batteries into the battery compartments. Ensure correct polarity (+ and -) as indicated on the charger and batteries.
3. AAA Battery Placement: For AAA-sized batteries, utilize the retaining clip within each slot to secure the battery properly.

Figure 1: Proper insertion of AA and AAA batteries. Note the retaining clip for AAA batteries.

Important: Do not attempt to charge Alkaline batteries. This charger is exclusively compatible with 1.2V AA and AAA NiMH/NiCD rechargeable batteries.

Operating Instructions

• Automatic Charging: Once batteries are correctly inserted and the charger is powered, charging will commence automatically.
• Individual Channel Management: The charger features 12 independent charging channels, allowing for individual charging and detection of each battery. AA and AAA NiMH/NiCad batteries can be mixed within the charger.
• Charging Status Display: The large LCD screen indicates the charging status for each battery.
• Refresh Function: The charger includes a refresh function. Refer to the LCD display for details on activating and monitoring this feature.
• Advanced Charging Control: Built-in IC and advanced Delta-V charging control ensure accurate voltage detection, preventing both over-charging and under-charging.
• Safety Features: The BP-160 is equipped with an 8-hour safety timer and protection against over-heating, over-current, short-circuits, and reverse polarity.

Maintenance

To ensure optimal performance and longevity of your Britta Products BP-160 charger:

• Keep the charger clean and free from dust and debris. Use a soft, dry cloth for cleaning.
• Store the charger in a cool, dry place when not in use.
• Avoid exposing the charger to extreme temperatures or direct sunlight.
• Do not attempt to disassemble or repair the charger yourself. Contact customer support if service is required.

Troubleshooting

• Charger Displays "Error" or Batteries Become Hot: If the charger displays an "error" message or batteries become excessively hot during charging, immediately remove the batteries and unplug the charger. This may indicate a faulty battery or an issue with the charging process.
• Charger Refuses to Charge Certain Batteries: If the charger does not initiate charging for a specific battery, try charging that battery in a different slot. If the issue persists, the battery may be deeply discharged or faulty. In some cases, a brief charge in another charger (if available) might reactivate a deeply discharged battery for use with the BP-160.
• LCD Display Issues: If the LCD display becomes difficult to read or disappears, ensure the viewing angle is optimal. If the display remains unreadable, the unit may still charge, but monitoring status will be impaired.
• Some Slots Not Charging: If only a subset of the charging slots are functioning, try cleaning the contacts within the non-functional slots. If the problem persists, the charger may require service.

Specifications

Warranty Information

Specific warranty details for the Britta Products BP-160 charger are not provided in this manual. Please refer to the product packaging or contact Britta Products customer support for comprehensive warranty information.

Customer Support

For technical assistance, troubleshooting beyond this guide, or warranty inquiries, please contact Britta Products customer support. Contact information can typically be found on the product packaging or the official Britta Products website.

You may also visit the Britta Products Store on Amazon for additional product information.
