1. Product Overview
The B&K Industries 888-183 is a replacement anti-siphon vacuum breaker assembly designed for frost-free wall faucets. This component is crucial for preventing backflow of contaminated water into the potable water supply and for ensuring the frost-free function of the faucet by allowing proper drainage. It features high-quality construction and is intended as a direct replacement part for compatible B&K wall faucets.
Figure 1: The B&K Industries 888-183 Frost Free Anti-Siphon Wall Faucet Vacuum Breaker Assembly, showing the silver cap, white plastic body, and black rubber seal.
2. Safety Information
Please read and understand all instructions before attempting installation or maintenance. Failure to follow these instructions could result in property damage or personal injury.
- Always turn off the main water supply to the faucet before beginning any work.
- Wear appropriate personal protective equipment, such as safety glasses, during installation and maintenance.
- Ensure the work area is well-lit and clear of obstructions.
- If you are unsure about any step, consult a qualified plumber.
- The product is designed to prevent backflow. Do not modify or bypass any components of the anti-siphon mechanism.
- Important: The faucet cap is marked "REMOVE HOSE OR FAUCET MAY FREEZE". Always remove any attached hoses from the faucet before freezing temperatures to ensure proper drainage and prevent damage to the faucet and plumbing system.
3. Package Contents
The B&K Industries 888-183 package typically includes the following components:
- 1 x Anti-Siphon Vacuum Breaker Cap (Silver, with "REMOVE HOSE OR FAUCET MAY FREEZE" inscription)
- 1 x Vacuum Breaker Plastic Body/Insert (White)
- 1 x Rubber Seal/Float (Black)

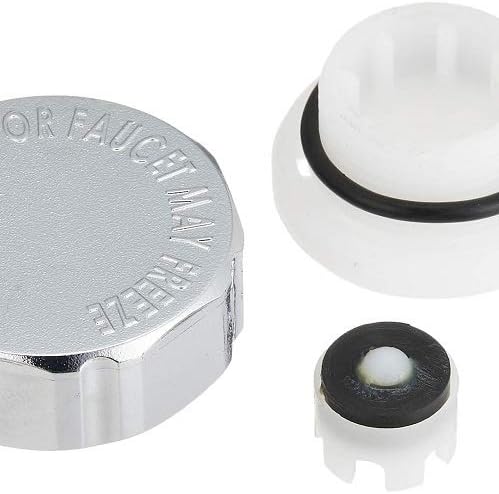

Figure 2: Individual components of the vacuum breaker assembly, including the silver cap, white plastic body, and black rubber seal.
4. Setup & Installation
This product is a replacement part for an existing frost-free wall faucet. The installation process involves replacing the old or damaged vacuum breaker assembly.
4.1 Pre-Installation Steps
- Turn off Water Supply: Locate the main water shut-off valve for your house or the specific valve for the outdoor faucet and turn it off completely.
- Drain Faucet: Open the outdoor faucet to drain any remaining water from the line.
- Remove Old Assembly: Carefully unscrew and remove the existing vacuum breaker assembly from the top of the faucet. Note the orientation and order of the components as you disassemble them. It is highly recommended to take a photo of the parts before and during removal to aid in reassembly.
4.2 Assembly and Installation
- Assemble New Breaker: Ensure the new rubber seal/float is correctly seated within the white plastic body/insert. Then, place the assembled plastic body into the silver cap.
- Install on Faucet: Carefully screw the new vacuum breaker assembly onto the top of the frost-free wall faucet. Hand-tighten only. Do not overtighten, as this can damage the plastic threads or the faucet.
- Restore Water Supply: Slowly turn the main water supply back on.
- Check for Leaks: Open the faucet and check for any leaks around the newly installed vacuum breaker. If leaks are present, ensure the assembly is properly seated and tightened (without overtightening).
Figure 3: The vacuum breaker assembly shown in hand for size reference, indicating its compact dimensions (approximately 1.4 inches or 3 cm in height).
5. Operating Instructions
The B&K Industries 888-183 vacuum breaker assembly is an integral part of a frost-free wall faucet. Its operation is largely passive, ensuring proper function of the faucet.
- Normal Use: When the faucet is open, water flows through it as usual. The anti-siphon mechanism prevents backflow.
- Frost-Free Function: For the frost-free feature to work correctly, it is critical to remove any attached hoses, splitters, or other accessories from the faucet before freezing temperatures occur. This allows the water inside the faucet body to drain completely, preventing ice formation and potential pipe bursts. The cap explicitly states: "REMOVE HOSE OR FAUCET MAY FREEZE".
6. Maintenance
Regular maintenance helps ensure the longevity and proper function of your frost-free wall faucet and its vacuum breaker assembly.
- Seasonal Check: Before the onset of freezing temperatures, inspect the vacuum breaker assembly for any cracks, damage, or signs of wear. Ensure the cap is securely tightened.
- Hose Removal: Always remove garden hoses and other attachments from the faucet before winter to allow the faucet to drain and prevent freezing.
- Leak Inspection: Periodically check for leaks around the vacuum breaker assembly. A small drip from the top of the vacuum breaker when the faucet is open might indicate a worn or damaged internal rubber seal/float, requiring replacement of the assembly.
- Cleaning: If mineral deposits or debris accumulate, carefully remove the assembly (following pre-installation steps) and clean components with a mild detergent and soft brush. Rinse thoroughly before reassembly.
7. Troubleshooting
This section addresses common issues you might encounter with your B&K Industries 888-183 vacuum breaker assembly.
| Problem | Possible Cause | Solution |
|---|---|---|
| Water leaking from the top of the vacuum breaker (cap area) when faucet is open. |
|
|
| Faucet does not drain properly in freezing temperatures, leading to potential freezing. |
|
|
| Water flow is restricted or very low. |
|
|
8. Specifications
| Feature | Detail |
|---|---|
| Brand | B&K |
| Model Name | B&K VACUUM BREAKER ASSY |
| Part Number | 888-183 |
| Material | Brass (for cap), Plastic (for internal components) |
| Color | Silver (cap) |
| Included Components | B&K VACUUM BREAKER ASSY (complete unit) |
| Item Weight | 0.48 ounces (approx. 13.6 grams) |
| Product Dimensions | 1 x 1 x 1 inches (approximate, as per product data) |
| UPC | 703765834513 |
9. Warranty & Support
Specific warranty information for the B&K Industries 888-183 Frost Free Anti-Siphon Wall Faucet Vacuum Breaker Assembly is not provided in the product details. For warranty claims or technical support, please contact B&K Industries directly or refer to the documentation that came with your original faucet.
You may visit the official B&K website for contact information or additional resources: www.bkproducts.com (Note: This is a placeholder URL, please verify the actual B&K Industries website for accurate support information).
