1. Safety Information

Always read and understand all safety warnings, instructions, illustrations, and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious injury.

• Work Area Safety: Keep your work area clean and well-lit. Cluttered or dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
• Electrical Safety: Power tool plugs must match the outlet. Never modify the plug in any way. Do not expose power tools to rain or wet conditions.
• Personal Safety: Always wear eye protection. Use safety glasses or goggles. Wear hearing protection when operating power tools for extended periods. Dress properly; do not wear loose clothing or jewelry. Keep hair and clothing away from moving parts.
• Tool Use and Care: Do not force the power tool. Use the correct power tool for your application. Disconnect the plug from the power source and/or remove the battery pack before making any adjustments, changing accessories, or storing power tools.
• Battery Tool Use and Care: Recharge only with the charger specified by the manufacturer. Use power tools only with specifically designated battery packs. When battery pack is not in use, keep it away from other metal objects.

2. Product Overview

The Milwaukee 2101-22 M4 1/4 Hex Screwdriver Kit is designed for precision fastening tasks. This kit includes the M4 1/4 Hex Screwdriver, two M4 Lithium-Ion batteries, and a compatible charger, providing a complete solution for various applications.

Image: The Milwaukee 2101-22 M4 1/4 Hex Screwdriver Kit, showing the red screwdriver, a red battery charger, and a black and red M4 Lithium-Ion battery.

Components Included:

• Milwaukee M4 1/4 Hex Screwdriver (Model 2101-22)
• M4 Lithium-Ion Batteries (x2)
• M4 Battery Charger
• Screwdriver Bit Set

Key Features:

• 1/4 Hex Chuck: For quick and easy bit changes.
• Adjustable Torque Settings: Provides precise control for various fastening applications.
• Forward/Reverse Switch: Conveniently located for directional control.
• LED Work Light: Illuminates the work area for improved visibility.
• Compact and Lightweight Design: Enhances maneuverability and reduces user fatigue.

3. Setup

3.1 Charging the Battery

Before first use, fully charge the M4 Lithium-Ion battery. Ensure the charger is connected to a standard power outlet.

1. Insert the M4 battery pack into the charger. The indicator light on the charger will show the charging status.
2. Allow the battery to charge until the indicator light signals a full charge.
3. Remove the battery pack from the charger once fully charged.

3.2 Installing and Removing the Battery

1. To Install: Align the battery pack with the base of the screwdriver handle. Slide the battery into the handle until it clicks securely into place.
2. To Remove: Press the battery release tabs on the sides of the battery pack and slide the battery out of the handle.

3.3 Installing and Removing Bits

The screwdriver features a 1/4 Hex chuck for quick bit changes.

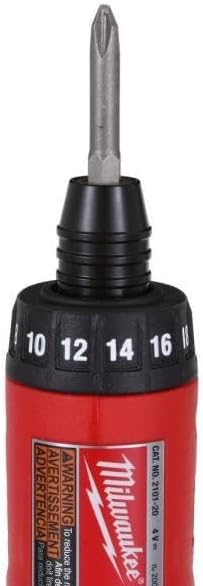

Image: Front view of the Milwaukee M4 1/4 Hex Screwdriver, highlighting the 1/4 hex chuck and torque adjustment collar.

1. To Install: Pull the chuck collar forward. Insert the 1/4 hex shank bit fully into the chuck. Release the collar to lock the bit in place. Gently pull on the bit to ensure it is securely seated.
2. To Remove: Pull the chuck collar forward and pull the bit out.

4. Operating Instructions

4.1 Powering On/Off

To start the screwdriver, press the trigger switch. To stop, release the trigger switch. The integrated LED work light will activate when the trigger is pressed.

Image: Back view of the Milwaukee M4 1/4 Hex Screwdriver, showing the battery charge indicator lights and the forward/reverse selector switch.

4.2 Forward/Reverse Rotation

The direction of rotation is controlled by the forward/reverse selector switch located above the trigger.

• For forward (clockwise) rotation, push the selector switch to the left.
• For reverse (counter-clockwise) rotation, push the selector switch to the right.
• When the selector switch is in the center position, the trigger is locked, preventing accidental operation.

4.3 Torque Adjustment

The screwdriver features an adjustable clutch with multiple torque settings and a drill mode. Rotate the torque adjustment collar to select the desired setting.

• Lower numbers indicate lower torque for delicate applications.
• Higher numbers provide increased torque for driving larger fasteners.
• The drill symbol setting bypasses the clutch for drilling applications.

5. Maintenance

5.1 Cleaning

Regularly clean the tool to ensure optimal performance. Use a soft, damp cloth to wipe down the exterior. Do not use harsh chemicals or abrasive cleaners. Keep the ventilation openings clear of dust and debris.

5.2 Battery Care and Storage

• Store batteries in a cool, dry place away from direct sunlight and extreme temperatures.
• Do not store batteries in a discharged state for extended periods. Recharge them periodically if not in use.
• Avoid dropping or subjecting batteries to impact.

5.3 General Inspection

Periodically inspect the tool for any signs of damage, loose screws, or worn parts. If any issues are found, discontinue use and contact an authorized service center for repair.

6. Troubleshooting

This section addresses common issues you might encounter with your Milwaukee 2101-22 M4 1/4 Hex Screwdriver Kit.

7. Specifications

Technical specifications for the Milwaukee 2101-22 M4 1/4 Hex Screwdriver.

8. Warranty and Support

For warranty information, service, or technical support regarding your Milwaukee 2101-22 M4 1/4 Hex Screwdriver Kit, please refer to the official Milwaukee website or contact their customer service department. Keep your proof of purchase for warranty claims.
