Monzana MZPP14 7-Way Pool Filter User Manual

Introduction

This manual provides essential instructions for the safe and efficient operation of your Monzana MZPP14 7-Way Pool Filter. Please read thoroughly before installation and use to ensure optimal performance and longevity of the product. Proper setup and maintenance are crucial for maintaining clear and healthy pool water.

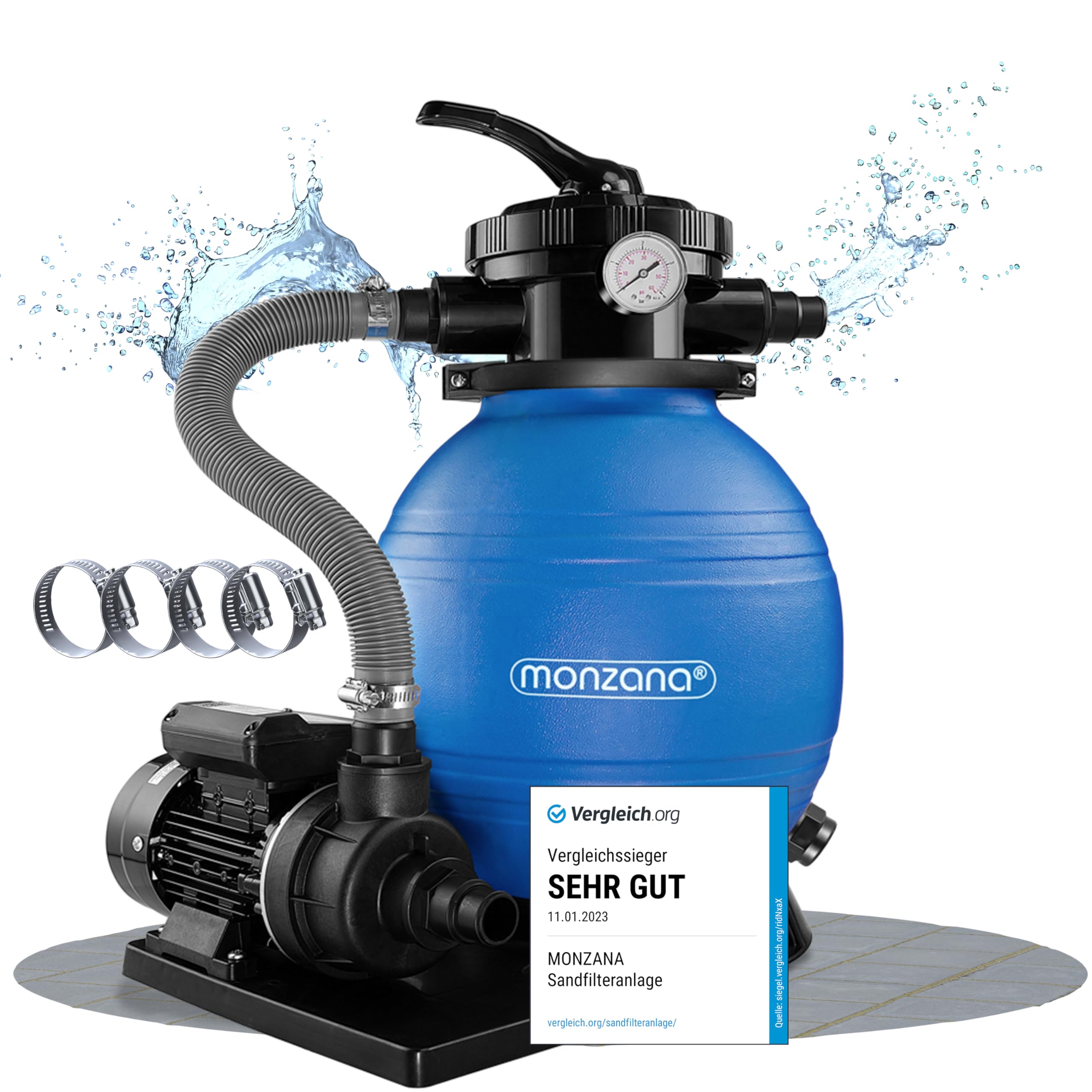

Image: The Monzana MZPP14 7-Way Pool Filter system, showcasing the pump and the blue filter tank.

Safety Information

Warning: Always follow instructions carefully. Keep small parts and packaging away from children to prevent choking hazards. Ensure the filter tank is completely filled with water before initial operation to prevent damage to the pump. Disconnect power before performing any maintenance or changing valve settings. Do not operate the pump dry. Always ensure proper electrical grounding.

Product Overview

The Monzana MZPP14 is a powerful sand filtration system designed to maintain clear and clean pool water. Its robust design and efficient operation make it an essential component for pool maintenance. Key features include:

• High-Performance Filtration: A powerful sand filtration system with a flow rate of up to 10,200 L/h ensures efficient water purification.
• Versatile 7-Way Valve: Equipped with a multi-functional top-mount valve for various operational modes, including filter, backwash, rinse, circulate, waste, closed, and winterize.
• Generous Tank Capacity: Features a robust 25L tank, suitable for standard filter sand or synthetic filter balls.
• Durable Construction: Built with robust plastic for the tank and pipes, and a weather-resistant structure made of ABS plastic and metal for longevity.
• Water Protection: Rated IPX5 for protection against water jets, ensuring safe outdoor use.

Image: Close-up view of the Monzana pool filter pump, highlighting its robust construction and cooling fins.

Setup Instructions

1. Unpacking and Inspection: Carefully remove all components from the packaging. Inspect for any damage. Ensure all parts listed in the packing list are present before proceeding.
2. Placement: Position the filter system on a firm, level surface, close to the pool and a suitable power source. Ensure it is protected from direct sunlight and extreme weather conditions. Allow sufficient space around the unit for maintenance.
3. Filling the Filter Tank: Unscrew the top valve assembly. Carefully fill the tank with the appropriate filter media (filter sand or filter balls) up to the recommended level, typically indicated inside the tank. Do not overfill. Ensure the central pipe is correctly positioned and protected from media entering it during filling.

Image: Illustration of filling the filter tank with sand, and an insert showing alternative filter balls, demonstrating the compatible filter media.

4. Assembling the 7-Way Valve: Carefully place the 7-way valve onto the tank, ensuring it aligns correctly with the central pipe. Secure it firmly with the tension ring.
5. Connecting Hoses: Connect the pool's skimmer/suction line to the 'PUMP' port, the return line to the 'RETURN' port, and a waste hose to the 'WASTE' port. Use hose clamps to secure all connections tightly. Apply PTFE tape to threaded connections to prevent leaks.

Image: Close-up of the 7-way valve assembly, showing the integrated pressure gauge and the hose adapters for connection.

6. Electrical Connection: Connect the pump to a suitable, grounded power outlet. Ensure the power supply (230V) matches the pump's specifications (400W). Do not use extension cords unless specifically rated for outdoor use and the pump's power requirements.
7. Initial Priming: Before starting the pump, ensure the filter tank is completely filled with water. Set the 7-way valve to 'BACKWASH' and run the pump for 1-2 minutes until clear water flows from the waste port. Then, turn off the pump, set the valve to 'RINSE' for 30-60 seconds. Turn off the pump again, and finally set the valve to 'FILTER' for normal operation. This process removes air from the system and settles the filter media.

Operating Instructions

The 7-way valve allows for different operational modes to manage your pool water. Always turn off the pump before changing valve settings to prevent damage to the valve and system.

Image: Detailed view of the 7-way top-mount valve with labels for each function: Backwash, Rinse, Filter, Circulation, Waste, Closed, Winterize.

• FILTER: This is the standard filtration mode. Water is pumped through the filter media, where impurities are trapped, and then returned to the pool. Use this setting for daily pool cleaning.
• BACKWASH: This mode cleans the filter media. Water flows in reverse through the filter, dislodging trapped dirt and debris, which is then expelled out the waste port. Perform backwashing when the pressure gauge reads 0.2-0.3 bar above the clean operating pressure or when water flow is noticeably reduced.
• RINSE: Used immediately after backwashing. This mode flushes out any remaining dirt from the filter media and helps to settle the sand bed. Water flows out the waste port. Run for 30-60 seconds until the water runs clear.
• CIRCULATE: In this mode, water bypasses the filter media and is circulated directly back to the pool. This setting is useful for distributing pool chemicals quickly without filtering the water.
• WASTE (DRAIN): This setting drains water directly from the pool out the waste port, bypassing the filter. Use it for lowering the pool water level or for vacuuming heavy debris directly to waste.
• CLOSED: This position shuts off all flow to the filter and pump. Use this setting when performing maintenance on the pump or filter, or when the system is not in use for an extended period.
• WINTERIZE: This mode prepares the filter for winter storage. It typically allows for draining the system and positioning the valve to prevent damage from freezing. Consult specific winterization guidelines for your region.

Maintenance

• Regular Backwashing: Monitor the pressure gauge regularly. When the pressure rises 0.2-0.3 bar above the clean operating pressure (the pressure reading when the filter is clean), it indicates that the filter media is dirty and needs backwashing. Follow the 'BACKWASH' and 'RINSE' procedures described in the Operating Instructions.
• Filter Media Replacement: Filter sand typically needs replacement every 3-5 years, depending on usage and water quality. If using filter balls, they generally require replacement annually. Refer to the media manufacturer's recommendations.
• Pump Basket Cleaning: Regularly check and clean the pump's pre-filter basket to remove large debris that could impede flow and damage the pump. Ensure the pump is off before opening the basket.
• Winterization: Before freezing temperatures arrive, it is crucial to properly winterize your filter system. Drain all water from the pump, filter tank, and hoses. Store the pump and valve in a dry, frost-free location. The tank can remain outdoors if completely drained and protected from elements.

Troubleshooting

Specifications

Brand:

Monzana

Model Number:

MZPP14

Flow Rate:

10,200 L/h (10 cubic meters per hour)

Tank Volume:

25 Liters

Power:

400 Watts

Voltage:

230 Volts

Protection Class:

IPX5 (protection against water jets)

Product Dimensions (L x W x H):

34L x 34W x 55H cm

Item Weight:

11.2 Kilograms

Material:

Robust Plastic (tank and pipes), ABS plastic and metal (structure)

Warranty and Support

For warranty information and technical support, please refer to your purchase documentation or contact Monzana customer service directly. Keep your proof of purchase for any warranty claims. The manufacturer's warranty typically covers defects in materials and workmanship under normal use. Please note that wear and tear from normal operation or damage due to improper installation or misuse are generally not covered.
