1. Introduction
The Nordica Hell & Back H2 Ski Boot is engineered for all-mountain and backcountry skiing, offering a blend of performance, comfort, and durability. This manual provides essential information for the proper setup, operation, maintenance, and troubleshooting of your ski boots to ensure optimal performance and longevity.
Key features include a screw-adjustable 110 progressive flex, a lightweight Triax shell, and a 45-degree instep buckle designed for secure heel retention. The boots also feature a heat-moldable liner and a Weather Shield system for protection against elements.

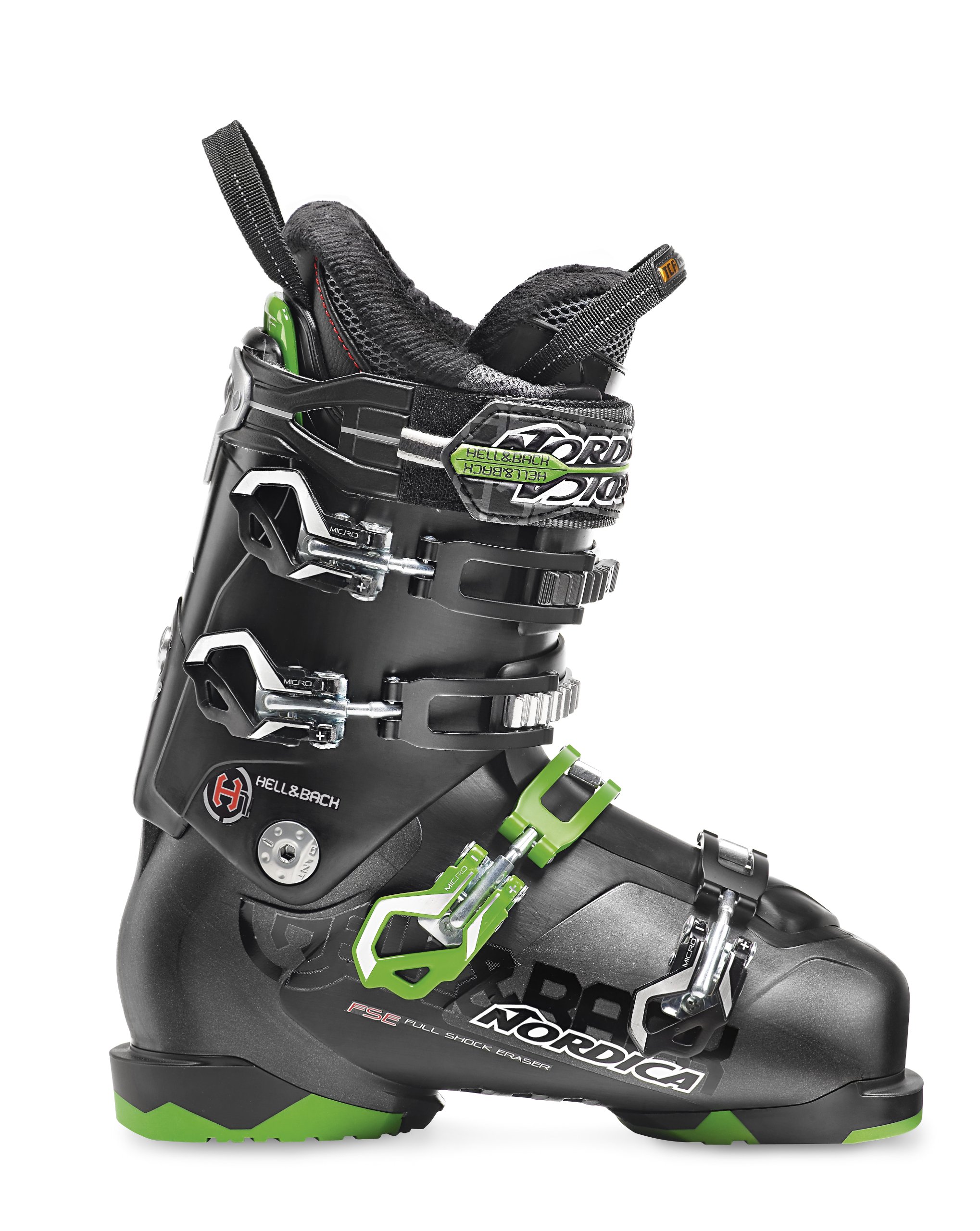

Figure 1: Front view of the Nordica Hell & Back H2 Ski Boot, showcasing its green and black design.
2. Setup and Initial Adjustment
Proper setup of your ski boots is crucial for comfort, control, and performance. Follow these steps for initial adjustment:
- Liner Entry: The soft shell flaps open wide to ease entry and exit. Ensure your foot slides completely into the liner.
- Buckle Fastening:
- Begin by fastening the instep buckle (positioned at a 45-degree angle). This buckle is designed to pull your heel securely into the heel pocket, minimizing foot movement.
- Proceed to fasten the remaining micro-adjustable aluminum buckles, starting from the bottom (forefoot) and working your way up (cuff).
- Adjust each buckle until snug, but not overly tight, to allow for proper circulation and comfort.
- Power Strap: Secure the power strap at the top of the cuff for additional support and responsiveness.
- Cant Adjustment: The H2 features a single cant adjustment. Consult a professional boot fitter for precise canting adjustments to match your leg alignment and ski stance.
- Liner Heat Molding: The 3D Tech Fur liner is heat-moldable for a custom fit. It is recommended to have this process performed by a certified boot fitter to achieve the best results.
3. Operating Your Ski Boots
Once properly fitted, your Nordica Hell & Back H2 Ski Boots are ready for use in various skiing conditions.
- Flex Performance: The 110 progressive flex provides a balance of power and forgiveness, suitable for aggressive all-mountain skiing and demanding backcountry terrain. The Triax shell maintains consistent flex across a wide range of temperatures.
- Terrain Suitability: These boots are recommended for all-mountain skiing and backcountry skiing. Their design supports performance in diverse snow conditions, from groomed runs to deep powder.
- Walking and Hiking: The high-traction sole provides improved grip when walking on snow, ice, or rocky terrain, enhancing safety outside of your bindings.
- Binding Compatibility: Ensure your ski boots are compatible with your ski bindings. Always have your bindings adjusted and tested by a certified technician with your boots to ensure proper release values.
4. Care and Maintenance
Regular care and maintenance will extend the life of your ski boots and maintain their performance.
- Drying: After each use, unbuckle the boots and remove the liners to allow them to air dry completely. Avoid direct heat sources like radiators or open flames, as this can damage the shell and liner materials. A boot dryer with gentle heat is recommended.
- Cleaning: Clean the exterior of the boots with a damp cloth. For stubborn dirt, use mild soap and water. Do not use harsh chemicals or solvents.
- Storage: When storing your boots for extended periods (e.g., off-season), buckle them loosely to maintain their shape. Store them in a cool, dry place away from direct sunlight.
- Weather Shield System: The overlapping Weather Shield system helps prevent water intrusion. Periodically inspect this area for any damage or debris that might compromise its effectiveness.
- Buckle Inspection: Regularly check all buckles and straps for wear, damage, or loose screws. Replace any damaged components immediately.
5. Troubleshooting
This section addresses common issues you might encounter with your ski boots.
| Problem | Possible Cause | Solution |
|---|---|---|
| Foot discomfort or pain | Incorrect buckle tension, improper liner fit, or unsuited footbed. | Adjust buckles for even pressure. Consider heat-molding the liner or using custom footbeds. Consult a boot fitter for persistent issues. |
| Heel lift or foot sliding | Instep buckle not tight enough, or liner not fully broken in. | Ensure the 45-degree instep buckle is securely fastened to pull the heel into the pocket. Allow for break-in period. If issues persist, consult a boot fitter. |
| Cold feet | Boots not fully dry, inadequate socks, or overly tight buckles restricting circulation. | Ensure boots and liners are completely dry before use. Wear appropriate ski socks. Loosen buckles slightly if they feel too tight. |
| Difficulty entering/exiting boots | Boots are cold and stiff, or buckles are not fully opened. | Store boots at room temperature before use. Fully unbuckle all buckles and open the shell flaps wide. |
6. Specifications
Technical specifications for the Nordica Hell & Back H2 Ski Boots:
- Model: Hell & Back H2
- Flex: 110 (Progressive)
- Liner: 3D Tech Fur (Heat-moldable)
- Shell Material: Triax (Ultra-light polymer)
- Buckle Material: Aluminum (Micro-adjustable)
- Recommended Use: All-mountain skiing, Backcountry skiing
- Color: Black/Green
- Item Weight: Approximately 8.84 Pounds (per pair)
- Package Weight: Approximately 3 Pounds
- Item Package Dimensions (L x W x H): 9 x 9 x 4 inches
- Part Number: 05006200-001-275
- Size: 27.5 (as per product listing)
- First Available: October 10, 2013
7. Warranty and Support
Warranty Information: Nordica products are covered by a manufacturer's warranty against defects in materials and workmanship. The specific terms and duration of the warranty may vary by region and product. Please retain your proof of purchase for warranty claims.
For detailed warranty information, please refer to the official Nordica website or contact their customer service department.
Customer Support: If you have any questions, require technical assistance, or need to report an issue with your Nordica Hell & Back H2 Ski Boots, please contact Nordica customer support through their official website or authorized dealer network. Provide your product model and any relevant purchase details when seeking support.
