PFERD 43302101 Pipe Brush Instruction Manual

Introduction

This manual provides essential information for the safe and effective use of your PFERD 43302101 Pipe Brush. Please read these instructions carefully before operating the tool and retain them for future reference. This brush is designed for optimal use with high-power angle grinders, specifically for cleaning and surface preparation in hard-to-reach areas such as pipes and internal contours.

Safety Information

Always observe general safety precautions when working with power tools and abrasive brushes. Failure to follow these instructions may result in injury or damage to the product.

• Always wear appropriate personal protective equipment (PPE), including safety glasses, gloves, and hearing protection.
• Ensure the angle grinder is disconnected from the power source before attaching or detaching the brush.
• Verify that the brush is securely mounted and compatible with your angle grinder's specifications (thread size, maximum RPM).
• Do not exceed the maximum operating speed specified for the brush.
• Inspect the brush for damage or wear before each use. Do not use damaged brushes.
• Maintain a firm grip on the angle grinder during operation.
• Keep bystanders away from the work area.

Product Overview

The PFERD 43302101 Pipe Brush is a specialized abrasive tool designed for efficient cleaning and surface treatment within pipes and other confined spaces. Its slim profile allows for effective access to internal surfaces.

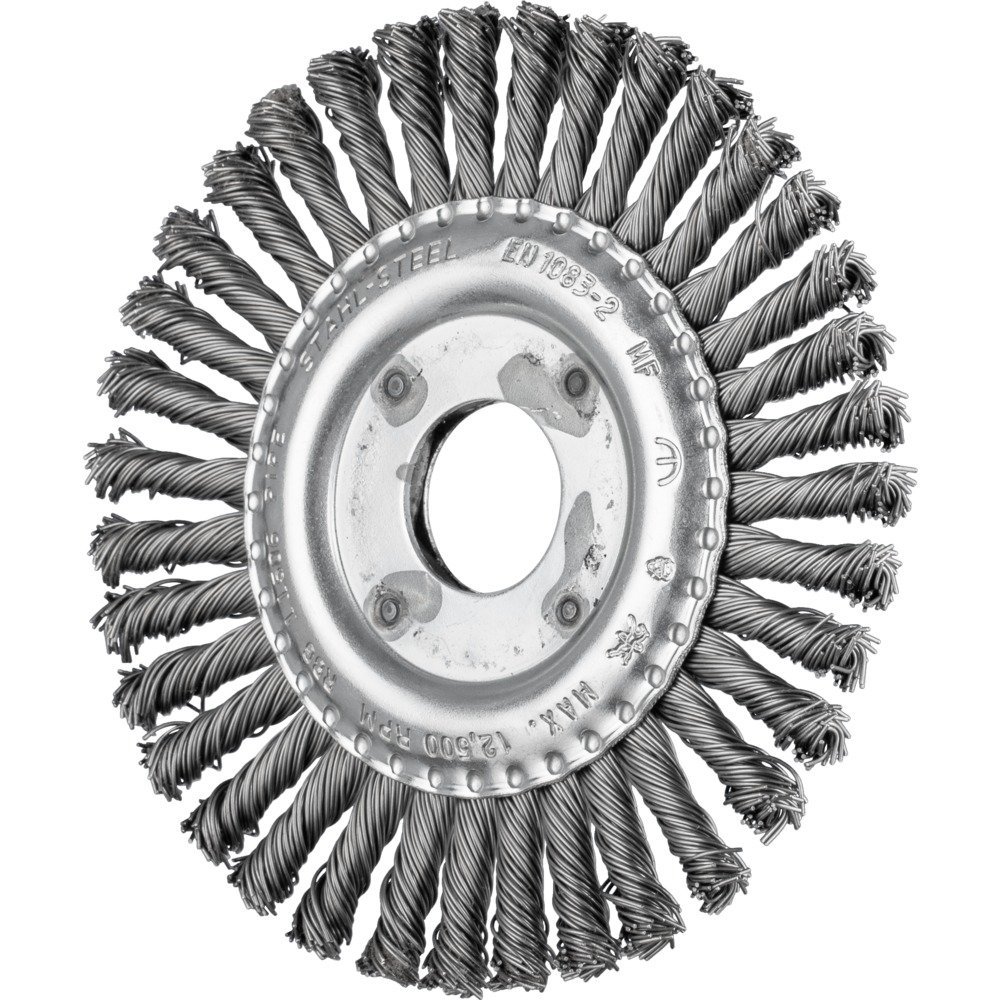

Image: PFERD 43302101 Pipe Brush, showing its slim design and wire bristles.

Key Features

• Thread: 5/8 inch for secure attachment to angle grinders.
• Diameter (Ø): 115 mm, suitable for various pipe sizes.
• Shelf Width: 6 mm, indicating the slim profile for internal work.
• Designed for optimum use with high-power angle grinders.
• Extremely slim design for accessing hard-to-reach areas.

Setup

Proper setup is crucial for safe and effective operation of the pipe brush.

1. Power Disconnection: Ensure your angle grinder is unplugged from the power source.
2. Inspect Brush: Check the brush for any signs of damage, loose wires, or deformities. Do not use a damaged brush.
3. Mounting: Align the 5/8 inch threaded arbor of the brush with the spindle of your angle grinder. Screw the brush onto the spindle clockwise until it is hand-tight.
4. Secure Tightening: Use the appropriate wrench (usually provided with the angle grinder) to firmly tighten the brush onto the spindle. Ensure it is secure and does not wobble.
5. Guard Adjustment: Adjust the angle grinder's guard to provide maximum protection without obstructing the brush's operation.
6. Initial Spin: Before applying to a workpiece, briefly run the angle grinder at a safe distance from yourself and others to ensure the brush runs smoothly and without excessive vibration.

Operating Instructions

Follow these guidelines for effective and safe operation of the PFERD 43302101 Pipe Brush.

• Workpiece Preparation: Secure the workpiece (e.g., pipe) firmly to prevent movement during operation.
• Starting the Grinder: Hold the angle grinder firmly with both hands. Start the grinder before bringing the brush into contact with the workpiece.
• Application: Gently bring the rotating brush into contact with the surface to be cleaned or prepared. Apply consistent, moderate pressure. Avoid excessive force, which can lead to premature wear or damage to the brush and workpiece.
• Movement: Move the brush steadily along the surface. For internal pipe cleaning, insert the brush carefully and move it back and forth or rotate it to ensure even coverage.
• Direction: Work in a direction that allows debris to be expelled away from you and bystanders.
• Overheating: Avoid prolonged contact in one spot, which can cause overheating of the workpiece or brush. Allow the brush to cool periodically during extended use.
• Finishing: Once the desired surface finish is achieved, lift the brush from the workpiece before turning off the angle grinder.

Maintenance

Proper maintenance extends the life of your PFERD pipe brush and ensures consistent performance.

• Cleaning: After each use, remove any accumulated debris or material from the brush wires. A stiff brush or compressed air can be used, ensuring safety precautions are followed.
• Inspection: Regularly inspect the brush for signs of wear, such as bent, broken, or excessively short wires. Check the mounting thread for damage.
• Storage: Store the brush in a clean, dry place, away from moisture and corrosive materials. Protect the bristles from being crushed or deformed.
• Replacement: Replace the brush when wires become excessively worn, damaged, or when performance significantly degrades. Using a worn brush can be inefficient and unsafe.

Troubleshooting

This section addresses common issues you might encounter during the use of your PFERD pipe brush.

• Issue: Poor cleaning performance.
  Solution: Check if the brush wires are worn out and need replacement. Ensure you are applying adequate, consistent pressure. Verify the angle grinder is operating at the correct speed.
• Issue: Excessive vibration during operation.
  Solution: Ensure the brush is securely tightened onto the angle grinder spindle. Inspect the brush for any damage or imbalance. If the brush is damaged, replace it.
• Issue: Rapid wear of brush wires.
  Solution: You might be applying too much pressure, or the brush might be operating at an excessively high speed for the application. Ensure the brush is suitable for the material being worked on.
• Issue: Brush getting stuck in the workpiece.
  Solution: This can happen if the brush diameter is too large for the pipe or if excessive force is applied. Ensure the brush size is appropriate and use gentle, controlled movements.

Specifications

Warranty and Support

For specific warranty information or technical support regarding your PFERD 43302101 Pipe Brush, please refer to the documentation provided with your purchase or contact PFERD customer service directly. Keep your purchase receipt as proof of purchase.

You can typically find contact information for PFERD on their official website or through your product retailer.
