Philips HR1855 Viva Collection Juicer

Important Safety Information

Please read this instruction manual carefully before using the appliance and save it for future reference. Always follow basic safety precautions when using electrical appliances.

• Ensure the voltage indicated on the appliance corresponds to your local mains voltage before you connect the appliance.
• Do not immerse the motor unit in water or any other liquid, nor rinse it under the tap. Use only a moist cloth to clean the motor unit.
• Always unplug the appliance after use and before cleaning.
• Keep the appliance out of reach of children.
• Do not operate the appliance if the rotating sieve is damaged.
• Never put your fingers or other objects into the feeding tube while the appliance is operating. Use only the pusher.
• This appliance is intended for household use only.

Product Overview and Components

The Philips HR1855 Viva Collection Juicer is designed for efficient juice extraction with easy cleaning. Familiarize yourself with its main components:

• Pusher: Used to guide fruits and vegetables into the feeding tube.
• Feeding Tube: Extra-large opening for whole fruits and vegetables.
• Lid: Transparent lid with integrated pulp container.
• Sieve: Stainless steel sieve for separating juice from pulp.
• Juice Collector: Collects the extracted juice.
• Motor Unit: The base containing the powerful 700-watt motor and control knob.
• Pulp Container: Integrated into the lid for easy disposal of pulp.
• Spout: For pouring out the juice.

Image: The Philips HR1855 Viva Collection Juicer, fully assembled.

Image: Overview of the Philips HR1855 Juicer's key features, including its powerful motor, 2-liter juice capacity, QuickClean technology, and XL feeding tube.

Setup and Assembly

Before first use, wash all parts that will come into contact with food. Ensure the appliance is placed on a stable, level surface.

1. Place the motor unit on a dry, stable surface.
2. Insert the juice collector onto the motor unit.
3. Place the sieve into the juice collector. Ensure it is securely seated.
4. Place the lid onto the juice collector, aligning the spout with the juice collector's opening. Ensure the lid clicks into place.
5. Insert the pusher into the feeding tube.
6. Connect the power plug to a wall socket.

Operating Instructions

The Philips HR1855 Juicer is designed for efficient and quick juicing of various fruits and vegetables.

1. Preparation: Wash fruits and vegetables thoroughly. For larger items, cut them into pieces that fit the XL feeding tube. Remove large seeds or pits from fruits like peaches or plums. Peeling is generally not necessary for most fruits and vegetables, but you may peel citrus fruits to avoid a bitter taste.
2. Start Juicing: Place a glass or jug under the spout. Turn the control knob to the 'ON' position.
3. Feeding: Gradually feed the prepared ingredients into the feeding tube. Use the pusher to gently guide the ingredients down. Do not apply excessive force, as this can affect juice quality or damage the appliance.
4. Juice Collection: The juicer can process up to 2 liters of juice in one go before the pulp container needs emptying.
5. Finish: Once juicing is complete, turn the control knob to the 'OFF' position and unplug the appliance.

Image: The Philips HR1855 Juicer demonstrating its ability to produce up to 2 liters of juice in a single operation.

Image: An apple being inserted into the extra-large feeding tube of the Philips HR1855 Juicer, illustrating its wide opening for whole fruits.

Maintenance and Cleaning

Regular cleaning ensures optimal performance and extends the lifespan of your juicer. The Philips HR1855 features QuickClean technology for easy cleaning.

1. Disassembly: Unplug the appliance. Remove the pusher, then the lid with the integrated pulp container. Lift out the sieve and the juice collector.
2. Pre-Clean Function: For quick cleaning, pour a glass of water into the feeding tube while the juicer is running. This helps rinse the lid and sieve.
3. Cleaning the Sieve: The polished sieve surface and integrated pulp container make cleaning easier. Use a cleaning brush or sponge to remove any remaining pulp from the sieve.
4. Washing Parts: All detachable parts (pusher, lid, sieve, juice collector, pulp container) can be rinsed under the tap. They are designed for hand wash only. Do not use abrasive cleaning agents.
5. Motor Unit: Wipe the motor unit with a damp cloth. Never immerse it in water.
6. Drying and Storage: Allow all parts to dry completely before reassembling or storing the appliance.

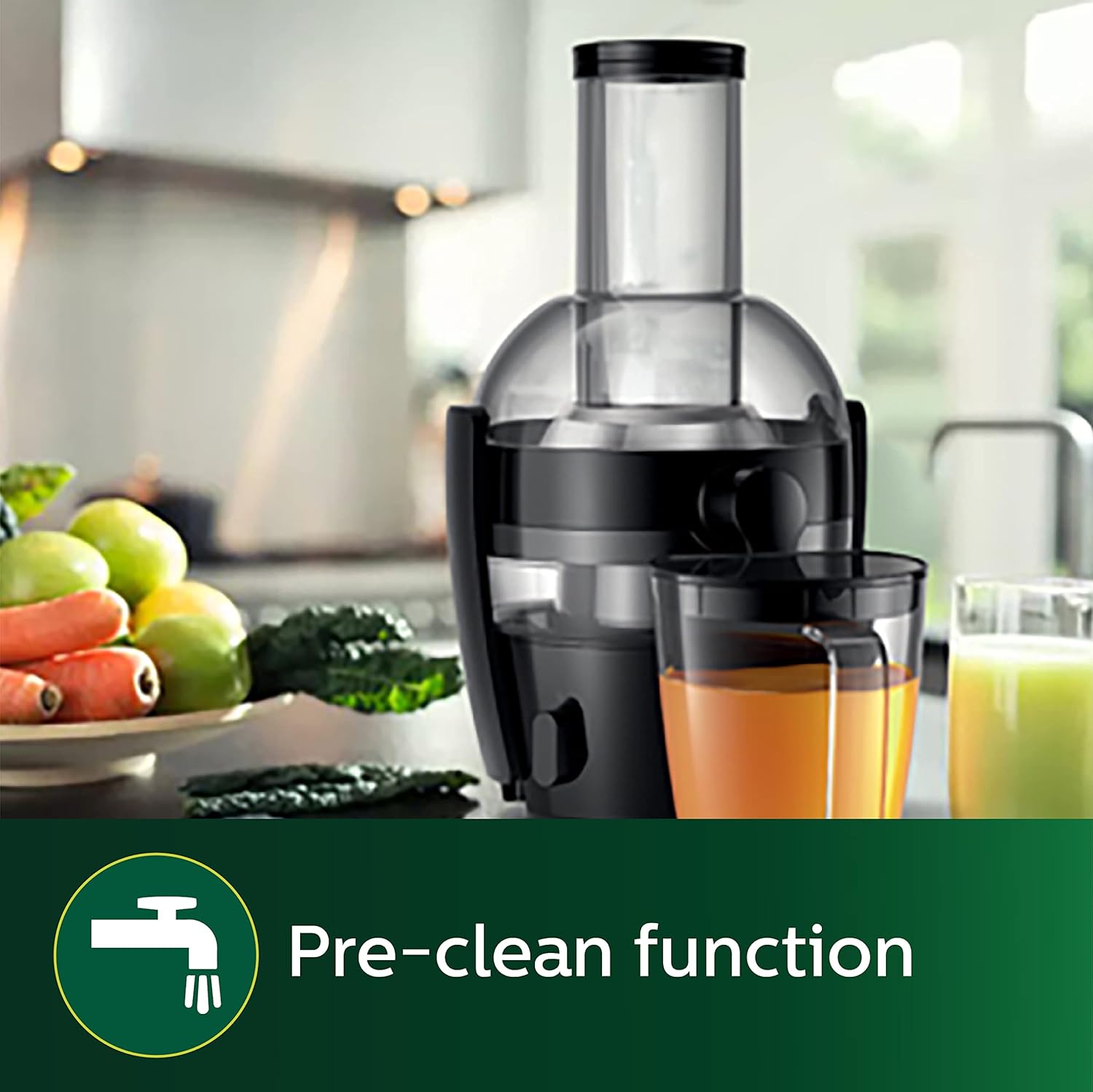

Image: The Philips HR1855 Juicer utilizing its pre-clean function, where water is poured through the feeding tube to rinse internal components.

Image: A close-up view of the Philips HR1855 Juicer's QuickClean sieve, showing how easily it can be cleaned with a sponge due to its smooth surface.

Image: The integrated pulp container of the Philips HR1855 Juicer, designed for easy removal and disposal of pulp.

Troubleshooting

If you encounter issues with your Philips HR1855 Juicer, refer to the following common problems and solutions:

Specifications

Detailed technical specifications for the Philips HR1855 Viva Collection Juicer:

Warranty and Support

Your Philips HR1855 Viva Collection Juicer comes with a manufacturer's warranty and dedicated support.

• Warranty: This product is covered by a 2-year warranty from the date of purchase. Please retain your purchase receipt as proof of warranty.
• Manufacturer: Versuni Home Solutions, China B.V.
• Importer (India): Versuni India Home Solutions Ltd. (3rd Floor, Tower A, DLF IT Park, 08 Block AF Major Arterial Road, New Town (Rajarhat) Kolkata WB 700156 IN)
• For technical assistance, service, or warranty claims, please contact Philips customer support in your region. Refer to the official Philips website or product packaging for contact details.
