Introduction
This manual provides comprehensive instructions for the installation, operation, and maintenance of your REV 0514860555 Double Tone Door Chime. Please read this manual thoroughly before installation and use to ensure proper function and safety.
The REV 0514860555 is a two-tone door chime designed for both battery and transformer operation, offering flexibility for various home setups. It produces a maximum volume of 83 dB.
Safety Instructions
- Electrical Safety: Installation should only be performed by a qualified electrician or in accordance with local electrical codes if connecting to a transformer. Ensure power is disconnected before any installation or maintenance.
- Voltage: The device operates with an input voltage of 8-12 V AC for transformer operation or 4.5 V DC (3x 1.5V LR14 batteries) for battery operation. Do not exceed these voltage limits.
- Battery Handling: Use only specified battery type (3x 1.5V LR14 Baby C). Do not mix old and new batteries, or different types of batteries. Dispose of used batteries responsibly.
- Placement: Install the door chime in a dry location, away from direct moisture or extreme temperatures.
- Maintenance: Do not attempt to repair the device yourself. Refer all servicing to qualified personnel.
Warning: Risk of electric shock. Disconnect power before servicing.
This product is a Class III electrical appliance, meaning it is designed to be supplied from a separated/safety extra-low voltage (SELV) power source.
Package Contents
- REV 0514860555 Double Tone Door Chime
- Assembly Instructions (included in packaging)
- Mounting material (screws and wall plugs)
Note: 3x 1.5V LR14 (Baby C) batteries are not included and must be purchased separately for battery operation.
Product Overview
Figure 1: Front view of the REV 0514860555 Double Tone Door Chime. The housing is white plastic with a striped pattern on the left upper and right lower corners.

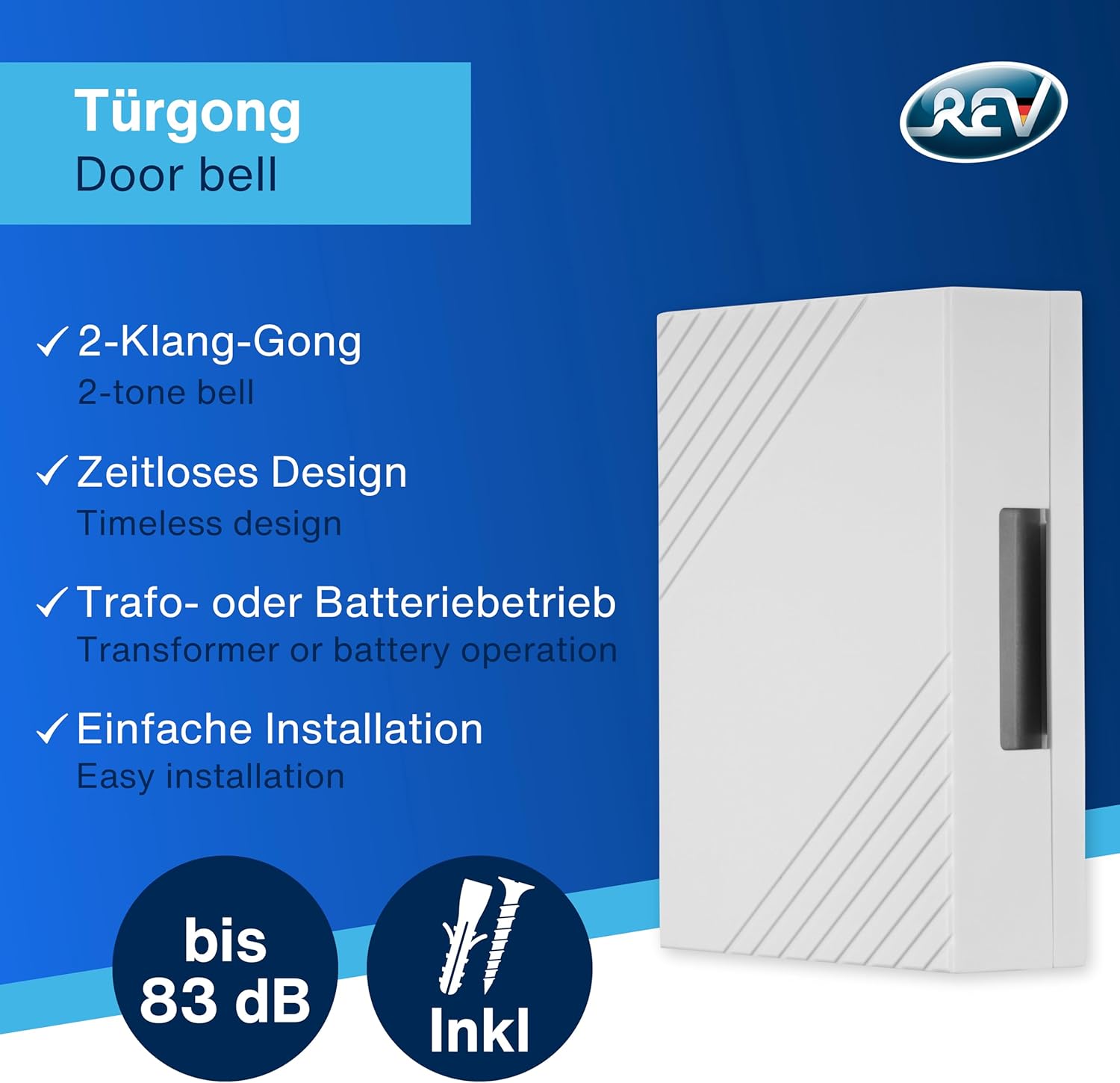

Figure 2: Overview of key features including 2-tone bell, timeless design, flexible power options, and easy installation.

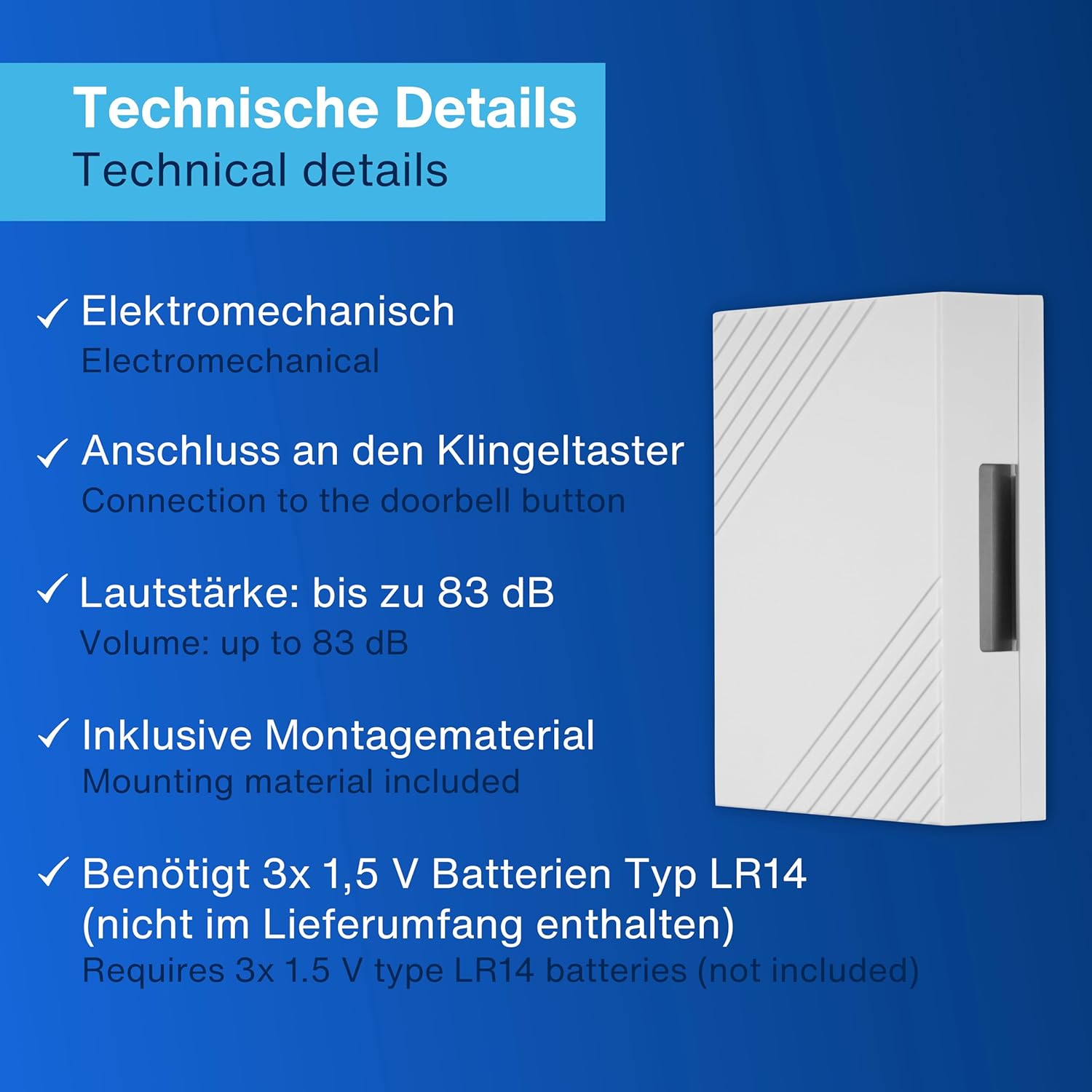

Figure 3: Overview of key technical features, including electromechanical operation, doorbell button connection, and up to 83 dB volume.
Figure 4: Dimensions of the door chime: 107 mm (width) x 173 mm (height) x 50 mm (depth).
Setup and Installation
1. Choosing a Power Source
The REV 0514860555 door chime can be powered by either batteries or a low-voltage transformer.
- Battery Operation: Requires 3x 1.5V LR14 (Baby C) batteries (not included).
- Transformer Operation: Requires an 8-12 V AC transformer (not included).
2. Opening the Chime Housing
Carefully open the front cover of the chime to access the internal components for wiring or battery installation.

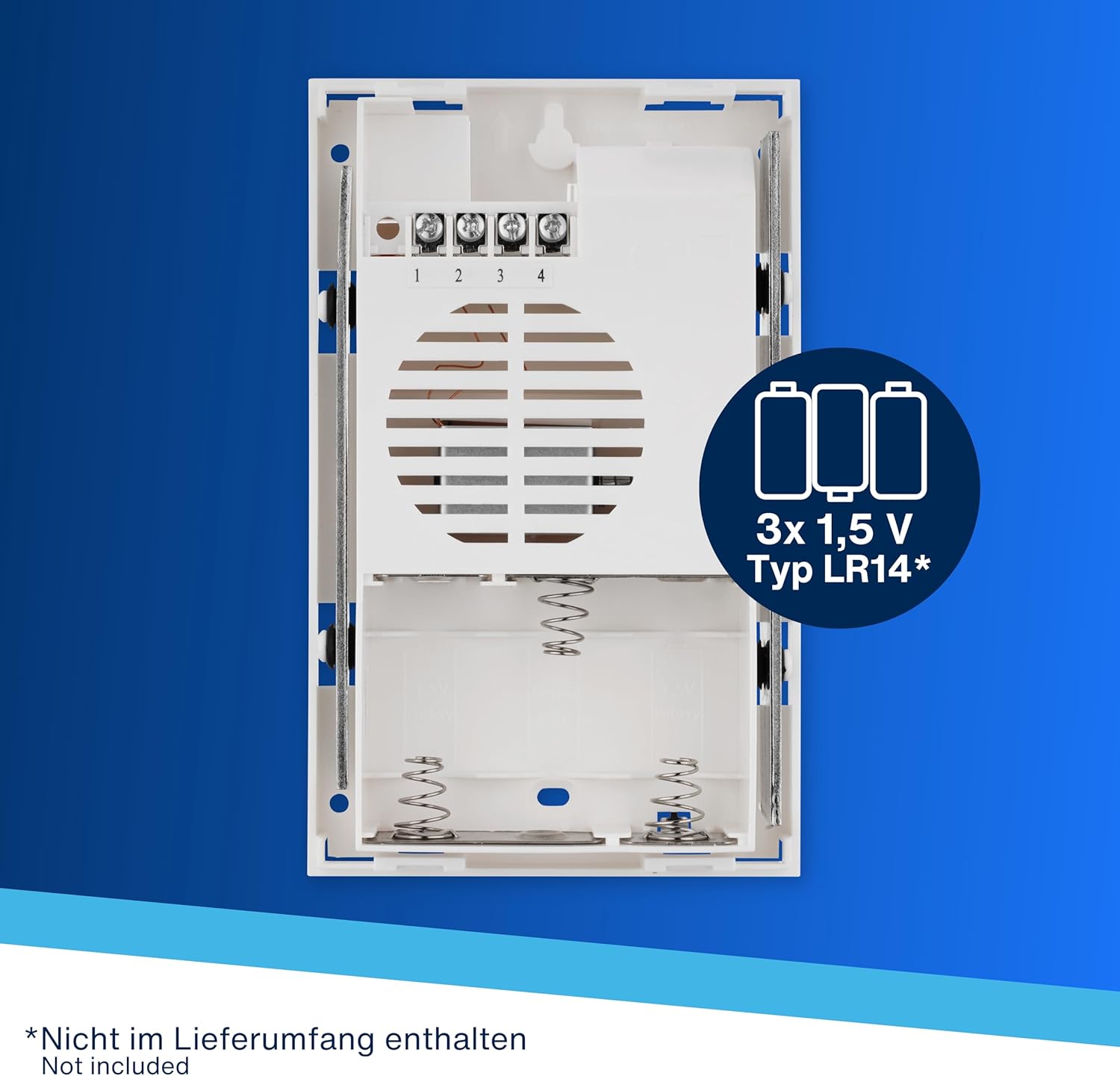

Figure 5: Internal view showing the battery compartment and terminal block for wiring.
3. Power Connection
Refer to the internal diagram for terminal connections. The terminals are typically labeled 1, 2, 3, 4.
Figure 6: Close-up of the terminal block for electrical connections. Ensure wires are securely fastened.
- For Transformer Operation: Connect the 8-12 V AC transformer wires to the appropriate terminals (e.g., 1 and 2). Consult the internal wiring diagram for specific connections.
- For Battery Operation: Insert 3x 1.5V LR14 (Baby C) batteries into the battery compartment, ensuring correct polarity (+/-).
Important: If using a transformer, ensure the power supply to the transformer is switched off at the main circuit breaker before making any connections.
4. Mounting the Chime
The chime can be mounted to a wall using the provided mounting material. Identify a suitable location near your doorbell button wiring (if applicable) and a power source.
- Mark the desired mounting points on the wall using the chime's backplate as a template.
- Drill pilot holes if necessary and insert wall plugs.
- Secure the chime's backplate to the wall using the provided screws.
- Ensure the chime is level and securely fastened.
Figure 7: Detail of the mounting recess on the back of the chime, designed for nails or hooks.
Once mounted and wired, replace the front cover of the chime.
Operating Instructions
After successful installation and power connection (either batteries or transformer), the REV 0514860555 Double Tone Door Chime is ready for use.
- Ensure your doorbell button is connected to the chime's terminals as per the installation instructions.
- Press the doorbell button. The chime will produce a two-tone sound (e.g., "Ding-Dong").
- The chime operates electromechanically, producing a distinct sound when the button is pressed and released.
Figure 8: Example of the door chime installed, ready to alert you to visitors.
Maintenance
- Cleaning: Clean the exterior of the chime with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- Battery Replacement: If the chime sound becomes weak or stops working, replace the batteries (if operating on battery power). Ensure to replace all three LR14 batteries simultaneously.
- Inspection: Periodically check wiring connections for tightness, especially if the chime is exposed to vibrations.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Chime does not sound. |
|
|
| Chime sounds weak or distorted. |
|
|
| Chime sounds continuously. |
|
|
Specifications
| Model Number | 0514860555 |
| Brand | REV |
| Type | Double Tone Door Chime (Electromechanical) |
| Power Source | Battery (3x 1.5V LR14 Baby C) or Transformer |
| Operating Voltage (Transformer) | 8-12 V AC, 50 Hz |
| Operating Voltage (Battery) | 4.5 V DC (3x 1.5V) |
| Current Consumption | 500 mA (at 8-12V AC) |
| Volume | Up to 83 dB |
| Dimensions (W x H x D) | 107 mm x 173 mm x 50 mm (4.21 x 6.81 x 1.97 inches) |
| Weight | Approximately 1.01 pounds (0.46 kg) |
| Material | Plastic |
Disposal Information
This symbol on the product, accessories, or packaging indicates that this product shall not be treated as household waste. Instead, it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.
Figure 9: WEEE (Waste Electrical and Electronic Equipment) symbol.
By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources.
Warranty and Support
For warranty information or technical support, please refer to the documentation provided with your purchase or contact REV customer service. Keep your proof of purchase for warranty claims.
Manufacturer: REV Ritter GmbH
