EISCO Parallel Plate Capacitor Demonstration User Manual

Introduction

The EISCO Parallel Plate Capacitor Demonstration apparatus (Model PH0879) is designed for educational purposes to illustrate the fundamental principles of capacitance. This device allows users to investigate the relationship between capacitance, charge, voltage, and its dependence on the surface area of conductors, the distance between plates, and the dielectric material inserted between them.

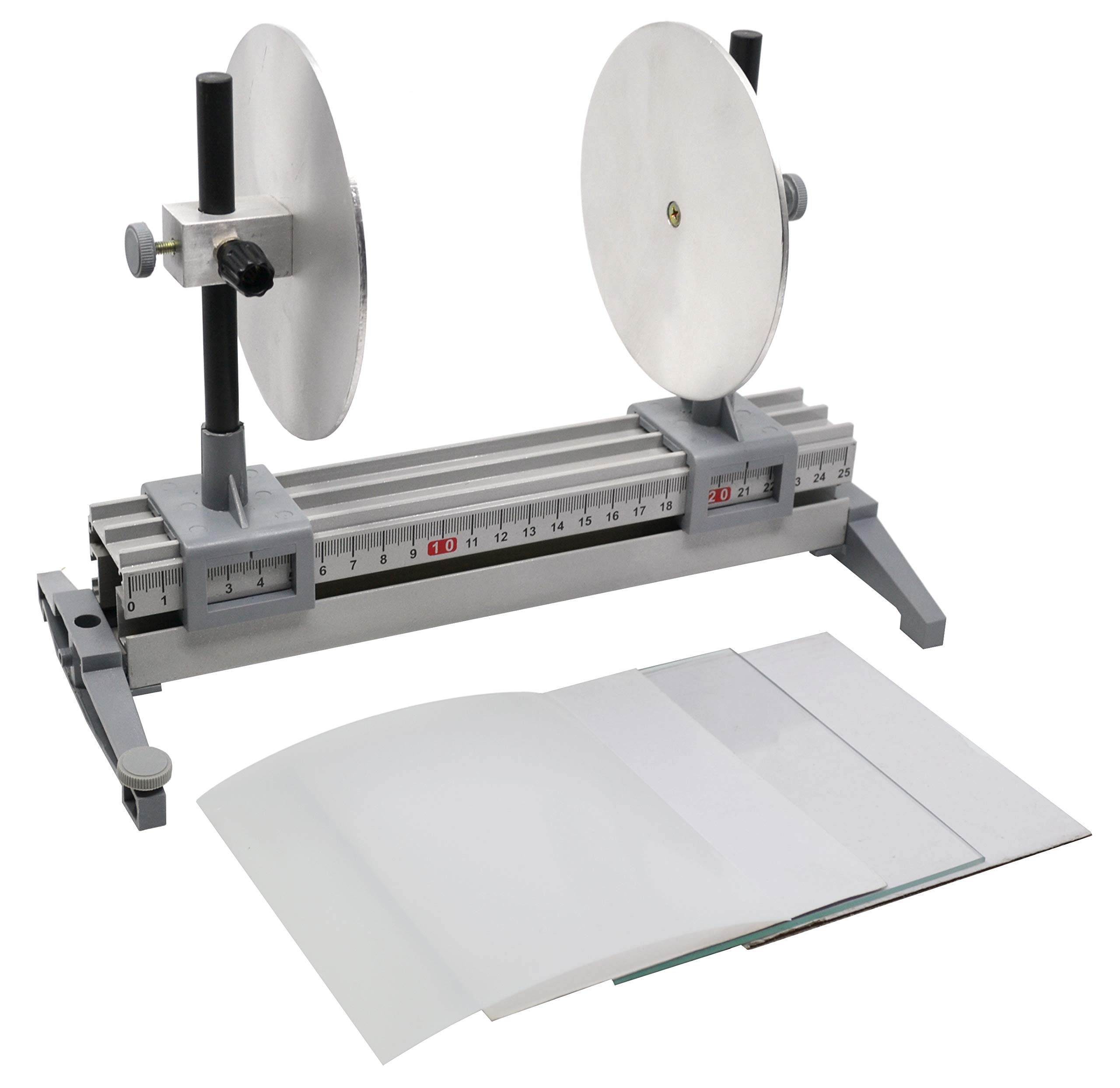

The apparatus includes two 120mm circular metal discs mounted on insulated supports. These supports slide on an extruded aluminum section, enabling easy adjustment of both the distance between the plates and their height. Three dielectric materials—glass, cardboard, and Lucite—are provided for experimental variation.

Setup

The apparatus is designed for straightforward assembly and use. Follow these steps to set up your Parallel Plate Capacitor Demonstration:

1. Unpack Components: Carefully remove all components from the packaging. You should have two circular metal plates, two insulated support rods, a base with an extruded aluminum section, and three dielectric sheets (glass, cardboard, Lucite).
2. Assemble Base and Supports: Insert the insulated support rods into the designated slots on the sliding carriages along the extruded aluminum base. Ensure they are securely seated.
3. Attach Metal Plates: Mount the 120mm circular metal discs onto the top of the insulated support rods. Each plate should have a terminal for electrical connection.
4. Adjust Plate Position: The sliding carriages allow for adjustment of the distance between the plates. The height of the plates can also be adjusted by loosening and tightening the knobs on the support rods. Position the plates parallel to each other.

Once assembled, the apparatus is ready for connection to a suitable power supply or capacitance meter for experimentation.

Operating Instructions

This apparatus is used to demonstrate how capacitance is affected by various factors. For accurate measurements, connect the terminals of the capacitor plates to a sensitive capacitance meter or an electrometer with a stable power supply.

1. Varying Plate Distance:
   • Ensure no dielectric material is between the plates.
   • Adjust the distance between the two metal plates using the sliding carriages on the aluminum base. Observe how the capacitance changes as the distance increases or decreases. Capacitance is inversely proportional to the distance between the plates.
2. Varying Plate Area:
   • Keep the distance between the plates constant.
   • While the plates are fixed, you can conceptually demonstrate the effect of varying the effective overlapping area by partially sliding one plate past the other (though the design is primarily for distance adjustment, this can be discussed). Capacitance is directly proportional to the overlapping area of the plates.
3. Introducing Dielectric Materials:
   • Set the plates to a fixed, small distance.
   • Measure the capacitance with air as the dielectric.
   • Carefully insert one of the provided dielectric sheets (glass, cardboard, or Lucite) between the plates, ensuring it fills the space as much as possible without touching the plates directly if possible, or by placing it firmly between them.
   • Observe the change in capacitance. The capacitance will increase when a dielectric material is introduced, with the amount of increase depending on the material's dielectric constant.
   • Repeat with the other dielectric materials to compare their effects.

Maintenance

Proper maintenance ensures the longevity and accuracy of your apparatus.

• Cleaning: Wipe the metal plates and aluminum base with a soft, dry cloth. For stubborn marks, a slightly damp cloth can be used, followed by immediate drying. Avoid abrasive cleaners or solvents.
• Dielectric Materials: Handle the dielectric sheets with care to prevent scratches or damage. Store them flat and clean.
• Storage: When not in use, store the apparatus in a clean, dry environment, away from direct sunlight and extreme temperatures. Ensure all components are securely stored to prevent loss or damage.
• Insulation: Periodically check the insulated supports for any cracks or damage, as compromised insulation can affect experimental results.

Troubleshooting

If you encounter issues during operation, consider the following common points:

• Inconsistent Readings: Ensure all connections to the capacitance meter or electrometer are secure. Verify that the plates are parallel and that no foreign objects are between them. Static electricity in the environment can also affect sensitive readings; try to operate in a controlled environment.
• Charge Dissipation: It is normal for a capacitor in a simple demonstration setup to lose its potential difference quickly once the power supply is removed, especially if not connected to a high-impedance electrometer. This apparatus is primarily for demonstrating the *factors affecting capacitance* rather than long-term charge storage. For observing charge, a sensitive electrometer is recommended.
• Difficulty Adjusting Plates: Check that the locking knobs on the support rods and sliding carriages are sufficiently loosened before attempting to adjust. Do not force adjustments.

Specifications

Warranty and Support

For specific warranty information regarding your EISCO Parallel Plate Capacitor Demonstration apparatus, please refer to the documentation provided at the time of purchase or contact your retailer. Warranty terms typically cover manufacturing defects.

For technical support, product inquiries, or to purchase replacement parts, please visit the official EISCO Store or contact EISCO customer service directly through their official website.
