1. Introduction
The Samlex America Samlex Solar RC-15A Remote Control is designed for use with Samlex PST Series 600 and 1000 Watt inverters. This unit provides convenient remote operation of your inverter, allowing you to turn it on or off from a distance. It also features LED indicators to monitor the inverter's status, including power, overload, and overtemperature conditions.
2. Safety Information
Please read and understand all instructions before installing or operating the RC-15A remote control. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Ensure the inverter is turned off and disconnected from all power sources before connecting or disconnecting the remote control.
- Do not expose the remote control to water, excessive moisture, or extreme temperatures.
- Do not attempt to open or modify the remote control unit. There are no user-serviceable parts inside.
- This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm (Proposition 65 Warning). Wash hands after handling.
3. Package Contents
- Samlex America Samlex Solar RC-15A Remote Control Unit
- 15-foot (approximately 4.5 meters) connection cable
4. Product Features
- Remote On/Off Switch: Allows for convenient power control of your compatible Samlex PST Series inverter.
- LED Indicators:
- Power LED: Indicates the inverter's operational status.
- Overload LED: Illuminates when the inverter is experiencing an overload condition.
- Overtemperature LED: Illuminates when the inverter's internal temperature exceeds safe operating limits.
- Ergonomic Design: Compact and user-friendly interface.
5. Setup and Installation
Follow these steps to connect the RC-15A remote control to your Samlex PST Series inverter:
- Power Off Inverter: Ensure your Samlex PST Series inverter is completely powered off and disconnected from all DC and AC power sources. Refer to your inverter's manual for specific power-off procedures.
- Locate Remote Port: Identify the remote control port on your Samlex PST Series inverter. This port is typically an RJ-11 or similar modular jack.
- Connect Cable: Plug one end of the supplied 15-foot connection cable into the remote control port on the inverter.
- Connect Remote: Plug the other end of the connection cable into the port on the back of the RC-15A remote control unit. Ensure both connections are secure.
- Mount Remote (Optional): The remote control can be mounted in a convenient location using appropriate fasteners (not included). Ensure the mounting surface is stable and allows for easy access to the controls.
- Restore Inverter Power: Once the remote control is securely connected, you may reconnect power to your inverter. The remote control should now be operational.
Figure 1: Samlex America Samlex Solar RC-15A Remote Control with its coiled 15-foot connection cable, ready for installation.
6. Operating Instructions
The RC-15A remote control provides simple operation and status monitoring for your compatible Samlex PST Series inverter.

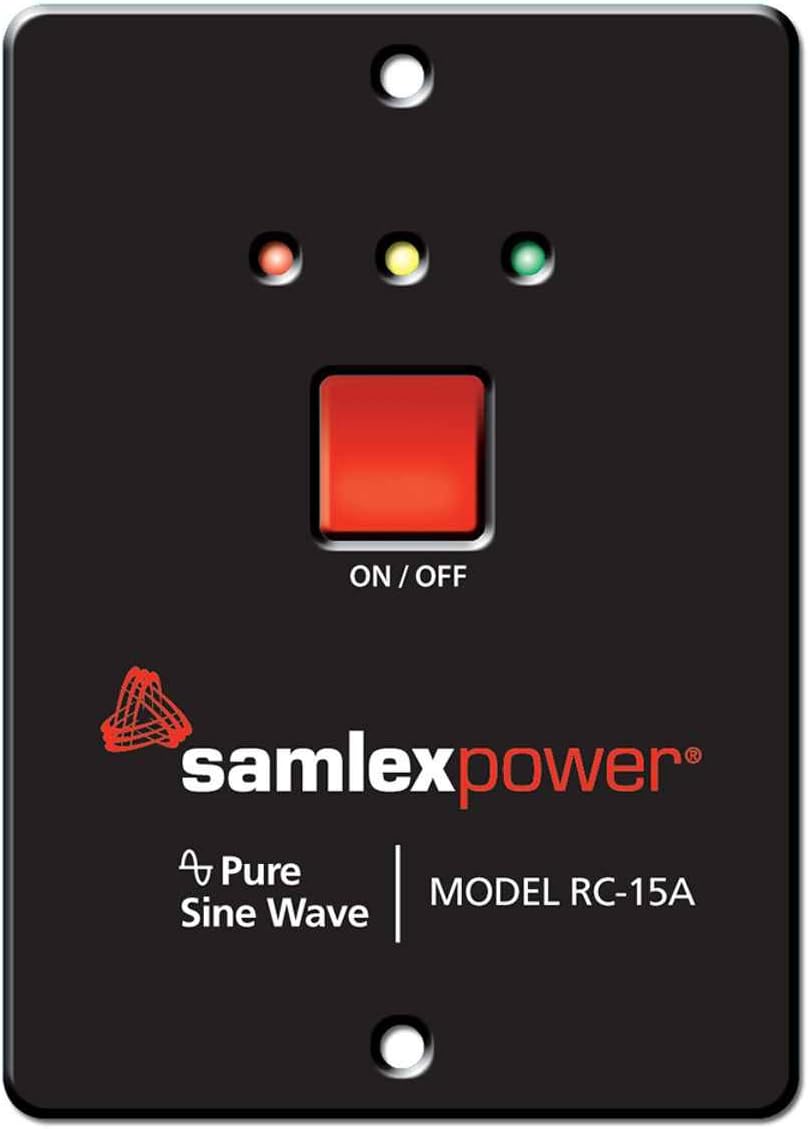

Figure 2: Close-up of the RC-15A remote control face, highlighting the On/Off button and LED indicators.
6.1. On/Off Operation
- To turn the inverter ON, press the red ON/OFF button once. The green Power LED will illuminate.
- To turn the inverter OFF, press the red ON/OFF button once. The green Power LED will turn off.
6.2. LED Indicators
The remote control features three LED indicators to provide real-time status of your inverter:
- Green Power LED:
- Solid Green: Inverter is ON and operating normally.
- Off: Inverter is OFF.
- Red Overload LED:
- Solid Red: Inverter is experiencing an overload condition. The inverter may shut down to protect itself. Reduce the load connected to the inverter.
- Red Overtemperature LED:
- Solid Red: Inverter's internal temperature is too high. The inverter may shut down to prevent damage. Ensure adequate ventilation around the inverter.
7. Maintenance
The RC-15A remote control requires minimal maintenance. To ensure optimal performance and longevity:
- Cleaning: Periodically wipe the unit with a soft, dry cloth to remove dust and dirt. Do not use liquid cleaners or solvents.
- Inspection: Regularly inspect the connection cable for any signs of damage, such as cuts, kinks, or frayed insulation. Replace the cable if any damage is found.
- Environment: Ensure the remote control is kept in a dry environment, away from direct sunlight and extreme temperatures.
8. Troubleshooting
If you experience issues with your RC-15A remote control, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Remote control does not turn inverter ON/OFF. |
|
|
| LED indicators are not lighting up. |
|
|
| Overload or Overtemperature LED is illuminated. |
|
|
For issues not covered in this section, please contact Samlex America customer support.
9. Specifications
| Feature | Detail |
|---|---|
| Model Number | RC-15A (0304.4086) |
| Compatibility | Samlex PST Series 600-1000 Watt Inverters |
| Product Dimensions (L x W x H) | 5.37 x 2.4 x 4.97 inches (approx. 13.6 x 6.1 x 12.6 cm) |
| Item Weight | 8 ounces (approx. 0.226 kg) |
| Material | Plastic |
| Cable Length | 15 feet (approx. 4.5 meters) |
| Special Feature | Ergonomic |
| Country of Origin | Taiwan |
| UPC | 622988071614 |
10. Warranty and Support
For information regarding product warranty, technical support, or service, please contact Samlex America directly. Refer to the official Samlex America website or your product packaging for the most current contact information and warranty details.
Website: www.samlexamerica.com
