Introduction
This manual provides essential information for the proper use, installation, and maintenance of the Paslode 500461 O-Ringcap. This component is designed to ensure a secure seal within compatible Paslode fastening tools, specifically models F350S, F400, F325C, and 5000 series. Adhering to these instructions will help maintain tool performance and extend the lifespan of the O-ring.
Product Overview

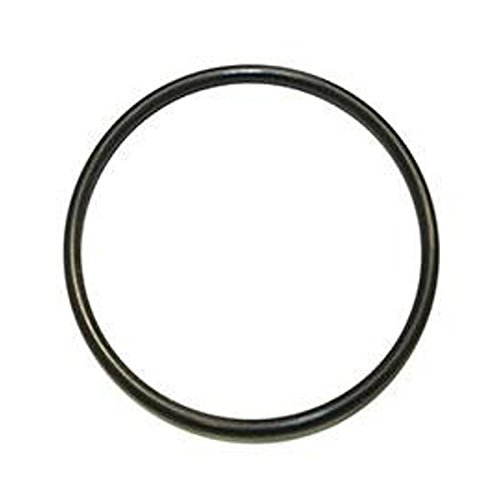

The Paslode 500461 O-Ringcap is a critical sealing component for various Paslode pneumatic tools. Its primary function is to prevent air leaks and maintain optimal pressure within the tool's internal mechanisms, which is crucial for consistent and powerful operation.
Setup and Installation
- Safety First: Before beginning any installation, ensure the tool is disconnected from its air supply and any remaining air pressure is safely discharged. Refer to your specific tool's manual for depressurization procedures.
- Identify Location: Locate the specific area within your Paslode tool where the O-Ringcap needs to be installed or replaced. This typically involves disassembling certain tool components.
- Remove Old O-ring (if applicable): Carefully remove the old or damaged O-ring using a non-marring tool to avoid scratching the mating surfaces.
- Clean Surfaces: Thoroughly clean the groove and mating surfaces where the new O-ring will sit. Remove any debris, old lubricant, or foreign particles.
- Lubricate: Apply a thin, even coat of appropriate O-ring lubricant (e.g., silicone grease or tool-specific lubricant) to the new Paslode 500461 O-Ringcap. This aids in installation and helps prevent premature wear.
- Install New O-ring: Gently stretch and roll the O-ring into its designated groove. Ensure it is seated correctly and not twisted or pinched.
- Reassemble Tool: Carefully reassemble the tool components, ensuring all fasteners are tightened to the manufacturer's specifications.
- Test: Reconnect the tool to the air supply and perform a functional test to check for any air leaks or operational issues.
Operating Considerations
Once installed, the O-Ringcap operates passively as a seal within the pneumatic system of your Paslode tool. Proper operation relies on the O-ring maintaining its integrity and sealing capability. No direct user interaction is required with the O-ring during tool operation, but its presence is critical for the tool's performance.
Maintenance
- Regular Inspection: Periodically inspect the O-Ringcap during routine tool maintenance or when disassembling the tool for other repairs. Look for signs of wear, cracking, flattening, or nicks.
- Lubrication: Re-lubricate the O-ring with appropriate pneumatic tool lubricant if it appears dry or during reassembly. This helps maintain its flexibility and sealing properties.
- Cleaning: Keep the area around the O-ring clean and free of dirt, dust, or debris, which can compromise the seal.
- Replacement: Replace the O-Ringcap immediately if any signs of damage or wear are observed. Using a worn O-ring can lead to air leaks, reduced tool power, and potential damage to other tool components.
Troubleshooting
- Air Leaks: If you detect air leaking from your tool, especially around the area where the O-Ringcap is installed, it is a strong indicator that the O-ring may be damaged, improperly seated, or worn out. Disassemble, inspect, and replace if necessary.
- Reduced Tool Power: A compromised O-ring can lead to a loss of air pressure, resulting in reduced fastening power or inconsistent operation. Check the O-ring as part of your diagnostic process.
- Tool Not Cycling: In severe cases of air leakage due to a faulty O-ring, the tool may fail to cycle properly. Ensure the O-ring is correctly installed and in good condition.
Always refer to your specific Paslode tool's service manual for detailed troubleshooting steps and repair procedures.
Specifications
| Specification | Detail |
|---|---|
| Item Weight | 0.16 ounces |
| Manufacturer | Paslode |
| ASIN | B00AY3382U |
| Item Model Number | 500461 |
| Date First Available | January 7, 2013 |
| Compatibility | Paslode F350S, F400, F325C, 5000 series tools |
Warranty and Support
For specific warranty information regarding the Paslode 500461 O-Ringcap or your Paslode tool, please refer to the documentation provided with your original tool purchase or visit the official Paslode website. For technical support or further assistance, contact Paslode customer service directly. Always use genuine Paslode replacement parts to ensure compatibility and maintain tool performance.
Paslode Official Website: www.paslode.com
