1. Introduction
This manual provides essential instructions for the safe and effective installation, operation, and maintenance of the Camozzi S6430 6-1/8 Push-in Fitting Swivel Branch Tee. Please read this manual thoroughly before using the product to ensure proper function and to prevent damage or injury.
2. Safety Information
Always observe the following safety precautions:
- Ensure all connections are secure before applying pressure.
- Do not exceed the maximum operating pressure specified for the fitting.
- Use appropriate tools for installation and removal.
- Wear appropriate personal protective equipment (PPE) during installation and maintenance.
- Depressurize the system completely before attempting any maintenance or disconnection.
3. Product Overview
The Camozzi S6430 6-1/8 is a Super-Rapid Push-in Fitting designed as a Swivel Branch Tee. It is suitable for pneumatic and vacuum equipment applications, facilitating connections for 6MM OD tubing with a 1/8 BSPP parallel thread.
3.1. Key Features
- 06MM OD X 1/8"BSP SWIVEL BRANCH TEE configuration.
- Sprint Swivel Branch Tee Parallel, BSPP design.
- Super-Rapid Push-in Fittings for quick and secure connections.
- Designed for pneumatic and vacuum equipment.
3.2. Product Image

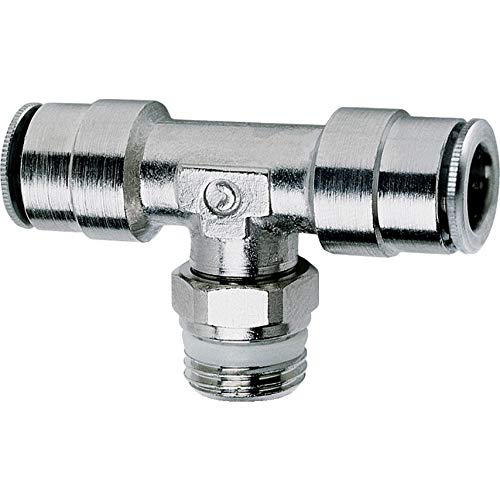

Image: Camozzi S6430 6-1/8 Push-in Fitting Swivel Branch Tee. This image displays the fitting, showing its tee shape with one threaded end and two push-in tube connections, designed for pneumatic systems.
4. Setup and Installation
Follow these steps for proper installation:
- Prepare the Tube: Ensure the 6MM OD tube end is cut squarely and is free from burrs or damage.
- Insert the Tube: Firmly push the prepared tube into the push-in port of the fitting until it reaches the stop. A slight tug will confirm the connection is secure.
- Threaded Connection: Apply appropriate thread sealant (if required for your application) to the 1/8 BSPP parallel thread. Carefully screw the threaded end into the corresponding port on your pneumatic or vacuum equipment. Tighten to the manufacturer's recommended torque, ensuring not to overtighten.
- Check for Leaks: After installation, apply system pressure and check all connections for leaks using a suitable leak detection method.
5. Operating Instructions
The Camozzi S6430 6-1/8 fitting is a passive component designed to connect pneumatic or vacuum lines. Once installed, its operation is integrated with the overall system. Ensure the system operates within the specified pressure and temperature ranges for the fitting.
- Pressure Application: Gradually apply pressure to the system after installation and leak checks.
- Swivel Function: The swivel branch allows for flexible orientation of the connected tubing without disconnecting the threaded port. Adjust the branch to the desired position.
- Disconnection: To disconnect the tube, uniformly press the release collar towards the fitting body and simultaneously pull the tube out. Do not attempt to pull the tube without pressing the release collar.
6. Maintenance
Regular inspection and proper maintenance ensure the longevity and reliable performance of the fitting.
- Visual Inspection: Periodically inspect the fitting for any signs of wear, cracks, or damage. Check for discoloration or deformation of the plastic components.
- Leak Checks: Routinely check for air or vacuum leaks at all connection points.
- Cleaning: Clean the exterior of the fitting with a soft, damp cloth. Avoid using harsh chemicals or solvents that may damage the material.
- Replacement: If any damage or excessive wear is observed, or if leaks persist after re-seating tubes, replace the fitting immediately.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Air/Vacuum Leak at Push-in Connection | Tube not fully inserted; damaged tube end; worn internal seal. | Ensure tube is fully inserted. Re-cut tube end squarely. Replace fitting if internal seal is suspected to be faulty. |
| Air/Vacuum Leak at Threaded Connection | Insufficient thread sealant; improper tightening; damaged threads. | Apply appropriate thread sealant. Re-tighten to recommended torque. Replace fitting or mating component if threads are damaged. |
| Tube difficult to insert or remove | Tube end not properly prepared; release collar not fully pressed. | Ensure tube end is clean and burr-free. Press the release collar firmly and evenly when removing. |
8. Specifications
- Model Number: S6430 6 1/8
- Manufacturer: CAMOZZI
- Tube Outer Diameter (OD): 6MM
- Thread Size: 1/8" BSPP (Parallel)
- Type: Swivel Branch Tee, Push-in Fitting
- Item Weight: 2.4 pounds (approximate)
- ASIN: B00AFT8WQ0
9. Warranty Information
For specific warranty details, please refer to the official Camozzi website or contact your authorized Camozzi distributor. Warranty terms typically cover manufacturing defects under normal operating conditions.
10. Customer Support
If you require further assistance or have questions regarding the Camozzi S6430 6-1/8 fitting, please contact Camozzi customer support or your local distributor. You can often find contact information on the official Camozzi Store page or their corporate website.
