Mitsubishi CP30-BA Circuit Breaker User Manual

1. Introduction

This manual provides essential information for the safe and effective installation, operation, and maintenance of the Mitsubishi CP30-BA Circuit Breaker. Please read this manual thoroughly before using the product and retain it for future reference. This device is designed to protect electrical circuits from damage caused by overcurrent or short circuit.

2. Safety Information

WARNING: Electrical shock hazard. Only qualified personnel should install, operate, or service this equipment.

• Always disconnect power before working on the circuit breaker or associated wiring.
• Ensure all local and national electrical codes are followed during installation.
• Use appropriate personal protective equipment (PPE) when handling electrical components.
• Do not use the circuit breaker if it appears damaged or has been subjected to excessive force.
• Verify the voltage and current ratings of the circuit breaker match the application requirements.

3. Product Overview

The Mitsubishi CP30-BA is a 2-pole circuit protector designed for various industrial and home improvement electrical applications. It features a robust design for reliable circuit protection.

This image displays the primary label of the Mitsubishi CP30-BA circuit breaker, detailing its model number, electrical specifications, and compliance with various standards such as JIS C4610, EN60947-2, and IEC60947-2. It indicates a 2-pole configuration and a current rating of 5A, with various voltage and breaking capacity ratings.

4. Specifications

Note: While the product title and description may indicate 1 Amp, and the product label shows 5 Amps, the detailed specifications list a 2 Amp current rating. Always verify the specific current rating printed on your device's label for precise application requirements.

5. Installation

Follow these general steps for installing the CP30-BA circuit breaker. Consult a qualified electrician if you are unsure about any step.

1. Power Disconnection: Ensure all power to the electrical panel or circuit is completely disconnected at the main service entrance. Verify with a voltage tester.
2. Mounting: The CP30-BA is a plug-in mount type. Carefully align the breaker with the appropriate slots on the bus bar in the electrical panel and firmly push it into place until it is securely seated.
3. Wiring Connections:


   This image shows the bottom terminals of the CP30-BA circuit breaker, where the main electrical connections are made. Ensure proper wiring and secure connections as per electrical codes.

   Connect the load wires to the designated terminals on the circuit breaker. Ensure proper polarity and secure all connections. Refer to the wiring diagram on the device or in your panel's documentation.

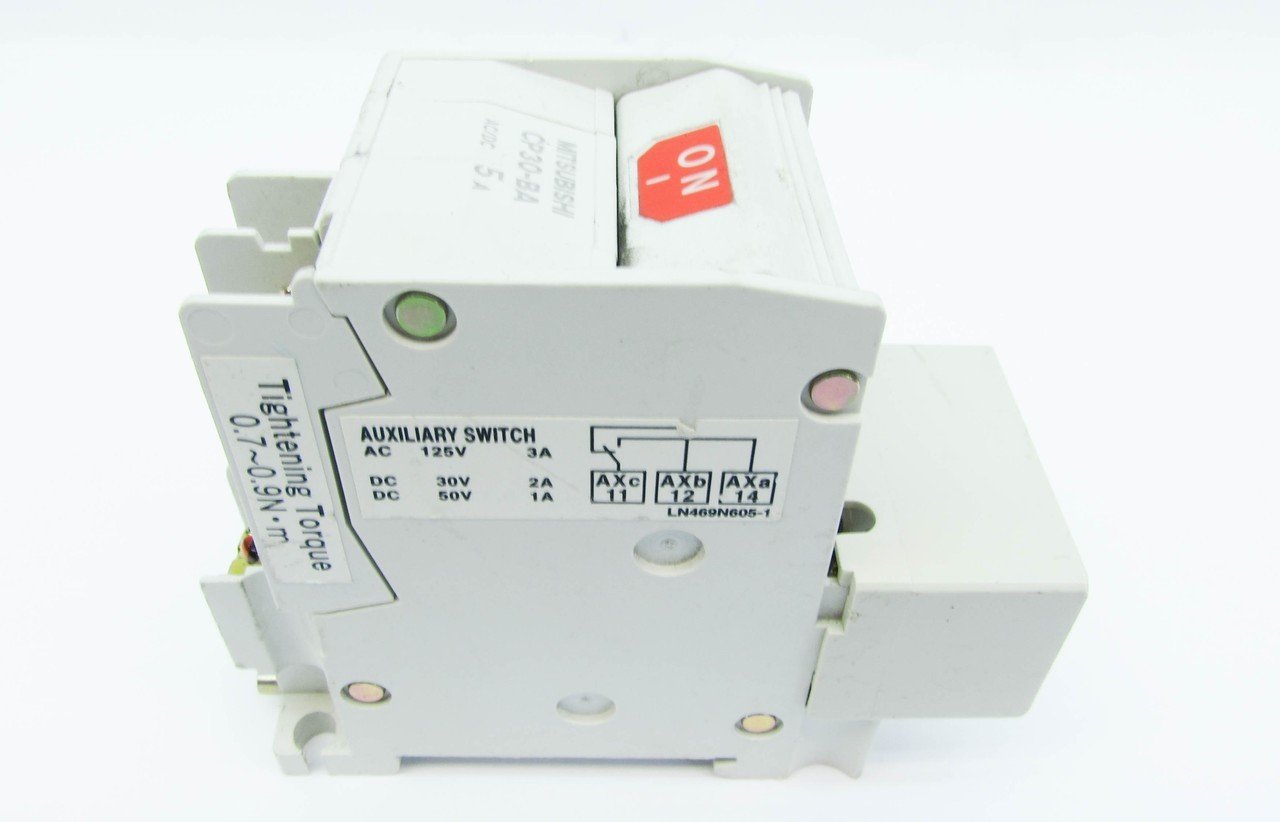

   This view highlights the auxiliary switch connections and the specified tightening torque (0.7-0.9 N·m) for the terminals. Proper torque application is crucial for safe and reliable operation.
   Tighten terminal screws to the specified torque (e.g., 0.7-0.9 N·m as indicated on some models) to prevent loose connections and overheating.
4. Auxiliary Connections (if applicable): If your model includes auxiliary switches, connect them according to your system's control wiring diagram.
5. Panel Cover: Once all connections are secure and verified, replace the electrical panel cover.
6. Restore Power: Carefully restore power to the main service entrance.

6. Operation

Operating the Mitsubishi CP30-BA circuit breaker is straightforward:

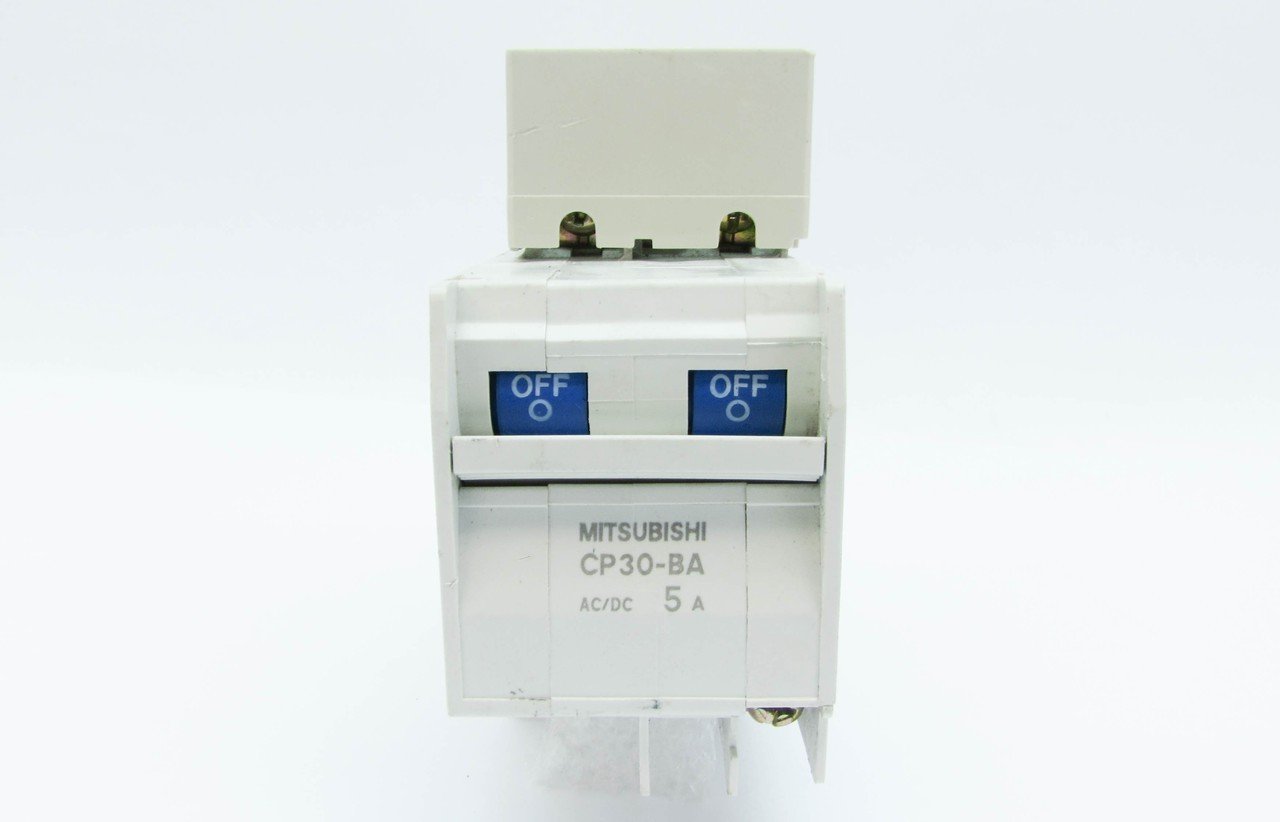

This image displays the front of the CP30-BA circuit breaker, showing the two 'OFF' indicators. The toggle switches are used to manually turn the circuit breaker on or off. When tripped, these indicators will typically show a different state or position.

• Turning ON: Push the toggle switch(es) firmly to the 'ON' position.
• Turning OFF: Push the toggle switch(es) firmly to the 'OFF' position.
• Tripped State: If an overcurrent or short circuit occurs, the circuit breaker will automatically trip to the 'OFF' or an intermediate position to protect the circuit.
• Resetting a Tripped Breaker: To reset a tripped breaker, first move the toggle switch completely to the 'OFF' position, then push it firmly to the 'ON' position. If the breaker immediately trips again, there is still a fault in the circuit that needs to be addressed.

7. Maintenance

The Mitsubishi CP30-BA circuit breaker requires minimal maintenance. Regular inspections are recommended to ensure continued safe operation.

• Visual Inspection: Periodically inspect the circuit breaker for any signs of physical damage, discoloration, or loose connections.
• Cleanliness: Keep the area around the circuit breaker clean and free from dust, debris, and moisture.
• Tightness of Connections: With power disconnected, periodically check the tightness of all terminal screws.
• Testing: Do not attempt to manually test the tripping mechanism by creating a short circuit. This should only be done by qualified professionals using specialized equipment.

8. Troubleshooting

If you encounter issues with your CP30-BA circuit breaker, consider the following common troubleshooting steps:

• Breaker Trips Immediately After Reset: This indicates a persistent fault (e.g., short circuit or severe overload) in the circuit. Disconnect all loads from the circuit and try resetting. If it still trips, consult a qualified electrician to identify and rectify the fault.
• Breaker Trips Frequently: Frequent tripping suggests an intermittent overload or a ground fault. Reduce the load on the circuit or investigate for faulty appliances or wiring.
• Breaker Does Not Trip During Overload: If you suspect an overload but the breaker does not trip, the breaker may be faulty or incorrectly rated for the circuit. Immediately disconnect power and have the breaker inspected or replaced by a qualified electrician.
• No Power to Circuit: Check if the breaker is in the 'ON' position. If it is, and there's still no power, check the main service panel for a tripped main breaker or consult an electrician.

9. Warranty and Support

This Mitsubishi CP30-BA Circuit Breaker comes with a 90-day warranty from the date of purchase, covering defects in materials and workmanship under normal use. For warranty claims or technical support, please contact your vendor or Mitsubishi Electric customer service.

Please have your product model number (CP30-BA) and purchase information ready when contacting support.
