Introduction
The Cummins Jetscan Currency Counter Model 4062 is a high-speed currency scanner and sorter designed for efficient and accurate processing of banknotes. This manual provides essential information for the setup, operation, maintenance, and troubleshooting of your device.

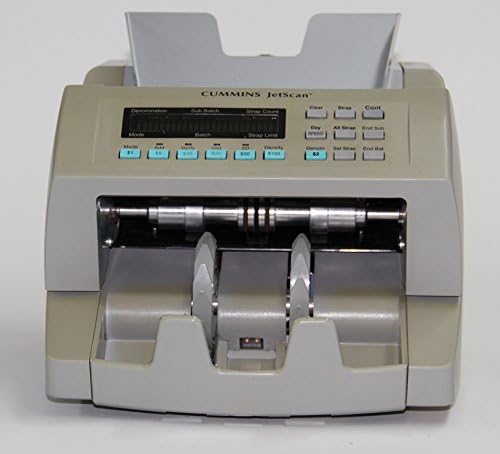

Image: Front view of the Cummins JetScan 4062 Currency Counter, showing the input hopper, display panel, control buttons, and output stackers.
Setup
Unpacking and Placement
- Carefully remove the unit from its packaging.
- Place the JetScan 4062 on a stable, flat surface, ensuring adequate ventilation around the machine.
- Keep the area clear of dust and moisture.
Power Connection
- Ensure the power switch on the back of the unit is in the OFF position.
- Connect the power cord to the power inlet on the back of the machine.
- Plug the other end of the power cord into a grounded electrical outlet.
Operating Instructions
Basic Operation
- Turn on the power switch located on the back of the unit. The machine will perform a self-test.
- Place a stack of banknotes into the input hopper. Ensure the notes are neatly aligned.
- Select the desired operating mode (e.g., Mixed, Denomination, Count) using the control panel buttons.
- The machine will automatically begin processing the notes.
- View the count results and any error messages on the display screen.
- Remove the processed notes from the output stackers.
Counterfeit Detection
The JetScan 4062 is equipped with advanced counterfeit detection technology. If a suspicious note is detected, the machine will stop, and an error message will appear on the display. Remove the suspect note and press the appropriate button to resume counting.
Batch Processing
To count notes in specific batches, use the "Batch" function. Enter the desired batch quantity using the numeric keypad or preset buttons. The machine will stop once the batch quantity is reached.
Video: Demonstration of the Cummins JetScan 4062 in operation, showing banknotes being fed into the machine and counted. This video highlights the high-speed counting capability and the user interface during a typical counting process.
Maintenance
Cleaning Procedures
- Regularly clean the dust and debris from the note path, sensors, and rollers using a soft, lint-free cloth or a small brush.
- Important: Always turn off and unplug the machine before cleaning.
- Do not use abrasive cleaners or solvents.
Preventative Measures
- Avoid overfilling the input hopper to prevent jams.
- Ensure banknotes are free of foreign objects like paper clips or staples before feeding them into the machine.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not power on. | Power cord not connected; power switch off; power outlet issue. | Check power cord connection; ensure power switch is ON; test power outlet. |
| Notes are jamming frequently. | Overfilled hopper; worn rollers; dirty sensors; damaged notes. | Reduce note stack; clean rollers and sensors; remove damaged notes. |
| Counterfeit detection errors. | Suspect note; dirty sensors; note orientation. | Remove suspect note; clean sensors; ensure notes are properly oriented. |
If the problem persists after attempting these solutions, please contact customer support.
Specifications
- Model: Cummins JetScan 4062
- Manufacturer: Cummins-Allison
- Item Weight: 9 pounds
- Package Dimensions: 12 x 11 x 9 inches
- Manufacturer Part Number: 406990200
- First Available: November 21, 2012
- Key Features: High-Speed Counting, Advanced Counterfeit Detection, Denomination Sorting, Face and Orientation Sorting, Batch Processing.
Warranty and Support
For warranty information and technical support, please refer to the official Cummins-Allison website or contact their customer service department. It is recommended to register your product upon purchase to facilitate any future support needs.
Note: According to manufacturer information, there are NO certified Cummins sales or service companies other than Cummins Allison itself for certified service and sales. Ensure you seek support directly from the manufacturer or their authorized channels.
For further assistance, visit the Cummins-Allison official website.
