Introduction
Thank you for choosing the Inspired LED Pro Series 10 Panel Pack. This LED lighting system is designed to provide efficient and bright illumination for various indoor applications, including under cabinet lighting, kitchen lighting, and display cases. This manual provides essential information for the safe installation, operation, and maintenance of your new LED lighting system. Please read these instructions thoroughly before installation and retain them for future reference.
Safety Information
- Electrical Safety: Always disconnect power at the circuit breaker before installing or servicing any electrical components.
- Voltage: This system operates on 12V DC. Ensure that the power supply used is compatible and provides the correct voltage. Using an incompatible power supply may damage the product and void the warranty.
- Indoor Use Only: These LED panels are designed for indoor use in dry locations. Do not expose to water or excessive moisture.
- Heat: While LEDs produce less heat than traditional lighting, ensure adequate ventilation around the panels to prevent overheating.
- Professional Installation: If you are unsure about any part of the installation process, consult a qualified electrician.
Package Contents
Your Inspired LED Pro Series 10 Panel Pack includes:
- (10) 21 LED Panels (Cool White ~6000K)
- (20) Mounting Screws
Note: A power supply, connecting cables, and dimmer/switch are required for operation and are sold separately. Please refer to the product description for compatible accessories (e.g., power supply ASIN B0052N8GM4, dimmer ASIN B00405DEEU, cable clamps ASIN B002MYCDR0).
Image: Ten Inspired LED Pro Series panels, each approximately 8.75 inches long, 0.5 inches wide, and 0.25 inches high, featuring multiple cool white LEDs. These are the primary components of the 10 Panel Pack.
Setup and Installation
Pre-Installation Checklist:
- Ensure you have a compatible 12V DC power supply.
- Gather necessary connecting cables (various lengths may be needed depending on your layout).
- Optional: Acquire a compatible dimmer or inline switch.
- Tools: Screwdriver (for mounting screws), measuring tape, pencil for marking, and cleaning supplies for surface preparation if using adhesive.
Installation Steps:
- Plan Your Layout: Determine the desired placement of each LED panel. Measure the areas where the lights will be installed to ensure proper coverage and cable lengths.
- Prepare the Surface: If using the adhesive backing, clean the mounting surface thoroughly to ensure it is free of dust, grease, and moisture. This will ensure optimal adhesion.
- Mount the LED Panels:
- Adhesive Mounting: Peel the protective film from the adhesive backing on each panel and firmly press the panel onto the desired surface. Hold for a few seconds to secure.
- Screw Mounting: For a more permanent installation, use the provided screws. Each panel has two designated screw holes. Mark the screw locations, pre-drill small pilot holes if necessary, and secure the panels with the screws.
- Connect the Panels: Use compatible connecting cables (sold separately) to link the LED panels together. Ensure all connections are secure.
- Connect to Power Supply: Connect the last LED panel in your series to your 12V DC power supply (sold separately). If using a dimmer or switch, connect it between the power supply and the first LED panel, or as per the dimmer/switch instructions.
- Test the System: Once all connections are made, plug in the power supply to an electrical outlet. Verify that all LED panels illuminate correctly. If not, disconnect power and check all connections.

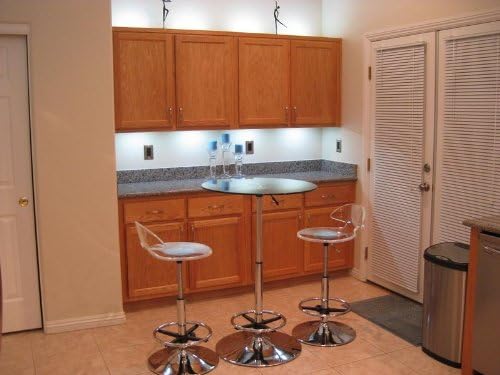

Image: An example of Inspired LED under-cabinet lighting installed in a kitchen setting, illuminating the countertop and backsplash. The lights are discreetly placed under the cabinets.
Operating Instructions
Once installed and connected to a power source, your Inspired LED system is ready for use.
- Power On/Off: If using a basic power supply, the lights will turn on when the power supply is plugged into an active outlet. Unplugging the power supply will turn them off.
- Using a Switch: If an inline switch (sold separately) is integrated into your system, use the switch to toggle the lights on and off.
- Dimming: If a compatible dimmer (sold separately) is installed, follow the dimmer's instructions to adjust the brightness of the LED panels. The Inspired LED Pro Series panels are dimmable when used with a compatible dimmer.
Maintenance
The Inspired LED Pro Series panels are designed for long-term, low-maintenance operation. With a projected life of 10 years or more (100,000+ operating hours), routine maintenance is minimal.
- Cleaning: To clean the LED panels, ensure the power is disconnected. Gently wipe the panels with a soft, dry, or slightly damp cloth. Avoid using harsh chemicals or abrasive cleaners, as these can damage the LEDs or the panel material.
- Inspection: Periodically inspect the wiring and connections for any signs of wear or damage. If any damage is observed, disconnect power immediately and replace the affected components.
Troubleshooting
If you encounter issues with your Inspired LED lighting system, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Lights do not turn on. | No power to the system. Loose connection. Faulty power supply. | Check if the power supply is plugged in and the outlet is active. Verify all cable connections are secure. Test the power supply with another device if possible. |
| Some panels are not lit. | Loose connection to the unlit panel(s). Damaged panel. | Check the connections to the unlit panels. Ensure cables are fully inserted. If a panel is damaged, it may need replacement. |
| Lights are flickering. | Incompatible dimmer. Loose connection. Insufficient power supply. | Ensure you are using a compatible 12V DC dimmer. Check all connections. Verify the power supply wattage is sufficient for the total wattage of all connected panels. |
| Lights are too dim. | Dimmer setting. Insufficient power supply. | Adjust the dimmer to a higher setting. Ensure the power supply can provide adequate current for the number of panels connected. |
Specifications
| Feature | Detail |
|---|---|
| Brand | Inspired LED |
| Model Number | 4920 |
| Color Temperature | Cool White (~6000K) |
| Light Source Type | LED |
| Voltage | 12 Volts DC |
| Wattage (Total) | 24 Watts (for 10 panels) |
| Luminous Flux | ~165 lm/ft |
| Indoor/Outdoor Usage | Indoor |
| Material | FR4 (Like Computer Board Material) |
| Panel Dimensions (L x W x H) | 8.75 x 0.5 x 0.25 inches |
| Item Weight (Total) | 6 Ounces |
| UPC | 797734049206 |
| Manufacturer | Inspired LED |
Warranty and Support
Inspired LED products are manufactured in Tempe, AZ, ensuring quality and reliability. The LED panels have a projected operational life of 10 years or more, exceeding 100,000 hours.
For customer support, design advice, or warranty inquiries, please contact Inspired LED directly. Refer to the product packaging or the official Inspired LED website for current contact information.
