1. Introduction

This manual provides detailed instructions for the safe installation, operation, and maintenance of your Paul Neuhaus Leuchten Direkt TAKOS 50286-17 ceiling light. Please read this manual thoroughly before attempting any installation or operation to ensure proper function and safety. Keep this manual for future reference.

2. Safety Information

• Always disconnect power at the main circuit breaker before installation, maintenance, or bulb replacement.
• Installation should be performed by a qualified electrician to prevent electric shock or fire hazards.
• Ensure the mounting surface can support the weight of the fixture.
• Do not use bulbs exceeding the specified wattage (14W for G4 halogen).
• This fixture is rated IP20, suitable for indoor use only. Do not expose to water or high humidity.
• Keep packaging materials out of reach of children.

3. Package Contents

Verify that all components are present and undamaged before proceeding with installation.

• 1x Leuchten Direkt TAKOS 50286-17 Ceiling Light Fixture
• 9x G4 Halogen Bulbs (14W)
• 1x Remote Control
• Mounting Hardware (screws, anchors)
• User Manual (this document)

4. Setup and Installation

Note: Professional installation by a qualified electrician is highly recommended for safety and proper functionality.

1. Prepare for Installation: Turn off the main power supply to the installation area at the circuit breaker. Ensure the power is off before proceeding.
2. Mount the Fixture Base: Securely attach the ceiling light's mounting bracket to the ceiling using the provided screws and anchors. Ensure the bracket is firmly fixed and can support the fixture's weight (approximately 3.69 kg).
3. Connect Wiring: Connect the household electrical wires to the fixture's wires according to local electrical codes. Typically, this involves connecting live (L), neutral (N), and ground (E) wires. Ensure all connections are secure.
4. Attach the Fixture Body: Carefully attach the main body of the ceiling light to the mounted bracket.
5. Install Bulbs: Insert the 9 G4 halogen bulbs into their respective sockets. Ensure they are seated correctly. The fixture also contains integrated RGB LEDs.
6. Restore Power: Once installation is complete and all connections are secure, restore power at the main circuit breaker.

The fixture dimensions are approximately 35 cm (length) x 35 cm (width) x 12 cm (suspension/height).

5. Operating Instructions

The Leuchten Direkt TAKOS 50286-17 ceiling light features both G4 halogen bulbs for primary illumination and integrated RGB LEDs for ambient color effects, controlled by the included remote.

5.1 Basic Operation via Wall Switch

• First Switch On: When you turn on the wall switch for the first time, both the G4 halogen bulbs and the RGB LEDs will illuminate.
• Second Switch On (Quick Toggle): If you quickly turn the wall switch off and then on again, only the G4 halogen bulbs will illuminate, providing primary white light.

5.2 Remote Control Functions

The remote control allows for independent control of the RGB LEDs and may offer additional functions for the halogen bulbs.

• Power On/Off: Use the designated button on the remote to turn the light on or off. Note that turning off via remote may leave the unit in standby mode, consuming minimal power.
• Halogen Light Control: The remote may have buttons to control the G4 halogen bulbs (e.g., on/off, dimming if supported).
• RGB LED Color Change: Use the color selection buttons or a color wheel (if present) on the remote to change the color of the RGB LEDs.
• Mode Selection: The remote may offer various modes such as static color, color cycling, or fading effects.

5.3 Color Changing Demonstration

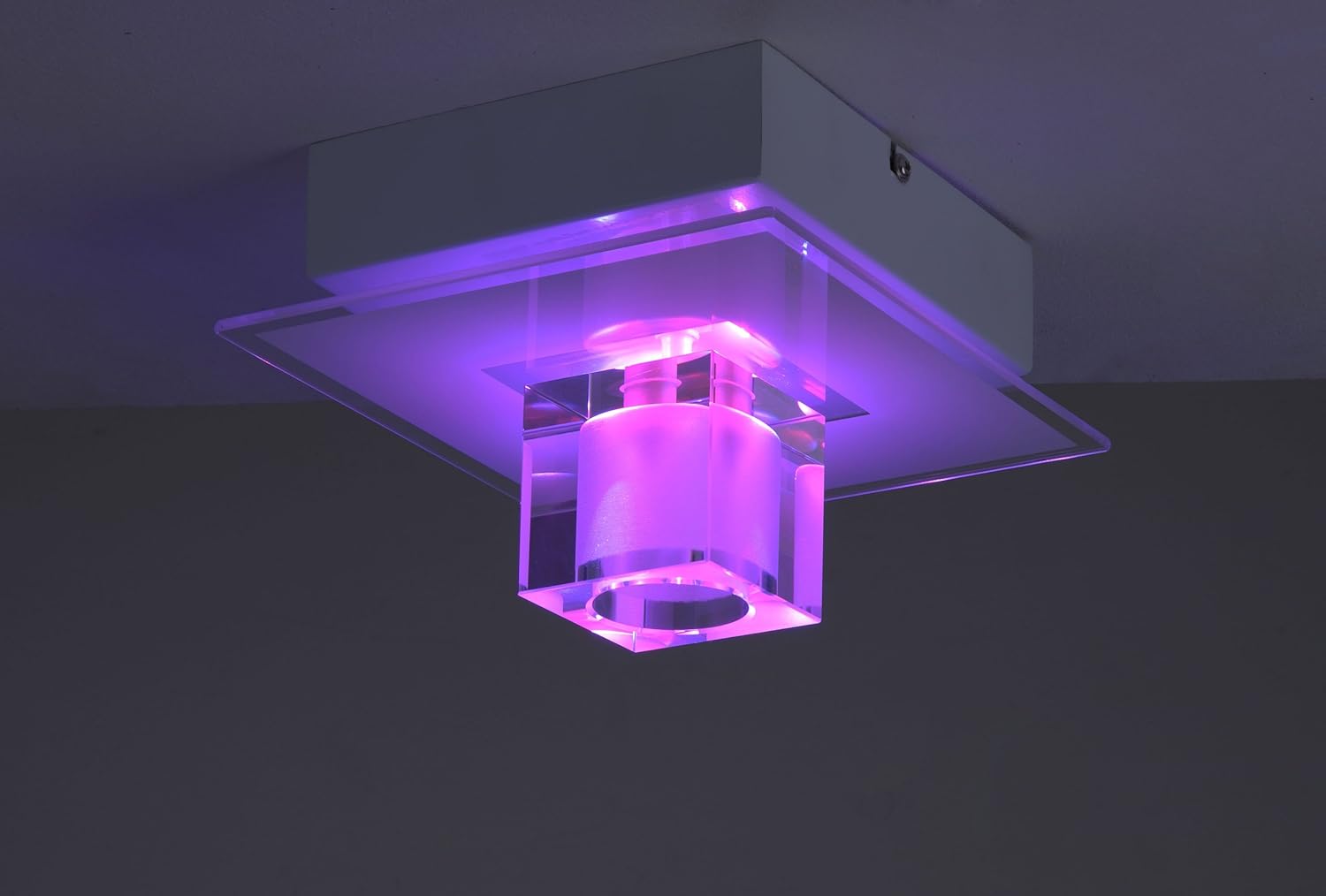

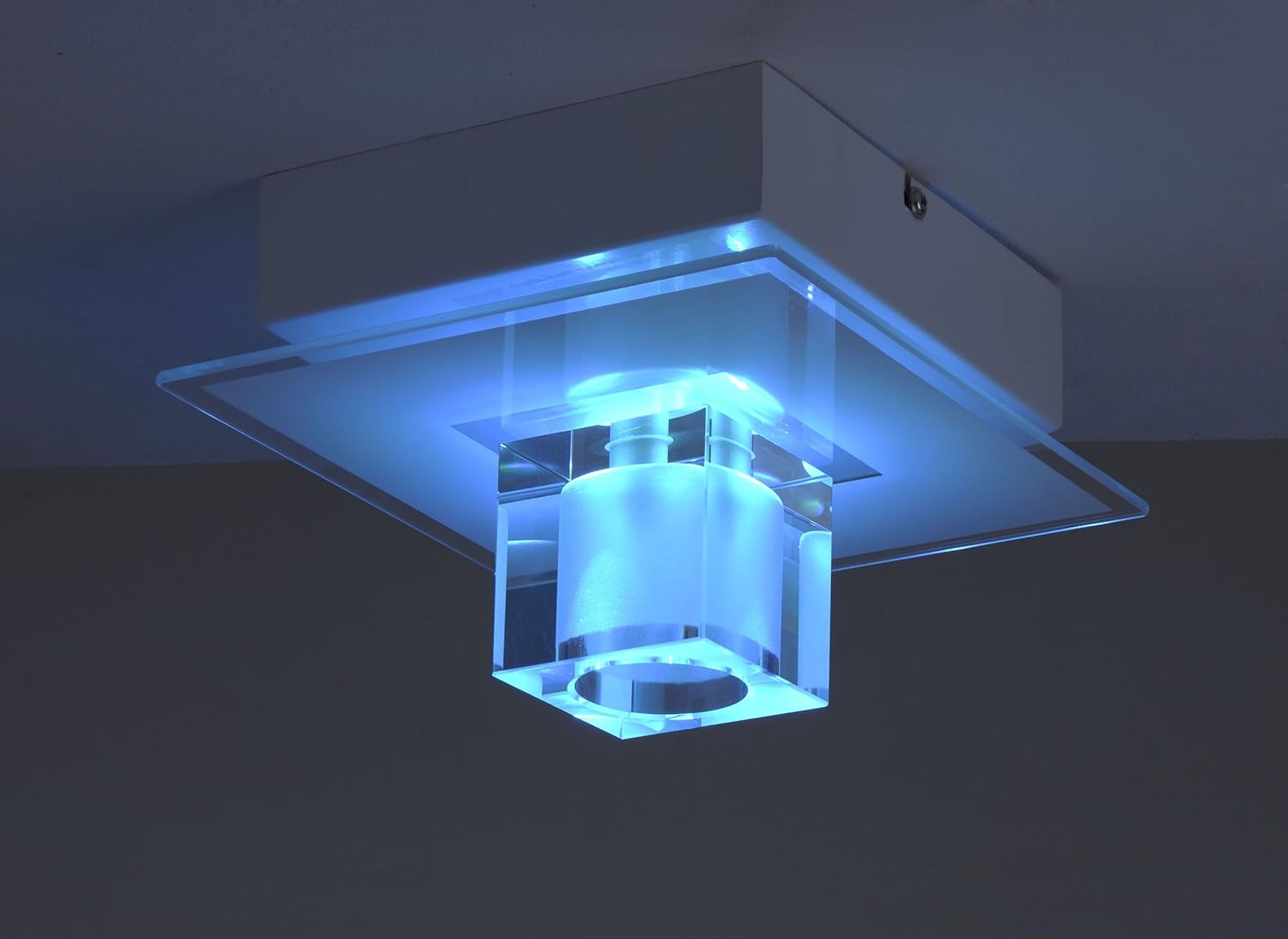

The integrated RGB LEDs allow for a variety of ambient lighting colors. Below are examples of the light displaying different colors.

6. Maintenance

• Cleaning: Ensure the power is off before cleaning. Wipe the fixture with a soft, dry cloth. Do not use abrasive cleaners or solvents, as they may damage the finish.
• Bulb Replacement (G4 Halogen):
  1. Turn off power at the circuit breaker.
  2. Allow bulbs to cool completely before handling.
  3. Carefully pull out the old G4 bulb.
  4. Insert a new G4 halogen bulb (max 14W) into the socket. Avoid touching the new bulb directly with bare hands; use a cloth or glove to prevent oil residue, which can shorten bulb life.
  5. Restore power.
• RGB LED Maintenance: The RGB LEDs are integrated and generally do not require replacement. If they malfunction, contact customer support.
• Remote Control Battery: If the remote control stops responding, replace its battery (1x A type battery, as per specifications).

7. Troubleshooting

For issues not listed here or if solutions do not resolve the problem, please contact customer support or a qualified electrician.

8. Specifications

9. Warranty and Support

For warranty information or technical support, please refer to the purchase documentation or contact your retailer or the manufacturer, Paul Neuhaus / Leuchten Direkt, directly. Keep your proof of purchase for any warranty claims.
