Woodline WL-1338-15 Rail & Stile Router Bit Set Instruction Manual

1. Product Overview

The Woodline WL-1338-15 is a 2-piece matched rail and stile router bit set designed for creating precise joinery in woodworking projects. This set is ideal for constructing shaker style flat panel doors or other applications requiring a 15-degree bevel facecut. The bits are carbide-tipped for durability and feature an anti-kickback design for enhanced safety during operation. They are suitable for use with material up to 1-1/8 inches in thickness and create a 1/4-inch tongue with a 3/8-inch depth of cut.

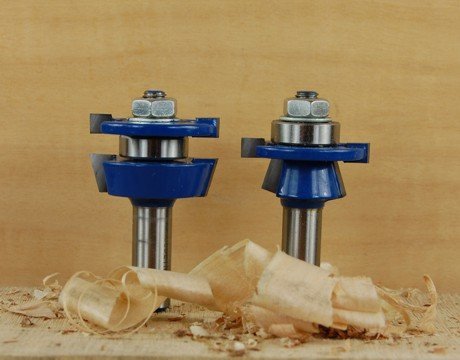

Image: The Woodline WL-1338-15 2-Piece Matched Rail & Stile Router Bit Set, showing both the rail and stile bits.

2. Safety Instructions

Always prioritize safety when operating power tools. Failure to follow these instructions may result in serious injury.

• Eye Protection: Always wear ANSI-approved safety glasses or a face shield to protect against flying debris.
• Hearing Protection: Use earplugs or earmuffs to prevent hearing damage from prolonged noise exposure.
• Hand Protection: Wear appropriate gloves to protect hands, but ensure they do not interfere with tool operation or get caught in moving parts.
• Work Area: Keep your work area clean, well-lit, and free of obstructions. Ensure adequate ventilation.
• Tool Condition: Before each use, inspect router bits for damage, dullness, or excessive wear. Do not use damaged bits.
• Router Setup: Ensure the router is securely mounted in a router table or that the workpiece is properly clamped. Never freehand router operations with these bits.
• Material Clamping: Always securely clamp your workpiece to prevent movement during routing.
• Feed Rate: Maintain a consistent and appropriate feed rate. Feeding too fast can cause burning or chipping; too slow can cause excessive heat buildup.
• Bit Installation: Ensure the router bit shank is fully inserted into the collet and tightened securely to prevent the bit from slipping or being ejected.
• Power Disconnection: Disconnect power to the router before changing bits, making adjustments, or performing maintenance.

3. Package Contents

Your Woodline WL-1338-15 set includes the following components:

• 1 x Rail Router Bit (1/2" Shank)
• 1 x Stile Router Bit (1/2" Shank)

4. Setup

Proper setup is crucial for safe and accurate routing.

1. Router Compatibility: Ensure your router is equipped with a 1/2-inch collet to accommodate the bit shanks.
2. Bit Installation: With the router unplugged, insert the desired bit (rail or stile) into the router collet. Ensure the shank is inserted as far as possible, then back it out approximately 1/16 inch before tightening the collet nut securely with the appropriate wrenches. This prevents the shank from bottoming out and allows for proper clamping.
3. Router Table Setup: For optimal results with rail and stile bits, use a router table with a fence. Adjust the fence to control the depth of cut and ensure proper alignment.
4. Test Cuts: Always perform test cuts on scrap material of the same type and thickness as your final workpiece. This allows you to fine-tune fence settings, bit height, and feed rate before working on your project.

5. Operating Instructions

These bits are designed to create a tongue and groove joint for frame and panel construction.

1. Material Preparation: Ensure your material is flat, square, and cut to the correct dimensions. The bits are designed for material up to 1-1/8 inches thick.
2. Stile Bit Operation:
   • Install the stile bit in your router.
   • Adjust the bit height and fence to create the desired profile on the edge of your vertical frame pieces (stiles) and horizontal frame pieces (rails). The stile bit typically cuts the profile and the groove for the panel.
   • Feed the material consistently and smoothly against the fence and over the bit.
3. Rail Bit Operation:
   • Install the rail bit in your router.
   • The rail bit is used to cut the tongue on the ends of the horizontal frame pieces (rails) that will fit into the groove created by the stile bit.
   • For end grain routing, use a miter gauge or sled to safely guide the workpiece.
   • Ensure the tongue created is 1/4 inch thick and the depth of cut is 3/8 inch for a proper fit.
4. Joint Assembly: After routing all pieces, test fit the joints. They should fit snugly without excessive force. Apply wood glue and clamp the assembly until dry.

These bits can create either a shaker style or a 15-degree bevel facecut, depending on the specific setup and material orientation.

6. Maintenance

Regular maintenance extends the life and performance of your router bits.

• Cleaning: After each use, clean the bits to remove resin and wood residue. Use a specialized router bit cleaner or a mild solvent and a brass brush. Avoid abrasive cleaners that can damage the carbide.
• Inspection: Periodically inspect the carbide tips for chips, cracks, or dullness. Dull bits can cause burning, poor cuts, and excessive strain on your router.
• Sharpening: Carbide-tipped bits can be professionally sharpened. Do not attempt to sharpen them yourself unless you have specialized equipment and training.
• Storage: Store bits in their original protective case or a dedicated bit storage tray to prevent damage to the cutting edges. Keep them in a dry environment to prevent rust.

7. Troubleshooting

If you encounter issues, consider the following common problems and solutions:

8. Specifications

• Model: WL-1338-15
• Brand: Woodline
• Material: Carbide
• Shank Size: 1/2 inch
• Cut Type: Carbide-Tipped Cut
• Number of Flutes: 1
• Tongue Size: 1/4 inch
• Depth of Cut: 3/8 inch
• Maximum Material Thickness: 1-1/8 inches
• Joint Style: Shaker style or 15-degree bevel facecut
• UPC: 843392005495

9. Warranty and Support

For information regarding product warranty, technical support, or replacement parts, please contact Woodline USA directly. Refer to the contact information provided with your purchase or visit the official Woodline USA website for assistance.

Manufacturer: Woodline USA
