Introduction
The Walimex Pro 120 Octagon Softbox from the Orange Line series is designed to provide soft and even lighting for various photographic applications. Its octagonal shape makes it particularly well-suited for product and people photography, creating natural-looking catchlights in the eyes.
This softbox is constructed from high-quality, heat-resistant materials, ensuring durability and a long operational lifetime. It includes both front and back diffusers, allowing for versatile light modification to achieve desired softness.
Key features include:
- Ideal for people photography, providing a round reflection in the eyes.
- Easy setup and excellent workmanship.
- High-quality, heat-resistant material, including front and back diffusers and a transport bag.
Setup and Assembly
Assembling your Walimex Pro Octagon Softbox is a straightforward process, though initial setup may require some effort to properly seat the rods. Follow these steps for correct assembly:
- Unpack Components: Carefully remove all components from the transport bag: the softbox fabric, eight flexible rods, the central mounting ring, and the front and back diffusers.
- Insert Rods: Lay the softbox fabric flat. Insert one end of each of the eight flexible rods into the designated pockets around the outer edge of the softbox.
- Attach to Mounting Ring: Take the central mounting ring. One by one, carefully bend each rod and insert its other end into the corresponding hole on the central mounting ring. This step may require some force, especially during the first assembly, to ensure the fabric is taut. Ensure all rods are securely seated in the ring.
- Attach Back Diffuser (Optional): If a softer light is desired, attach the back diffuser inside the softbox. This diffuser typically clips or velcros to the internal structure.
- Attach Front Diffuser: Once the softbox is fully assembled and mounted, the front diffuser can be easily placed over the front opening of the softbox, usually secured with elastic or velcro.
- Mount to Light Stand: Secure the assembled softbox to your studio flash or light stand using the appropriate adapter. Ensure the adapter ring is firmly locked to prevent accidental detachment.
Figure 1: Internal view of the softbox, illustrating the central mounting ring where the rods are inserted.

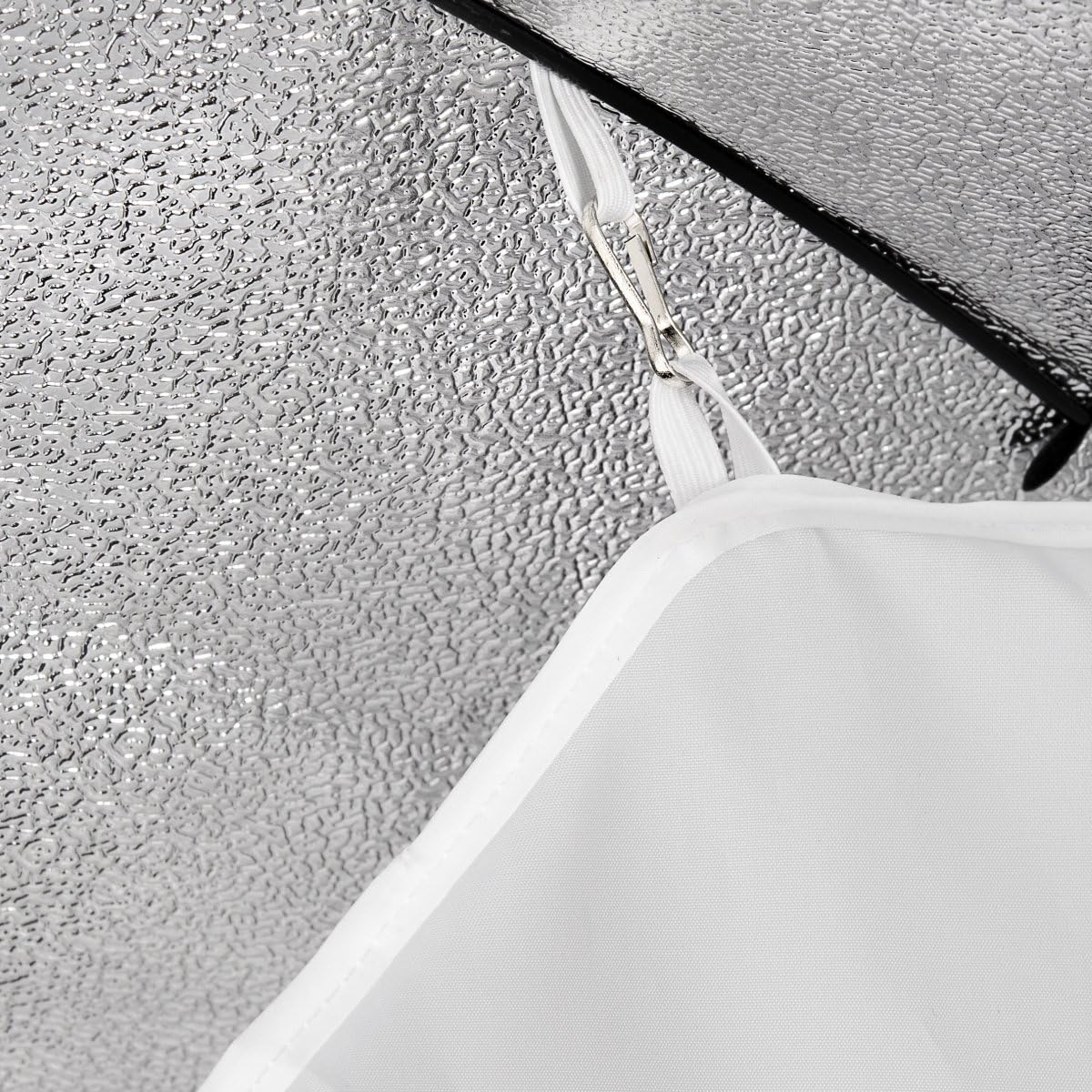

Figure 2: Detail of an internal clip used to secure the back diffuser within the softbox.

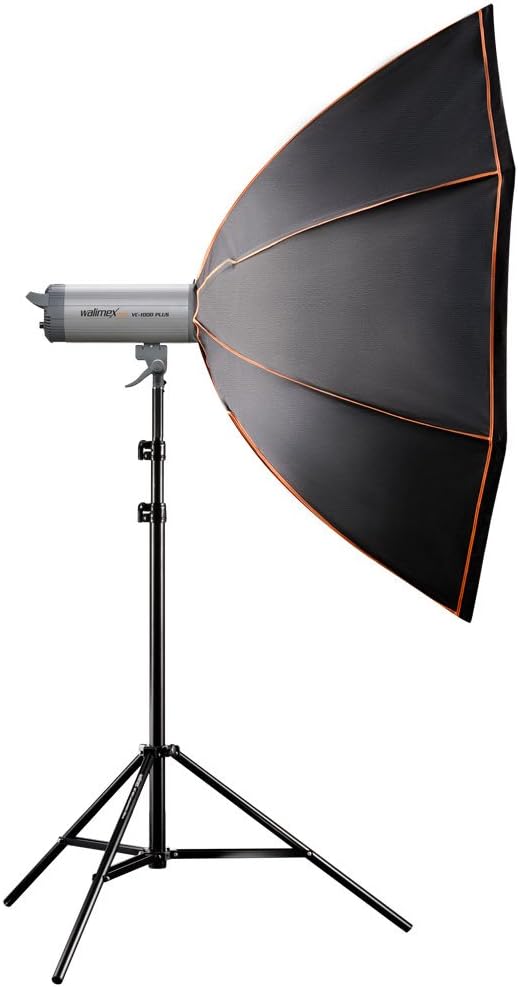

Figure 3: The Walimex Pro Octagon Softbox fully assembled and mounted on a light stand with a studio strobe.
Operating Instructions
The Walimex Pro 120 Octagon Softbox is designed for use with studio strobes or flash units to create a large, soft, and even light source. Its octagonal shape is particularly effective for portrait and product photography, producing pleasing circular catchlights.
- Light Modification: Use the included front diffuser for standard soft light. For an even softer effect, the internal back diffuser can also be utilized. Experiment with both diffusers to achieve the desired light quality for your subject.
- Positioning: Position the softbox relative to your subject to control the direction and quality of light. The large surface area provides a broad, wrapping light.
- Rotation: The softbox can be rotated 360 degrees on its mounting ring, allowing for precise adjustment of the light angle without repositioning the entire stand.
Figure 4: The Walimex Pro 120 Octagon Softbox, showcasing its octagonal shape and orange line accents.
Maintenance
Proper maintenance will extend the life and performance of your Walimex Pro Octagon Softbox.
- Cleaning: Gently wipe the exterior fabric with a soft, damp cloth if it becomes dirty. For the interior reflective surface, use a dry, lint-free cloth. Avoid harsh chemicals or abrasive cleaners.
- Storage: When not in use, disassemble the softbox and store all components in the provided transport bag. This protects the fabric and rods from damage and dust.
- Inspection: Periodically inspect the rods, mounting ring, and fabric for any signs of wear, tear, or damage. Ensure all clips and fasteners are in good working order.
Troubleshooting
This section addresses common issues you might encounter with your softbox.
- Difficulty Assembling Rods: The initial assembly of the rods into the central ring can be tight. This is normal and ensures the softbox fabric is taut. Apply firm, even pressure. It may become easier after a few uses.
- Softbox Detaching from Light: Ensure that the adapter ring is correctly and securely locked onto your studio flash or light fixture. Verify compatibility between your flash mount and the softbox's adapter. If the adapter rings do not lock properly, consult the manufacturer of your flash unit or the softbox for compatible solutions.
- Fabric or Stitching Issues: While the softbox is made with high-quality materials, inspect stitching and fabric regularly. If minor fraying occurs, address it promptly to prevent further damage.
Specifications
| Attribute | Detail |
|---|---|
| Model Number | 18790 |
| Brand | Walimex Pro |
| Type | Octagon Softbox |
| Size | 120 cm (diameter) |
| Item Weight | 3.96 pounds (approx. 1.8 kg) |
| Material | Aluminum, Cotton, PVC |
| Color | Orange (accents) |
| Light Source Compatibility | Strobe or Flash |
Warranty and Support
Specific warranty details for the Walimex Pro 120 Octagon Softbox are not provided within this manual. For information regarding warranty coverage, terms, and conditions, please refer to the official Walimex Pro website or contact their customer support directly.
For technical support, spare parts, or further assistance, please visit the Walimex Pro official website or contact their authorized service centers. Keep your purchase receipt as proof of purchase for any warranty claims.
