Inter Link Commode Instruction Manual

1. Introduction

Thank you for choosing the Inter Link Commode Model 19300360. This manual provides essential information for the safe assembly, operation, and maintenance of your new furniture. Please read these instructions carefully before beginning assembly and retain them for future reference.

Safety Information

• Adult assembly is required. Keep small parts away from children during assembly.
• Due to the weight of the item (approximately 31.5 kg), it is recommended that two people handle the package and assembly.
• Always use the provided anti-tip hardware to secure the commode to a wall. This prevents serious injury from tipping furniture.
• Ensure all screws and fasteners are securely tightened before use. Periodically check and re-tighten as necessary.
• Do not stand or climb on the commode.

2. Product Overview

The Inter Link Commode Model 19300360 is a classic and timeless chest of drawers constructed from solid particle board with a Sonoma Oak and White melamine surface. It features two drawers and five doors, offering ample storage space for various items.

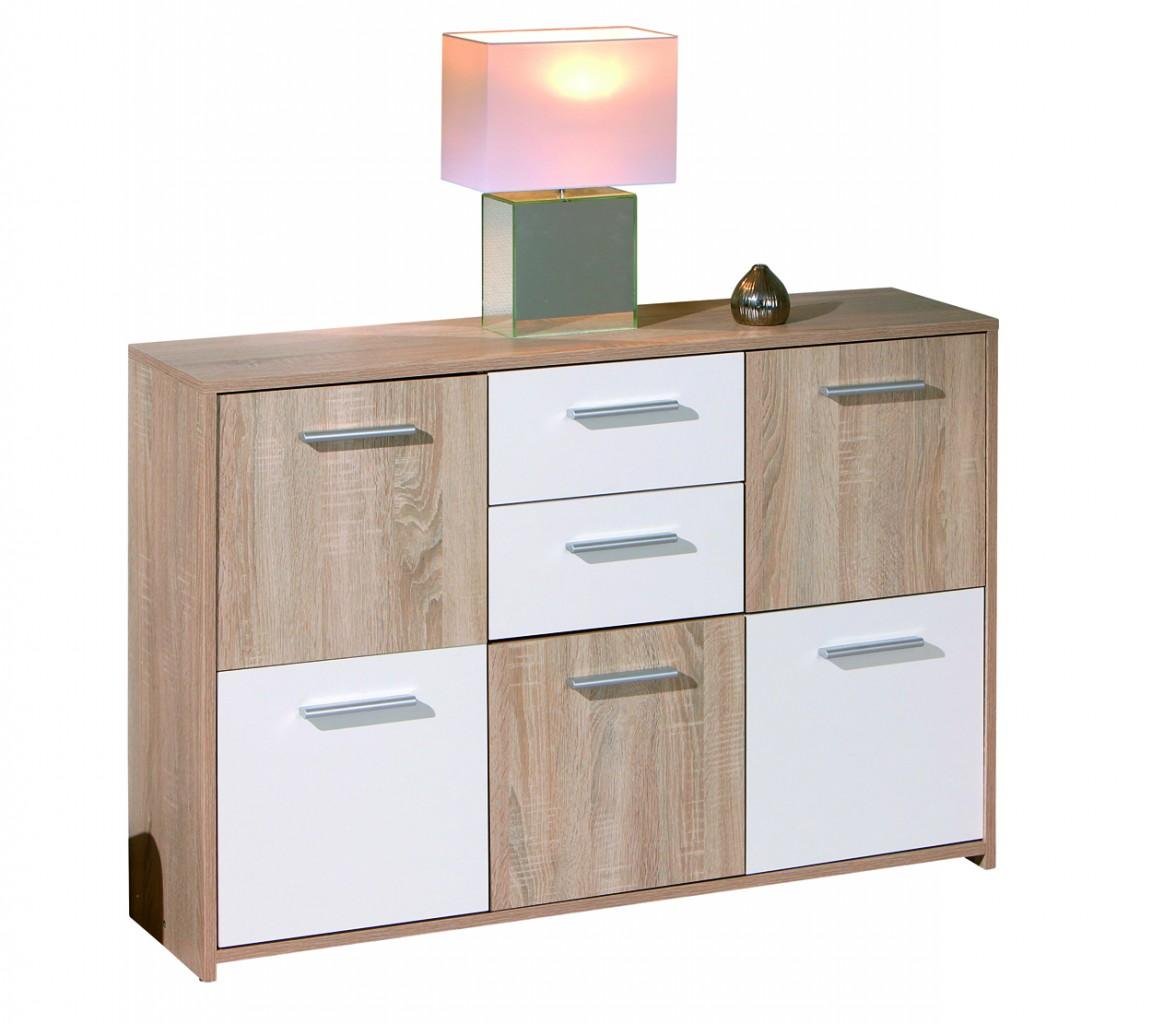

Image 1: Assembled Inter Link Commode 19300360 in Sonoma Oak and White finish.

Key Features:

• Dimensions: 115 cm (width) x 77 cm (height) x 30 cm (depth)
• Material: Particle board with melamine surface
• Storage: 2 drawers with smooth-gliding slides and 5 doors
• Color: Sonoma Oak and White decor

3. Package Contents

Your Inter Link Commode package includes all necessary components for assembly. Please verify that all parts are present and undamaged before beginning. If any parts are missing or damaged, please contact customer support.

Expected Components:

• Particle board panels (various sizes for frame, shelves, doors, and drawer fronts)
• Hardware pack (screws, dowels, cam locks, cam bolts, nails, anti-tip kit)
• Drawer slides (metal runners)
• Hinges for doors
• Handles for drawers and doors
• Assembly instructions manual

4. Setup (Assembly Instructions)

Assembly typically requires a Phillips head screwdriver and a hammer. An electric screwdriver can significantly speed up the process. Follow the detailed, illustrated instructions provided in your package for precise steps. The following is a general overview:

Image 2: Dimensions of the assembled commode.

1. Preparation: Clear a spacious, clean area for assembly. Lay out all components and hardware, matching them to the parts list in your specific manual.
2. Assemble the Main Frame: Connect the side panels, bottom, and top panels using dowels, cam locks, and cam bolts as indicated. Ensure all connections are tight and square.
3. Install Back Panels: Secure the back panels to the frame using small nails. Ensure the commode is square before nailing.
4. Install Drawer Slides: Attach the drawer slides to the interior side panels of the commode and to the drawer boxes. Ensure they are level and correctly oriented for smooth operation.
5. Assemble Drawers: Construct the two drawers by connecting the side, front, and back panels, then sliding in the drawer bottom. Attach the drawer handles.
6. Install Doors and Hinges: Attach hinges to the five doors and then mount the doors to the commode frame. Adjust hinges as needed to ensure proper door alignment and spacing.
7. Attach Handles: Secure the handles to the doors.
8. Final Placement and Anti-Tip Kit: Position the commode in its desired location. Crucially, attach the anti-tip hardware to the top rear of the commode and securely fasten it to a wall stud or appropriate wall anchor.

Image 3: Detail of an open drawer, illustrating the smooth-gliding mechanism.

5. Operating Instructions

The Inter Link Commode is designed for storing various household items. To ensure longevity and proper function:

• Drawers: Open and close drawers gently. Avoid forcing them. Do not overload drawers beyond their capacity to prevent damage to the slides or drawer structure.
• Doors: Open and close doors smoothly. Do not swing them open forcefully.
• Weight Distribution: Distribute weight evenly across shelves and drawers. Place heavier items on lower shelves or in lower drawers to maintain stability.
• Top Surface: The top surface can be used for decorative items or light storage. Avoid placing excessively heavy objects on top.

6. Maintenance

Proper care will help maintain the appearance and functionality of your commode.

• Cleaning: Wipe surfaces with a soft, damp cloth. For stubborn marks, a mild soap solution can be used, followed by wiping with a clean, dry cloth.
• Avoid Harsh Chemicals: Do not use abrasive cleaners, solvents, or polishes containing silicone, as these can damage the melamine finish.
• Spills: Immediately wipe up any spills to prevent moisture damage to the particle board.
• Hardware Check: Periodically check all screws, bolts, and fasteners to ensure they are tight. Re-tighten as necessary to maintain structural integrity.
• Sunlight Exposure: Avoid prolonged exposure to direct sunlight, which can cause fading or discoloration over time.

7. Troubleshooting

Here are solutions to common issues you might encounter:

• Doors are not aligning properly: Adjust the screws on the hinges. Typically, there are screws for horizontal, vertical, and depth adjustments. Refer to your specific hinge instructions for detailed adjustment steps.
• Drawers are sticking or not sliding smoothly:
  • Ensure the drawer slides are correctly installed and aligned on both the drawer box and the commode frame.
  • Check for any obstructions inside the drawer or along the slides.
  • Verify that the drawer is not overloaded, causing it to sag.
• Commode feels wobbly: Ensure all assembly screws and cam locks are fully tightened. Check that the commode is placed on a level surface. If wobbling persists, re-check the assembly steps.
• Missing parts or damaged components: Do not attempt to assemble with missing or damaged parts. Contact Inter Link customer support immediately for replacements.

8. Specifications

9. Warranty and Support

Inter Link stands by the quality of its products. For any questions, concerns, or assistance with assembly or parts, please refer to the contact information provided with your delivery or reach out to the manufacturer directly. The manufacturer is available to assist you with any needs.
