Eklind Tool 13113 Stubby-Ball-Hex-L Key Allen Wrench Set Instruction Manual

Introduction

This manual provides instructions for the proper use and care of your Eklind Tool 13113 Stubby-Ball-Hex-L Key Allen Wrench 13-piece set. This set is designed for driving internal hexagon socket fasteners, commonly known as Allen head fasteners. Manufactured in the U.S.A. from Eklind Alloy Steel, these tools are heat-treated for optimal strength and durability.

The set features Stubby short arm keys for accessing tight spaces and Ball-Hex keys that allow for operation at angles up to 30 degrees, enhancing efficiency in hard-to-reach areas.

Product Components

The Eklind 13113 set includes 13 Stubby-Ball-Hex-L Key Allen wrenches in SAE Inch Sizes, housed in a plastic organizer. The sizes included are:

• .050 inch
• 1/16 inch
• 5/64 inch
• 3/32 inch
• 7/64 inch
• 1/8 inch
• 9/64 inch
• 5/32 inch
• 3/16 inch
• 7/32 inch
• 1/4 inch
• 5/16 inch
• 3/8 inch

Image: The complete Eklind 13113 Stubby-Ball-Hex-L Key Allen Wrench set with its red plastic holder, displaying the various inch sizes.

Setup and Organization

The Eklind 13113 set comes with a durable plastic holder designed to keep your hex keys organized and easily accessible. Each key fits into a size-marked hole, ensuring you can quickly identify and select the correct tool for your task.

For convenience, the inch sizes are color-coded in red on the holder, allowing for rapid identification and differentiation from other tool sets.

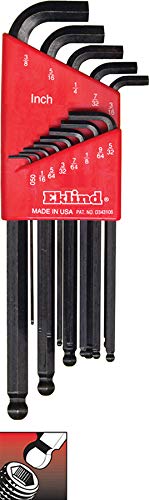

Image: A close-up of the Eklind hex key set, showing the size markings on the red plastic holder for easy organization.

Operating Instructions

Eklind hex keys are specifically designed for driving internal hexagon socket fasteners. Follow these guidelines for effective and safe operation:

1. Select the Correct Size: Always choose the hex key that precisely fits the fastener's socket. Using an incorrect size can strip the fastener or damage the tool.
2. Insert Fully: Ensure the hex key is fully inserted into the fastener's socket to maximize contact and prevent slippage.
3. Utilize Ball-Hex Feature: For fasteners in hard-to-reach locations, the ball-hex end allows you to engage the fastener at an angle of up to 30 degrees. This flexibility is particularly useful in confined spaces. Apply torque carefully when using the ball end, as it is primarily for starting or removing fasteners, not for final tightening where maximum torque is required.
4. Access Tight Spaces: The stubby short arm design of these keys is ideal for applications where clearance is limited. Use the short arm for maximum leverage in tight spots.
5. Apply Torque: Turn the hex key clockwise to tighten and counter-clockwise to loosen fasteners. Apply steady, controlled pressure.

Image: An Eklind hex key being used to tighten a fastener on a workpiece, demonstrating typical application.

Image: A diagram illustrating the angular engagement capability of the ball-hex end with a socket head fastener.

Maintenance and Care

To ensure the longevity and performance of your Eklind hex keys, follow these maintenance guidelines:

• Cleaning: After each use, wipe the hex keys clean with a dry cloth to remove any dirt, grease, or debris.
• Rust Prevention: The tools are coated with a rust-resistant finish. To maintain this protection, avoid prolonged exposure to moisture or corrosive substances. If necessary, a light coat of tool oil can be applied for added protection.
• Storage: Always store the hex keys in their provided plastic holder. This keeps them organized, prevents loss, and protects them from damage. Store in a dry environment.
• Inspection: Periodically inspect the tools for any signs of wear, bending, or damage. Do not use damaged tools, as this can lead to injury or further damage to fasteners.

Troubleshooting

Eklind hex keys are simple, robust tools. Most issues arise from improper usage rather than tool malfunction.

• Fastener Stripping: If a fastener head is stripping, ensure you are using the correct size hex key and that it is fully seated in the socket. Avoid excessive force, especially when using the ball end.
• Tool Bending/Breaking: This typically occurs due to applying excessive torque beyond the tool's design limits or using the tool as a pry bar. Always use the tool for its intended purpose.
• Difficulty Loosening a Fastener: For stubborn fasteners, ensure the correct size is used. Applying penetrating oil and allowing it to soak may help. Avoid sudden jerking motions.

Specifications

Warranty and Support

Eklind Tool Company is committed to manufacturing high-quality, industrial-grade tools. While specific warranty details are not provided in this manual, Eklind tools are known for their durability and compliance with industry standards.

For detailed warranty information, product support, or to contact customer service, please visit the official Eklind Tool Company website or refer to the packaging for contact details.
