Introduction
This manual provides essential information for the proper installation, operation, maintenance, and troubleshooting of your Motorcraft BT123 Belt Tensioner Assembly. Please read this manual thoroughly before installation and retain it for future reference. The Motorcraft BT123 is designed to maintain proper tension on the engine's serpentine belt, ensuring optimal performance of accessories such as the alternator, power steering pump, and air conditioning compressor.
Safety Information
Always observe the following safety precautions during installation and maintenance:
- Wear appropriate personal protective equipment, including safety glasses and gloves.
- Ensure the vehicle's engine is off and cooled down before beginning any work.
- Disconnect the vehicle's battery to prevent accidental starting or electrical shorts.
- Refer to your vehicle's service manual for specific instructions and torque specifications.
- Keep hands and clothing clear of moving parts when the engine is running.
- If you are unsure about any step, consult a qualified automotive technician.
Package Contents
Verify that all components are present before beginning installation:
- 1 x Motorcraft BT123 Belt Tensioner Assembly

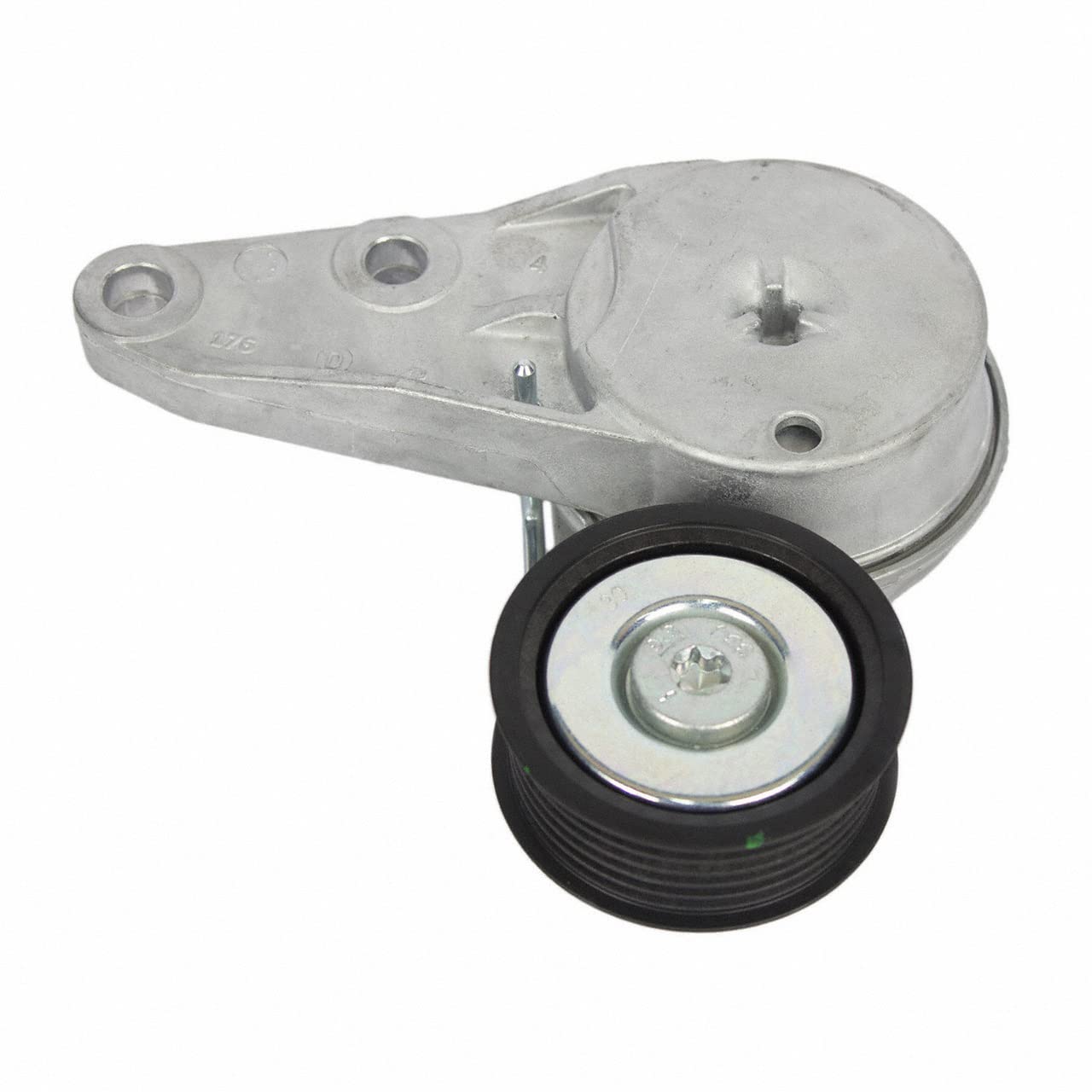

Image: The Motorcraft BT123 Belt Tensioner Assembly, showing the main body and pulley.
Installation Instructions
The following steps outline the general procedure for installing the Motorcraft BT123 Belt Tensioner Assembly. Always refer to your vehicle's specific service manual for detailed instructions and torque specifications.
- Prepare the Vehicle: Park the vehicle on a level surface, engage the parking brake, and turn off the engine. Allow the engine to cool completely. Disconnect the negative terminal of the battery.
- Locate the Tensioner: Identify the existing belt tensioner on the engine's serpentine belt system. Note the belt routing diagram, usually found under the hood or in the vehicle's service manual.
- Relieve Belt Tension: Using an appropriate wrench or tensioner tool, rotate the tensioner arm to relieve tension on the serpentine belt. Carefully remove the belt from the tensioner pulley.
- Remove Old Tensioner: Unbolt the old tensioner from its mounting point on the engine. Keep track of any washers or spacers.
- Install New Tensioner: Position the Motorcraft BT123 Belt Tensioner Assembly in place and secure it with the mounting bolts. Tighten the bolts to the vehicle manufacturer's specified torque.
- Reinstall Serpentine Belt: Route the serpentine belt according to the diagram. Use the tensioner tool to rotate the tensioner arm, allowing enough slack to slip the belt over the tensioner pulley. Slowly release the tensioner arm to apply tension to the belt. Ensure the belt is properly seated in all pulleys.
- Final Checks: Reconnect the negative battery terminal. Start the engine and observe the belt for proper alignment and smooth operation. Listen for any unusual noises. Turn off the engine and re-check all mounting bolts for tightness after a short period of operation.
Operation and Function
The Motorcraft BT123 Belt Tensioner Assembly is a critical component in your vehicle's accessory drive system. Its primary function is to maintain constant and correct tension on the serpentine belt. This ensures that all belt-driven accessories, such as the alternator, power steering pump, and air conditioning compressor, operate efficiently and reliably. The internal spring mechanism of the tensioner automatically adjusts to compensate for belt stretch and wear, providing consistent performance.
Maintenance
The Motorcraft BT123 Belt Tensioner Assembly is designed for long-term reliability with minimal maintenance. However, periodic inspection is recommended as part of your vehicle's routine service schedule.
- Visual Inspection: Regularly inspect the tensioner for signs of wear, such as cracks in the housing, excessive play in the pulley, or corrosion. Check the serpentine belt for cracks, fraying, or glazing.
- Pulley Condition: Spin the tensioner pulley by hand (with the belt removed and engine off) to check for smooth rotation. Any grinding, squeaking, or excessive resistance indicates a worn bearing.
- Tensioner Arm Movement: Observe the tensioner arm's movement. It should move smoothly and return to its tensioned position without sticking.
- Replacement: If any signs of wear or malfunction are observed, replace the tensioner assembly promptly to prevent belt slippage or failure of accessory components.
Troubleshooting
If you experience issues with your vehicle's serpentine belt system, the tensioner may be a contributing factor. Here are common symptoms and potential solutions:
| Symptom | Possible Cause | Solution |
|---|---|---|
| Squealing or chirping noise from belt | Loose belt tension, worn belt, worn tensioner pulley bearing, misaligned pulley. | Inspect belt and tensioner. Replace tensioner if it's not providing adequate tension or if pulley is worn. Check pulley alignment. |
| Belt slipping or coming off pulleys | Insufficient tension from tensioner, worn tensioner, incorrect belt length, misaligned pulleys. | Verify tensioner operation. Replace if weak. Ensure correct belt routing and size. Check pulley alignment. |
| Vibration or rattling from engine area | Worn tensioner bearing, loose tensioner mounting, worn tensioner spring. | Inspect tensioner for play or looseness. Replace if bearing is noisy or if the assembly is loose. |
| Accessory component (e.g., alternator) underperforming | Belt slippage due to insufficient tension. | Check tensioner and belt condition. Replace as necessary. |
If troubleshooting steps do not resolve the issue, it is recommended to consult a certified automotive technician.
Specifications
| Feature | Detail |
|---|---|
| Model Number | BT123 |
| Brand | Motorcraft |
| Product Dimensions | 19.28 x 13.08 x 10.49 cm |
| Item Weight | 887 g |
| Manufacturer Part Number | BT123 |
| Country of Origin | China |
Warranty and Support
For warranty information and customer support regarding your Motorcraft BT123 Belt Tensioner Assembly, please refer to the official Motorcraft website or contact your authorized Motorcraft dealer. Keep your purchase receipt as proof of purchase for any warranty claims.
Official Motorcraft Website: www.motorcraft.com
